Nissan Murano. Manual - part 305

DAS-110

< SYSTEM DESCRIPTION >

[BSW]

SYSTEM

Input Signal Item

Output Signal Item

FUNCTION DESCRIPTION

• The BSW system can help alert the driver of other vehicles in adjacent lanes when changing lanes.
• The BSW system uses rear view camera installed near the rear bumper to detect vehicles in an adjacent

lane.

Transmit unit

Signal name

Description

ABS actuator
and electric unit
(control unit)

CAN com-
munica-
tion

Vehicle speed signal (ABS)

Receives wheel speeds of four wheels

BCM

CAN com-
munica-
tion

Turn indicator signal

Receives an operational state of the turn signal lamp
and the hazard lamp

Dimmer signal

Receives an ON/OFF state of dimmer signal

AV control unit

CAN com-
munica-
tion

System selection signal

Receives a selection state of each item in “Driver as-
sist” selected with the navigation system

Steering angle
sensor

CAN com-
munica-
tion

Steering angle sensor signal

Receives the number of revolutions, turning direction of
the steering wheel

ECM

CAN com-
munica-
tion

Engine status signal

Receives the engine status

Engine coolant temperature signal

Receives the engine coolant temperature

A/C auto amp.

CAN com-
munica-
tion

Ambient sensor signal

Receives the ambient temperature

Rear view cam-
era

Communi-
cation line

Camera image signal

Receives the camera image signal

Washer level
switch

Washer level switch signal

Receives a status of washer fluid level

Warning sys-
tems switch

Warning systems switch signal

Receives an ON/OFF state of the warning systems
switch

Reception unit

Signal name

Description

Combination
meter

CAN communication

BSW warning lamp signal

Transmits a BSW warning lamp signal to turn ON the
Blind Spot Warning/Blind Spot Intervention warning
lamp

BSW ON indictor signal

Transmits a BSW ON indictor lamp signal to turn ON
the BSW ON indictor lamp

Meter dis-
play signal

Clean camera dis-
play signal

Transmits a meter display signal to turn ON the clean
camera indication on the information display.

Buzzer output signal

Transmits a buzzer output signal to activates the warn-
ing buzzer

Pump control
unit

Communication line

Rear view camera washer signal

Transmits a rear view camera washer signal to acti-
vates the washer pump

Rear view camera air blow signal

Transmits a rear view camera air blow signal to acti-
vates the air pump

Warning sys-
tems ON indi-
cator

Warning systems ON indicator signal

Turns ON the warning systems ON indicator

Warning buzz-
er

Warning buzzer operation signal

Activates the warning buzzer

BSW indicator
LH, RH

Indicator operation signal

Turns ON the BSW indicator LH, RH

DAS

SYSTEM

DAS-111

< SYSTEM DESCRIPTION >

[BSW]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

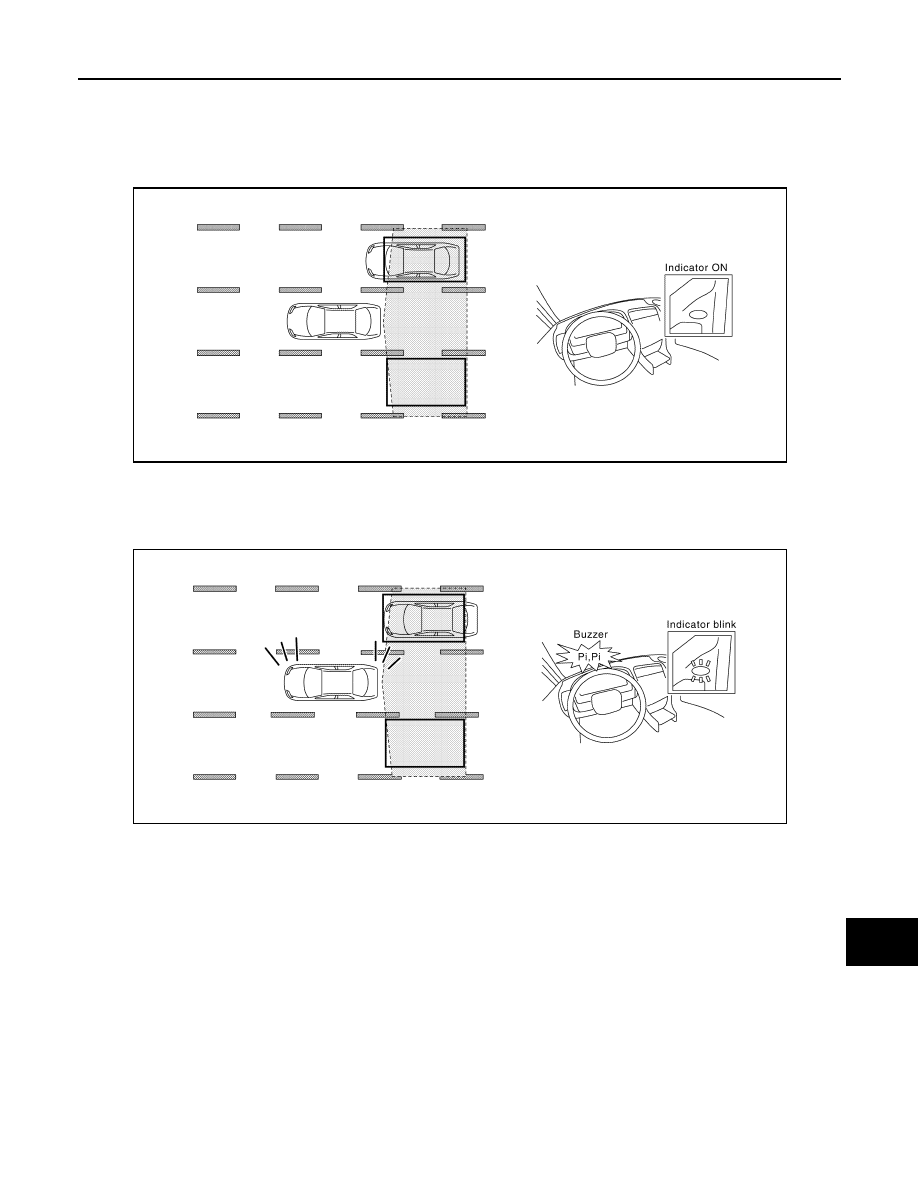

• The rear view camera can detect vehicles on either side of vehicle within the detection zone shown as illus-

trated.

• This detection zone starts from the outside mirror of vehicle and extends approximately 10 ft (3.0 m) behind

the rear bumper, and approximately 10 ft (3.0 m) sideways.

• The BSW system operates above approximately 32 km/h (20 MPH).
• If the rear view camera detects vehicles in the detection zone, the BSW indicator illuminates.

• If the driver then activates the turn signal, a buzzer will sound twice and the BSW indicator will blink.

NOTE:
A buzzer sounds if the rear view camera have already detected vehicles when the driver activates the turn
signal. If a vehicle comes into the detection zone after the driver activates the turn signal, then only the BSW
indicator blinks and no buzzer sounds.

BSW SYSTEM OPERATION DESCRIPTION

• Camera control unit enables BSW system.
• The camera control unit turns on the BSW system when the warning systems switch is turned ON.
• Rear view camera transmits the camera image signal to camera control unit via communication line.
• Camera control unit starts the control as follows, based on a camera image signal, turn signal and dimmer

signal transmitted from BCM via CAN communication:

- Buzzer output signal transmission to combination meter via CAN communication.
• Camera control unit transmits an indicator operation signal to the BSW indicator according to BSW indicator

signal and BSW dimmer signal.

Operation Condition of BSW System

Camera control unit performs the control when the following conditions are satisfied.
• When the warning systems switch in turned ON

*

.

• When the vehicle drives at 32 km/h (20 MPH) or more to the forward direction.
NOTE:
*: When the BSW system setting on the navigation screen is ON.
• After the operating conditions of warning are satisfied, the warning continues until the vehicle speed reaches

approximately 29 km/h (18 MPH)

JSOIA0642ZZ

JSOIA0643ZZ

DAS-112

< SYSTEM DESCRIPTION >

[BSW]

SYSTEM

• The BSW system may not function properly, depending on the situation. Refer to

DAS-118, "Precautions for

Blind Spot Warning"

.

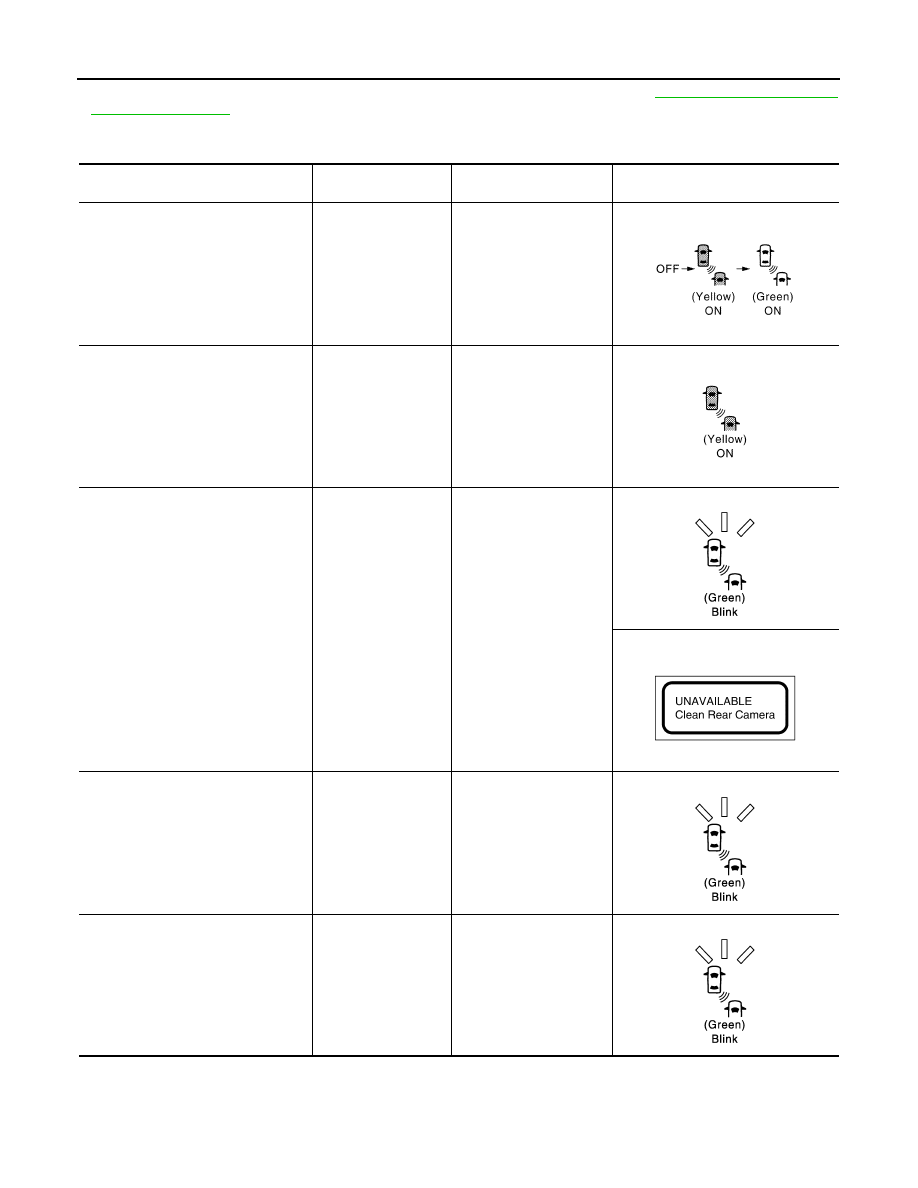

BULB CHECK ACTION AND FAIL-SAFE INDICATION

REAR VIEW CAMERA WASHER OPERATION

• When judging that the rear view camera has water droplets, the camera control unit transmits a rear view

camera washer activation signal or rear view camera air blow signal to the pump control unit via serial com-
munication.

Vehicle condition/Driver

′

s operation

BSW indicator

Warning systems

ON indicator

Indication on the combination meter

Ignition switch:
OFF

⇒

 ON

Approx. 2 sec. ON

Approx. 5 sec. ON

When DTC is detected

OFF

ON

When vehicles cannot be detected due
to dirt on the rear view camera

OFF

ON

In the information display

When the washer fluid level is low
(Low washer warning ON)

OFF

ON

Blinks at intervals of two seconds.

When the back door is open
(Back door open warning ON)

OFF

ON

Blinks at intervals of two seconds.

JSOIA0670GB

JSOIA0671GB

JSOIA0261GB

JSOIA0638GB

JSOIA0261GB

JSOIA0261GB

DAS

SYSTEM

DAS-113

< SYSTEM DESCRIPTION >

[BSW]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

• When receiving a rear view camera washer activation signal, the pump control unit simultaneously activates

the washer pump to clean the rear view camera by spraying washer fluid from the nozzle installed to the rear
view camera bracket.

• The washer switching solenoid valve switches the washer path from rear window to rear view camera.
• When receiving a rear view camera air blow signal, the pump control unit activates the air pump to clean the

rear view camera by blowing air from the nozzle installed to the rear view camera bracket.

OPERATION CONDITION

• Approximately 30 km/h (20 MPH) or more
• When the camera control unit judges that the rear view camera has water droplets.
• When the front washer and the rear washer are not activated.
• When the low washer fluid warning is OFF.
NOTE:
The camera is cleaned intermittently by spraying washer fluid and blowing air. When the camera control unit
judges that dirt on the camera cannot be removed even after approximately 5 minutes from the first detection
of dirt, the activation of BSW is canceled.

Fail-Safe

INFOID:0000000009723321

DTC

Display contents of CONSULT

Malfunction detection condition

Fail-safe condition

C1A03
VHCL SPEED SE CIRC

If the vehicle speed signal (wheel speed) from
ABS actuator and electric unit (control unit) re-
ceived by the camera control unit via CAN com-
munication, are inconsistent

• LDW system is cancel
• BSW system is cancel

C1A04
ABS/TCS/VDC CIRC

If a malfunction occurs in the VDC/TCS/ABS
system

• LDW system is cancel
• BSW system is cancel

C1A39
STRG SEN CIR

If the steering angle sensor is malfunction

• LDW system is cancel
• BSW system is cancel

U0122
VDC P-RUN DIAGNOSIS

If camera control unit detects an error signal
that is received from ABS actuator and electric
unit (control unit) via CAN communication

• LDW system is cancel
• BSW system is cancel

U0416
VDC CHECKSUM DIAGNOSIS

If camera control unit detects an error signal
that is received from ABS actuator and electric
unit (control unit) via CAN communication

• LDW system is cancel
• BSW system is cancel

U0428
ST ANGLE SENSOR CALIBRA-
TION

Neutral position adjustment of steering angle
sensor is not complete.

• Predicted course line is not displayed.
• MOD (Moving Object Detection) function is

stopped.

• LDW system is stopped.
• BSW system is stopped.
