L TERMINAL CIRCUIT (OPEN)

5.

CHECK POWER SUPPLY CIRCUIT

1.

Connect the battery cable to the negative terminal.

2.

Check voltage between combination meter harness connector and ground.

Is the inspection result normal?

YES

>> Replace combination meter.

NO

>> Inspect the power supply circuit. Refer to

PG-47, "Wiring Diagram - IGNITION POWER SUPPLY -

"

.

Terminals

Condition

Voltage (Approx.)

(+)

(–)

Combination meter

harness connector

Terminal

M34

2

Ground

When the ignition switch is in

ON position

Battery voltage

CHG

L TERMINAL CIRCUIT (SHORT)

CHG-17

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

L TERMINAL CIRCUIT (SHORT)

Description

INFOID:0000000009722551

The “L” terminal circuit controls the charge warning lamp. The charge warning lamp illuminates when the igni-
tion switch is set to ON or START. When the alternator is providing sufficient voltage with the engine running,
the charge warning lamp will go off. If the charge warning lamp illuminates with the engine running, a malfunc-
tion is indicated.

Diagnosis Procedure

INFOID:0000000009722552

1.

CHECK “L” TERMINAL CIRCUIT (SHORT)

1.

Turn ignition switch OFF.

2.

Disconnect alternator connector.

3.

Turn ignition switch ON.

Does charge warning lamp illuminate?

YES

>> GO TO 2.

NO

>> Refer to

CHG-3, "Work Flow (With EXP-800 NI or GR8-1200 NI)"

 or

CHG-7, "Work Flow (Without

EXP-800 NI or GR8-1200 NI)"

.

2.

CHECK HARNESS CONTINUITY (SHORT CIRCUIT)

1.

Turn ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Disconnect combination meter connector.

4.

Check continuity between combination meter harness connector and ground.

Is the inspection result normal?

YES

>> Replace combination meter.

NO

>> Repair the harness.

Combination meter harness connector

Ground

Continuity

Connector No.

Terminal No.

M34

25

Not existed

CHG-18

< DTC/CIRCUIT DIAGNOSIS >

S TERMINAL CIRCUIT

S TERMINAL CIRCUIT

Description

INFOID:0000000009722553

The output voltage of the alternator is controlled by the IC voltage regulator at the “S” terminal detecting the
input voltage.
The “S” terminal circuit detects the battery voltage to adjust the alternator output voltage with the IC voltage
regulator.

Diagnosis Procedure

INFOID:0000000009722554

1.

CHECK “S” TERMINAL CONNECTION

1.

Turn ignition switch OFF.

2.

Check if “S” terminal is clean and tight.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair “S” terminal connection. Confirm repair by performing complete Charging system test

using EXP-800 NI or GR8-1200 NI (if available). Refer to the applicable Instruction Manual for
proper testing procedures.

2.

CHECK “S” TERMINAL CIRCUIT

Check voltage between alternator harness connector and ground.

Is the inspection result normal?

YES

>> Refer to

CHG-3, "Work Flow (With EXP-800 NI or GR8-1200 NI)"

 or

CHG-7, "Work Flow (Without

EXP-800 NI or GR8-1200 NI)"

.

NO

>> Check harness for open between alternator and fuse.

Terminals

Voltage (Approx.)

(+)

(–)

Alternator harness connector

Terminal

F60

4

Ground

Battery voltage

CHG

CHARGING SYSTEM

CHG-19

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

CHARGING SYSTEM

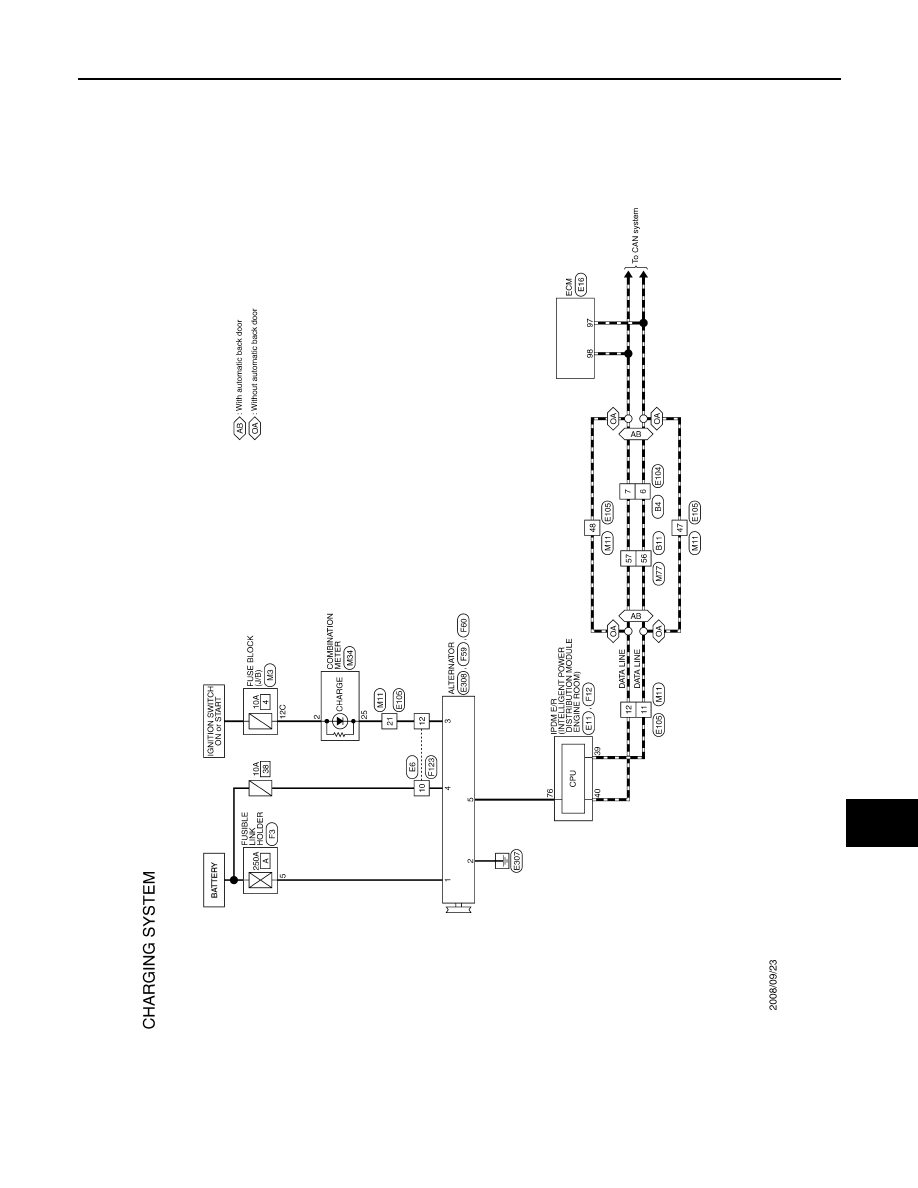

Wiring Diagram - CHARGING SYSTEM -

INFOID:0000000009722555

JCMWM3186GB
