BRC-124

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

WHEEL SENSOR

• When installing, make sure there is no foreign material such as iron chips on and in the mounting hole of the

wheel sensor. Make sure no foreign material has been caught in the sensor rotor. Remove any foreign mate-
rial and clean the mount.

• When installing wheel sensor, be sure to press rubber grommets in until they lock at locations shown above

in the figure. When installed, harness must not be twisted.

REAR WHEEL SENSOR

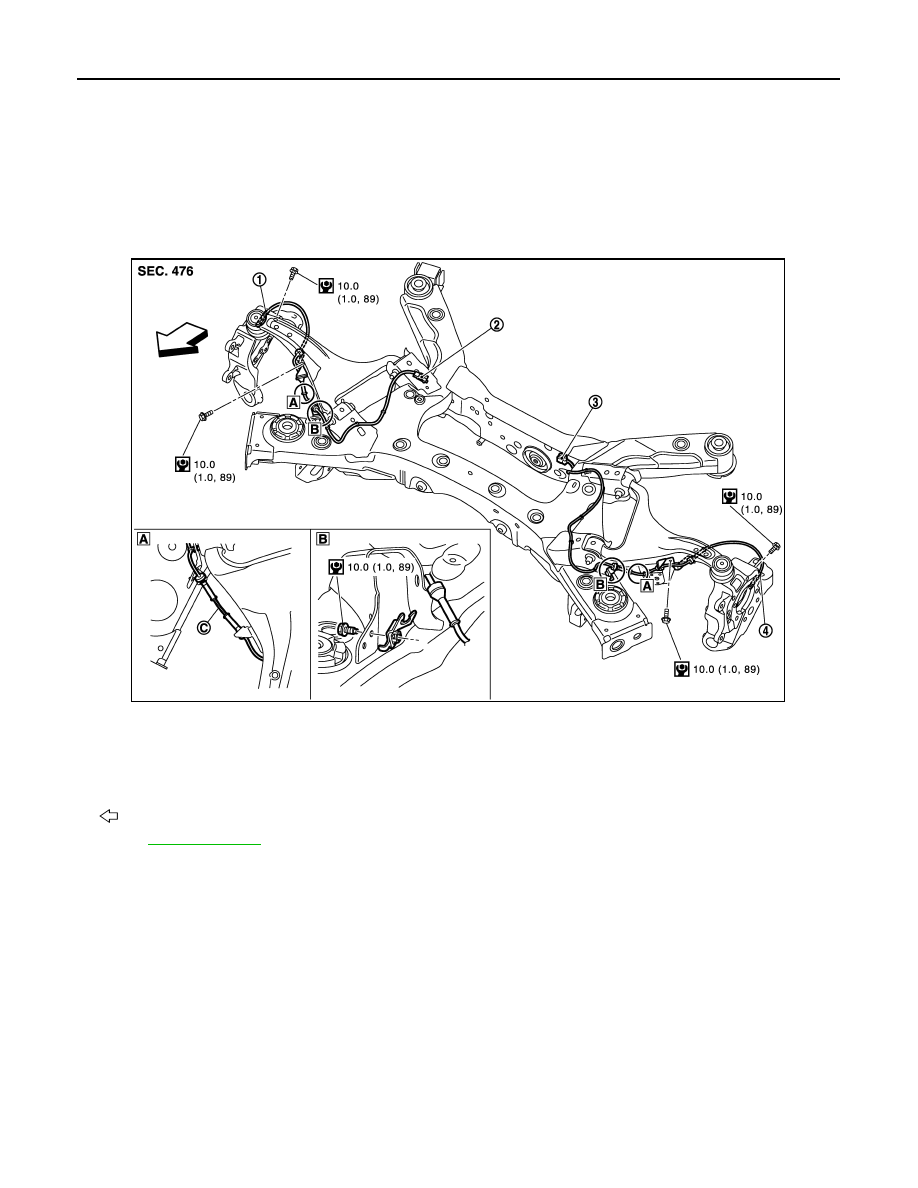

REAR WHEEL SENSOR : Exploded View

INFOID:0000000009718380

REAR WHEEL SENSOR : Removal and Installation

INFOID:0000000009718381

REMOVAL

Be careful with the following when removing sensor.

CAUTION:

• Never twist sensor harness as much as possible, when removing it. Pull sensors out without pulling

sensor harness.

• Be careful to avoid damaging sensor edges or rotor teeth. Remove wheel sensor first before remov-

ing front or rear wheel hub. This is to avoid damage to sensor wiring and loss of sensor function.

INSTALLATION

Be careful with the following when installing wheel sensor. Tighten installation bolts to the specified torques.
• When installing, make sure there is no foreign material such as iron chips on and in the mounting hole of the

wheel sensor. Make sure no foreign material has been caught in the sensor rotor. Remove any foreign mate-
rial and clean the mount.

1.

Rear RH wheel sensor

2.

Rear RH wheel sensor harness con-
nector

3.

Rear LH wheel sensor connector

4.

Rear LH wheel sensor

B.

AWD models only

C.

Color line (slant line)

: Vehicle front

Refer to

GI-4, "Components"

 for symbol in the figure.

JSFIA0191GB

WHEEL SENSOR

BRC-125

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

• When installing wheel sensor, be sure to press rubber grommets in until they lock at locations shown above

in the figure. When installed, harness must not be twisted.

BRC-126

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

SENSOR ROTOR

SENSOR ROTOR

FRONT SENSOR ROTOR

FRONT SENSOR ROTOR : Exploded View

INFOID:0000000009718382

Refer to

FAX-11, "Exploded View"

 (2WD),

FAX-38, "Exploded View"

 (AWD).

FRONT SENSOR ROTOR : Removal and Installation

INFOID:0000000009718383

REMOVAL

Sensor rotor cannot be disassembled. Remove the sensor rotor together with hub bearing assembly. Refer to

FAX-11, "Removal and Installation"

 (2WD),

FAX-38, "Removal and Installation"

 (AWD).

INSTALLATION

Sensor rotor cannot be disassembled. Install the sensor rotor together with hub bearing assembly. Refer to

FAX-11, "Removal and Installation"

 (2WD),

FAX-38, "Removal and Installation"

 (AWD).

REAR SENSOR ROTOR

REAR SENSOR ROTOR : Exploded View

INFOID:0000000009718384

Refer to

RAX-7, "Exploded View"

 (2WD),

RAX-15, "Exploded View"

 (AWD).

REAR SENSOR ROTOR : Removal and Installation

INFOID:0000000009718385

REMOVAL

Sensor rotor cannot be disassembled. Remove the sensor rotor together with hub bearing assembly. Refer to

RAX-7, "Removal and Installation"

 (2WD),

RAX-15, "Removal and Installation"

 (AWD).

INSTALLATION

Sensor rotor cannot be disassembled. Install the sensor rotor together with hub bearing assembly. Refer to

RAX-7, "Removal and Installation"

 (2WD),

RAX-15, "Removal and Installation"

 (AWD).

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-127

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

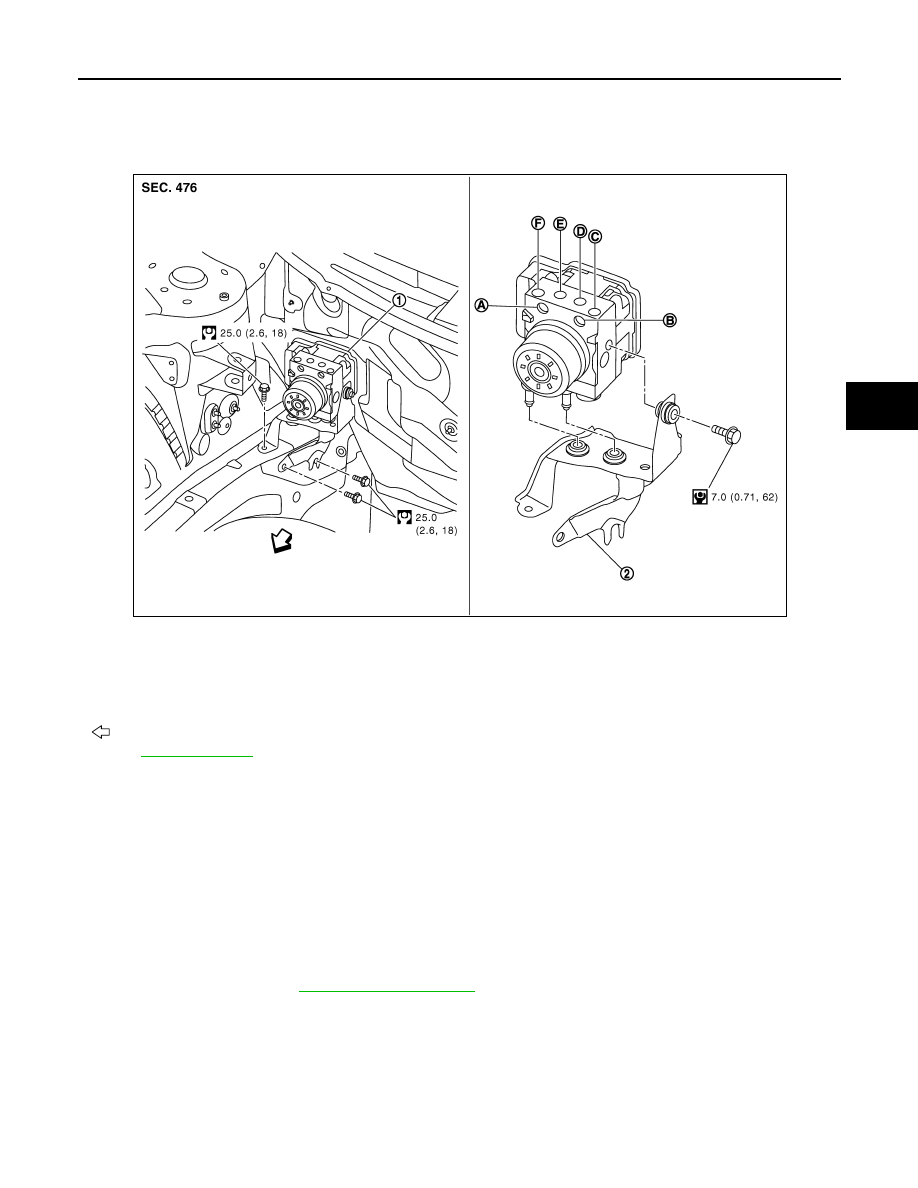

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

Exploded View

INFOID:0000000009718386

Removal and Installation

INFOID:0000000009718387

REMOVAL

CAUTION:

• Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it

off immediately and wash with water if it gets on a painted surface.

• Before servicing, disconnect the battery cable from negative terminal.
• To remove brake tube, use a flare nut wrench to prevent flare nuts and brake tube from being dam-

aged. To install, use flare nut crowfoot and torque wrench.

• Never apply excessive impact to ABS actuator and electric unit (control unit), such as dropping it.
• Never remove and install actuator by holding harness.

1.

Remove cowl top. Refer to

EXT-23, "Exploded View"

.

2.

Disconnect ABS actuator and electric unit (control unit) harness connector.

3.

Loosen brake tube flare nuts, then remove brake tubes from ABS actuator and electric unit (control unit).

4.

Remove ABS actuator and electric unit (control unit) bracket mounting bolts.

5.

Remove ABS actuator and electric unit (control unit) from vehicle.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Before servicing, disconnect the battery cable from negative terminal.

1.

ABS actuator and electric unit (control
unit)

2.

Bracket

A.

To rear RH brake caliper

B.

To rear LH brake caliper

C.

From master cylinder primary side

D.

To front RH brake caliper

E.

To front LH brake caliper

F.

From master cylinder secondary side

: Vehicle front

Refer to

GI-4, "Components"

 for symbol in the figure.

JSFIA0192GB
