BRC-20

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

ABS

ABS

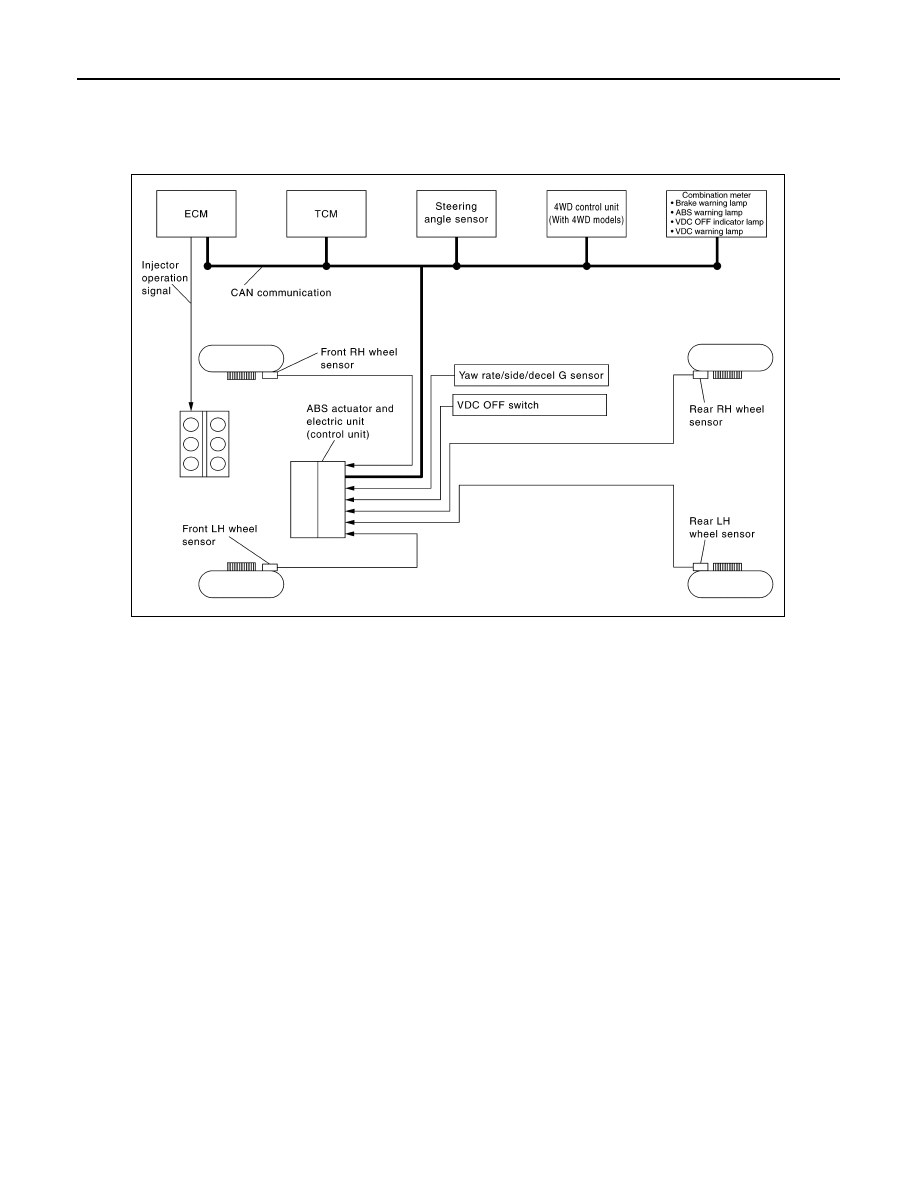

System Diagram

INFOID:0000000009718227

System Description

INFOID:0000000009718228

• The Anti-Lock Braking System detects wheel revolution while braking, and it improves handling stability dur-

ing sudden braking by electrically preventing 4 wheel lock. Maneuverability is also improved for avoiding
obstacles.

• Electrical system diagnosis by CONSULT is available.

Component Parts Location

INFOID:0000000009718229

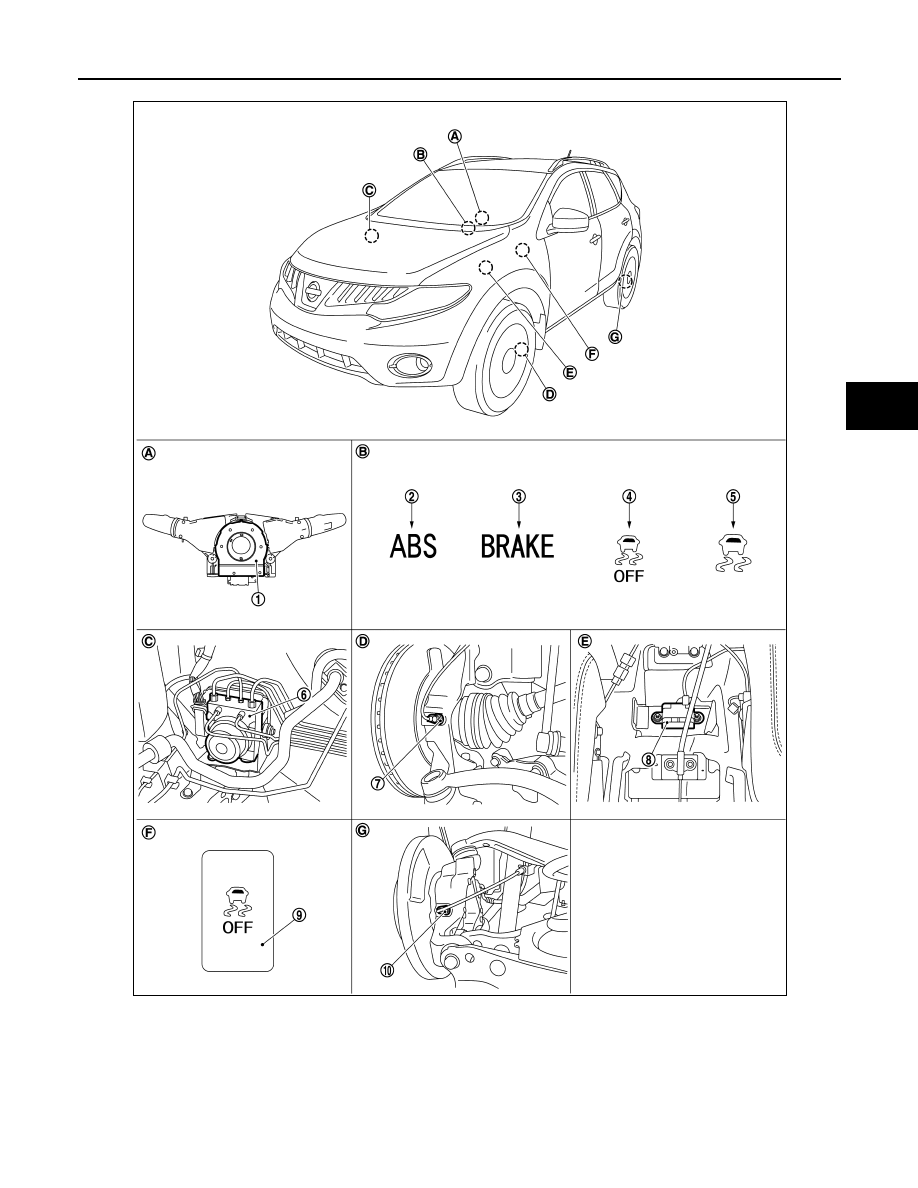

FOR USA

JSFIA1149GB

ABS

BRC-21

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

1.

Steering angle sensor

2.

ABS warning lamp

3.

Brake warning lamp

4.

VDC OFF indicator lamp

5.

VDC warning lamp

6.

ABS actuator and electric unit (con-
trol unit)

7.

Front wheel sensor

8.

Yaw rate/side/decel G sensor

9.

VDC OFF switch

10. Rear wheel sensor

JSFIA0529ZZ

BRC-22

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

ABS

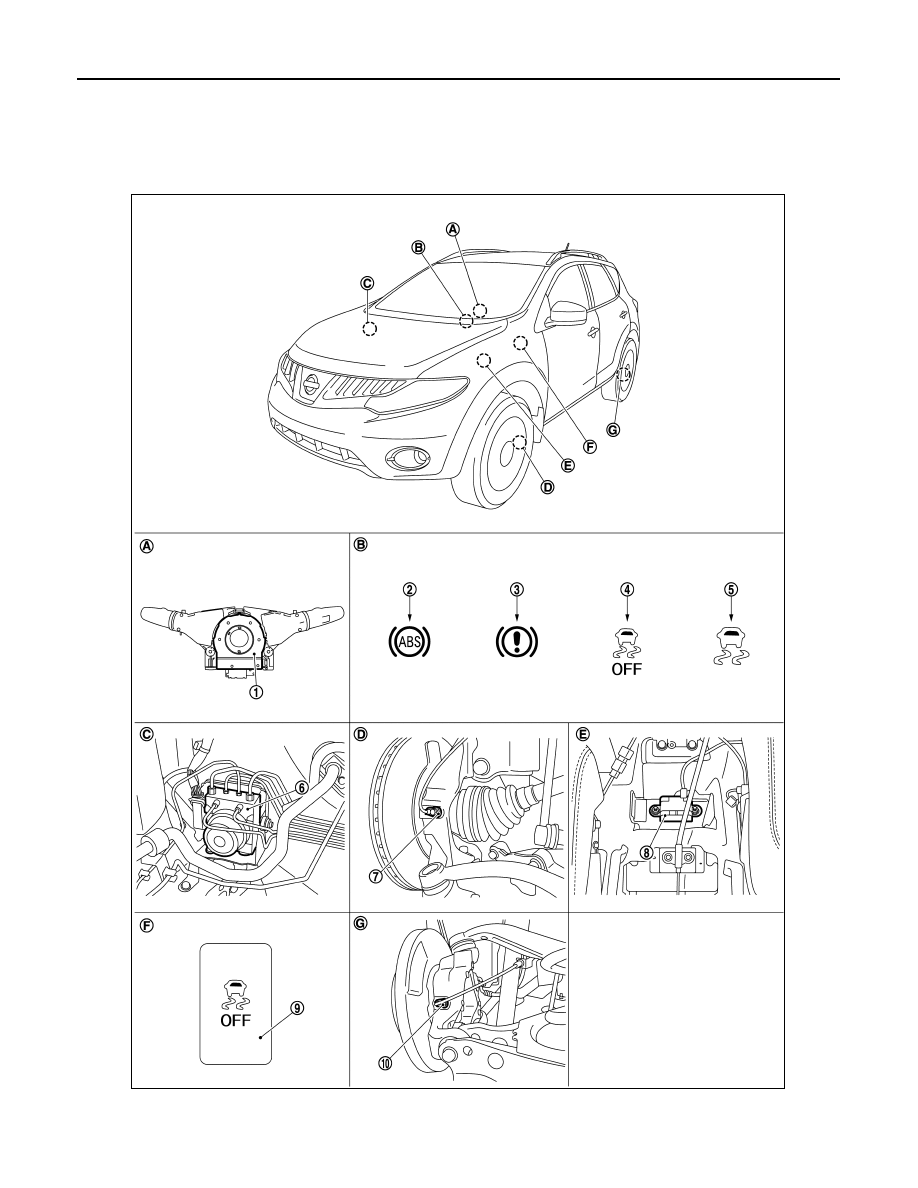

EXCEPT FOR USA

A.

Back of spiral cable assembly

B.

Combination meter

C.

Engine room (right side)

D.

Steering knuckle

E.

Under center console

F.

Instrument driver lower panel

G.

Rear axle

JSFIA0530ZZ

ABS

BRC-23

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Component Description

INFOID:0000000009718230

1.

Steering angle sensor

2.

ABS warning lamp

3.

Brake warning lamp

4.

VDC OFF indicator lamp

5.

VDC warning lamp

6.

ABS actuator and electric unit (con-
trol unit)

7.

Front wheel sensor

8.

Yaw rate/side/decel G sensor

9.

VDC OFF switch

10. Rear wheel sensor

A.

Back of spiral cable assembly

B.

Combination meter

C.

Engine room (right side)

D.

Steering knuckle

E.

Under center console

F.

Instrument driver lower panel

G.

Rear axle

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-45, "Description"

Motor

Actuator relay (Main relay)

BRC-64, "Description"

ABS IN valve

BRC-58, "Description"

ABS OUT valve

BRC-60, "Description"

Cut valve 1 (CV1), cut valve 2 (CV2)

BRC-81, "Description"

Suction valve 1 (SV1), suction valve 2 (SV2)

BRC-83, "Description"

Wheel sensor

BRC-33, "Description"

Yaw rate/side/decel G sensor

BRC-47, "Description"

Steering angle sensor

BRC-68, "Description"

VDC OFF switch

BRC-94, "Description"

ABS warning lamp

BRC-96, "Description"

Brake warning lamp

BRC-97, "Description"

VDC warning lamp

BRC-99, "Description"

VDC OFF indicator lamp

BRC-100, "Description"
