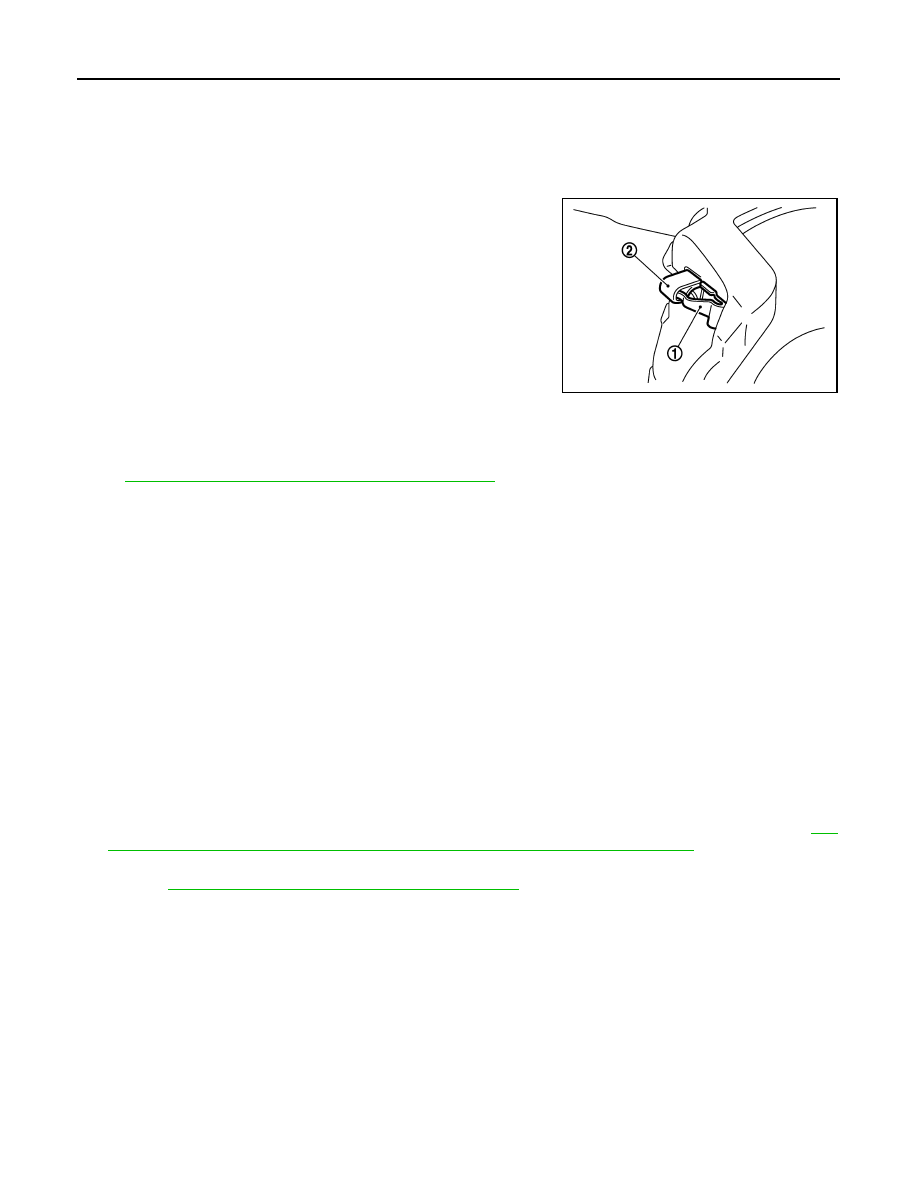

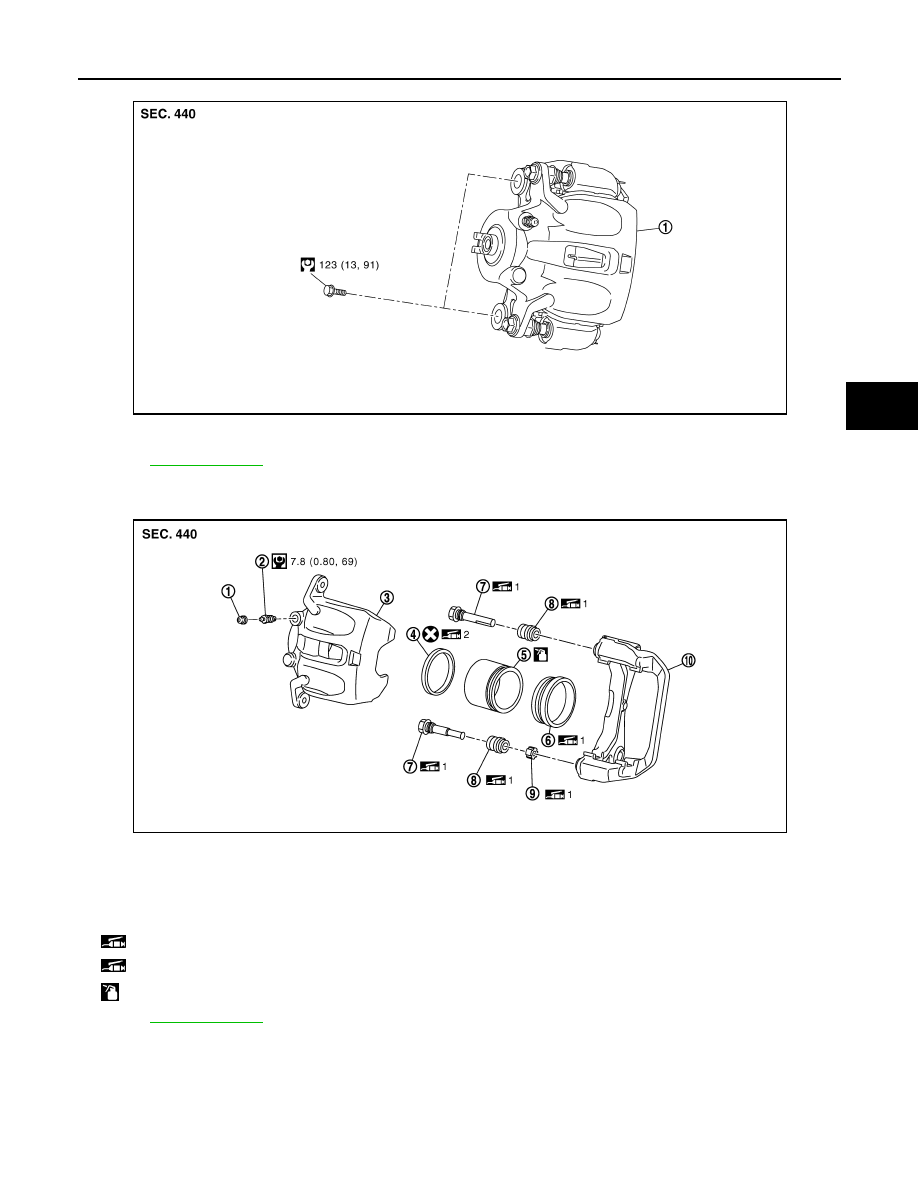

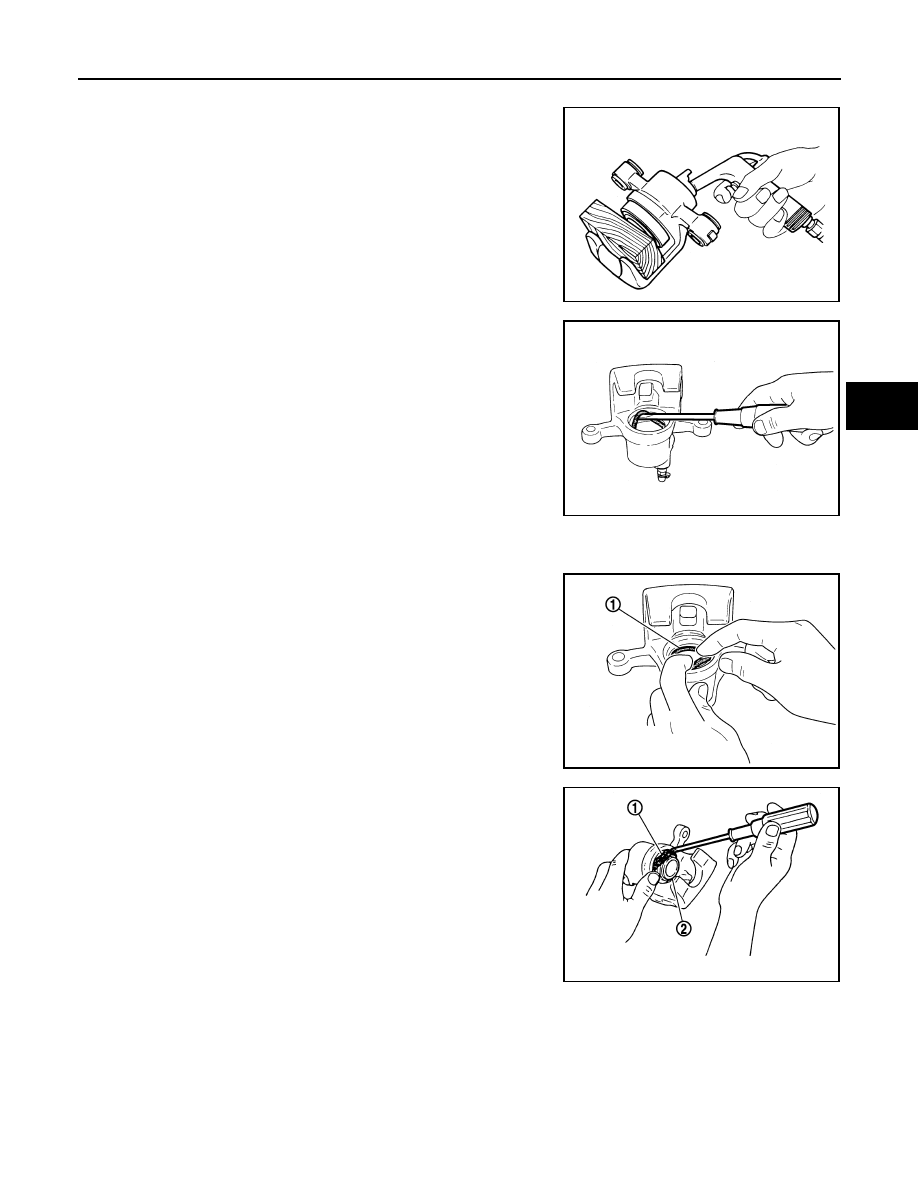

BR-38 < REMOVAL AND INSTALLATION > FRONT DISC BRAKE • Securely assemble the pad retainers so that it will not be lifted up from the torque member. 2. Apply copper based brake grease to the mating faces between the shims and shim covers, and install CAUTION: Always replace the shims together with the shim covers when replacing the brake pad. 3. Install the brake pads to the torque member. CAUTION: Both inner and outer pads have a pad return system on the 4. Install the cylinder body to the torque member. CAUTION: • Never damage the piston boot. level in the reservoir tank because brake fluid returns to NOTE: 5. Install the lower sliding pin bolt and tighten it to the specified torque. 6. Depress the brake pedal several times to check that no drag feel is present for the front disc brake. Refer BR-38, "BRAKE PAD (2 PISTON TYPE) : Inspection" BRAKE PAD (2 PISTON TYPE) : Inspection INFOID:0000000009722339 INSPECTION AFTER REMOVAL Replace the shims and the shim covers if rust is excessively attached. INSPECTION AFTER INSTALLATION 1. Check a drag of front disc brake. If any drag is found, follow the procedure described below. 2. Remove brake pads. 3. Press the piston. CAUTION: • Never damage the piston boot. fluid returns to master cylinder reservoir tank when pressing piston in. NOTE: 4. Install brake pads. 5. Depress the brake pedal several times. 6. Check a drag of front disc brake again. If any drag is found, disassemble the cylinder body. Refer to 44, "BRAKE CALIPER ASSEMBLY (2 PISTON TYPE) : Disassembly and Assembly" . 7. Burnish contact surfaces after refinishing or replacing pads, or if a soft pedal occurs at very low mileage. BR-16, "BRAKE PAD : Inspection and Adjustment" . BRAKE CALIPER ASSEMBLY (1 PISTON TYPE) BRAKE CALIPER ASSEMBLY (1 PISTON TYPE) : Exploded View INFOID:0000000009722340 REMOVAL JPFIA0027ZZ |
