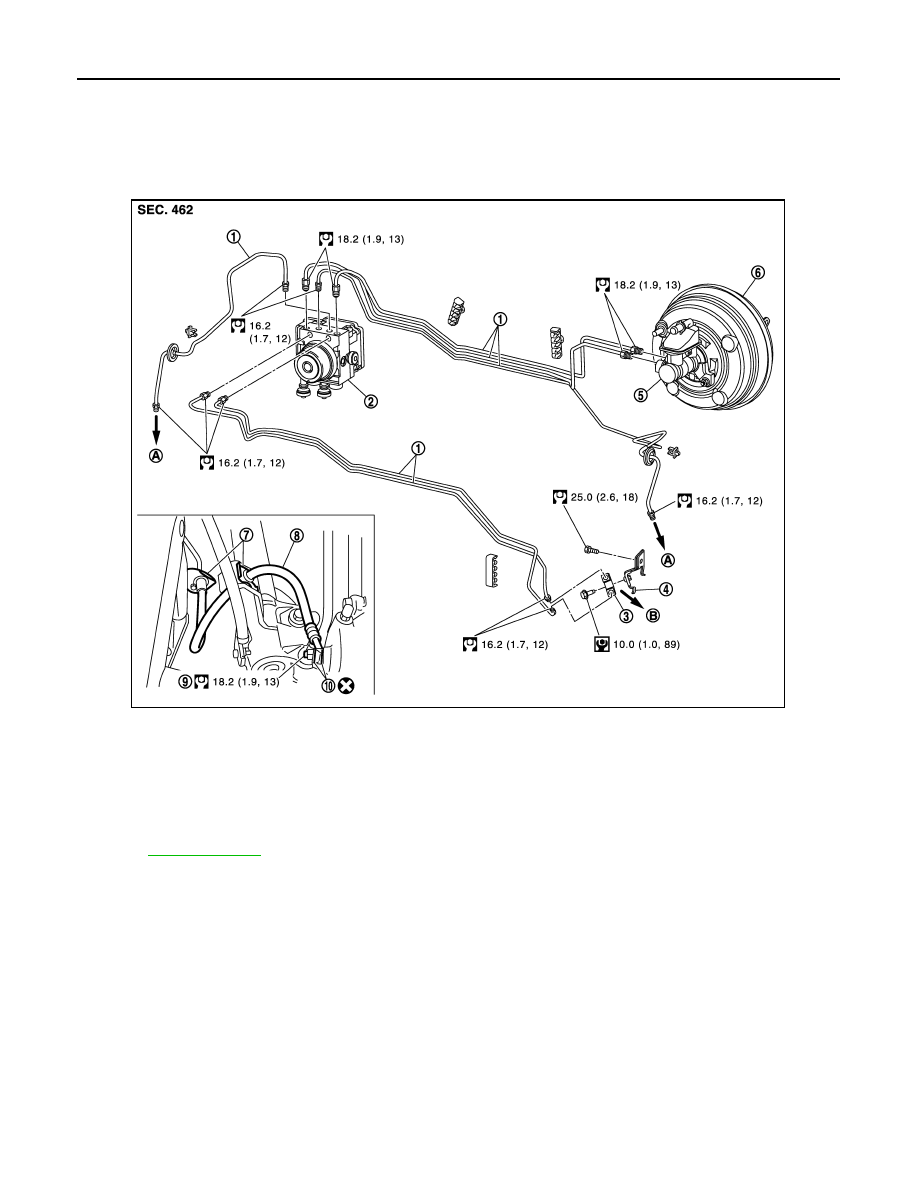

BR-22 < REMOVAL AND INSTALLATION > BRAKE PIPING BRAKE PIPING FRONT FRONT : Exploded View INFOID:0000000009722316 1. Brake tube 2. ABS actuator and electric unit (con- 3. Connector 4. Connector bracket 5. Master cylinder assembly 6. Brake booster 7. Lock plate 8. Brake hose 9. Union bolt 10. Copper washer A. To front brake hose B. To rear brake tube Refer to for symbols in the figure. JPFIA0297GB |
