Nissan Murano. Manual - part 178





BCS

DIAGNOSIS SYSTEM (BCM)

BCS-21

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

REAR WINDOW DEFOGGER

REAR WINDOW DEFOGGER : CONSULT Function (BCM - REAR DEFOGGER)

INFOID:0000000010074043

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

ACTIVE TEST

BUZZER

BUZZER : CONSULT Function (BCM - BUZZER)

INFOID:0000000010074044

CONSULT APPLICATION ITEMS

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Test item

Description

DOOR LOCK

This test is able to check door lock/unlock operation.
• The all door lock actuators are locked when “ALL LCK” on CONSULT screen is touched.
• The all door lock actuators are unlocked when “ALL UNLK” on CONSULT screen is touched.
• The door lock actuator (driver side) is unlocked when “DR UNLK” on CONSULT screen is

touched.

• The door lock actuator (passenger side) is unlocked when “AS UNLK” on CONSULT screen is

touched.

• The door lock actuator (rear LH and RH) is unlocked when “OTR ULK” on CONSULT screen is

touched.

Monitor Item

Description

REAR DEF SW

This is displayed even when it is not equipped.

PUSH SW

Indicates [ON/OFF] condition of push switch.

Test Item

Description

REAR DEFOGGER

Rear window defogger operates when “ON” on CONSULT screen is touched.

Test item

Diagnosis mode

Description

BUZZER

Data Monitor

Displays BCM input data in real time.

Active Test

Operation of electrical loads can be checked by sending driving signal to them.

Display item

[Unit]

Description

PUSH SW
[On/Off]

Status of push button ignition switch judged by BCM.

UNLK SEN-DR
[On/Off]

Status of unlock sensor judged by BCM.

VEH SPEED 1
[Km/h]

Value of vehicle speed signal received from ABS actuator and electric unit (control unit) with CAN
communication line.

KEY SW-SLOT
[On/Off]

Status of key slot judged by BCM.

TAIL LAMP SW
[On/Off]

Status of each switch judged by BCM using the combination switch readout function.

BCS-22

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

ACTIVE TEST

INT LAMP

INT LAMP : CONSULT Function (BCM - INT LAMP)

INFOID:0000000010074039

WORK SUPPORT

FR FOG SW
[On/Off]

Status of front fog lamp switch judged by BCM.

DOOR SW-DR
[On/Off]

Status of driver side door switch judged by BCM.

Display item

[Unit]

Description

Display item

[Unit]

Description

IGN KEY WARN ALM

The key warning chime operation can be checked by operating the relevant function (On/Off).

SEAT BELT WARN TEST

The seat belt warning chime operation can be checked by operating the relevant function (On/Off).

ID REGIST WARNING

The ID regist warning chime operation can be checked by operating the relevant function (On/Off).

LIGHT WARN ALM

The light warning chime operation can be checked by operating the relevant function (On/Off).

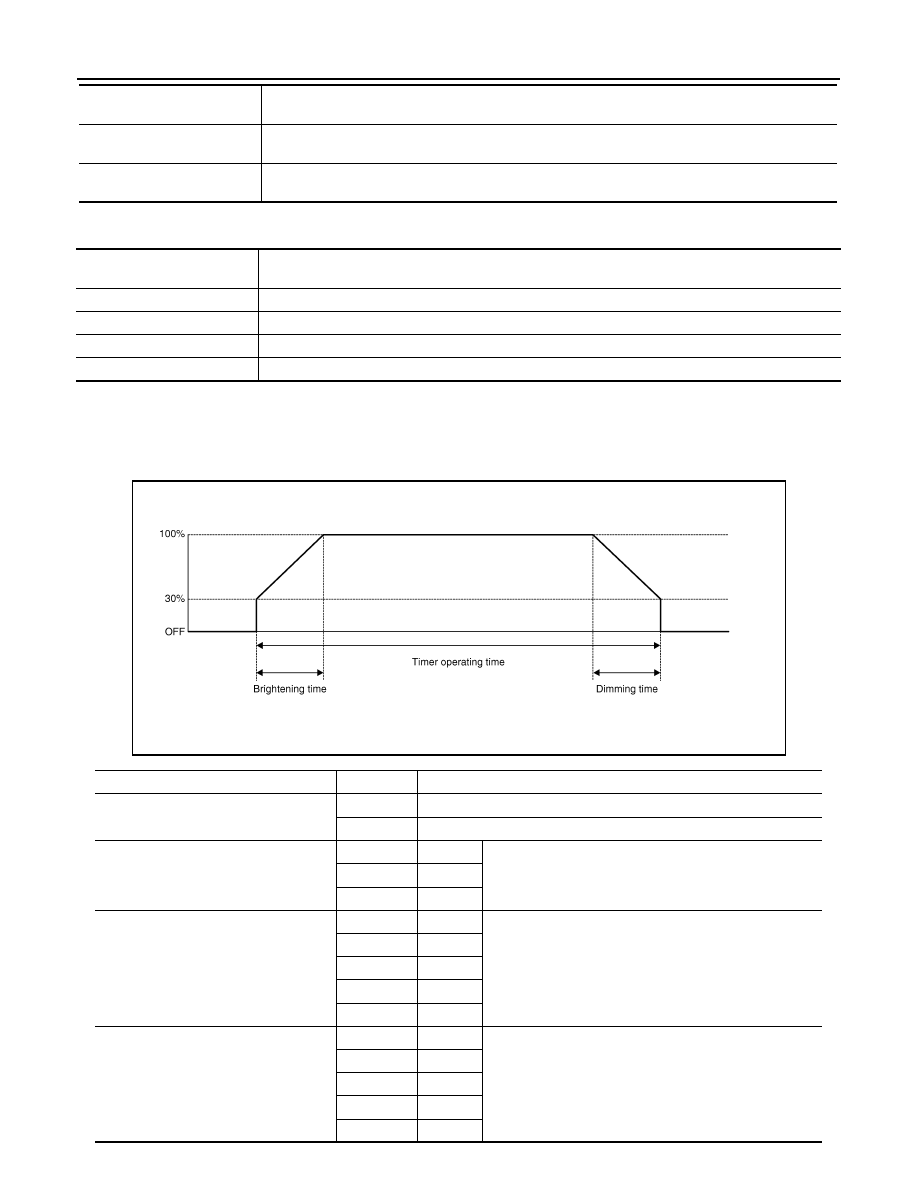

JPLIA0093GB

Service item

Setting item

Setting

SET I/L D-UNLCK INTCON

ON*

With the interior room lamp timer function

OFF

Without the interior room lamp timer function

ROOM LAMP TIMER SET

MODE 2

7.5 sec.

Sets the interior room lamp ON time. (Timer operating time)

MODE 3*

15 sec.

MODE 4

30 sec.

ROOM LAMP ON TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual brightening time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

0 sec.

ROOM LAMP OFF TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual dimming time.

MODE 2

1 sec.

MODE 3

2 sec.

MODE 4*

3 sec.

MODE 5

0 sec.

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-23

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

*: Factory setting

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

ACTIVE TEST

R LAMP TIMER LOGIC SET

MODE 1*

Interior room lamp timer activates with synchronizing all doors.

MODE 2

Interior room lamp timer activates with synchronizing the driver door
only.

Service item

Setting item

Setting

Monitor item

[Unit]

Description

REQ SW-DR
[On/Off]

The switch status input from request switch (driver side)

REQ SW-AS
[On/Off]

The switch status input from front request switch (passenger side)

PUSH SW
[On/Off]

The switch status input from push-button ignition switch

KEY SW-SLOT
[On/Off]

Key switch status input from key slot

DOOR SW-DR
[On/Off]

The switch status input from front door switch (driver side)

DOOR SW-AS
[On/Off]

The switch status input from front door switch (passenger side)

DOOR SW-RR
[On/Off]

The switch status input from rear door switch RH

DOOR SW-RL
[On/Off]

The switch status input from rear door switch LH

DOOR SW-BK
[On/Off]

NOTE:
The item is indicated, but not monitored.

CDL LOCK SW
[On/Off]

Lock switch status received from door lock/unlock switch by power window switch se-
rial link

CDL UNLOCK SW
[On/Off]

Unlock switch status received from door lock/unlock switch by power window switch
serial link

KEY CYL LK-SW
[On/Off]

Lock switch status received from key cylinder lock/unlock switch by power window
switch serial link

KEY CYL UN-SW
[On/Off]

Unlock switch status received from key cylinder lock/unlock switch by power window
switch serial link

BACK DOOR SW
[On/Off]

The switch status input from back door switch

RKE-LOCK
[On/Off]

Lock signal status received from remote keyless entry receiver

RKE-UNLOCK
[On/Off]

Unlock signal status received from remote keyless entry receiver

Test item

Operation

Description

INT LAMP

On

Outputs the interior room lamp control signal to turn map lamp and personal lamp ON
(Map lamp switch is in DOOR position).

Off

Stops the interior room lamp control signal to turn map lamp and personal lamp OFF.

STEP LAMP TEST

On

Outputs the step lamp control signal to turn step lamp ON.

Off

Stops the step lamp control signal to turn step lamp OFF.

BCS-24

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

HEADLAMP

HEADLAMP : CONSULT Function (BCM - HEAD LAMP)

INFOID:0000000010074035

WORK SUPPORT

*: Factory setting

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

LUGGAGE LAMP TEST

On

NOTE:
The item is displayed, but cannot be tested.

Off

Test item

Operation

Description

Service item

Setting item

Setting

BATTERY SAVER SET

On*

With the exterior lamp battery saver function

Off

Without the exterior lamp battery saver function

ILL DELAY SET

MODE 1*

45 sec.

Sets delay timer function timer operation time.
(All doors closed)

MODE 2

Without the func-
tion

MODE 3

30 sec.

MODE 4

60 sec.

MODE 5

90 sec.

MODE 6

120 sec.

MODE 7

150 sec.

MODE 8

180 sec.

CUSTOM A/LIGHT SET-
TING

MODE 1*

Normal

MODE 2

More sensitive setting than normal setting (Turns ON earlier than normal operation.)

MODE 3

More sensitive setting than MODE 2 (Turns ON earlier than MODE 2.)

MODE 4

Less sensitive setting than normal setting (Turns ON later than normal operation.)

Monitor item

[Unit]

Description

PUSH SW
[On/Off]

The switch status input from push-button ignition switch

ENGINE STATE
[Stop/Stall/Crank/Run]

The engine status received from ECM with CAN communication

VEH SPEED 1
[km/h]

The value of the vehicle speed received from combination meter with CAN commu-
nication

KEY SW-SLOT
[On/Off]

Key switch status input from key slot
