Nissan Murano. Manual - part 169

AV-454

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

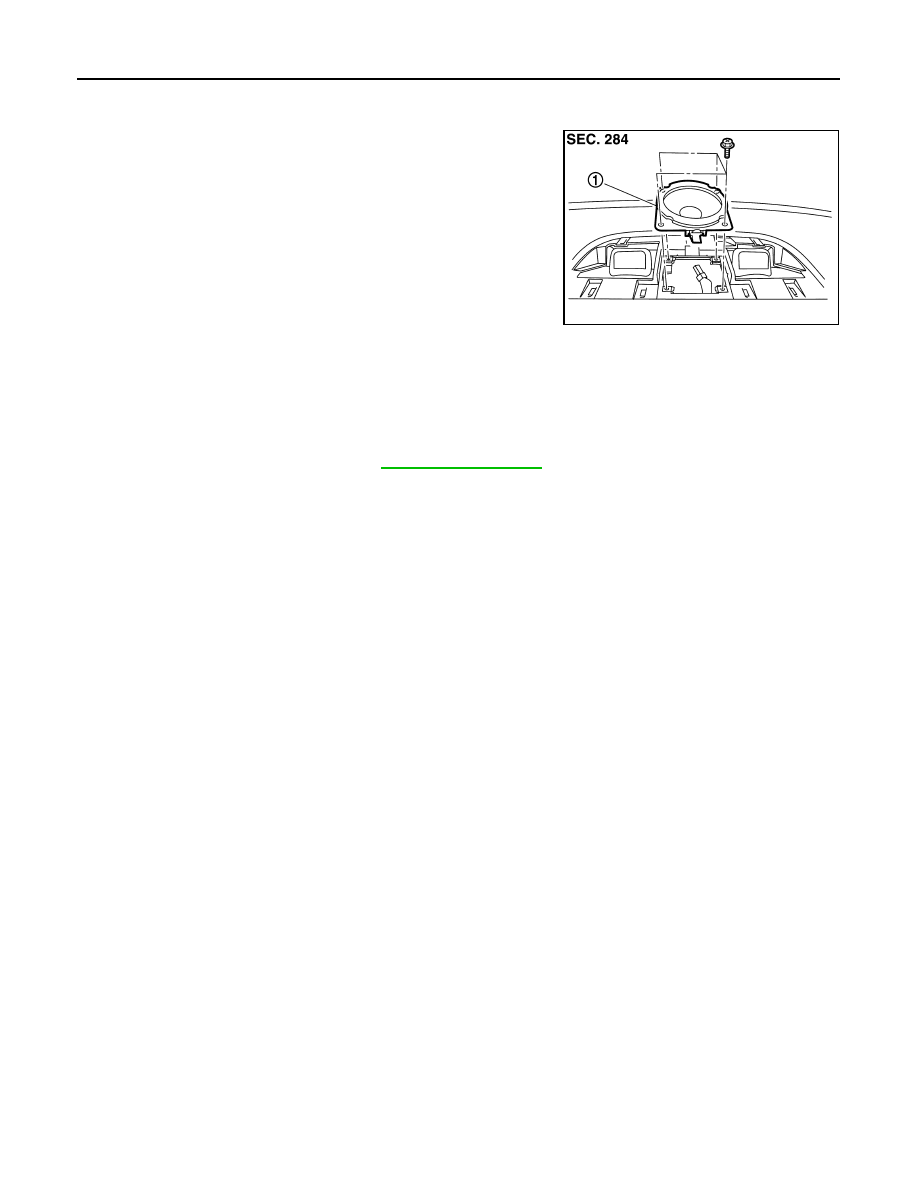

CENTER SPEAKER

CENTER SPEAKER

Exploded View

INFOID:0000000009721983

Removal and Installation

INFOID:0000000009721984

REMOVAL

1.

Remove center speaker grille. Refer to

IP-14, "Exploded View"

.

2.

Remove center speaker screws, lift up the center speaker and disconnect center speaker connector. Then
remove the center speaker.

INSTALLATION

Install in the reverse order of removal.

JPNIA0780ZZ

1.

Center speaker

AV

WOOFER

AV-455

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

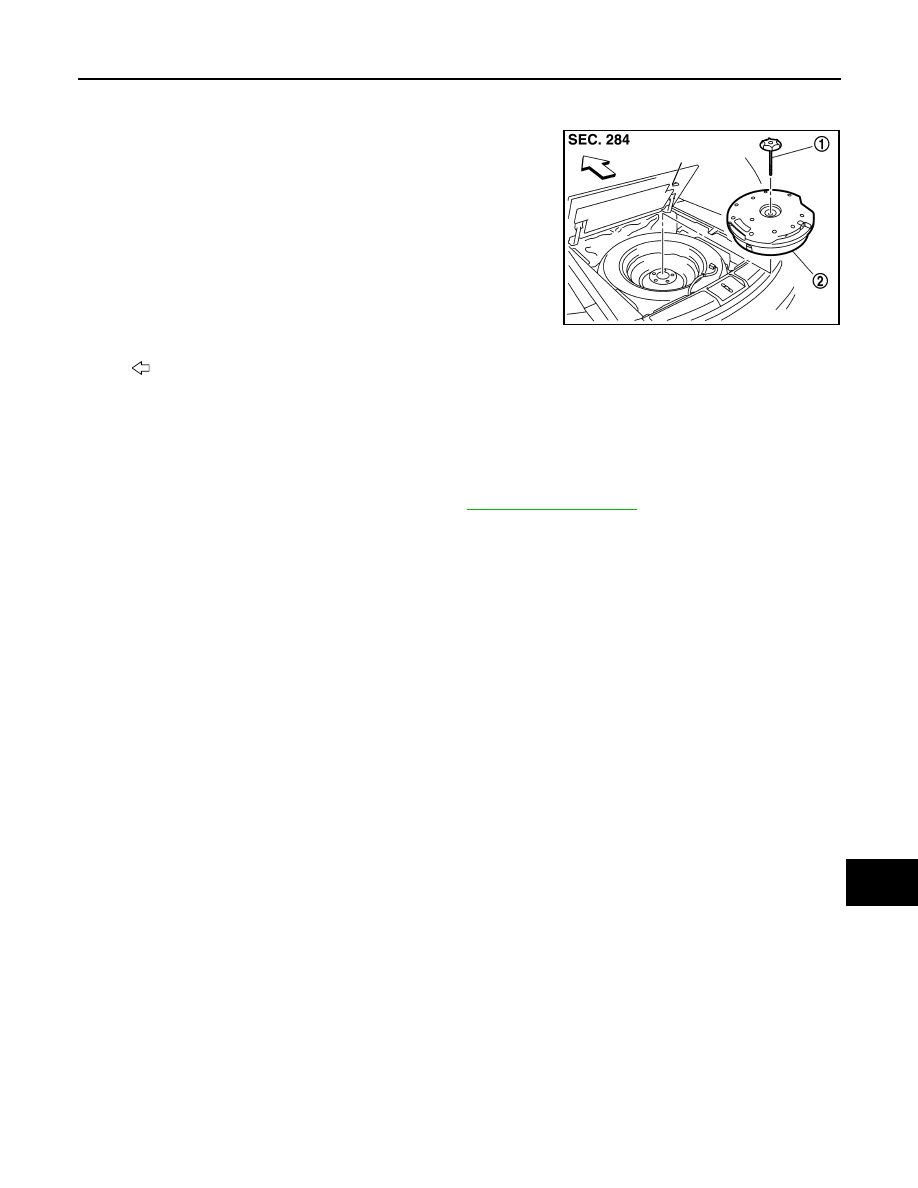

WOOFER

Exploded View

INFOID:0000000009721985

Removal and Installation

INFOID:0000000009721986

REMOVAL

1.

Remove luggage floor center finisher rear. Refer to

INT-34, "Exploded View"

.

2.

Remove clamp, disconnect woofer connector and remove the woofer.

INSTALLATION

Install in the reverse order of removal.

JPNIA0782ZZ

:

Vehicle front

1.

Clamp

2.

Woofer

AV-456

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

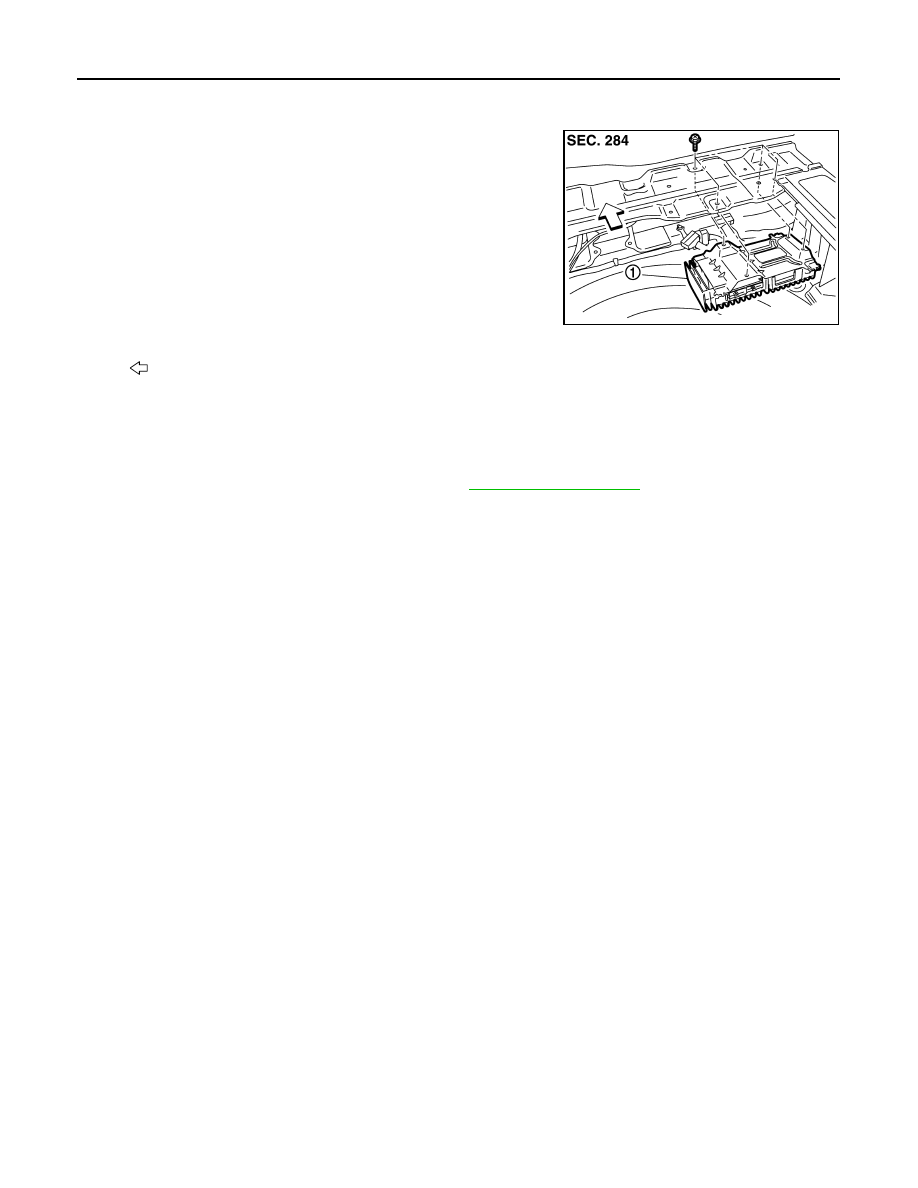

BOSE AMP.

BOSE AMP.

Exploded View

INFOID:0000000009721987

Removal and Installation

INFOID:0000000009721988

REMOVAL

1.

Remove luggage floor center finisher front. Refer to

INT-34, "Exploded View"

.

2.

Remove BOSE amp. screws, disconnect BOSE amp. connector and remove the BOSE amp.

INSTALLATION

Install in the reverse order of removal.

JPNIA0783ZZ

:

Vehicle front

1.

BOSE amp.

AV

MULTIFUNCTION SWITCH

AV-457

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

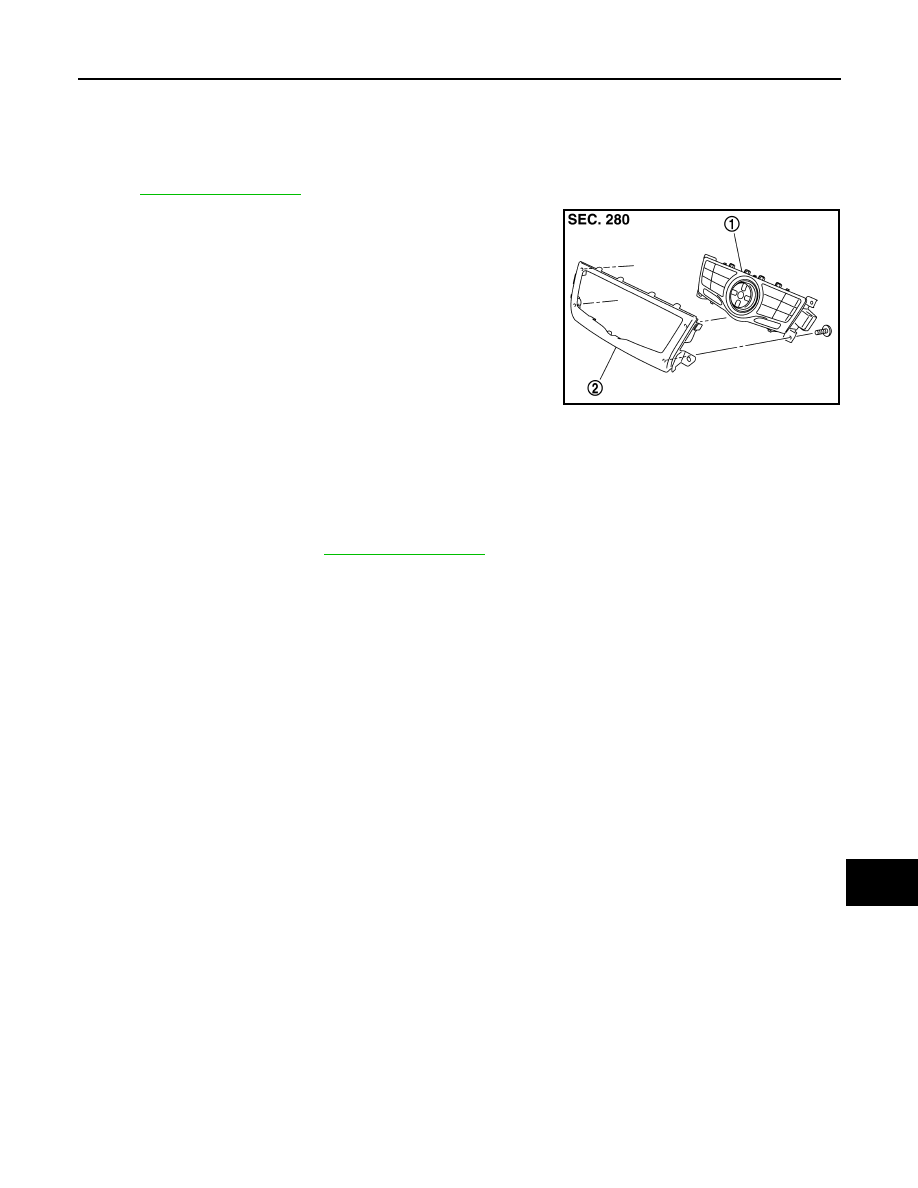

MULTIFUNCTION SWITCH

Exploded View

INFOID:0000000009721989

REMOVAL

Refer to

IP-14, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000009721990

REMOVAL

1.

Remove cluster lid D. Refer to

IP-14, "Exploded View"

.

2.

Remove multifunction switch with center ventilator grille as a single unit.

3.

Remove multifunction switch screws, remove multifunction switch from cluster lid D.

INSTALLATION

Install in the reverse order of removal.

JPNIA0800ZZ

1.

Multifunction switch

2.

Cluster lid D
