AV-446

< SYMPTOM DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

NORMAL OPERATING CONDITION

RELATED TO VOICE GUIDANCE

RELATED TO TRAFFIC INFORMATION

RELATED TO HANDS-FREE PHONE (EXCEPT FOR MEXICO)

The landmark information does
not correspond to the actual in-
formation.

This may be caused by insufficient or incorrect map data.

Updated information will be included
in the next version of the data.

The suggested route does not
exactly connect to the starting
point, waypoints, or destina-
tion.

There is no data for route calculation closes to these loca-
tions.

Set the starting point, waypoints and
destination on a main road, and per-
form route calculation.

Symptom

Possible cause

Possible solution

Symptom

Possible cause

Possible solution

Voice guidance is not available

Voice guidance is only available at certain intersections
marked with? In some case, voice guidance is not avail-
able even when the vehicle should make a turn.

This is not a malfunction.

The vehicle has deviated from the suggested route.

Go back to the suggested route or request
route calculation again

Voice guide is set to off.

Turn on voice guidance.

Route guidance is set to off.

Turn on voice guidance.

The guidance contact does not
correspond to the actual condi-
tion.

The contact of voice guidance may vary, depending on
the types of intersections at which turn are made.

Follow all traffic rules and regulations.

Symptom

Possible cause

Possible solution

The traffic information is
not displayed

The traffic information is not set to on.

Set the traffic information to on.

You are in an area where traffic information is not avail-
able

Scroll to an area where traffic information is avail-
able

You have not subscribed to XM NavTraffic or, your sub-
scription to XM NavTraffic has expired.

Check your subscription status of XM NavTraffic.

The map scale is set at a level where the display of icons
is impossible.

Check that the map scale is set at a level in which
the display of icons is possible.

With the automatic de-
tour route search ON,
no detour route is set to
avoid congested areas.

There is no faster route compared to the current route,
based on the road network and traffic information.

The automatic detour search is not intended for
avoiding traffic jams. It searches for the fasted
rote taking into consideration such things as traffic
jams.

The route does not
avoid road section with
traffic information stat-
ing it is closed due to
road construction.

The navigation system is designed not to avoid this
event because the actual period of closure may differ
from the declared roadwork period.

Observe the actual road condition and follow the
instructions on road for detour when necessary. If
the road closure is for certain, use detour function
and set the detour distance to avoid the closed
road section.

Traffic information dis-
played differs from in-
formation from other
media (e.g. radio).

Other media may use different information sources.

Observe the actual road conditions and regula-
tions. Always observe safe driving practices and
follow all traffic regulations.

AV

NORMAL OPERATING CONDITION

AV-447

< SYMPTOM DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

RELATED TO HANDS-FREE PHONE (FOR MEXICO)

Symptom

Cause and Counter measure

Does not recognize cellular phone connection. (No connection is
displayed on the display at the guide.)

Some Bluetooth

®

 enabled cellular phones may not be recognized

by the in-vehicle phone module. Refer to “RELATED TO HANDS-
FREE PHONE (Check Compatibility)” of MULTI AV SYSTEM
SYMPTOM.

Cannot use hands-free phone

Customer will not be able to use a hands-free phone under the fol-
lowing conditions.
• The vehicle is outside of the telephone service area.
• The vehicle is in an area where it is difficult to receive radio

waves; such as in a tunnel, in an underground parking garage,
near a tall building or in a mountainous area.

• The cellular phone is locked to prevent it from being dialed.
NOTE:

While a cellular phone is connected through the Bluetooth

®

 wire-

less connection, the battery power of the cellular phone may dis-

charge quicker than usual. The Bluetooth

®

 Hands-Free Phone

System cannot charge cellular phones.

The other party's voice cannot be heard by hands-free phone.

When the radio wave condition is not ideal or ambient sound is too
loud, it may be difficult to hear the other person's voice during a
call.

Poor sound quality

Do not place the cellular phone in an area surrounded by metal or
far away from the in-vehicle phone module to prevent tone quality
degradation and wireless connection disruption.

Symptom

Cause and Counter measure

Cannot use hands-free phone

Customer will not be able to use a hands-free phone under the fol-
lowing conditions.
• The vehicle is outside of the telephone service area.
• The vehicle is in an area where it is difficult to receive radio

waves; such as in a tunnel, in an underground parking garage,
near a tall building or in a mountainous area.

• The cellular phone is locked to prevent it from being dialed.
NOTE:

While a cellular phone is connected through the Bluetooth

®

 wire-

less connection, the battery power of the cellular phone may dis-

charge quicker than usual. The Bluetooth

®

 Hands-Free Phone

System cannot charge cellular phones.

The other party's voice cannot be heard by hands-free phone.

When the radio wave condition is not ideal or ambient sound is too
loud, it may be difficult to hear the other person's voice during a
call.

Poor sound quality

Do not place the cellular phone in an area surrounded by metal or
far away from the in-vehicle phone module to prevent tone quality
degradation and wireless connection disruption.

AV-448

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

AV CONTROL UNIT

REMOVAL AND INSTALLATION

AV CONTROL UNIT

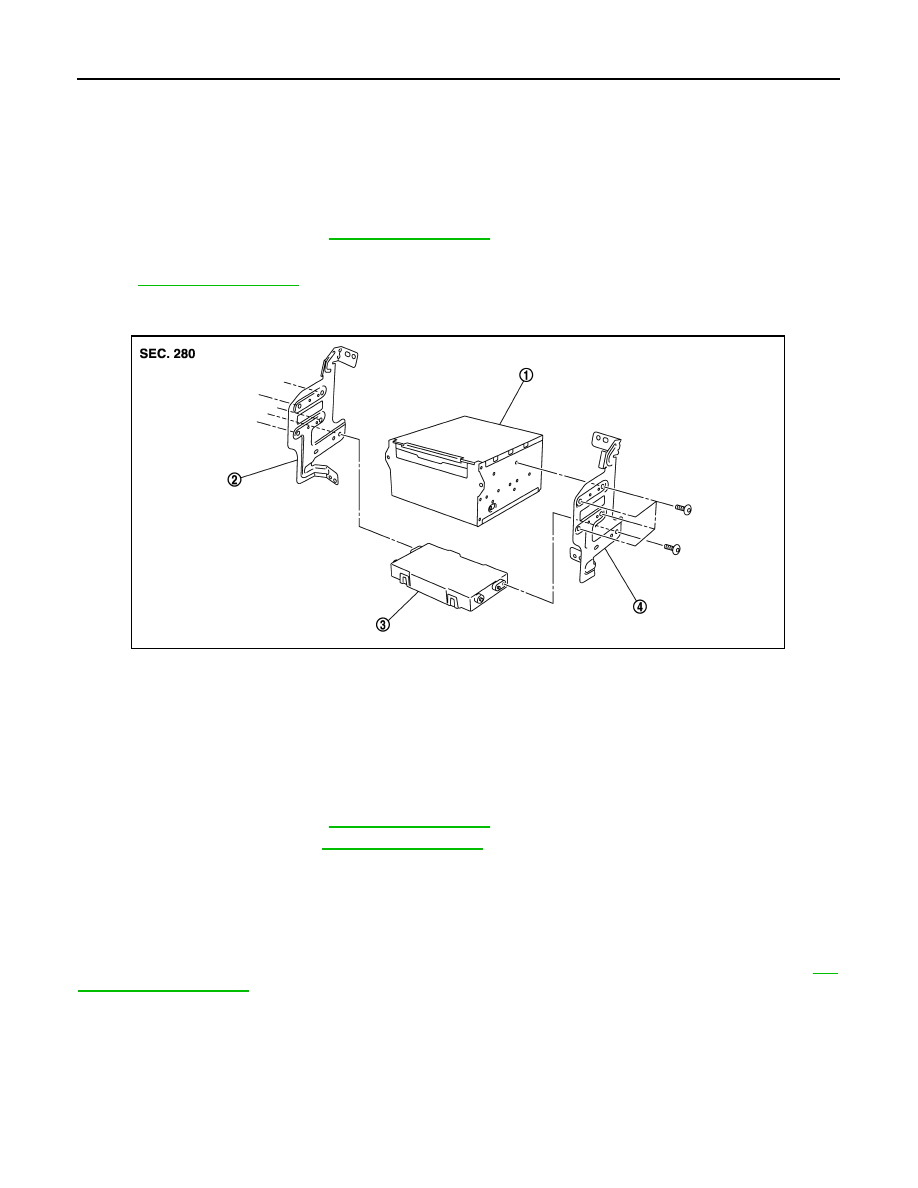

Exploded View

INFOID:0000000009721971

CAUTION:

Before replacing AV control unit, perform “Read/Write Configuration” to save or print current vehicle
specification. For details, refer to

AV-375, "Description"

.

REMOVAL

Refer to

IP-14, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000009721972

REMOVAL

CAUTION:

Before replacing AV control unit, perform “Read/Write Configuration” to save or print current vehicle
specification. For details, refer to

AV-375, "Description"

.

1.

Remove cluster lid C. Refer to

IP-14, "Exploded View"

.

2.

Remove AV control unit with an A/C auto amp. as a single unit from the vehicle.

3.

Remove bracket screws, and then remove AV control unit.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to perform “Read/Write Configuration” when replacing AV control unit. For details, refer to

AV-

376, "Work Procedure"

.

1.

AV control unit

2.

Bracket LH

3.

A/C auto amp.

4.

Bracket RH

JSNIA1740ZZ

AV

DISPLAY UNIT

AV-449

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DISPLAY UNIT

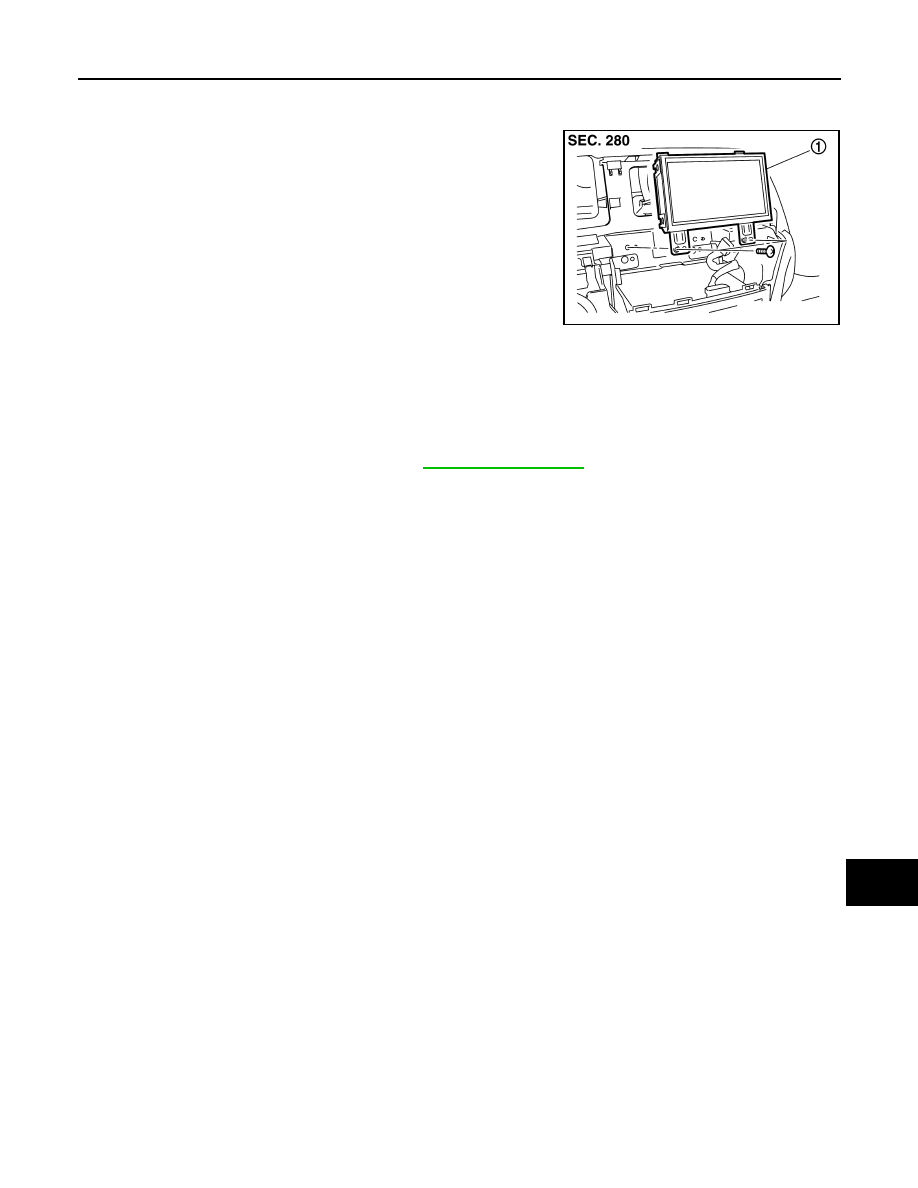

Exploded View

INFOID:0000000009721973

Removal and Installation

INFOID:0000000009721974

REMOVAL

1.

Remove center ventilator assembly. Refer to

IP-14, "Exploded View"

.

2.

Remove display unit with bracket as a single unit.

INSTALLATION

Install in the reverse order of removal.

JPNIA0779ZZ

1.

Display unit
