AV-374

< BASIC INSPECTION >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS AND REPAIR WORK FLOW

2.

DIAGNOSIS WITH CONSULT

1.

Connect CONSULT and perform a self-diagnosis for “MULTI AV” and “AVM” (models with BSW and
LDW). Refer to

AV-327, "CONSULT Function"

.

NOTE:
Skip to step 4 of the diagnosis procedure if “MULTI AV” or “AVM” (models with BSW and LDW) is not dis-
played.

2.

When DTC is detected, follow the instructions below:

-

Record DTC and Freeze Frame Data.

Is DTC displayed?

YES

>> GO TO 3.

NO

>> GO TO 4.

3.

TROUBLE DIAGNOSIS FOR DTC

1.

Check the DTC indicated in the self-diagnosis results.

2.

Perform the relevant diagnosis referring to the DTC Index. Refer to

AV-340, "DTC Index"

.

>> GO TO 5.

4.

TROUBLE DIAGNOSIS FOR SYMPTOMS

Perform the relevant diagnosis referring to the diagnosis chart by symptom. Refer to

AV-436, "Symptom

Table"

.

>> GO TO 5.

5.

ERROR PART REPAIR

1.

Repair or replace the identified malfunctioning parts.

2.

Perform a self-diagnosis for “MULTI AV” and “AVM” (models with BSW and LDW) with CONSULT.
NOTE:
Erase the stored self-diagnosis results after repairing or replacing the relevant components if any DTC
has been indicated in the self-diagnosis results.

3.

Check that the symptom does not occur.

Does the symptom occur?

YES

>> GO TO 1.

NO

>> INSPECTION END

AV

ADDITIONAL SERVICE WHEN REPLACING (AV CONTROL UNIT)

AV-375

< BASIC INSPECTION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ADDITIONAL SERVICE WHEN REPLACING (AV CONTROL UNIT)

Description

INFOID:0000000009721862

BEFORE REPLACEMENT

When replacing AV control unit, save or print current vehicle specification with CONSULT configuration before
replacement.

AFTER REPLACEMENT

CAUTION:

When replacing AV control unit, you must perform “After Replace ECU” or “Manual Configuration”
with CONSULT.
• Complete the procedure of “After Replace ECU” or “Manual Configuration” in order.
• If you set incorrect “After Replace ECU” or “Manual Configuration”, incidents might occur.
• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

Work Procedure

INFOID:0000000009721863

1.

SAVING VEHICLE SPECIFICATION

CONSULT Configuration

Perform “Before Replace ECU” to save or print current vehicle specification. Refer to

AV-376, "Description"

.

NOTE:
If “Before Replace ECU” can not be used, use the “Manual Configuration”.

>> GO TO 2.

2.

REPLACE AV CONTROL UNIT

Replace AV control unit. Refer to

AV-448, "Exploded View"

.

>> GO TO 3.

3.

WRITING VEHICLE SPECIFICATION

CONSULT Configuration

Perform “After Replace ECU” or “Manual Configuration” to write vehicle specification. Refer to

AV-376, "Work

Procedure"

.

>> GO TO 4.

4.

OPERATION CHECK

Check that the operation of the AV control unit and camera images (fixed guide lines and predictive course
lines) are normal.

>> WORK END

AV-376

< BASIC INSPECTION >

[BOSE AUDIO WITH NAVIGATION]

CONFIGURATION (AV CONTROL UNIT)

CONFIGURATION (AV CONTROL UNIT)

Description

INFOID:0000000009721864

• Since vehicle specifications are not included in the AV control unit after replacement, it is required to write

vehicle specifications with CONSULT.

• Configuration has three functions as follows.

Work Procedure

INFOID:0000000009721865

1.

WRITE VEHICLE SPECIFICATION

CONSULT Configuration

Write vehicle specification into AV control unit.

To write vehicle specification stored in CONSULT into the AV control unit>>GO TO 2.
To write vehicle specification into the AV control unit by hand>>GO TO 3.

2.

WRITE STORED DATA

CONSULT Configuration

Select “After Replace ECU” in “Read/Write Configuration.” Write data stored in CONSULT with the “Before
Replace ECU” function into the AV control unit.

>> GO TO 4.

3.

MANUALLY WRITE VEHICLE SPECIFICATION

CONSULT Configuration

Perform “Manual Configuration.” Refer to the Configuration List to write vehicle specification into the AV con-
trol unit.  Refer to

AV-376, "Configuration List"

.

NOTE:
If selection items are not displayed on the CONSULT screen, touch “NEXT.”

>> GO TO 4.

4.

OPERATION CHECK

Check that the operation of the AV control unit and camera images (fixed guide lines and predictive course
lines) are normal.

>> WORK END

Configuration List

INFOID:0000000009721866

CAUTION:

Grasp vehicle specifications precisely. The control of ECU may not function normally if the specifica-
tions are misread.
NOTE:
• The items shown in this list depend on vehicle specifications.
• The config list may not be displayed depending on vehicle specifications. This is not a malfunction.

Function

Description

Read/Write Configuration

Before Replace ECU

Allows the reading of vehicle specification written in AV control unit
to store the specification in CONSULT.

After Replace ECU

Allows the writing of the vehicle information stored in CONSULT
into the AV control unit.

Manual Configuration

Allows the writing of the vehicle specification into the AV control
unit by hand.

AV

CONFIGURATION (AV CONTROL UNIT)

AV-377

< BASIC INSPECTION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

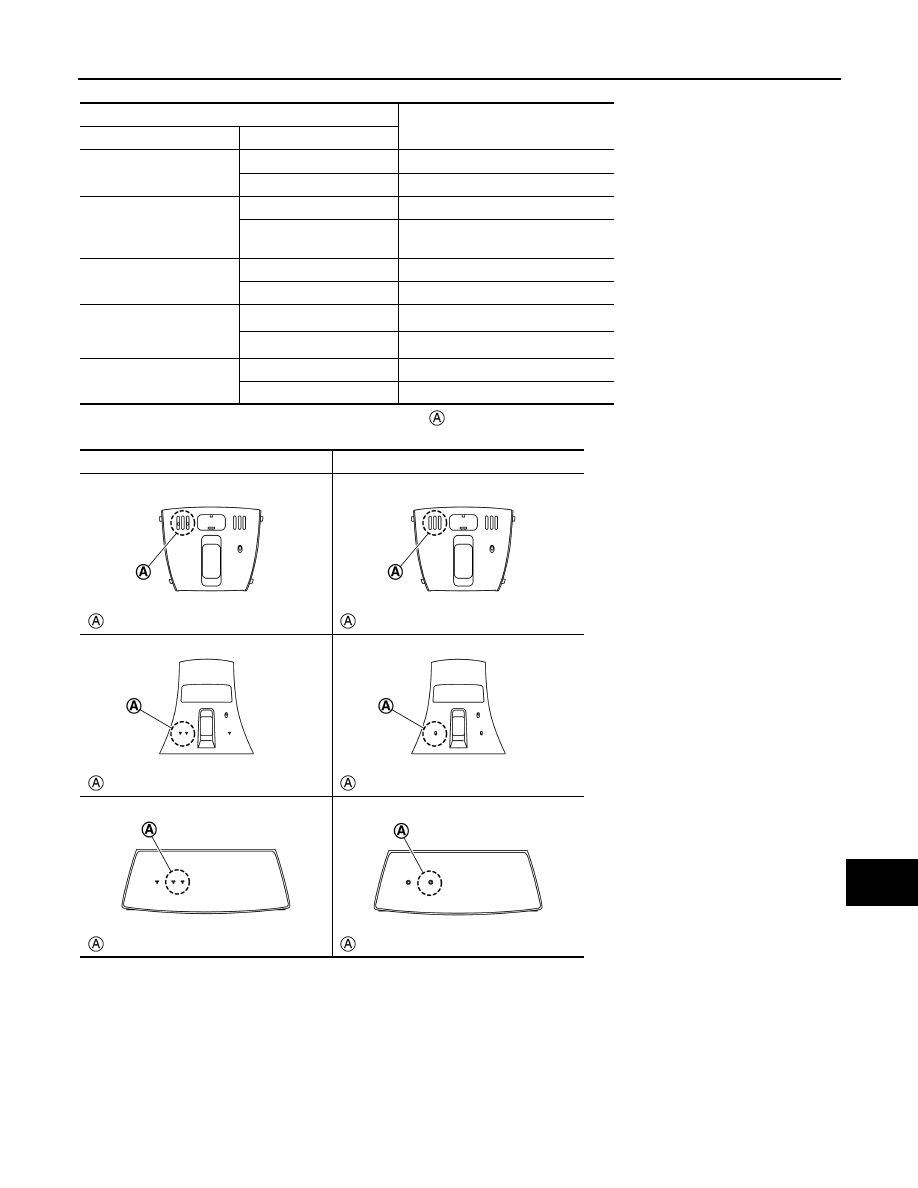

*: In the following table, find an illustration that the

 part matches the vehicle and select microphone type.

MANUAL SETTING ITEM

Detail

Items

Setting value

STEERING

LHD

LHD models

RHD

RHD models

CAMERA SYSTEM

REAR CAMERA

With rear view monitor system

REAR+SIDE

With rear view monitor system and
front-side view monitor function

SOUND SYSTEM

BASE

Without BOSE system

BOSE

With BOSE system

MICROPHONE

DIRECTIONAL MIC

With directional microphone

*

NON-DIRECTIONAL MIC

With non-directional microphone

*

AFFORDABLE ITS

WITH

With BSW and LDW

WITHOUT

Without BSW and LDW

Directional microphone

Non-directional microphone

: Microphone installation position

: Microphone installation position

: Microphone installation position

: Microphone installation position

: Microphone installation position

: Microphone installation position

JSNIA5541ZZ

JSNIA5542ZZ

JSNIA5543ZZ

JSNIA5544ZZ

JSNIA5545ZZ

JSNIA5546ZZ
