AV-370

< WIRING DIAGRAM >

[BOSE AUDIO WITH NAVIGATION]

BOSE AUDIO WITH NAVIGATION

JRNWC8962GB

AV

BOSE AUDIO WITH NAVIGATION

AV-371

< WIRING DIAGRAM >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JRNWC8963GB

AV-372

< WIRING DIAGRAM >

[BOSE AUDIO WITH NAVIGATION]

BOSE AUDIO WITH NAVIGATION

JRNWC8964GB

AV

DIAGNOSIS AND REPAIR WORK FLOW

AV-373

< BASIC INSPECTION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

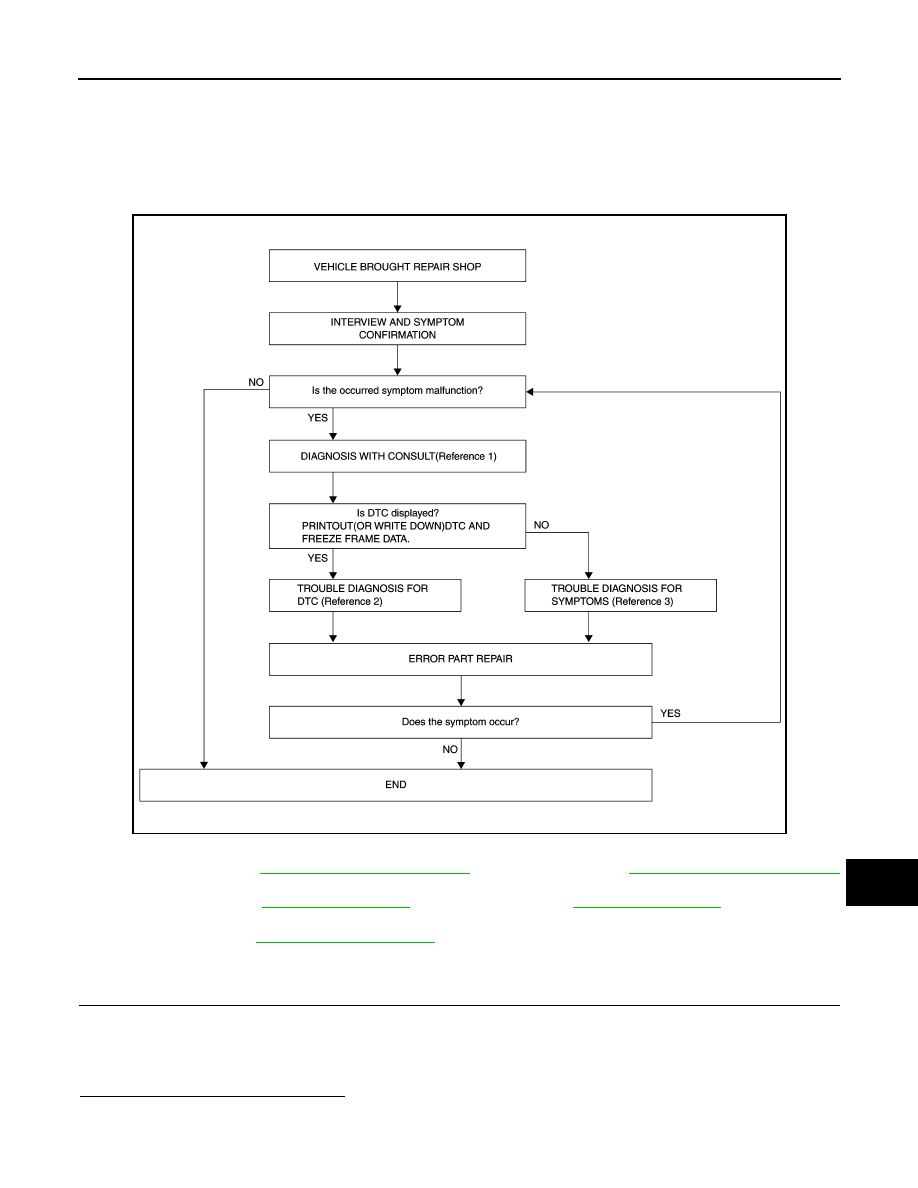

Work Flow

INFOID:0000000009721861

OVERALL SEQUENCE

• Reference 1··· Refer to

AV-327, "CONSULT Function"

 (AV control unit), and

AV-331, "CONSULT Function"

[Camera control unit (models with BSW and LDW)].

• Reference 2··· Refer to

AV-340, "DTC Index"

 (AV control unit), and

AV-352, "DTC Index"

 [Camera control

unit (models with BSW and LDW)].

• Reference 3··· Refer to

AV-436, "Symptom Table"

.

DETAILED FLOW

1.

INTERVIEW AND SYMPTOM CONFIRMATION

Check the malfunction symptoms by performing the following items.
• Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-

tion occurred).

• Check the symptom.
Is the occurred symptom malfunction?

YES

>> GO TO 2.

NO

>> INSPECTION END

JSNIA4482GB
