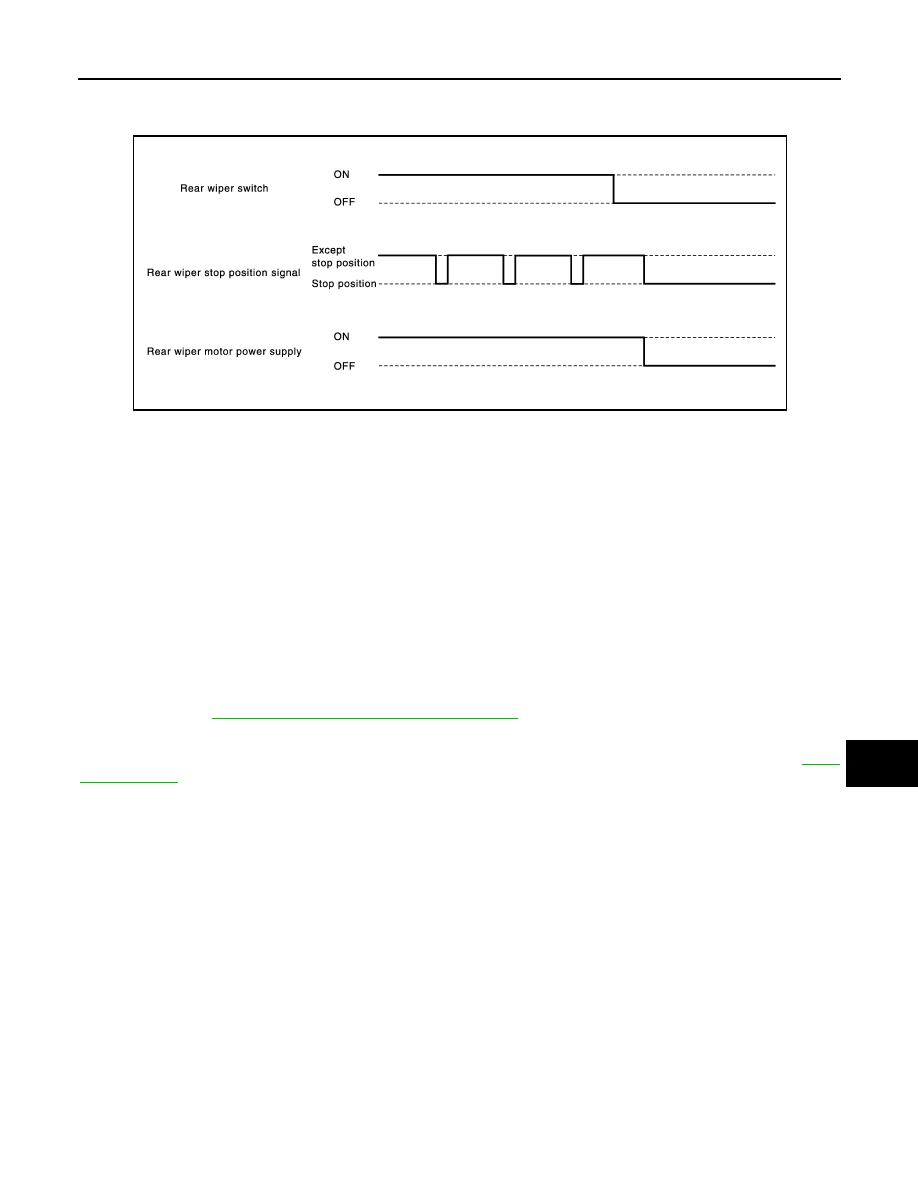

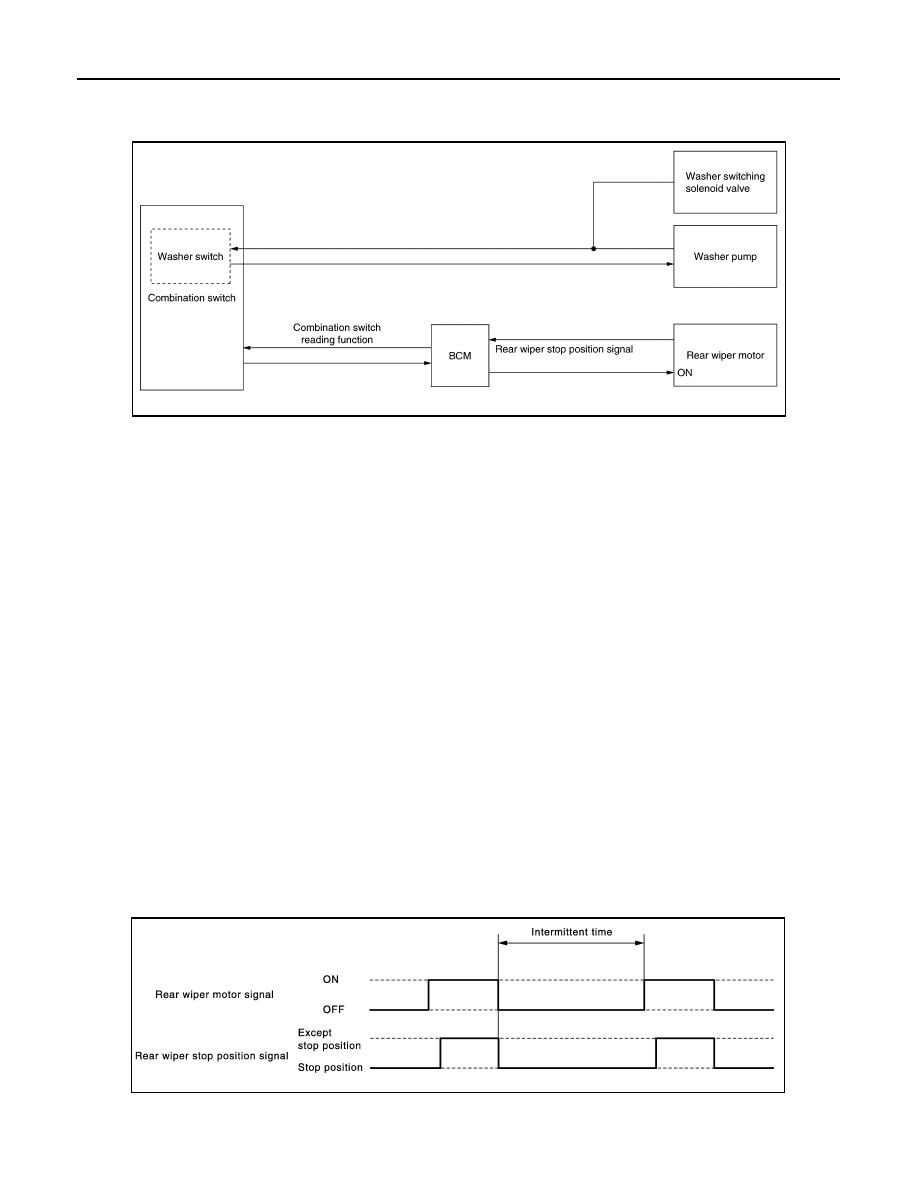

WW-16 < SYSTEM DESCRIPTION > REAR WIPER AND WASHER SYSTEM REAR WIPER AND WASHER SYSTEM System Diagram INFOID:0000000009719718 System Description INFOID:0000000009719719 OUTLINE The rear wiper is controlled by each function of BCM. Control by BCM • Combination switch reading function REAR WIPER BASIC OPERATION • BCM detects the combination switch condition by the combination switch reading function. REAR WIPER ON OPERATION • BCM supplies power to the rear wiper motor according to the rear wiper ON operating condition. Rear wiper ON operating condition - Ignition switch ON REAR WIPER INT OPERATION • BCM supplies power to the rear wiper motor according to the INT operating condition. Rear wiper INT operating condition - Ignition switch ON REAR WIPER AUTO STOP OPERATION • BCM stops supplying power to the rear wiper motor when the rear wiper switch is turned OFF. JMLIA3419GB JPLIA1258GB |
