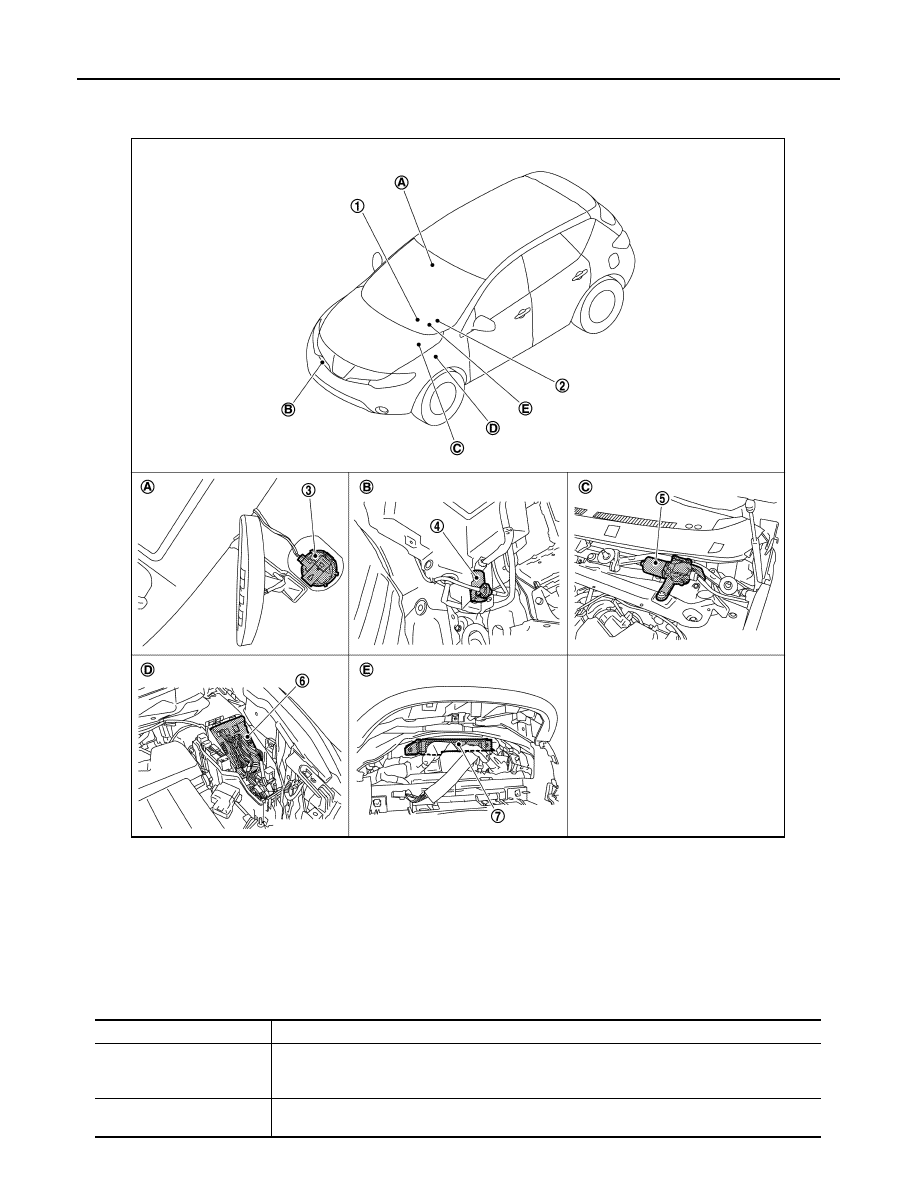

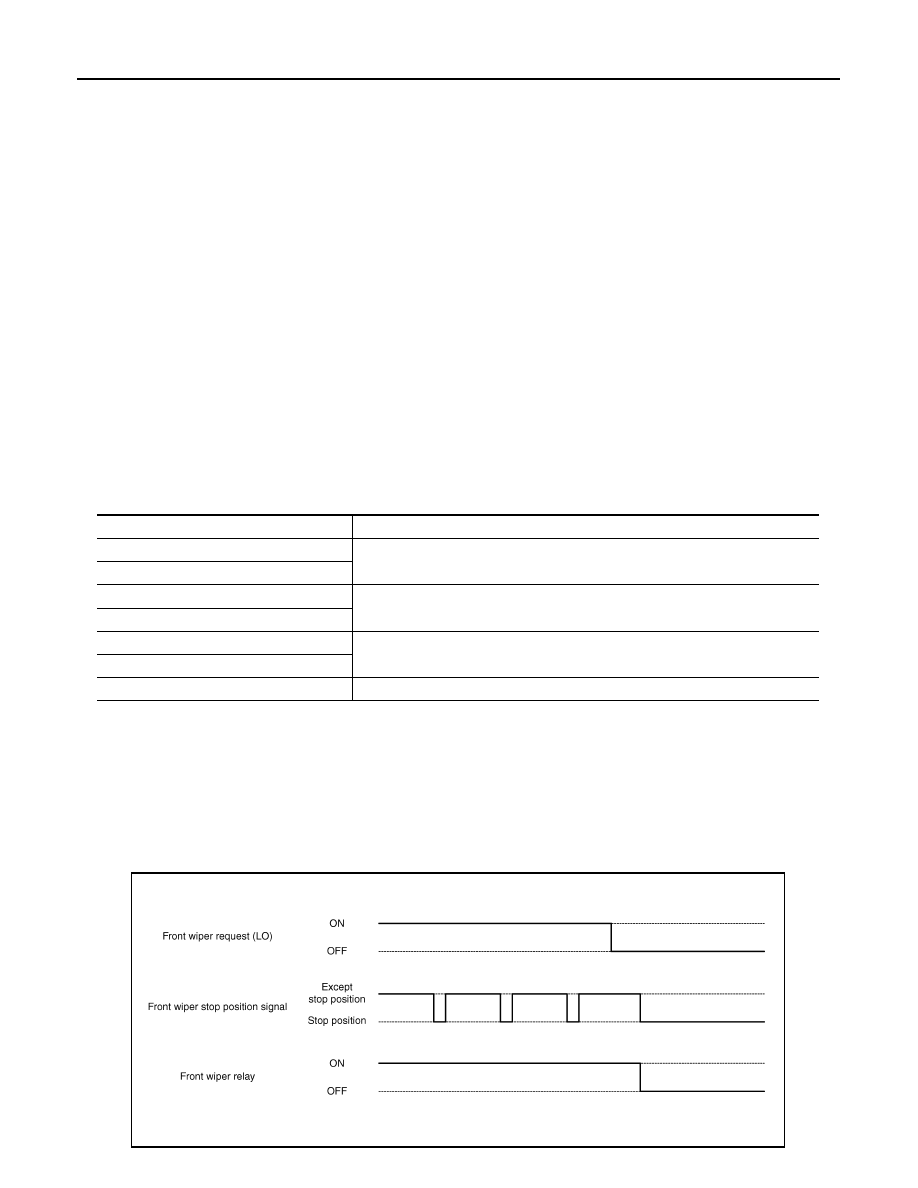

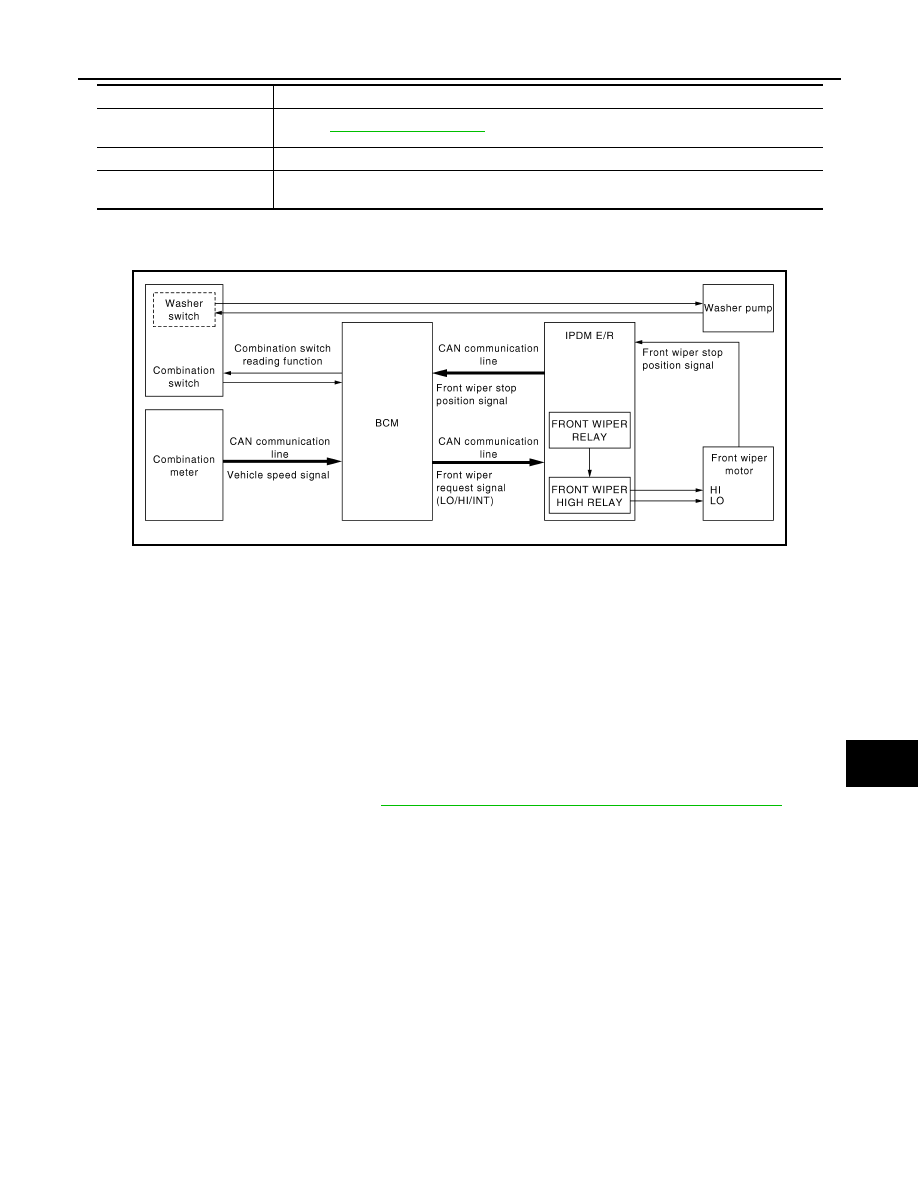

WW-8 < SYSTEM DESCRIPTION > FRONT WIPER AND WASHER SYSTEM • IPDM E/R turns ON the integrated front wiper relay and the front wiper high relay according to the front wiper request signal (HI). FRONT WIPER AUTO OPERATION Rain Sensing Rain level and sensor conditions are detected by rain sensor. etc.) to the rain sensor via the rain sensor serial link. • Rain sensor judges a wiping speed for front wiper by rain condition and the vehicle conditions. And it trans- mits the wiping speed request signal to the BCM via the rain sensor serial link. Auto Wiping Operation • BCM receives the wiping speed request signal from the rain sensor via the rain sensor serial link. wiper request signals (LO or HI) to the IPDM E/R via CAN communication line. Front wiper AUTO operating condition - Ignition switch ON Rain Sensor Sensitivity Setting BCM determines rain sensor sensitivity according to a wiper volume. NOTE: FRONT WIPER AUTO STOP OPERATION • BCM stops transmitting the front wiper request signal when the front wiper switch is turned OFF. motor position (stop position/except stop position). • When the front wiper request signal is stopped, IPDM E/R turns ON the front wiper relay until the front wiper motor returns to the stop position. Wiper volume dial position Sensitivity 1 High sensitivity 2 3 Medium − high sensitivity 4 5 Low − medium sensitivity 6 7 Low sensitivity JPLIA0410GB |
