WCS-98

< SYMPTOM DIAGNOSIS >

THE LIGHT REMINDER WARNING DOES NOT SOUND

THE LIGHT REMINDER WARNING DOES NOT SOUND

Description

INFOID:0000000009721383

Light reminder warning chime does not sound even though headlamp is illuminated.

Diagnosis Procedure

INFOID:0000000009721384

1.

CHECK COMBINATION SWITCH (LIGHT SWITCH) OPERATION

Check that the headlamps operate normally by operating the combination switch (light switch).

Do they operate normally?

YES

>> GO TO 2.

NO

>> Refer to

EXL-162, "Symptom Table"

 (xenon type) or

EXL-346, "Symptom Table"

 (halogen type).

2.

CHECK FRONT DOOR SWITCH (DRIVER SIDE) SIGNAL CIRCUIT

Perform the check for the front door switch (driver side) signal circuit. Refer to

DLK-97, "WITH AUTOMATIC

BACK DOOR : Diagnosis Procedure"

 (with automatic back door) or

DLK-99, "WITHOUT AUTOMATIC BACK

DOOR : Diagnosis Procedure"

 (without automatic back door).

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair harness or connector.

3.

CHECK FRONT DOOR SWITCH (DRIVER SIDE)

Perform a unit check for the front door switch (driver side). Refer to

DLK-98, "WITH AUTOMATIC BACK

DOOR : Component Inspection"

 (with automatic back door) or

DLK-101, "WITHOUT AUTOMATIC BACK

DOOR : Component Inspection"

 (without automatic back door).

Is the inspection result normal?

YES

>> Replace the BCM. Refer to

BCS-98, "Removal and Installation"

.

NO

>> Replace the front door switch (driver side). Refer to

DLK-358, "Removal and Installation"

.

WCS

THE SEAT BELT WARNING CONTINUES SOUNDING, OR DOES NOT SOUND

WCS-99

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

THE SEAT BELT WARNING CONTINUES SOUNDING, OR DOES NOT
SOUND

Description

INFOID:0000000009721385

• Seat belt reminder warning does not sound.
• Seat belt reminder warning sounds continuously.

Diagnosis Procedure

INFOID:0000000009721386

1.

CHECK SEAT BELT WARNING LAMP

1.

Turn ignition switch ON.

2.

Check the operation of the seat belt warning lamp in the combination meter.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

CHECK BCM OUTPUT SIGNAL

Check if the light reminder warning chime is activated by performing BCM active test. Refer to

WCS-20,

"BUZZER : CONSULT Function (BCM - BUZZER)"

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 3.

3.

CHECK COMBINATION METER INPUT SIGNAL

Check if buzzer switches to proper condition (On/Off) on data monitor of combination meter. Refer to

MWI-35,

"CONSULT Function (METER/M&A)"

Is the inspection result normal?

YES

>> Replace the combination meter.

NO

>> Replace the BCM. Refer to

BCS-98, "Removal and Installation"

.

4.

CHECK SEAT BELT BUCKLE SWITCH CIRCUIT

Perform the check for the seat belt buckle switch circuit. Refer to

WCS-25, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair harness or connector.

5.

CHECK SEAT BELT BUCKLE SWITCH (DRIVER SIDE)

Perform a unit check for the seat belt buckle switch (driver side). Refer to

WCS-26, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace the combination meter.

NO

>> Replace the seat belt buckle. Refer to

SB-9, "SEAT BELT BUCKLE : Removal and Installation"

.

Seat belt fastened

: OFF

Seat belt not fastened

: ON

Buzzer active condition

: On

Buzzer non-active condition

: Off

WCS-100

< SYMPTOM DIAGNOSIS >

THE KEY WARNING DOES NOT SOUND

THE KEY WARNING DOES NOT SOUND

Description

INFOID:0000000009721387

The is key warning chime does not sound under the following conditions.
• Key inserted into the key slot. (Key slot switch ON)
• Ignition switch is not in ON or START. (Ignition switch signal OFF)
• Front door switch (driver side) is open. [Door switch signal (driver side) ON]

Diagnosis Procedure

INFOID:0000000009721388

1.

CHECK BCM INPUT SIGNAL

1.

Connect CONSULT.

2.

Select the “Data Monitor” of “BCM (BUZZER)” and check the “KEY SW-SLOT” monitor value. Refer to

BCS-51, "Reference Value"

.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-98, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK KEY SLOT SWITCH SIGNAL CIRCUIT

Check the key slot switch signal circuit. Refer to

DLK-129, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Check applicable parts, and repair or replace corresponding parts.

3.

CHECK DOOR SWITCH SIGNAL (DRIVER SIDE) CIRCUIT

Check the door switch signal (driver side) circuit. Refer to

DLK-97, "WITH AUTOMATIC BACK DOOR : Diag-

nosis Procedure"

 (with automatic back door) or

DLK-99, "WITHOUT AUTOMATIC BACK DOOR : Diagnosis

Procedure"

 (without automatic back door).

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair harness or connector.

4.

CHECK FRONT DOOR SWITCH (DRIVER SIDE)

Check the front door switch (driver side). Refer to

DLK-98, "WITH AUTOMATIC BACK DOOR : Component

Inspection"

 (with automatic back door) or

DLK-101, "WITHOUT AUTOMATIC BACK DOOR : Component

Inspection"

 (without automatic back door).

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-98, "Removal and Installation"

.

NO

>> Replace front door switch (driver side). Refer to

DLK-358, "Removal and Installation"

.

WCS

PRECAUTIONS

WCS-101

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PRECAUTION

PRECAUTIONS

FOR USA AND CANADA

FOR USA AND CANADA : Precaution for Supplemental Restraint System (SRS) "AIR
BAG" and "SEAT BELT PRE-TENSIONER"

INFOID:0000000009721389

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

FOR USA AND CANADA : Precautions for Removing of Battery Terminal

INFOID:0000000010088580

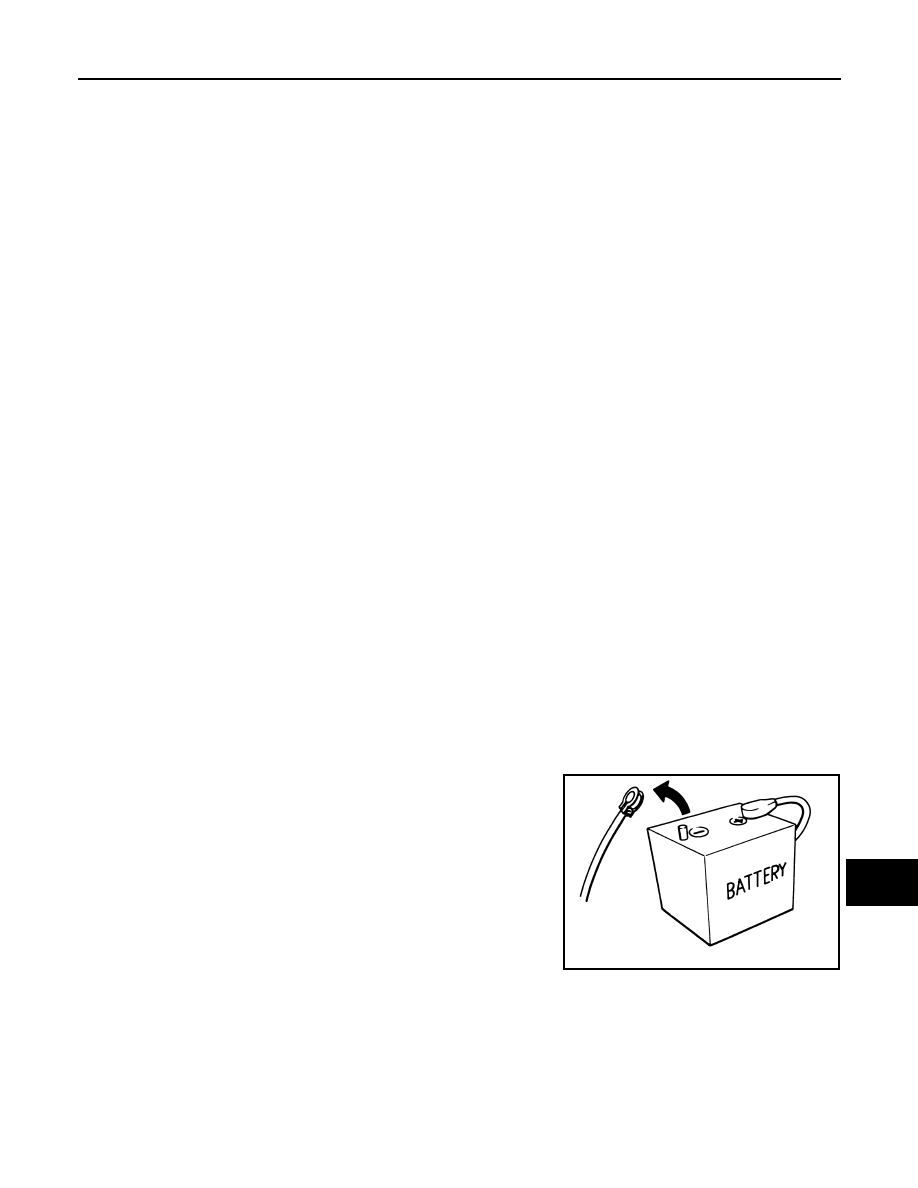

•  When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

FOR MEXICO

FOR MEXICO : Precaution for Supplemental Restraint System (SRS) "AIR BAG" and
