WCS-58

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

CONFIRM ID3

The Intelligent Key ID that the key slot receives is not recognized by
the third Intelligent Key ID registered to BCM.

Yet

The Intelligent Key ID that the key slot receives is recognized by the
third Intelligent Key ID registered to BCM.

Done

CONFIRM ID2

The Intelligent Key ID that the key slot receives is not recognized by
the second Intelligent Key ID registered to BCM.

Yet

The Intelligent Key ID that the key slot receives is recognized by the
second Intelligent Key ID registered to BCM.

Done

CONFIRM ID1

The Intelligent Key ID that the key slot receives is not recognized by
the first Intelligent Key ID registered to BCM.

Yet

The Intelligent Key ID that the key slot receives is recognized by the
first Intelligent Key ID registered to BCM.

Done

TP 4

The ID of fourth Intelligent Key is not registered to BCM

Yet

The ID of fourth Intelligent Key is registered to BCM

Done

TP 3

The ID of third Intelligent Key is not registered to BCM

Yet

The ID of third Intelligent Key is registered to BCM

Done

TP 2

The ID of second Intelligent Key is not registered to BCM

Yet

The ID of second Intelligent Key is registered to BCM

Done

TP 1

The ID of first Intelligent Key is not registered to BCM

Yet

The ID of first Intelligent Key is registered to BCM

Done

AIR PRESS FL

Ignition switch ON (Only when the signal from the transmitter is re-
ceived)

Air pressure of front LH

tire

AIR PRESS FR

Ignition switch ON (Only when the signal from the transmitter is re-
ceived)

Air pressure of front

RH tire

AIR PRESS RR

Ignition switch ON (Only when the signal from the transmitter is re-
ceived)

Air pressure of rear RH

tire

AIR PRESS RL

Ignition switch ON (Only when the signal from the transmitter is re-
ceived)

Air pressure of rear LH

tire

ID REGST FL1

ID of front LH tire transmitter is registered

Done

ID of front LH tire transmitter is not registered

Yet

ID REGST FR1

ID of front RH tire transmitter is registered

Done

ID of front RH tire transmitter is not registered

Yet

ID REGST RR1

ID of rear RH tire transmitter is registered

Done

ID of rear RH tire transmitter is not registered

Yet

ID REGST RL1

ID of rear LH tire transmitter is registered

Done

ID of rear LH tire transmitter is not registered

Yet

WARNING LAMP

Tire pressure indicator OFF

Off

Tire pressure indicator ON

On

BUZZER

Tire pressure warning alarm is not sounding

Off

Tire pressure warning alarm is sounding

On

Monitor Item

Condition

Value/Status

WCS

BCM (BODY CONTROL MODULE)

WCS-59

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

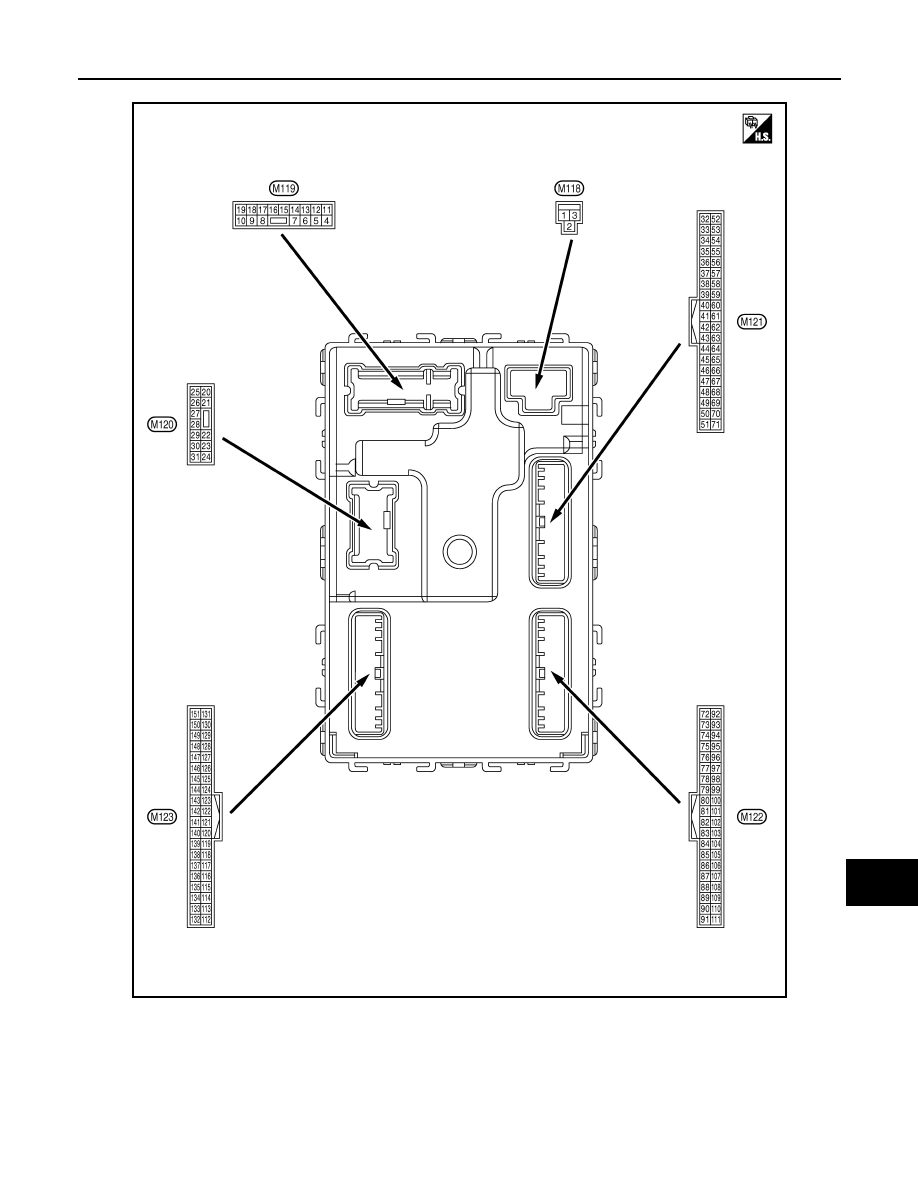

TERMINAL LAYOUT

PHYSICAL VALUES

JPMIA0062ZZ

WCS-60

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

1

(W)

Ground

Battery power supply

Input

Ignition switch OFF

Battery voltage

2

(GR)

Ground

P/W power supply
(BAT)

Output

Ignition switch OFF

Battery voltage

3

(L)

Ground

P/W power supply
(IGN)

Output

Ignition switch ON

Battery voltage

4

(P/W)

Ground

Interior room lamp
power supply

Output

Interior room lamp battery saver is activated.
(Cuts the interior room lamp power supply)

0 V

Interior room lamp battery saver is not activat-
ed.
(Outputs the interior room lamp power supply)

Battery voltage

5

(G)

Ground

Passenger door UN-
LOCK

Output

Passenger door

UNLOCK (Actuator is acti-
vated)

Battery voltage

Other than UNLOCK (Actu-
ator is not activated)

0 V

7

(W)

Ground

Step lamp control

Output

Step lamp

ON

0 V

OFF

Battery voltage

8

(V)

Ground

All doors LOCK

Output

All doors

LOCK (Actuator is activat-
ed)

Battery voltage

Other than LOCK (Actuator
is not activated)

0 V

9

(G)

Ground

Driver door UNLOCK

Output

Driver door

UNLOCK (Actuator is acti-
vated)

Battery voltage

Other than UNLOCK (Actu-
ator is not activated)

0 V

10

(P)

Ground

Rear RH door and
rear LH door UN-
LOCK

Output

Rear RH door
and rear LH door

UNLOCK (Actuator is acti-
vated)

Battery voltage

Other than UNLOCK (Actu-
ator is not activated)

0 V

11

(LG)

Ground

Battery power supply

Input

Ignition switch OFF

Battery voltage

13

(B)

Ground

Ground

Ignition switch ON

0 V

14

(O)

Ground

Push-button ignition
switch illumination
ground

Output

Tail lamp

OFF

0 V

ON

NOTE:

When the illumination brighten-

ing/dimming level is in the neutral

position

15

(L)

Ground

ACC indicator lamp

Output

Ignition switch

OFF (LOCK and ON indi-
cator lamps are not illumi-
nated.)

Battery voltage

ACC

0 V

JSNIA0010GB

WCS

BCM (BODY CONTROL MODULE)

WCS-61

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

17

(G)

Ground

Turn signal RH

Output

Ignition switch
ON

Turn signal switch OFF

0 V

Turn signal switch RH

6.5 V

18

(BR)

Ground

Turn signal LH

Output

Ignition switch
ON

Turn signal switch OFF

0 V

Turn signal switch LH

6.5 V

19

(Y)

Ground

Interior room lamp
control

Output

Interior room
lamp

OFF

Battery voltage

ON

0 V

23

(BR)

Ground

Back door open

Output

Back door

OPEN (Back door opener
actuator is activated)

Battery voltage

Other than OPEN (Back
door opener actuator is not
activated)

0 V

26

(G)

Ground

Rear wiper

Output

Rear wiper

OFF (Stopped)

0 V

ON (Operated)

Battery voltage

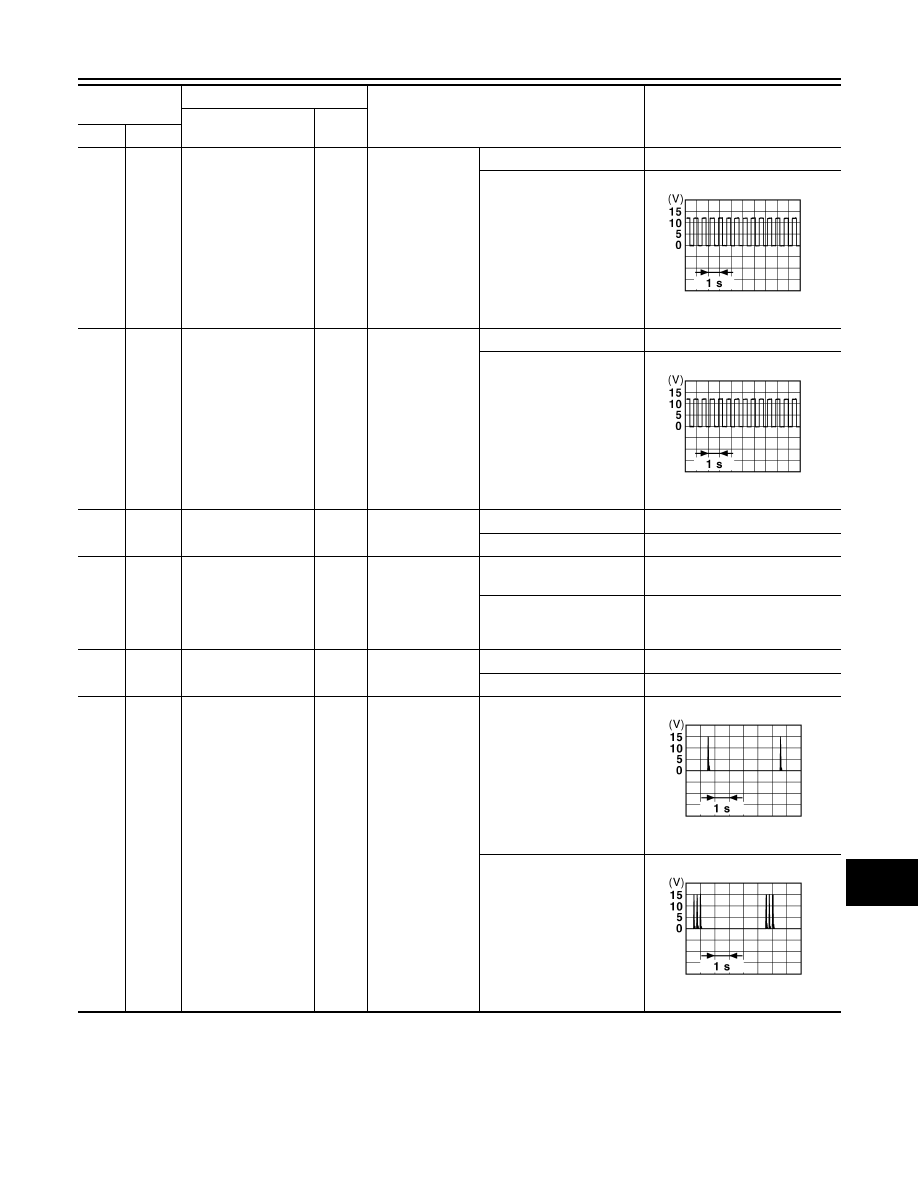

34

(B)

Ground

Luggage room anten-
na (-)

Output

Ignition switch
OFF

When Intelligent Key is in
the passenger compart-
ment

When Intelligent Key is not
in the passenger compart-
ment

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

PKID0926E

PKID0926E

JMKIA0062GB

JMKIA0063GB
