WCS-50

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

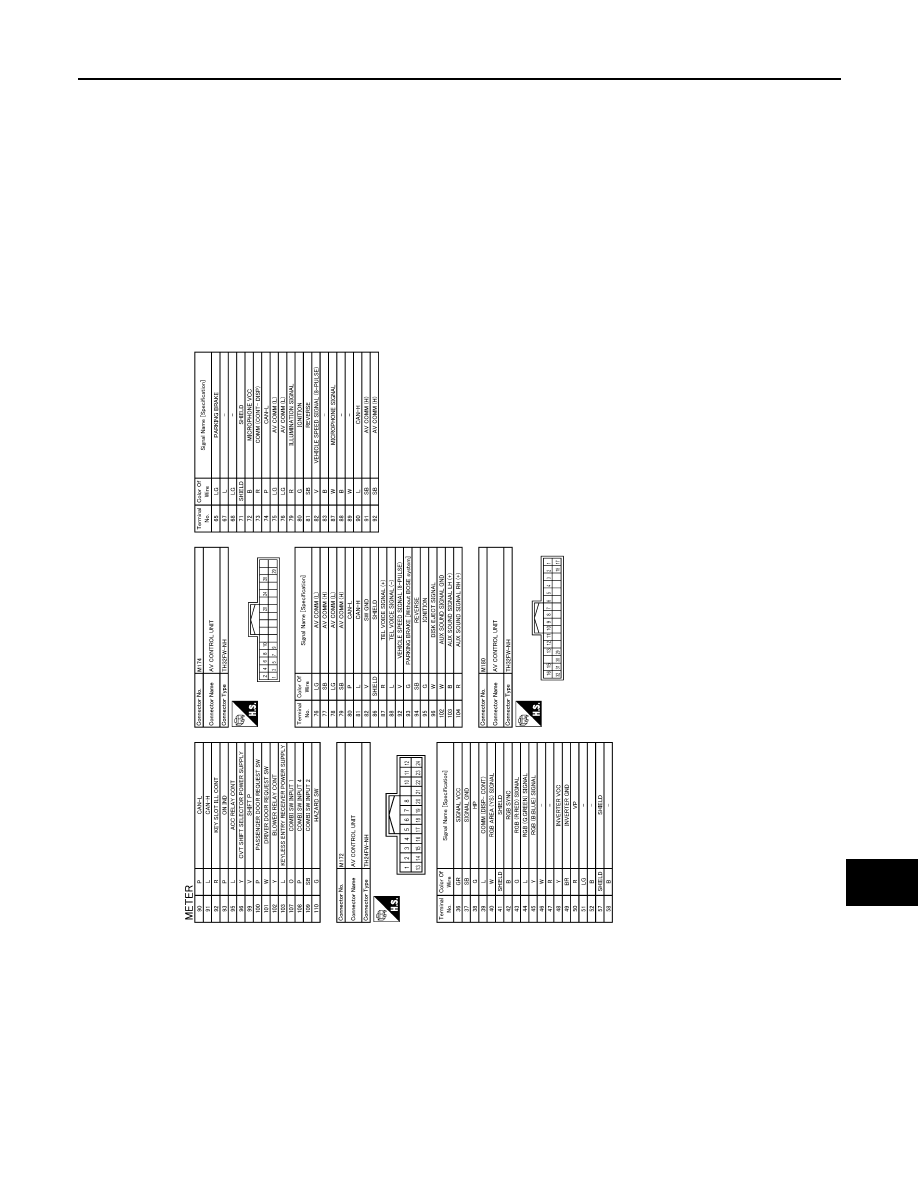

JRNWC8910GB

WCS

COMBINATION METER

WCS-51

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Fail-Safe

INFOID:0000000010088852

FAIL-SAFE

The combination meter activates the fail-safe control if CAN communication with each unit is malfunctioning.

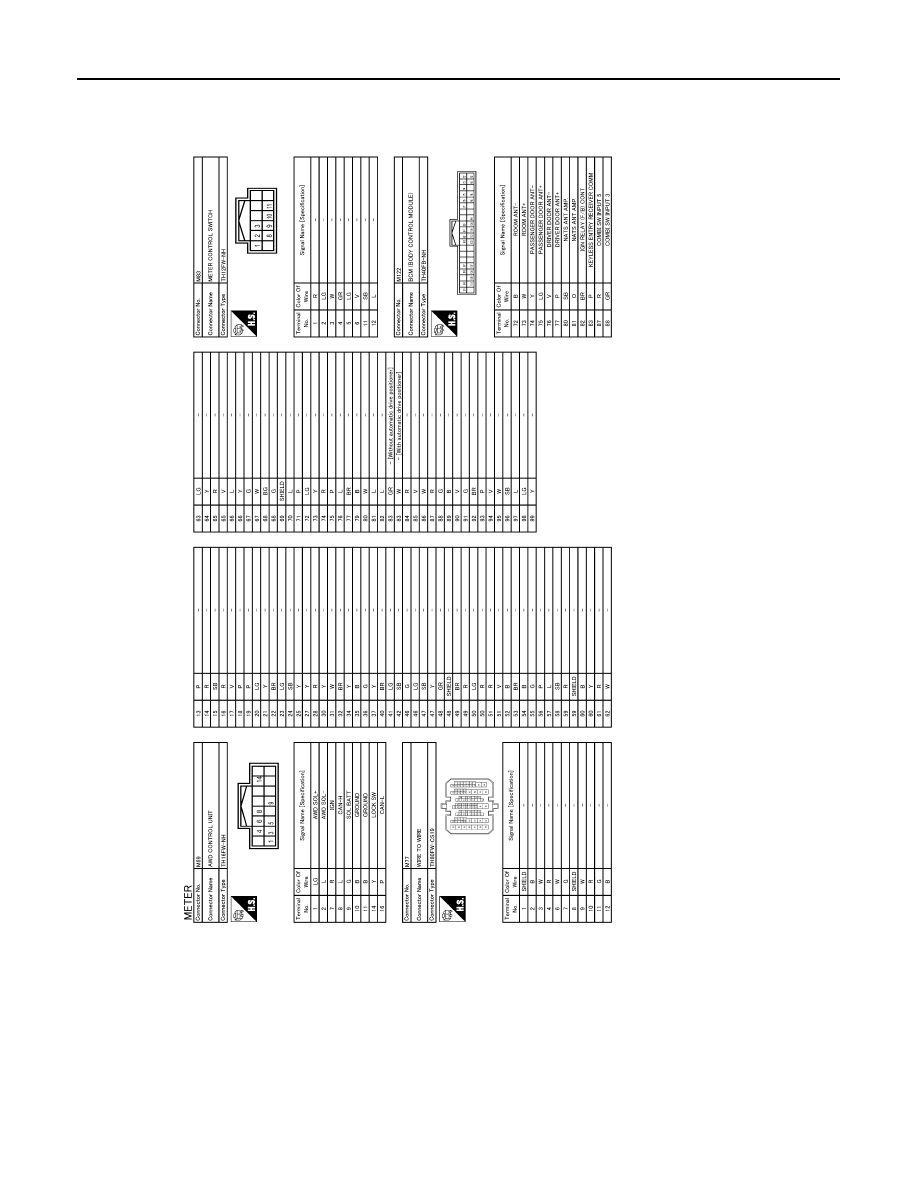

JRNWC8911GB

WCS-52

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

DTC Index

INFOID:0000000010088853

Function

Specifications

Speedometer

Reset to zero by suspending communication.

Tachometer

Engine coolant temperature gauge

Illumination control

When suspending communication, changes to nighttime
mode.

Information display

Door open warning

The display turns off by suspending communication.

Parking brake release warning

Low tire pressure warning

Fuel filler cap warning

Instantaneous fuel warning

• When reception time of an abnormal signal is 2 seconds or

less, the last received datum is used for calculation to indi-
cate the result.

• When reception time of an abnormal signal is more than two

seconds, the last result calculated during normal condition
is indicated.

Average fuel consumption

Average vehicle speed

Travel distance

Buzzer

The buzzer turns off by suspending communication.

Warning lamp/indicator
lamp

ABS warning lamp

The lamp turns on by suspending communication.

Brake warning lamp

AWD warning lamp

Malfunction indicator lamp

Low tire pressure warning lamp

The lamp turns ON after flashing for 1 minute.

High beam indicator lamp

The lamp turns off by suspending communication.

Turn signal indicator lamp

Light indicator lamp

Oil pressure warning lamp

CRUISE indicator lamp

O/D OFF indicator lamp

VDC warning lamp

VDC OFF indicator lamp

AWD LOCK indicator lamp

Key warning lamp

Blind Spot Intervention ON indicator

BSW/Blind Spot Intervention warning
lamp

Lane departure warning lamp

LDW ON indicator lamp

Display contents of CONSULT

Diagnostic item is detected when ...

Refer to

CAN COMM CIRCUIT
[U1000]

When combination meter is not transmitting or receiving CAN communication signal
for 2 seconds or more.

MWI-39,

"Diagnosis

Procedure"

CONTROL UNIT (CAN)
[U1010]

When detecting error during the initial diagnosis of the CAN controller of combina-
tion meter.

MWI-40,

"Diagnosis

Procedure"

WCS

COMBINATION METER

WCS-53

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

VEHICLE SPEED
[B2205]

The abnormal vehicle speed signal is input from the ABS actuator and electric unit
(control unit) for 2 seconds or more.

MWI-41,

"Diagnosis

Procedure"

ENGINE SPEED
[B2267]

If ECM continuously transmits abnormal engine speed signals for 2 seconds or
more.

MWI-42,

"Diagnosis

Procedure"

WATER TEMP
[B2268]

If ECM continuously transmits abnormal engine coolant temperature signals for 60
seconds or more.

MWI-43,

"Diagnosis

Procedure"

Display contents of CONSULT

Diagnostic item is detected when ...

Refer to
