DUCT AND GRILLE

*

: Models for Mexico.

HEATER DUCT : Removal and Installation

INFOID:0000000009721137

REMOVAL

1.

Remove instrument lower panel LH. Refer to

IP-14, "Exploded View"

.

2.

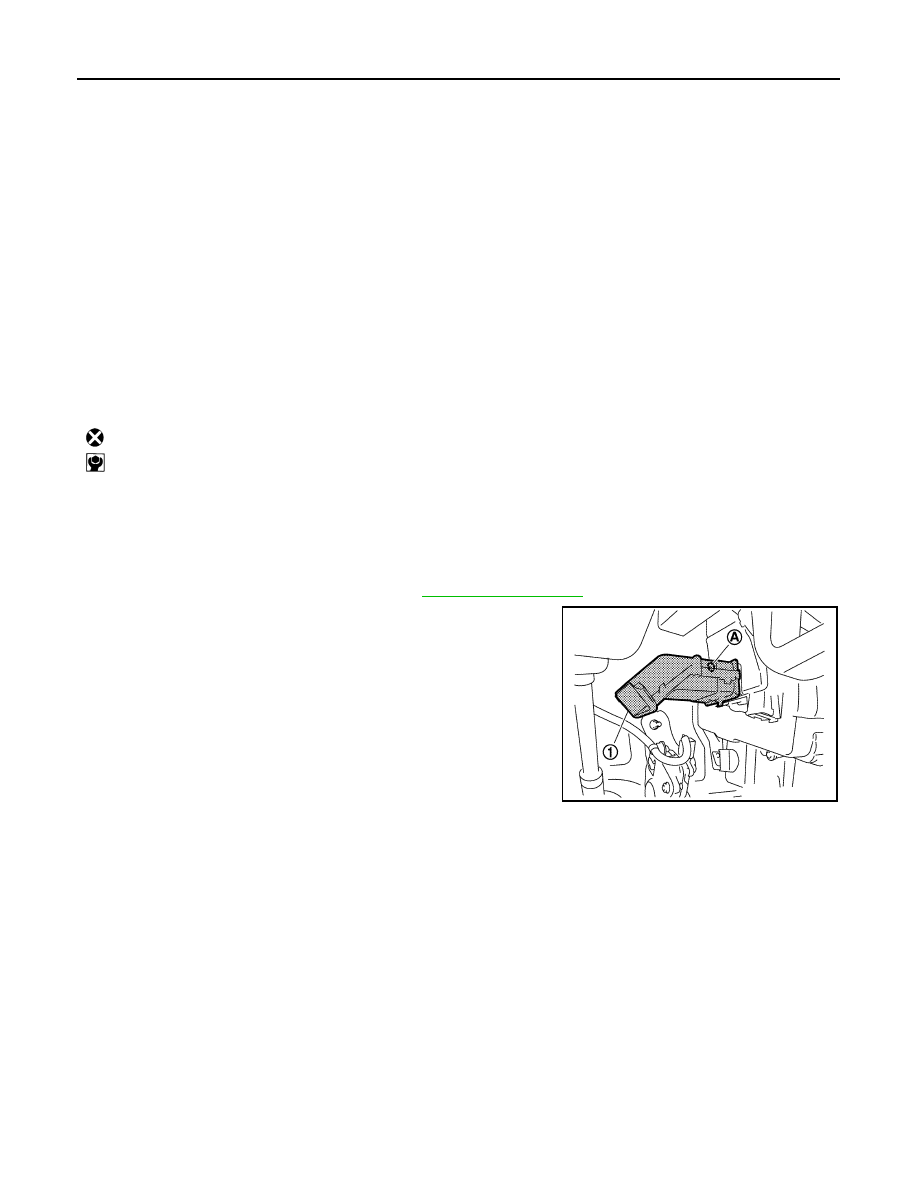

Remove fixing screw (A) and then remove heater duct (1).

INSTALLATION

Install in the reverse order of removal.

FOOT DUCT

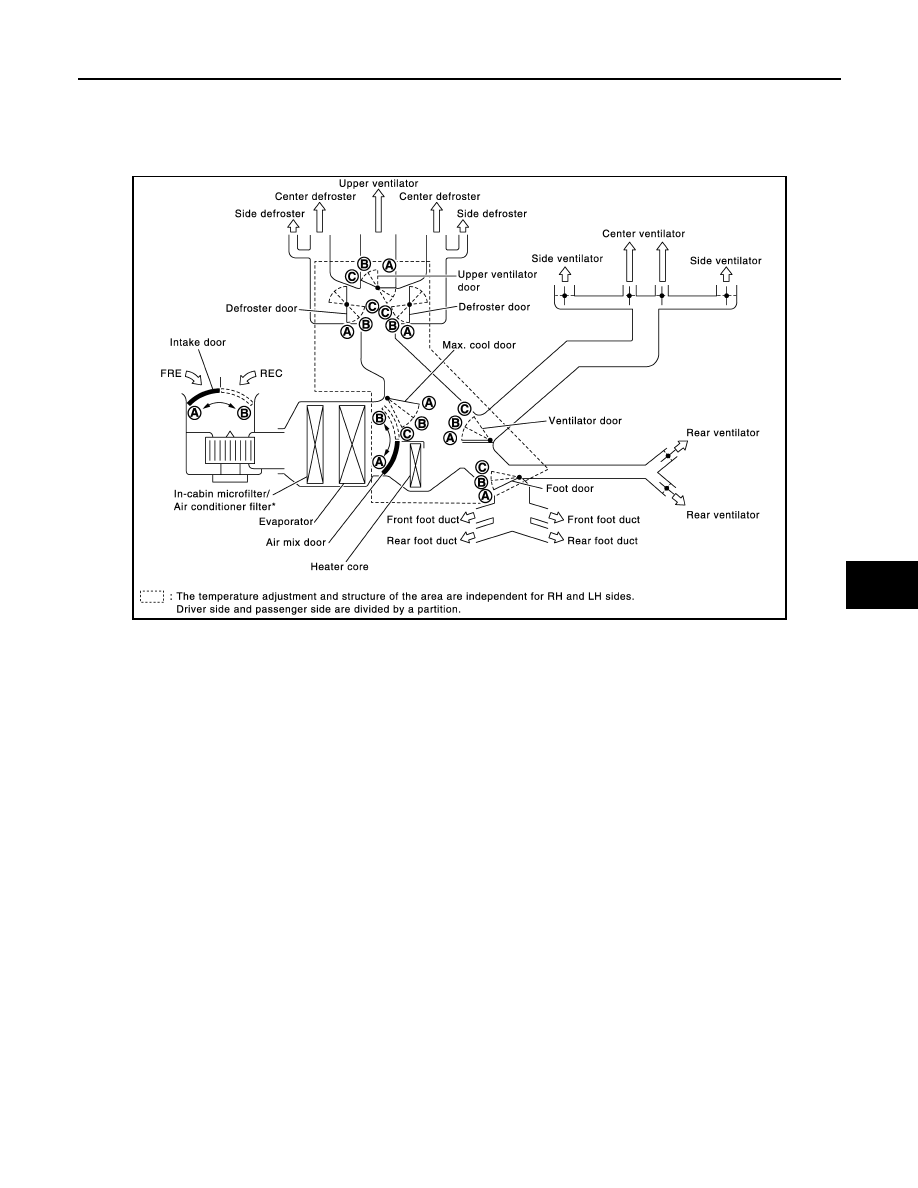

10. Upper ventilator door lever

11.

Filter cover

12.

In-cabin microfilter
(Air conditioner filter*

13. Foot duct 1 RH

14.

Foot duct 2 RH

15.

Air mix door motor (Passenger side)

16. Heater & cooling unit case cover

17.

Evaporator pipe assembly

18.

O-ring

19. Evaporator

20.

Expansion valve

21.

Case packing

22. Grommet

23.

Cooler pipe grommet

24.

Drain hose

25. Heater & cooling unit case RH

26.

Air mix door (Slide door)

27.

Heater pipe support

28. Heater pipe grommet

29.

Heater & cooling unit case LH

30.

Heater core

31. Heater pipe cover

32.

Foot duct 2 LH

33.

Foot duct 1 LH

34. Heater duct

35.

Aspirator

36.

Aspirator hose

37. Mode door motor

38.

Main link

39.

Rod link

40. Max. cool door link

41.

Ventilator door link

42.

Foot door link

43. Mode door lever

44.

Defroster door link

45.

Ventilator door lever

46. Foot door lever

47.

Defroster door lever

48.

Max. cool door lever

49. Air mix door motor (Driver side)

50.

Distributor upper case

51.

Distributor lower case

52. Ventilator door

53.

Foot door

54.

Max. cool door

55. Defroster door

56.

Upper ventilator door

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

JPIIA0599ZZ

DUCT AND GRILLE

VTL-69

< REMOVAL AND INSTALLATION >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

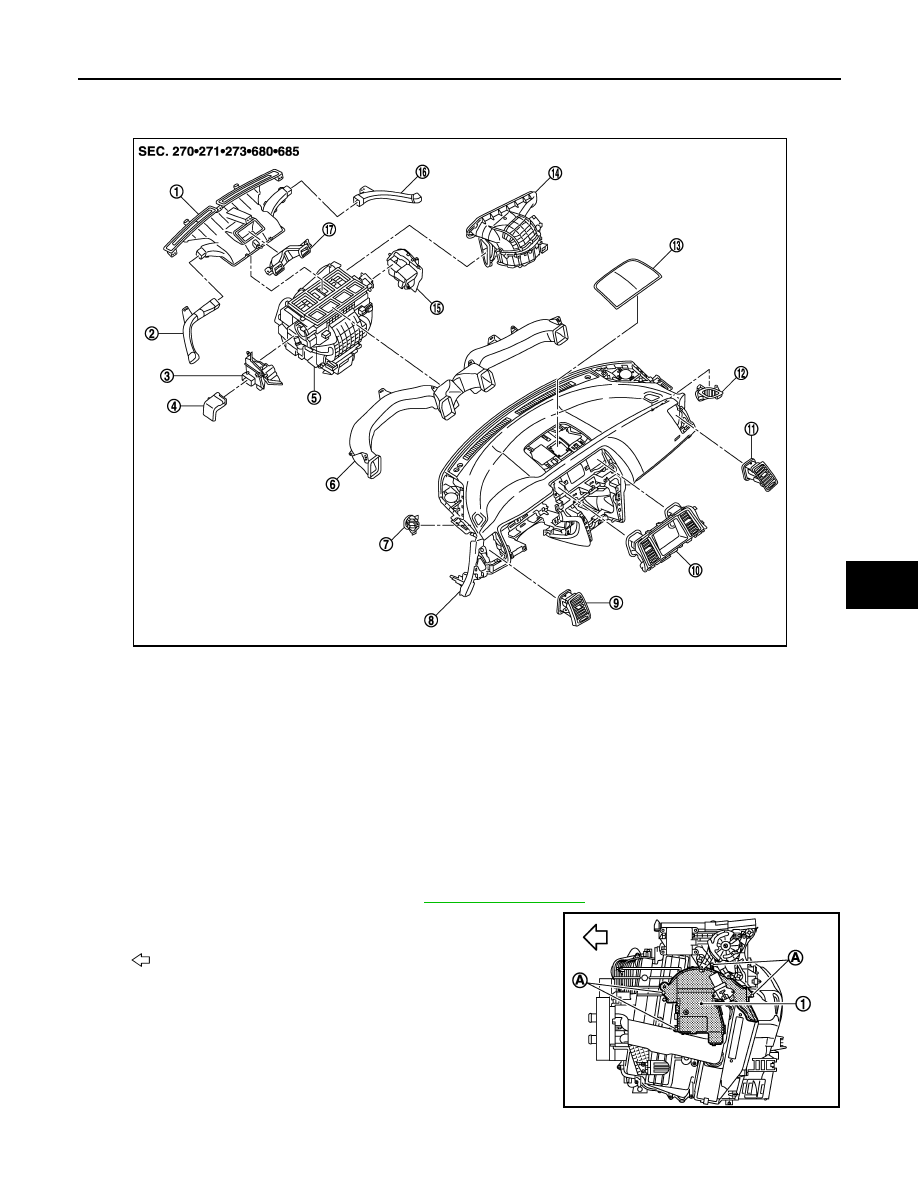

FOOT DUCT : Exploded View

INFOID:0000000009721138

FOOT DUCT : Removal and Installation

INFOID:0000000009721139

REMOVAL

Driver Side

1.

Remove instrument lower panel LH. Refer to

IP-14, "Exploded View"

.

2.

Remove fixing screws (A) and then remove foot duct LH (1).

Passenger side

1.

Defroster nozzle

2.

Side defroster nozzle LH

3.

Foot duct LH

4.

Heater duct

5.

Heater & cooling unit assembly

6.

Ventilator duct

7.

Side defroster grille LH

8.

Instrument panel assembly

9.

Side ventilator grille LH

10. Center ventilator grille assembly

11. Side ventilator grille RH

12. Side defroster grille RH

13. Center speaker grille

14. Blower unit assembly

15. Foot duct RH

16. Side defroster nozzle RH

17. Upper ventilator duct

JPIIA1225ZZ

: Vehicle front

JPIIA1226ZZ

VTL-70

< REMOVAL AND INSTALLATION >

[WITHOUT 7 INCH DISPLAY]

DUCT AND GRILLE

1.

Remove blower unit assembly. Refer to

VTL-30, "Exploded View"

.

2.

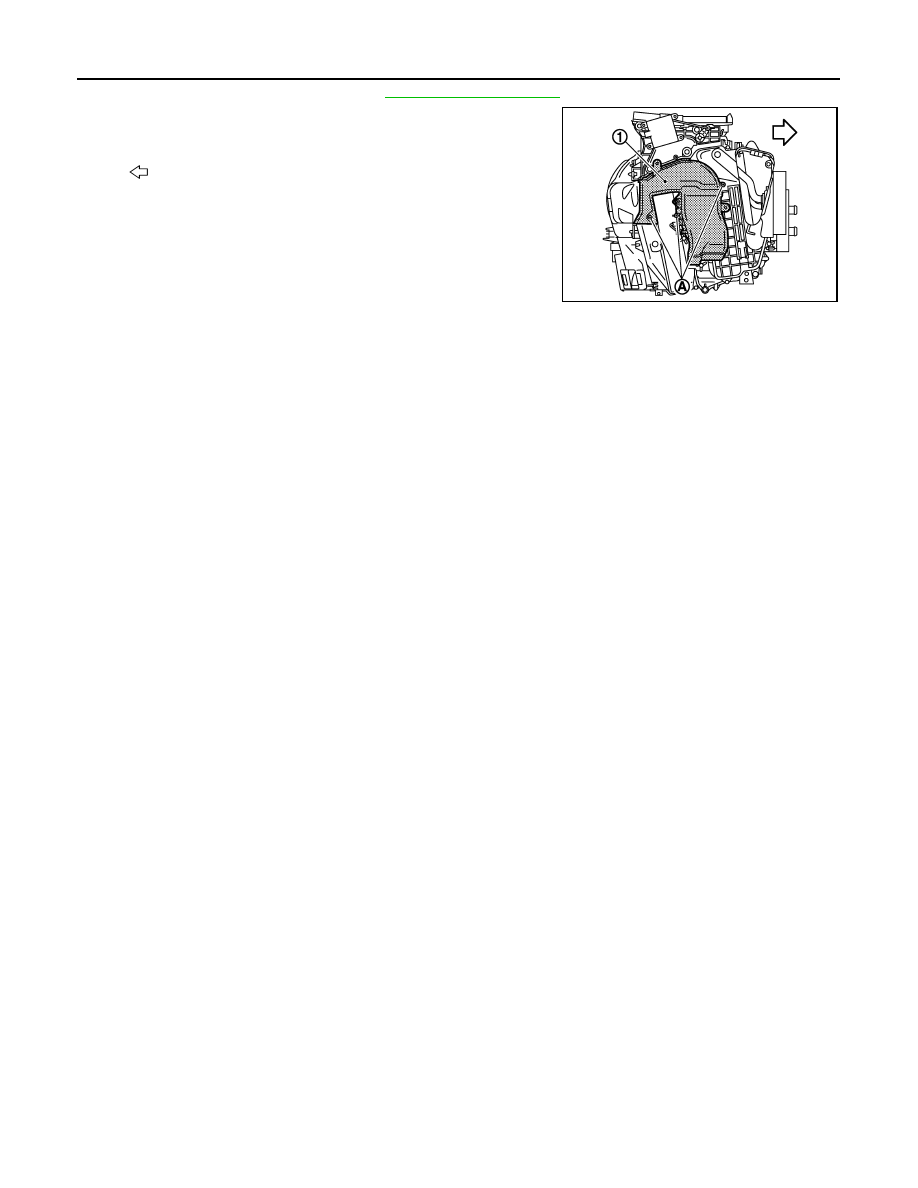

Remove fixing screws (A) and fixing harness clip, and then
remove foot duct RH (1).

INSTALLATION

Install in the reverse order of removal.

: Vehicle front

JPIIA1227ZZ
