< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITH NAVIGATION]

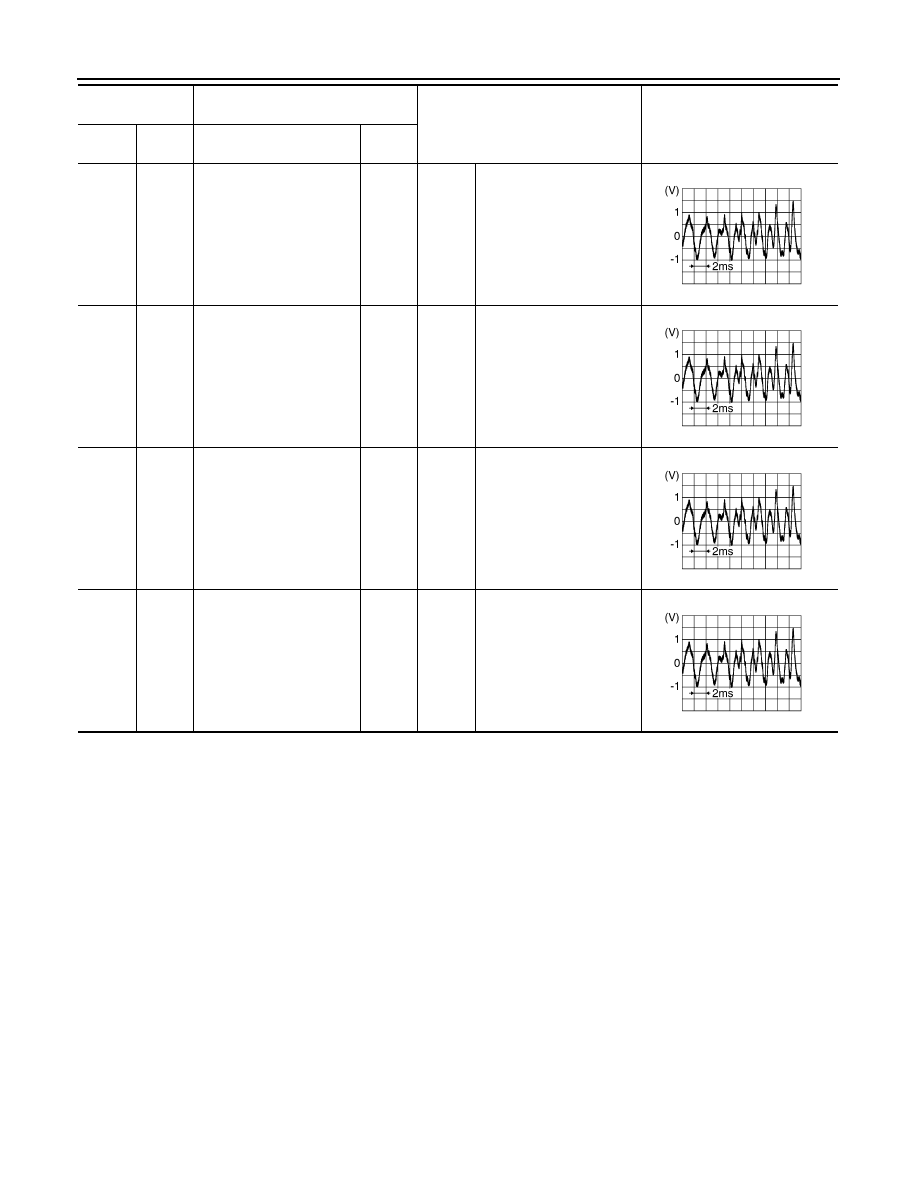

BOSE AMP.

29

(V)

30

(P)

Sound signal center speak-
er

Output

Ignition

switch

ON

Sound output

31

(BR)

32

(Y)

Sound signal front door
speaker RH

Output

Ignition

switch

ON

Sound output

33

(W/R)

34

(B/R)

Sound signal front RH

Input

Ignition

switch

ON

Sound output

35

(W/R)

36

(B/R)

Sound signal front LH

Input

Ignition

switch

ON

Sound output

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

AV

CAMERA CONTROL UNIT

AV-347

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

CAMERA CONTROL UNIT

Reference Value

INFOID:0000000009721856

VALUES ON THE DIAGNOSIS TOOL

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

CONSULT MONITOR ITEM

Monitor Item

Condition

Value/Status

ST ANGLE SENSOR SIGNAL
[ON/OFF]

Ignition switch
ON

When steering angle sensor signal is input

ON

Other than the above

OFF

REVERSE SIGNAL
[ON/OFF]

Ignition switch
ON

R position

ON

Other than R position

OFF

VEHICLE SPEED SIGNAL
[ON/OFF]

Ignition switch
ON

When vehicle speed is input

ON

Other than the above

OFF

ILL
[ON/OFF]

Ignition switch
ON

When lighting switch is ON

ON

When lighting switch is OFF

OFF

CAMERA SWITCH SIGNAL
[ON/OFF]

Ignition switch
ON

When camera switch signal is input

ON

Other than the above

OFF

CAMERA OFF SIGNAL
[ON/OFF]

Ignition switch
ON

When camera OFF signal is input

ON

Other than the above

OFF

ITS SW 1
[ON/OFF]

Ignition switch
ON

Warning systems switch is ON. (Warning systems ON
indicator illuminates.)

ON

Warning systems switch is OFF. (Warning systems
ON indicator OFF.)

OFF

ITS SW 1 IND
[ON/OFF]

Ignition switch
ON

Warning systems ON indicator illuminates.

ON

Warning systems ON indicator OFF

OFF

ST ANGLE SENSOR TYPE
[Absolute]

Ignition switch
ON

—

Absolute

STEERING GEAR RATIO TYPE
[TYPE1]

Ignition switch
ON

—

TYPE1

STEERING POSITION
[LHD]

Ignition switch
ON

—

LHD

WASH SW
[ON/OFF]

Ignition switch
ON

When washer switch signal is input

ON

Other than the above

OFF

REAR CAMERA IMAGE SIGNAL
[OK/NG]

Ignition switch
ON

When rear camera image signal input status is normal

OK

When rear view camera image signal input status is
not normal

NG

R-CAMERA COMM STATUS
[OK/NG]

Ignition switch
ON

When communication status with rear camera is nor-
mal

OK

When communication status with rear camera is not
normal

NG

TURN SIGNAL
[ON/OFF]

Ignition switch
ON

Turn signal is ON

ON

Turn signal is OFF

OFF

ITS SW 2
[No setting]

Ignition switch
ON

—

No setting

AV-348

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITH NAVIGATION]

CAMERA CONTROL UNIT

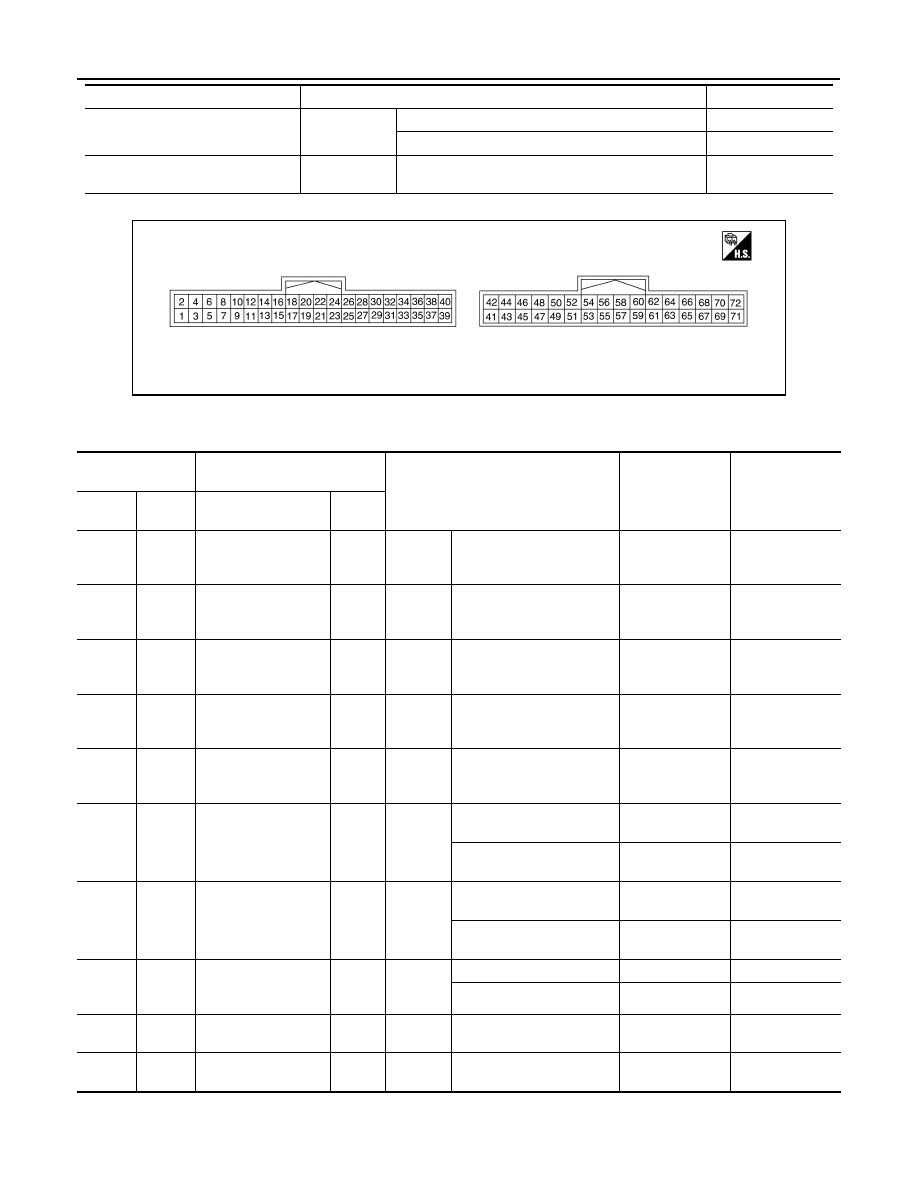

TERMINAL LAYOUT

PHYSICAL VALUES

PUMP COMM STATUS
[OK/NG]

Ignition switch
ON

When communication signal is input

OK

Other than the above

NG

ITS SW 2 IND
[No setting]

Ignition switch
ON

—

No setting

Monitor Item

Condition

Value/Status

JSNIA4749ZZ

Terminal

(Wire color)

Description

Condition

Standard value

Reference value

(Approx.)

+

–

Signal name

Input/

Output

1

(B)

Ground

Ground

—

Ignition

switch

ON

—

0  -  0.1  V

0  V

2

(V)

1

(B)

Battery power supply

Input

Ignition

switch

OFF

—

9.5 - 16 V

Battery voltage

3

(G)

1

(B)

Ignition signal

Input

Ignition

switch

ON

—

9.5 - 16 V

Battery voltage

7

(R)

Ground

BSW indicator LH

Output

Ignition

switch

ON

Approx. 2 sec. after ignition
switch OFF

⇒

 ON (bulb

check).

5.5 - 16 V

6.0 V

8

(G)

Ground

BSW indicator RH

Output

Ignition

switch

ON

Approx. 2 sec. after ignition
switch OFF

⇒

 ON (bulb

check)

5.5 - 16 V

6.0 V

15

(BR)

Ground

Warning systems ON
indicator

Output

Ignition

switch

ON

Warning systems ON indi-
cator ON

0 - 0.1 V

0 V

Warning systems ON indi-
cator OFF

9.5 - 16 V

12.0 V

17

(GR)

Ground

Warning systems
switch

Input

Ignition

switch

ON

When warning systems
switch is not pressed

9.5 - 16 V

12.0 V

When warning systems
switch is pressed

0 - 0.1 V

0 V

25

(R)

1

(B)

Reverse signal

Input

Ignition

switch

ON

R position

9.5 - 16 V

12.0 V

Other than R position

0 - 0.1 V

0 V

27

(L)

—

CAN-H

Input/

Output

—

—

—

—

28

(P)

—

CAN-L

Input/

Output

—

—

—

—

AV

CAMERA CONTROL UNIT

AV-349

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

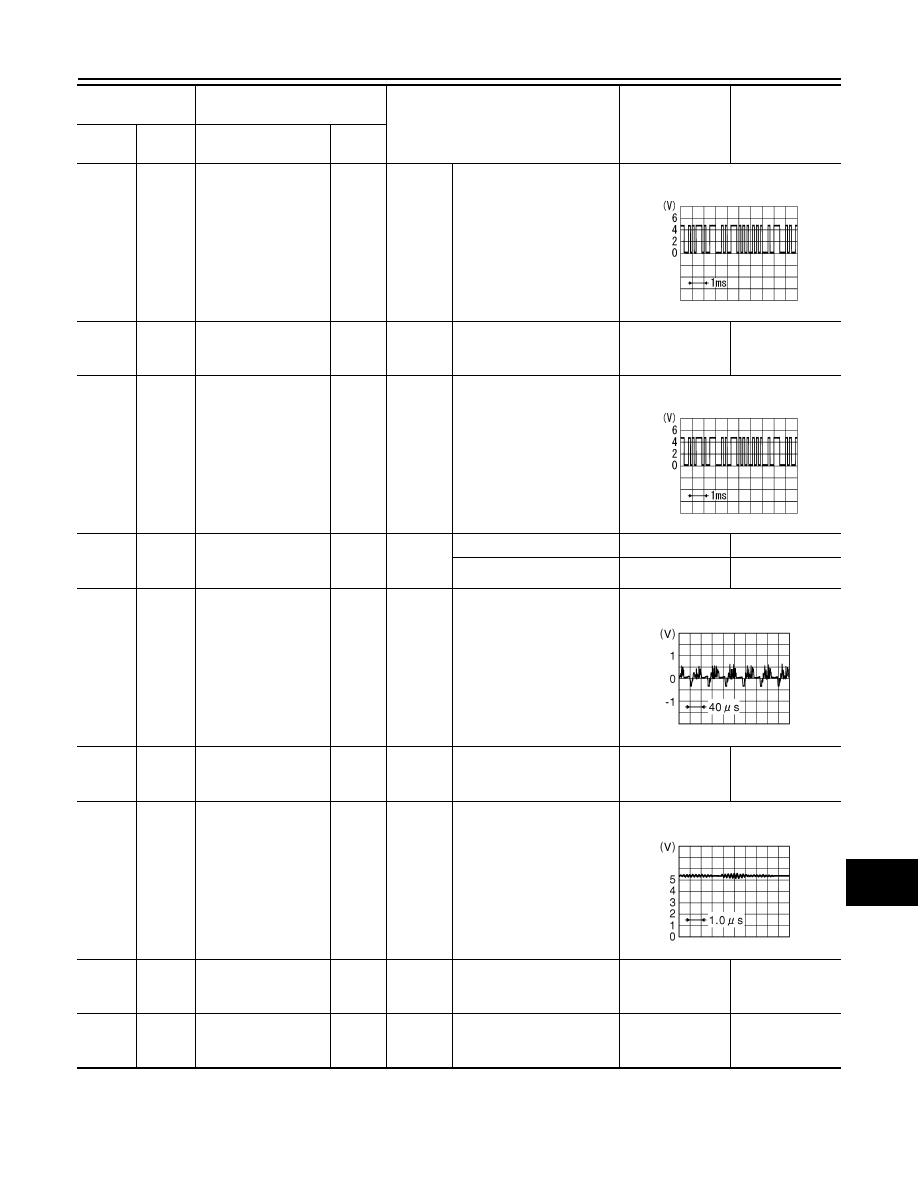

36

(W)

Ground

Communication sig-
nal
(CAMERA

→

 PUMP)

Output

Ignition

switch

ON

—

Input the waveform synchronized

with the communication status.

37

(SB)

Ground

COMM GND

—

Ignition

switch

ON

—

0 - 0.1 V

0 V

38

(V)

Ground

Communication sig-
nal
(PUMP

→

 CAMERA)

Input

Ignition

switch

ON

—

Input the waveform synchronized

with the communication status.

40

(R)

Ground

Washer level switch

Input

Ignition

switch

ON

Washer is empty

0 - 0.1 V

0 V

Washer is not empty

9.5 - 16 V

12 V

47

(B)

48

Camera image signal

Output

Ignition

switch

ON

—

Input the waveform synchronized

with the camera image signal.

48

Ground

Camera image signal
ground

—

Ignition

switch

ON

—

0 - 0.1 V

0 V

49

(W)

52

(R/W)

Rear camera commu-
nication signal

Input/

Output

Ignition

switch

ON

—

Input the waveform synchronized

with the communication status.

50

(R/L)

52

(R/W)

Rear camera power
supply

Output

Ignition

switch

ON

—

5.0 - 9.0 V

6.0 V

52

(R/W)

Ground

Rear camera ground

—

Ignition

switch

ON

—

0 - 0.1 V

0 V

Terminal

(Wire color)

Description

Condition

Standard value

Reference value

(Approx.)

+

–

Signal name

Input/

Output

PKIB5039J

PKIB5039J

JSNIA0834GB

JSNIA0836GB
