SHIFT LOCK SYSTEM

The shift lock solenoid (A) is not energized when the ignition switch
is in any position other than ON. In this condition, the shift mecha-
nism is locked and “P” position is held. The operation cannot be per-
formed from “P” position if the brake pedal is depressed with the
ignition switch ON when the operation system of shift lock solenoid is
malfunctioning. However, the lock lever (B) is forcibly rotated and the
shift lock is released when the shift lock release button (C) is
pressed from above. Then the selector operation from “P” position
can be performed.

CAUTION:

Use the shift lock release button only when the selector lever cannot be operated even if the brake
pedal is depressed with the ignition switch ON.

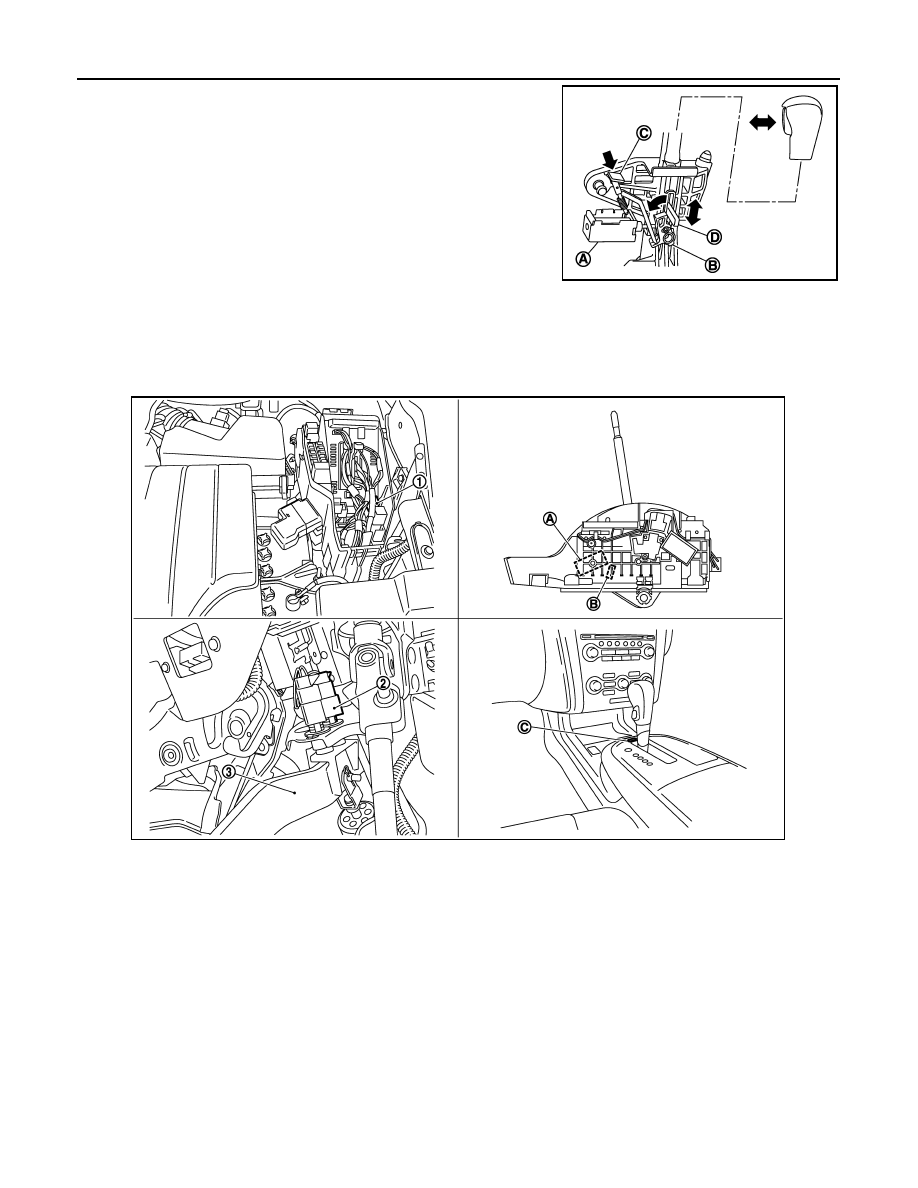

Component Parts Location

INFOID:0000000009719416

*: Shift lock release button becomes operative by removing shift lock cover.

Component Description

INFOID:0000000009719417

SHIFT LOCK

D

: Detent rod

JPDIA0614ZZ

1.

Shift lock relay

2.

Stop lamp switch

3.

Brake pedal

A.

Shift lock solenoid

B.

Park position switch

C.

Shift lock release button cover

JPDIA0625ZZ

SHIFT LOCK SYSTEM

TM-35

< SYSTEM DESCRIPTION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Component

Function

Shift lock solenoid

TM-107

Lock lever

Detent rod

Park position switch

Shift lock release button

TM-36

< SYSTEM DESCRIPTION >

[CVT: RE0F09B]

ON BOARD DIAGNOSTIC (OBD) SYSTEM

ON BOARD DIAGNOSTIC (OBD) SYSTEM

Diagnosis Description

INFOID:0000000009719418

DESCRIPTION

The CVT system has two self-diagnostic systems.
The first is the emission-related on board diagnostic system (OBD-II) performed by the TCM in combination
with the ECM. A malfunction is indicated by the MIL (Malfunction Indicator Lamp) and is stored as a DTC in
the ECM memory and in the TCM memory.
The second is the TCM original self-diagnosis performed by the TCM. A malfunction history is stored in the
TCM memory. The detected items are overlapped with OBD-II self-diagnostic items. For details, refer to

TM-

128, "DTC Index"

.

OBD-II FUNCTION

The ECM provides emission-related on board diagnostic (OBD-II) functions for the CVT system. One function
is to receive a signal from the TCM used with OBD-related parts of the CVT system. The signal is sent to the
ECM when a malfunction occurs in the corresponding OBD-related part. The other function is to indicate a
diagnostic result by means of the MIL (Malfunction Indicator Lamp) on the instrument panel. Sensors,
switches and solenoid valves are used as sensing elements.
The MIL automatically illuminates in “One or Two Trip Detection Logic” when a malfunction is sensed in rela-
tion to CVT system parts.

ONE OR TWO TRIP DETECTION LOGIC OF OBD-II

One Trip Detection Logic

If a malfunction is sensed during the first test drive, the MIL illuminates and the ECM memory stores the mal-
function as a DTC. The TCM is not provided with such a memory function.

Two Trip Detection Logic

When a malfunction is sensed during the first test drive, it is stored in the ECM memory as a 1st trip DTC
(diagnostic trouble code) or 1st trip freeze frame data. At this point, the MIL does not illuminate. — 1st trip
If the same malfunction as that experienced during the first test drive is sensed during the second test drive,
the MIL will illuminate. — 2nd trip
The “trip” in the “One or Two Trip Detection Logic” means a driving mode in which self-diagnosis is performed
during vehicle operation.

OBD-II DIAGNOSTIC TROUBLE CODE (DTC)

How to Read DTC and 1st Trip DTC

DTC and 1st trip DTC can be read by the following methods.
(

 with CONSULT or

 GST) CONSULT or GST (Generic Scan Tool) Examples: P0705, P0720, etc.

These DTC are prescribed by SAE J2012.
(CONSULT also displays the malfunctioning component or system.)
• 1st trip DTC No. is the same as DTC No.
• Output of the diagnostic trouble code indicates that the indicated circuit has a malfunction. How-

ever, in case of the Mode II and GST, they do not indicate whether the malfunction is still occurring or
it occurred in the past and has returned to normal.
CONSULT can identify them as shown below, therefore, CONSULT (if available) is recommended.

- DTC or 1st trip DTC of a malfunction is displayed in Self-Diagnostic Results in “ENGINE” with CONSULT.

Time data indicates how many times the vehicle was driven after the last detection of a DTC.

- If the DTC is being detected currently, the time data will be “0”.
- If a 1st trip DTC is stored in the ECM, the time data will be “1t”.

Freeze Frame Data and 1st Trip Freeze Frame Data

• The ECM has a memory function, which stores the driving conditions such as fuel system status, calculated

load value, engine coolant temperature, short-term fuel trim, long-term fuel trim, engine speed and vehicle
speed at the moment the ECM detects a malfunction.
Data that are stored in the ECM memory, along with the 1st trip DTC, are called 1st trip freeze frame data,
and the data, stored together with the DTC data, are called freeze frame data and displayed on CONSULT
or GST. The 1st trip freeze frame data can only be displayed on the CONSULT screen, not on the GST. For
details, refer to

EC-129, "CONSULT Function"

.

Only one set of freeze frame data (either 1st trip freeze frame data or freeze frame data) can be stored in the
ECM. 1st trip freeze frame data is stored in the ECM memory along with the 1st trip DTC. There is no priority

ON BOARD DIAGNOSTIC (OBD) SYSTEM

TM-37

< SYSTEM DESCRIPTION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

for 1st trip freeze frame data, and it is updated each time a different 1st trip DTC is detected. However, once
freeze frame data (2nd trip detection/MIL on) is stored in the ECM memory, 1st trip freeze frame data is no
longer stored. Remember, only one set of freeze frame data can be stored in the ECM. The ECM has the fol-
lowing priorities to update the data.

Both 1st trip freeze frame data and freeze frame data (along with the DTC) are cleared when the ECM mem-
ory is erased.

How to Erase DTC

• The diagnostic trouble code can be erased by CONSULT, GST or ECM DIAGNOSTIC TEST MODE as

described below.

- If the battery cable is disconnected, the diagnostic trouble code will be lost within 24 hours.
- When erasing the DTC, using CONSULT or GST is easier and quicker than switching the mode selec-

tor on the ECM.

• The following emission-related diagnostic information is cleared from the ECM memory when erasing DTC

related to OBD-II. For details, refer to

EC-507, "DTC Index"

.

- Diagnostic trouble codes (DTC)
- 1st trip diagnostic trouble codes (1st trip DTC)
- Freeze frame data
- 1st trip freeze frame data
- System readiness test (SRT) codes
- Test values

How to Erase DTC (With CONSULT)

The emission related diagnostic information in the TCM and ECM can be erased by selecting “ALL Erase” in
the “Description” of “FINAL CHECK” mode with CONSULT.

How to Erase DTC (With GST)

1.

If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once. Wait at least 10
seconds and then turn it ON (engine stopped) again.

2.

Select Mode 4 with GST (Generic Scan Tool). For details, refer to

EC-129, "CONSULT Function"

.

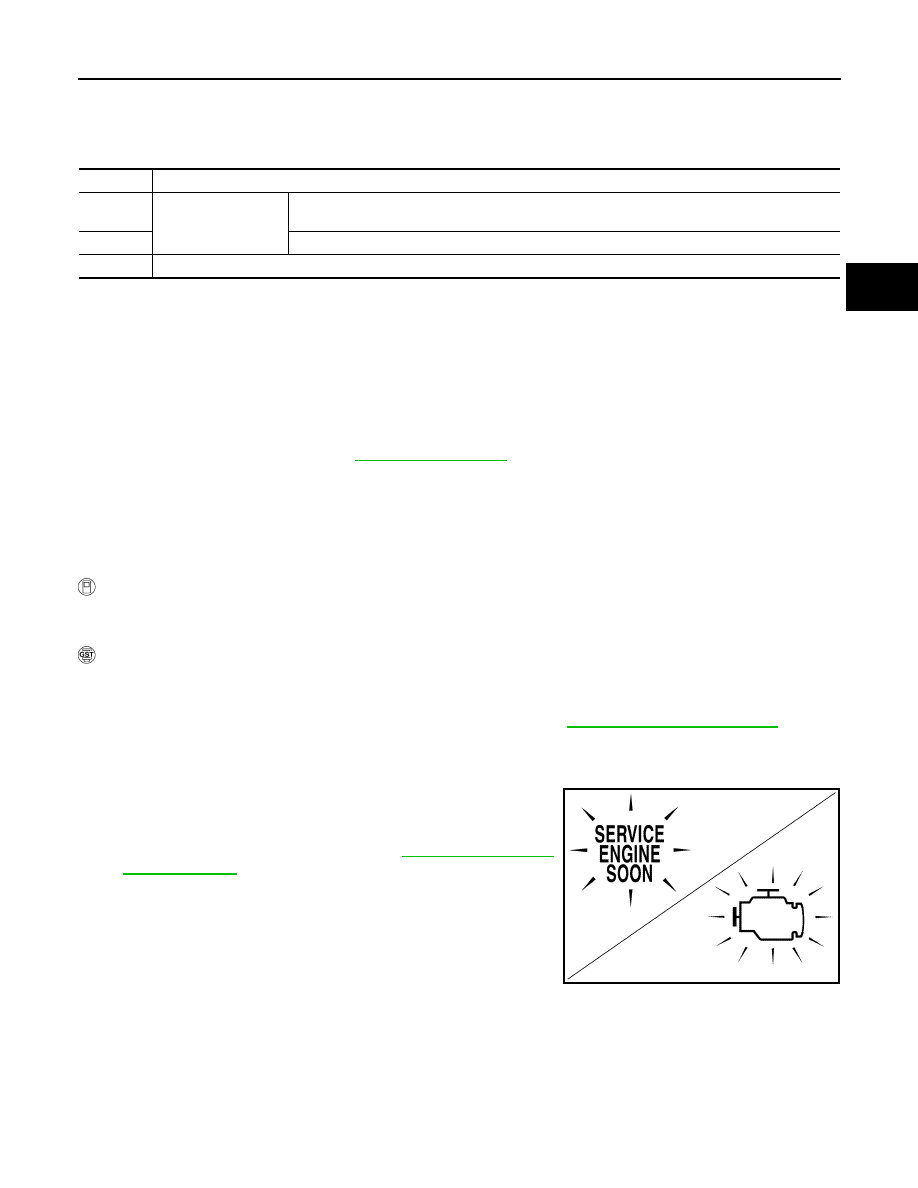

MALFUNCTION INDICATOR LAMP (MIL)
