Nissan Murano. Manual - part 1359





PRECAUTIONS

STC-21

< PRECAUTION >

C

D

E

F

H

I

J

K

L

M

A

B

STC

N

O

P

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions for Removing of Battery Terminal

INFOID:0000000010147413

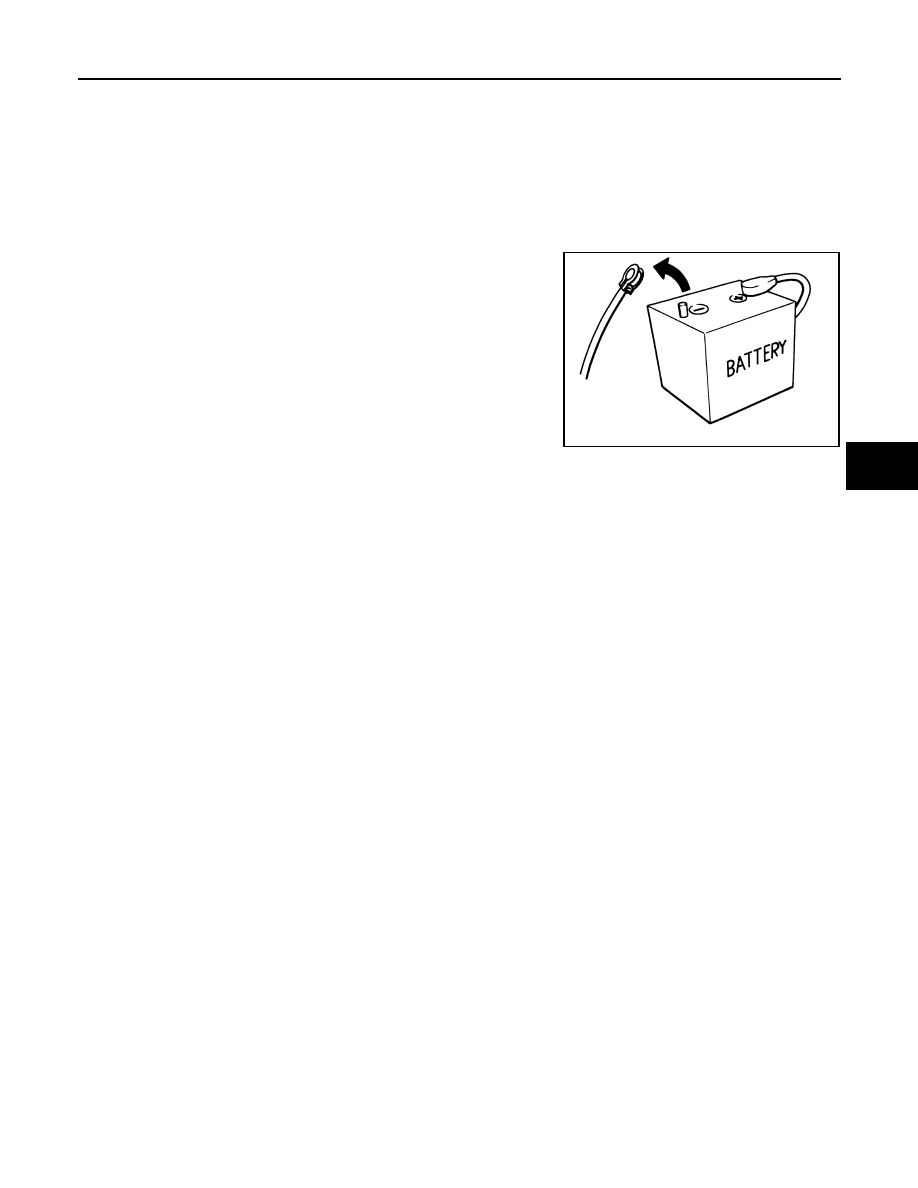

•  When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

SEF289H

STC-22

< REMOVAL AND INSTALLATION >

POWER STEERING CONTROL UNIT

REMOVAL AND INSTALLATION

POWER STEERING CONTROL UNIT

Removal and Installation

INFOID:0000000009722609

REMOVAL

1.

Remove instrument lower panel RH. Refer to

IP-14, "Exploded View"

.

2.

Disconnect power steering control unit connector.

3.

Remove power steering control unit.

INSTALLATION

Install in the reverse order of removal.

STR-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

STR

A

STR

N

O

P

CONTENTS

STARTING SYSTEM

BASIC INSPECTION  ....................................

2

DIAGNOSIS AND REPAIR WORK FLOW  .........

2

Work Flow (With GR8-1200 NI)  ................................

2

Work Flow (Without GR8-1200 NI)  ...........................

5

SYSTEM DESCRIPTION  ..............................

7

STARTING SYSTEM  ...........................................

7

System Diagram ........................................................

7

System Description  ...................................................

7

Component Parts Location ........................................

7

Component Description ............................................

8

DTC/CIRCUIT DIAGNOSIS  ..........................

9

B TERMINAL CIRCUIT  .......................................

9

Description ................................................................

9

Diagnosis Procedure .................................................

9

S CONNECTOR CIRCUIT  ..................................

10

Description ..............................................................

10

Diagnosis Procedure ...............................................

10

STARTING SYSTEM  ..........................................

11

Wiring Diagram - STARTING SYSTEM -  ................

11

SYMPTOM DIAGNOSIS  ..............................

15

STARTING SYSTEM  ..........................................

15

Symptom Table  .......................................................

15

PRECAUTION ..............................................

16

PRECAUTIONS .................................................

16

FOR USA AND CANADA  ..........................................

16

FOR USA AND CANADA : Precaution for Supple-
mental Restraint System (SRS) "AIR BAG" and
"SEAT BELT PRE-TENSIONER" ............................

16

FOR USA AND CANADA : Precautions for Re-
moving of Battery Terminal ......................................

16

FOR MEXICO .............................................................

16

FOR MEXICO : Precaution for Supplemental Re-
straint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER" ..................................................

16

FOR MEXICO : Precautions for Removing of Bat-
tery Terminal ............................................................

17

PREPARATION ...........................................

18

PREPARATION .................................................

18

Special Service Tools  ..............................................

18

Commercial Service Tools .......................................

18

REMOVAL AND INSTALLATION  ...............

19

STARTER MOTOR  ...........................................

19

Exploded View .........................................................

19

Removal and Installation  .........................................

20

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

21

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

21

Starter Motor ...........................................................

21

STR-2

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow (With GR8-1200 NI)

INFOID:0000000009722569

STARTING SYSTEM DIAGNOSIS WITH GR8-1200 NI

To test the starting system, use the following special service tool:
• GR8-1200 NI Multitasking battery and electrical diagnostic station
NOTE:
Refer to the diagnostic station Instruction Manual for proper starting system diagnosis procedures.
