HYDRAULIC LINE

HYDRAULIC LINE

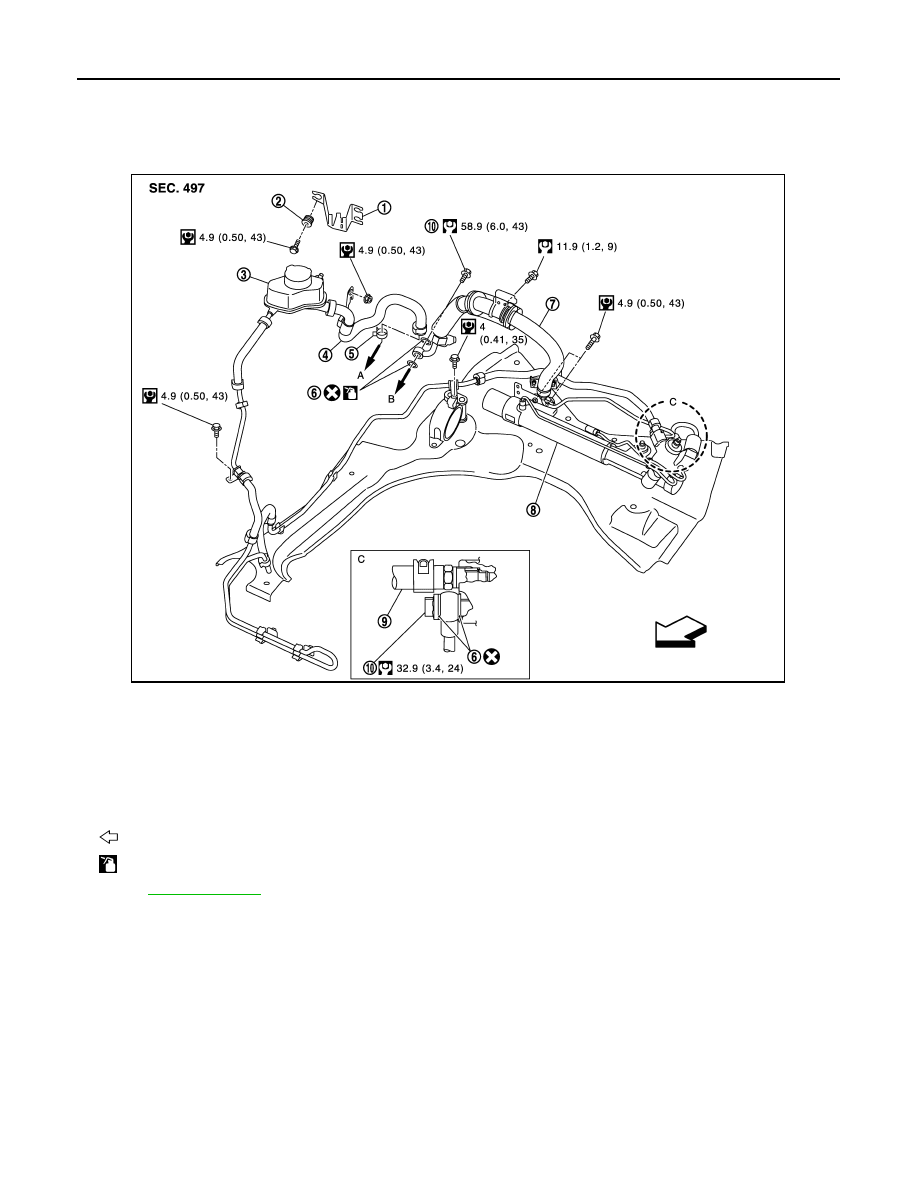

Exploded View

INFOID:0000000009721539

Removal and Installation

INFOID:0000000009721540

CAUTION:

1.

Reservoir tank bracket

2.

Bushing

3.

Reservoir tank

4.

Suction hose

5.

Clamp

6.

Copper washer

7.

High pressure piping

8.

Steering gear assembly

9.

Low pressure hose

10. Eye bolt

A.

To power steering oil pump suction
hose.

B.

To power steering oil pump.

: Vehicle front

: Apply power steering fluid.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JSGIA0608GB

HYDRAULIC LINE

ST-107

< REMOVAL AND INSTALLATION >

[WITHOUT HEATED STEERING WHEEL]

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

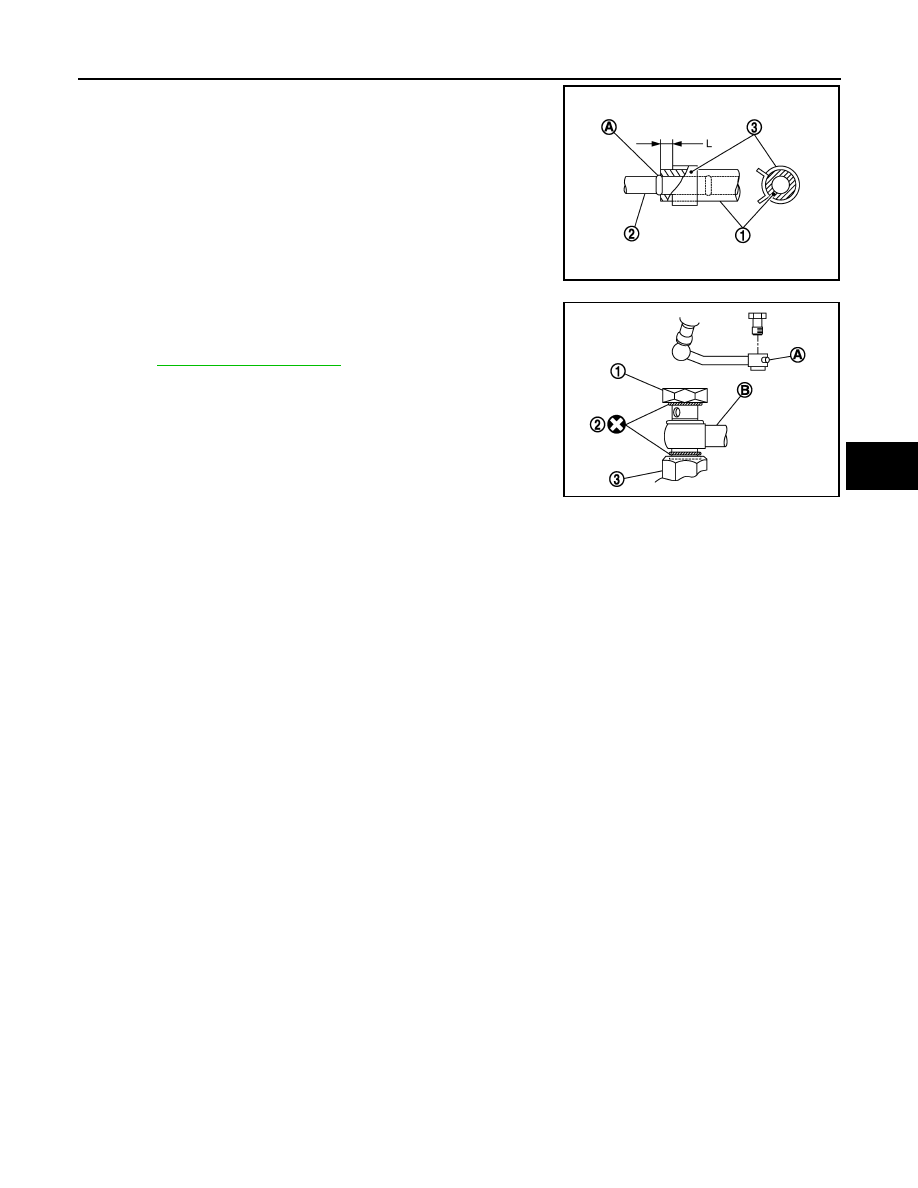

• Never apply fluid to the hose (1) and tube (2).
• Insert hose securely until it contacts spool (A) of tube.
• Leave clearance (L) when installing clamp (3).

• Install eye bolt with eye joint (assembled to high pressure

hose) (B) protrusion (A) facing with pump side cutout, and
then tighten it to the specified torque after tightening by hand.
Refer to

ST-106, "Exploded View"

.

• Securely insert harness connector to pressure sensor.
• Apply power steering fluid to around copper washer, then

install eye bolt.

• Never reuse copper washer.

Standard

L

: 3 – 8 mm (0.12 – 0.31 in)

JSGIA0118ZZ

SGIA1379E

ST-108

< SERVICE DATA AND SPECIFICATIONS (SDS)

[WITHOUT HEATED STEERING WHEEL]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

INFOID:0000000009721541

Steering Wheel Axial End Play and Play

INFOID:0000000009721542

Unit: mm (in)

Steering Wheel Turning Force

INFOID:0000000009721543

Unit: N·m (kg-m, in-lb)

Steering Angle

INFOID:0000000009721544

Unit: Degree minute (Decimal degree)

Steering Column Length

INFOID:0000000009721545

Unit: mm (in)

Steering Column Mounting Dimensions

INFOID:0000000009721546

Unit: mm (in)

Steering Column Operating Range

INFOID:0000000009721547

Steering gear model

PR26AF

Fluid capacity (Approx.)

 (US qt, lmp qt)

1.0 (1-1/8, 7/8)

Item

Standard

Steering wheel axial end play

0 (0)

Steering wheel play on the outer circumference

0 – 35 (0 – 1.38)

Item

Standard

Steering wheel turning force

7.45 (0.76, 66)

Item

Standard

Wheel size: 18 inch

Wheel size: 20 inch

Inner wheel

Minimum

33

°

30

′

 (33.5

°

)

32

°

00

′

 (32.0

°

)

Nominal

36

°

30

′

 (36.5

°

)

35

°

00

′

 (35.0

°

)

Maximum

37

°

30

′

 (37.5

°

)

36

°

00

′

 (36.0

°

)

Outer wheel

Nominal

31

°

30

′

 (31.5

°

)

30

°

30

′

 (30.5

°

)

Item

Standard

Steering column length

463 (18.23)

Item

Standard

Mounting dimension

30 (1.18) or less

Item

Standard

Tilt operating range

15

°

Telescopic operating range

40 mm (1.57 in)

Rotating torque

0.49 N·m (0.05 kg-m, 4 in-lb)

SERVICE DATA AND SPECIFICATIONS (SDS)

ST-109

< SERVICE DATA AND SPECIFICATIONS (SDS)

[WITHOUT HEATED STEERING WHEEL]

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

Lower Shaft Length

INFOID:0000000009721548

Unit: mm (in)

Rack Sliding Force

INFOID:0000000009721549

Unit: N (kg, lb)

Rack Stroke

INFOID:0000000009721550

Unit: mm (in)

Socket Swing Force and Rotating Torque

INFOID:0000000009721551

SWING FORCE

Unit: N (kg, lb)

ROTATING TORQUE

Unit: N·m (kg-m, in-lb)

Socket Axial End Play

INFOID:0000000009721552

Unit: mm (in)

Inner Socket Length

INFOID:0000000009721553

Unit: mm (in)

Relief Oil Pressure

INFOID:0000000009721554

Unit: kPa (kg/cm

2

, psi)

Item

Standard

Lower shaft length (extended position)

524.6 – 525.6 (20.65 – 20.69)

Item

Standard

2WD

AWD

Rack sliding force

195 – 258 (19.9 – 26.3, 43.8 –

57.9)

227 – 305 (23.2 – 31.1, 51.1 –

68.5)

Item

Standard

Wheel size: 18 inch

Wheel size: 20 inch

Rack stroke neutral position

70.5 (2.776)

68.0 (2.677)

Item

Standard

Outer socket

4.81 – 45.7 (0.5 – 4.6, 1.1 – 10.2)

Inner socket

8.9 – 64 (0.91 – 6.5, 2.01 – 14.3)

Item

Standard

Outer socket

0.3 – 2.9 (0.03 – 0.29, 3 – 25)

Item

Standard

Outer socket

0.5 (0.02) or less

Inner socket

0.2 (0.008) or less

Item

Standard

Inner socket length

120.6 (4.75)

Item

Standard

Relief oil pressure

9,400 – 10,400 (95.9 – 106.1, 1,363 – 1,508)
