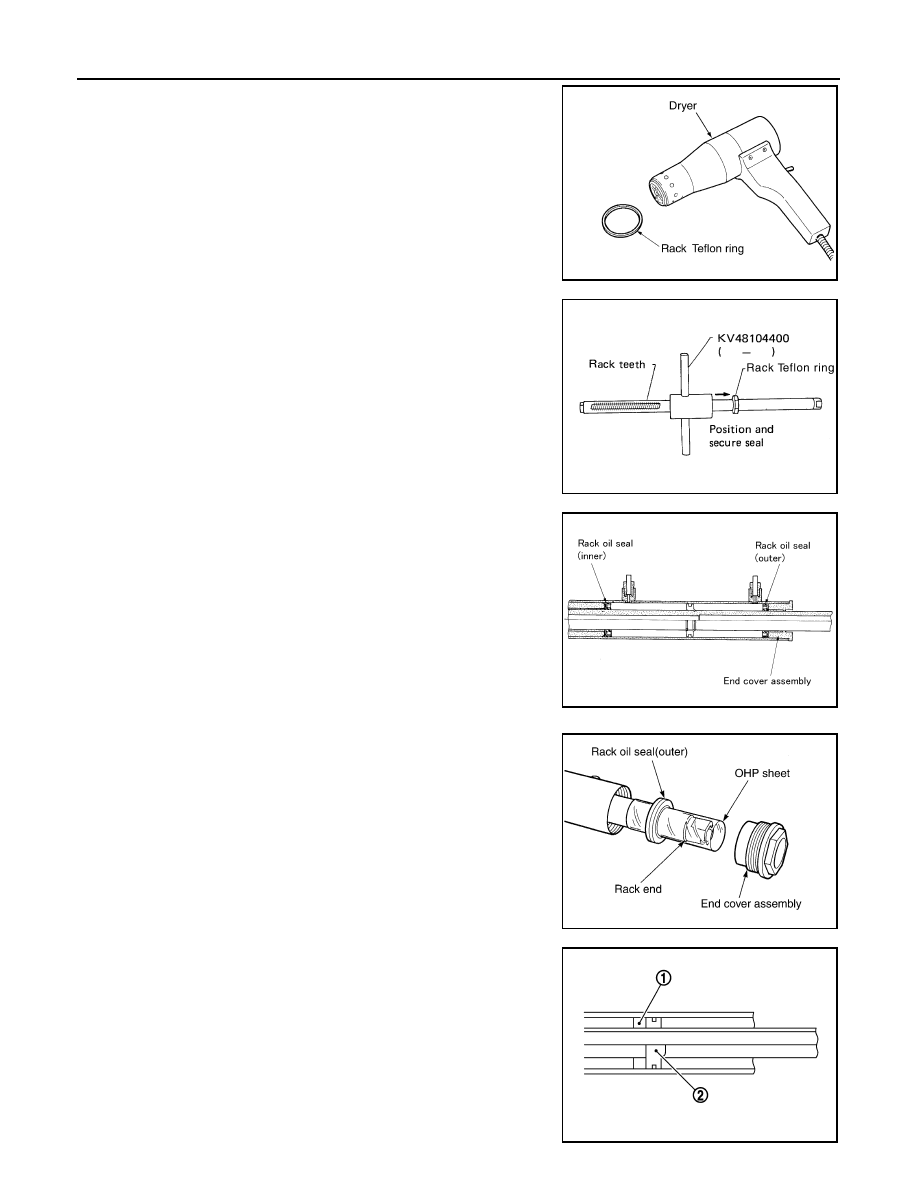

ST-94 < REMOVAL AND INSTALLATION > [WITHOUT HEATED STEERING WHEEL] STEERING GEAR AND LINKAGE 2. Heat rack Teflon ring to approximately 40 ° C (104 ° C) with a dryer. Assemble it to mounting groove of rack assembly. CAUTION: Never reuse rack Teflon ring. 3. Install the rack Teflon ring correcting tool [SST: KV48104400 — )] from tooth side of rack fit rack Teflon ring on rack. Compress the with tool. 4. Apply recommended grease to rack oil seal, and then install CAUTION: • Install rack oil seal in a direction so that the lip of inner oil seal and the lip of outer oil seal face each other. • Never damage retainer sliding surface by rack assembly. Replace gear housing assembly if damaged. • Never damage gear housing assembly inner wall by rack assembly. Gear housing assembly must be replaced if a. Wrap an OHP sheet [approximately 70 mm (2.76 in) × 100 mm (3.94 in)]. Around rack assembly teeth to avoid damaging rack b. Insert rack oil seal (inner) (1) into rack assembly piston (2). c. Push retainer to adjusting screw side by hand, and move the SGIA0153E SGIA0154E SGIA0205E SGIA0157E JSGIA0323ZZ |
