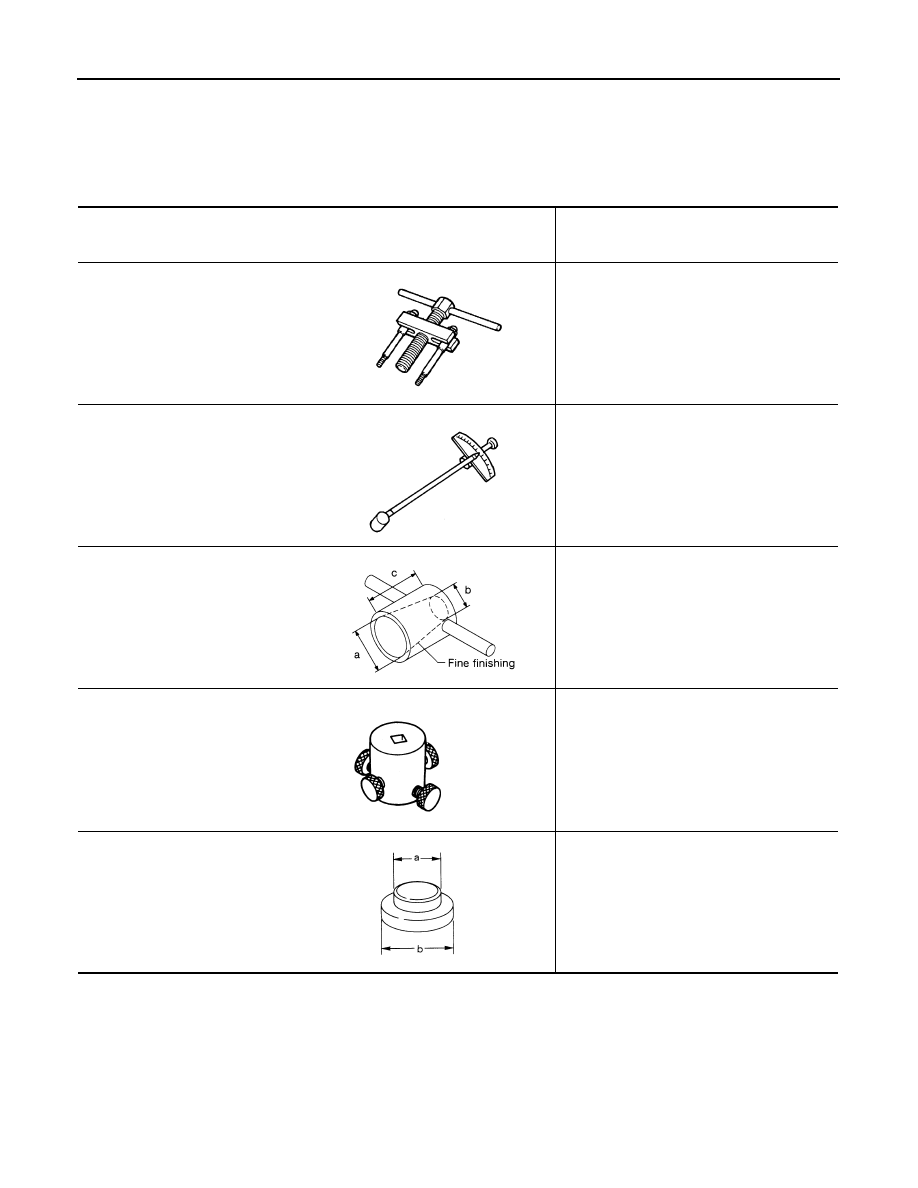

Special Service Tools

INFOID:0000000009721454

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

ST27180001
(J-25726-A)
Steering wheel puller

Removing steering wheel

ST3127S000
(J-25765-A)
Preload gauge

• Measuring steering column rotating torque
• Measuring pinion rotating torque
• Measuring ball joint rotating torque

KV48104400
(

—

)

Teflon ring correcting tool
a: 50 mm (1.97 in) dia.
b: 36 mm (1.42 in) dia.
c: 100 mm (3.94 in)

Installing rack Teflon ring

KV48103400
(

—

)

Preload adapter

Measuring pinion rotating torque

ST35300000
(

—

)

Drift
a: 45.1 mm (1.776 in) dia.
b: 59.0 mm (2.323 in) dia.

Installing oil pump oil seal

ZZA0819D

ZZA0806D

S-NT550

ZZA0824D

ZZA0881D

PREPARATION

ST-7

< PREPARATION >

[WITH HEATED STEERING WHEEL]

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

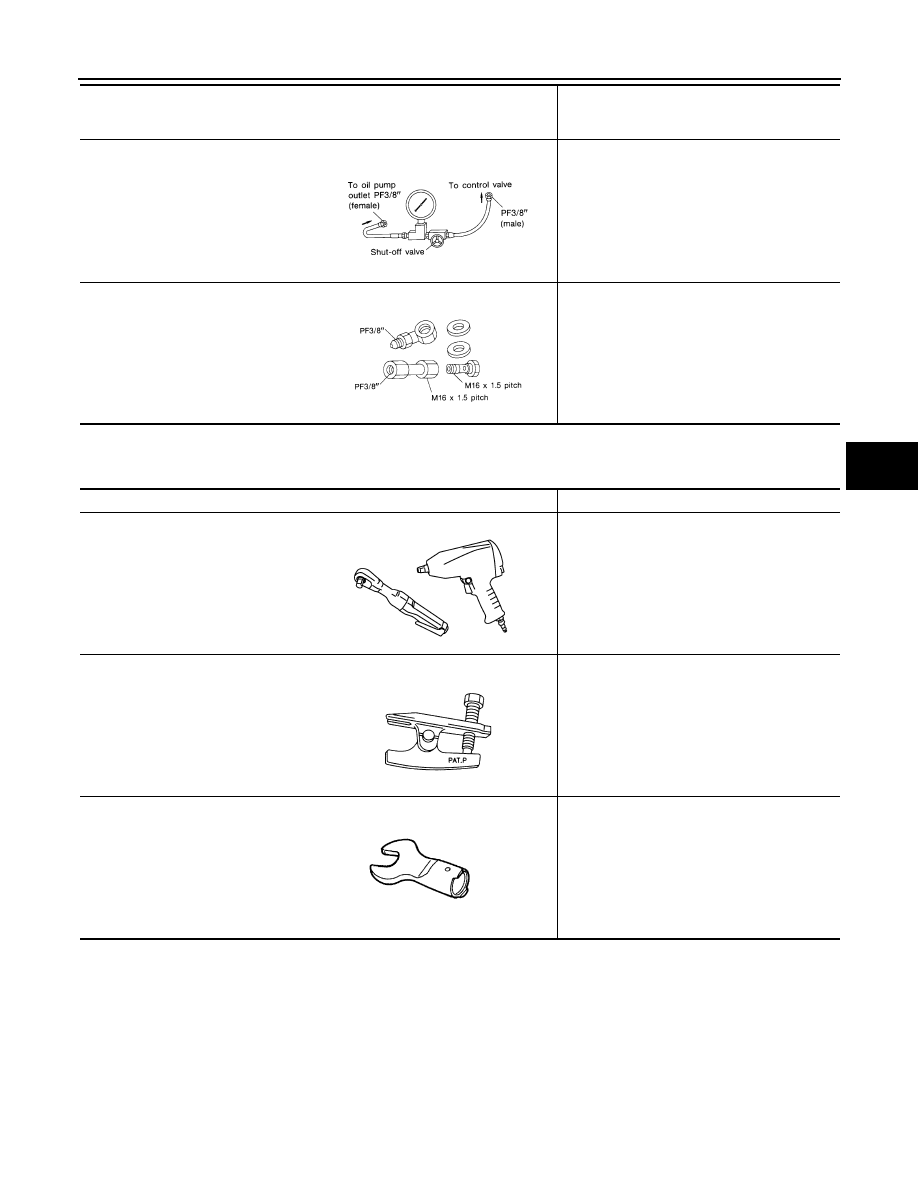

Commercial Service Tools

INFOID:0000000009721455

KV48103500
(J-26357)
Oil pressure gauge

Measuring oil pump relief pressure

KV48102500
(J-33914)
Oil pressure gauge adapter

Measuring oil pump relief pressure

Tool number
(Kent-Moore No.)
Tool name

Description

S-NT547

S-NT542

Tool name

Description

Power tool

Loosening bolts and nuts

Ball joint remover

Removing steering outer socket

Open head

Tightening end cover assembly

PBIC0190E

S-NT146

ZZA0822D

ST-8

< PREPARATION >

[WITH HEATED STEERING WHEEL]

PREPARATION

Drift
a: 15 mm (0.59 in) dia.
b: 10 mm (0.39 in) dia.

Installing rotor snap ring

Drift
a: 36 mm (1.42 in) dia.
b: 20 mm (0.79 in) dia.

Installing oil pump oil seal

Tool name

Description

S-NT474

S-NT474

COMPONENT PARTS

ST-9

< SYSTEM DESCRIPTION >

[WITH HEATED STEERING WHEEL]

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

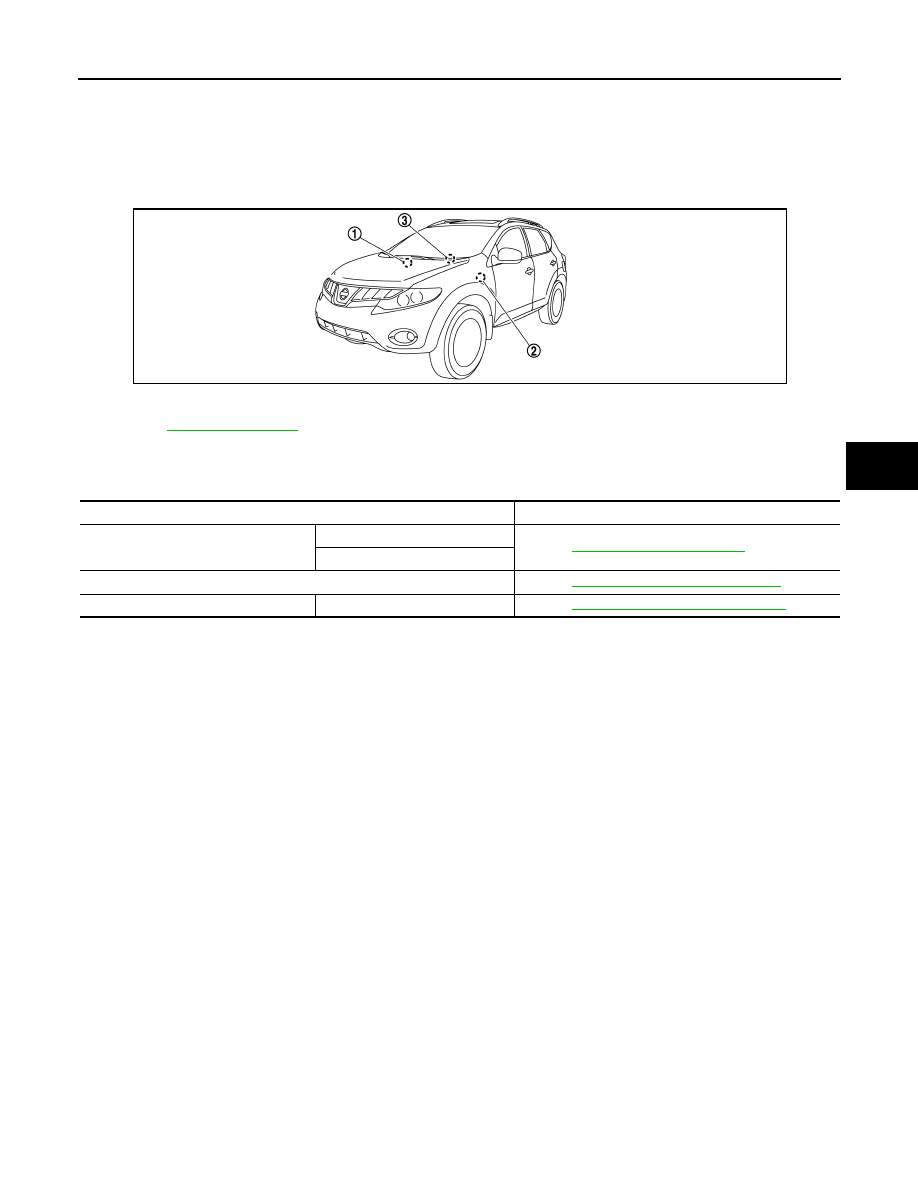

Component Parts Location (Heated Steering Wheel)

INFOID:0000000009721456

Component Description (Heated Steering Wheel)

INFOID:0000000009721457

Heated Steering Wheel

INFOID:0000000009721458

The heated steering wheel is activated by the power supply from the heated steering wheel relay.
Furthermore, the heated steering wheel incorporates a heating element and a thermostat to control heated
steering wheel temperatures.
• Heating element: Heat is generated by the passage of an electric current.
• Thermostat: ON/OFF operation of power supply at a certain temperature.

Heated Steering Wheel Switch

INFOID:0000000009721459

• Controls the heated steering wheel relay and operates the heated steering wheel system.

The heated steering wheel switch incorporates a timer and turns OFF the heated steering wheel relay when
operating time reaches a certain time.

- Timer: ON/OFF operation of the heated steering wheel relay at a certain time.
• Turns the indicator lamp ON when the system is activated.

Heated Steering Wheel Relay

INFOID:0000000009721460

Operates the heated steering system with the control signal from the heated steering wheel switch.

1.

Heated steering wheel relay
Refer to

PG-77, "Main Harness"

.

2.

Heated steering wheel switch

3.

Heated steering wheel

JPGIA0195ZZ

Part name

Reference/Function

Heated steering wheel

Heating element

Refer to

ST-9, "Heated Steering Wheel"

.

Thermostat

Heated steering wheel relay

Refer to

ST-9, "Heated Steering Wheel Relay"

.

Heated steering wheel switch

Timer

Refer to

ST-9, "Heated Steering Wheel Switch"

.
