SRC-152

< SYMPTOM DIAGNOSIS >

[FOR MEXICO]

SRS AIR BAG WARNING LAMP DOES NOT TURN ON

SRS AIR BAG WARNING LAMP DOES NOT TURN ON

Diagnosis Procedure

INFOID:0000000009718605

1.

CHECK METER FUSE

Check the meter fuse. Refer to

PG-92, "Fuse and Fusible Link Arrangement"

.

Is 10A fuse [No.4, located in fuse block (J/B)] normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK METER FUSE AGAIN

Replace 10A fuse [No.4, located in fuse block (J/B)] and turn ignition switch ON.
Did the meter fuse blow again?

YES

>> Repair or replace the related harness.

NO

>> INSPECTION END

3.

CHECK HARNESS CONNECTION

1.

Check harness connection between air bag diagnosis sensor unit and combination meter.

2.

Disconnect air bag diagnosis sensor unit connector and turn ignition switch ON.

Did air bag warning lamp turn ON?

YES

>> Replace air bag diagnosis sensor unit. Refer to

SR-55, "Removal and Installation"

.

NO

>> Replace combination meter assembly. Refer to

MWI-105, "Removal and Installation"

.

PRECAUTIONS

SRC-153

< PRECAUTION >

[FOR MEXICO]

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

PRECAUTION

PRECAUTIONS

Precautions for Removing of Battery Terminal

INFOID:0000000010032067

•  When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009718606

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Service

INFOID:0000000009718607

• Do not use electrical test equipment to check SRS circuits unless instructed to in this Service Manual.

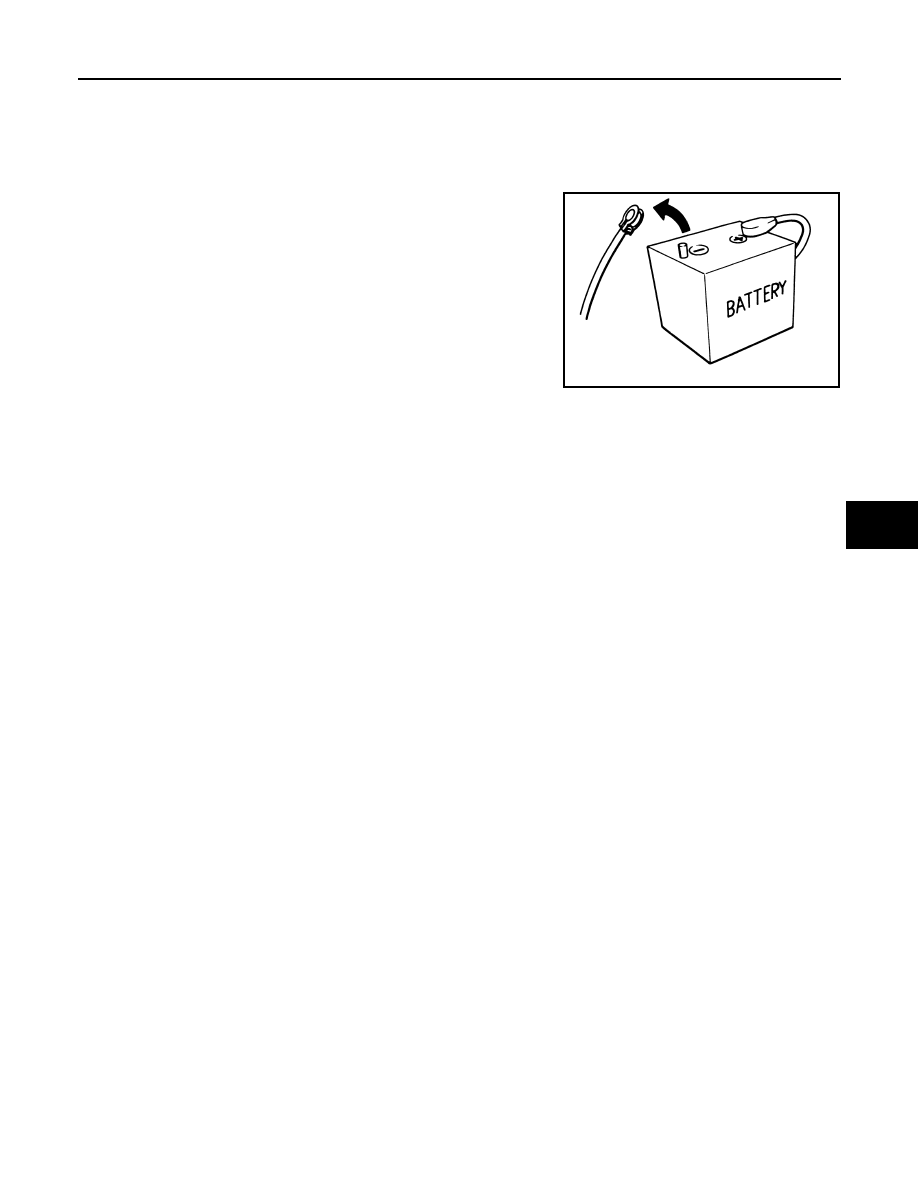

• Before servicing the SRS, turn ignition switch OFF, disconnect battery negative terminal and wait at least 3

minutes.
For approximately 3 minutes after the battery negative terminal is removed, it is still possible for the air bag
and seat belt pre-tensioner to deploy. Therefore, do not work on any SRS connectors or wires until at least 3
minutes have elapsed.

SEF289H

SRC-154

< PRECAUTION >

[FOR MEXICO]

PRECAUTIONS

• Diagnosis sensor unit must always be installed with their arrow marks “

” pointing towards the front of the

vehicle for proper operation. Also check diagnosis sensor unit for cracks, deformities or rust before installa-
tion and replace as required.

• The spiral cable must be aligned in the neutral position since its rotations are limited. Do not turn steering

wheel and column after removal of steering gear.

• Handle air bag module carefully. Always place driver and front passenger air bag modules with the pad side

facing upward and seat mounted front side air bag module standing with the stud bolt side facing down.

• Conduct self-diagnosis to check entire SRS for proper functioning after replacing any components.
• After air bag inflates, the front instrument panel assembly should be replaced if damaged.
• Always replace instrument panel pad following front passenger air bag deployment.

ST-1

STEERING

C

D

E

F

H

I

J

K

L

M

SECTION

ST

A

B

ST

N

O

P

CONTENTS

STEERING SYSTEM

WITH HEATED STEERING WHEEL

PRECAUTION ...............................................

4

PRECAUTIONS ...................................................

4

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

4

Service Notice or Precautions for Steering System

......

4

Precautions for Removing of Battery Terminal  .........

5

PREPARATION ............................................

6

PREPARATION ...................................................

6

Special Service Tools ................................................

6

Commercial Service Tools  ........................................

7

SYSTEM DESCRIPTION  ..............................

9

COMPONENT PARTS  ........................................

9

Component Parts Location (Heated Steering
Wheel) .....................................................................
..

9

Component Description (Heated Steering Wheel)

......

9

Heated Steering Wheel  .............................................

9

Heated Steering Wheel Switch  .................................

9

Heated Steering Wheel Relay ...................................

9

SYSTEM .............................................................

10

System Description (Heated Steering Wheel) .........

10

WIRING DIAGRAM  ......................................

11

HEATED STEERING WHEEL  ............................

11

Wiring Diagram  .......................................................

11

BASIC INSPECTION  ...................................

13

DIAGNOSIS AND REPAIR WORK FLOW  ........

13

WorkFlow (Heated Steering Wheel) ........................

13

STEERING WHEEL ............................................

14

Inspection ................................................................

14

DTC/CIRCUIT DIAGNOSIS  .........................

16

HEATED STEERING WHEEL SYSTEM  ...........

16

Component Function Check  ....................................

16

Diagnosis Procedure  ...............................................

16

Component Inspection (Heated Steering Wheel) ....

18

Component Inspection (Heated Steering Wheel
Relay) ......................................................................

19

HEATED STEERING WHEEL SWITCH INDI-
CATOR LAMP ...................................................

20

Component Function Check  ....................................

20

Diagnosis Procedure  ...............................................

20

Component Inspection (Heated Steering Wheel
Relay) ......................................................................

22

SYMPTOM DIAGNOSIS  ..............................

23

HEATED STEERING WHEEL SYSTEM DOES
NOT ACTIVATE  ................................................

23

Description ...............................................................

23

Diagnosis Procedure  ...............................................

23

HEATED STEERING WHEEL SWITCH INDI-
CATOR LAMP DOES NOT TURN ON ..............

26

Description ...............................................................

26

Diagnosis Procedure  ...............................................

26

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  ...........................

29

NVH Troubleshooting Chart  ....................................

29

PERIODIC MAINTENANCE  ........................

33

POWER STEERING FLUID  ..............................

33

Inspection ................................................................

33

STEERING WHEEL  ..........................................

35

Inspection ................................................................

35

REMOVAL AND INSTALLATION  ...............

36
