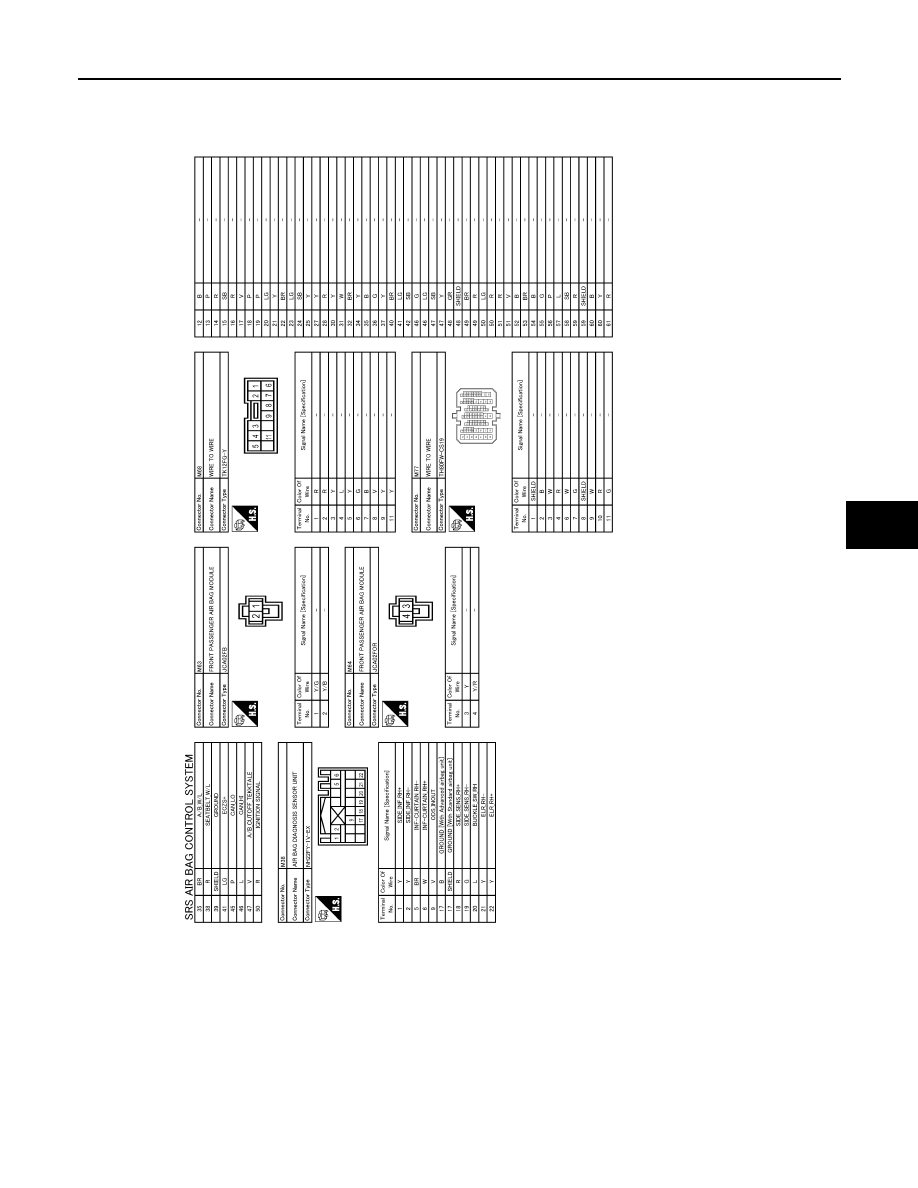

DIAGNOSIS SENSOR UNIT

JRHWC1244GB

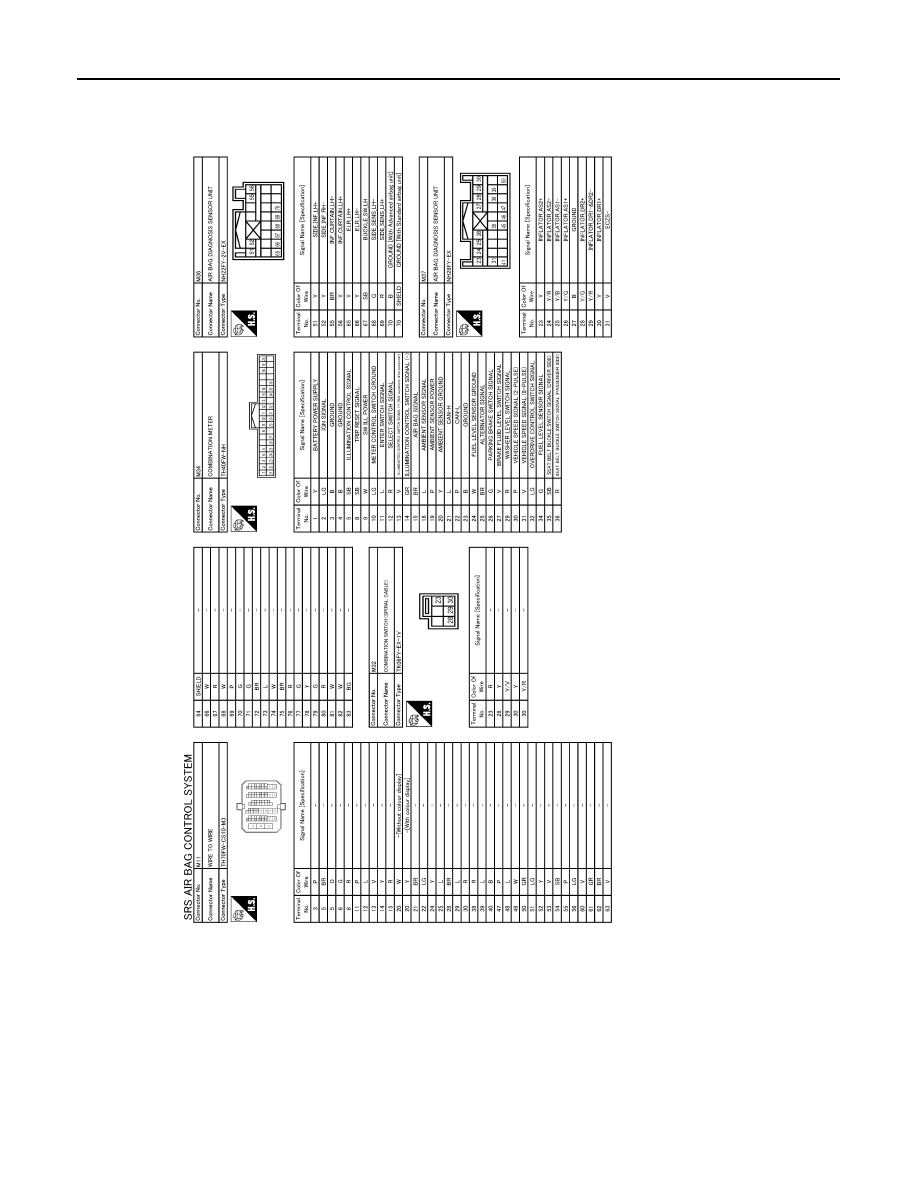

DIAGNOSIS SENSOR UNIT

SRC-149

< ECU DIAGNOSIS INFORMATION >

[FOR MEXICO]

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

JRHWC1245GB

SRC-150

< ECU DIAGNOSIS INFORMATION >

[FOR MEXICO]

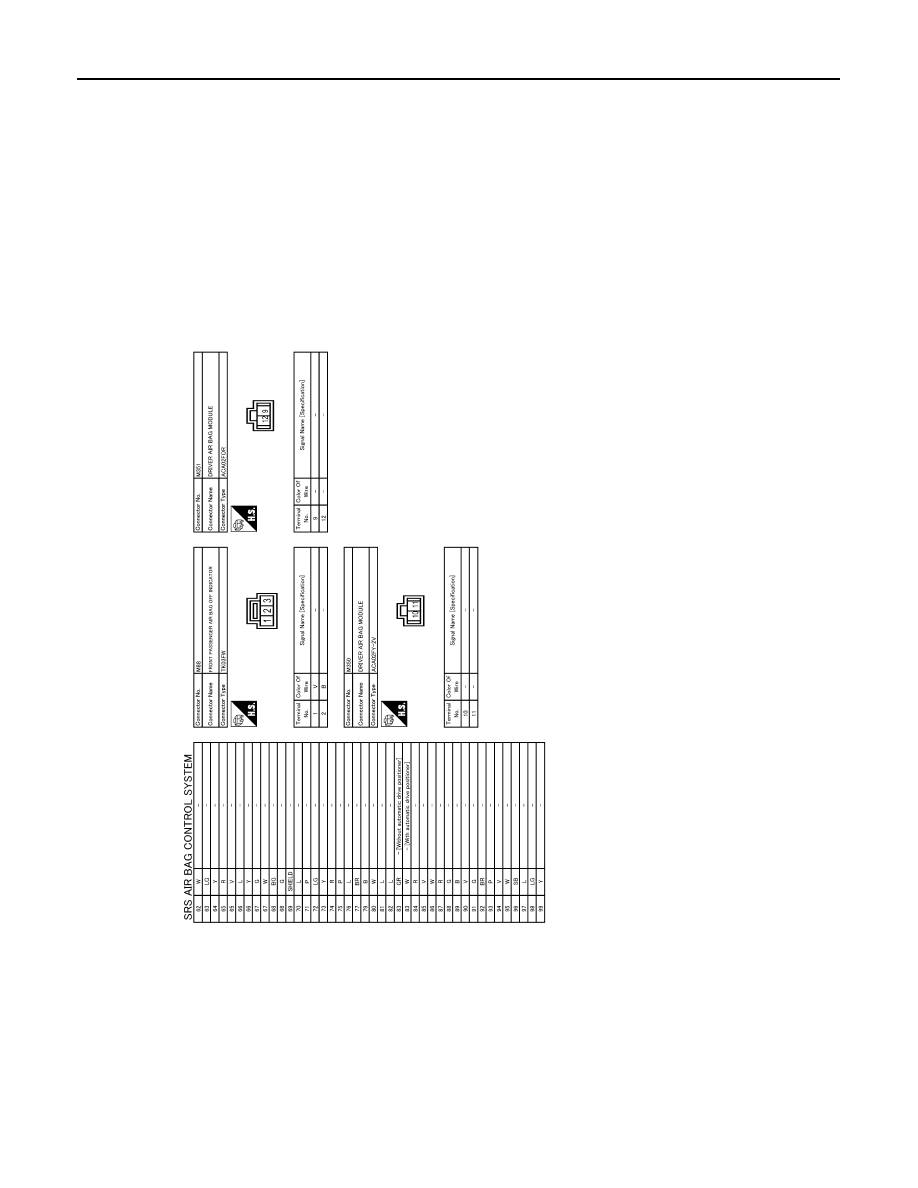

DIAGNOSIS SENSOR UNIT

JRHWC1246GB

SRS AIR BAG WARNING LAMP DOES NOT TURN OFF

SRC-151

< SYMPTOM DIAGNOSIS >

[FOR MEXICO]

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

SYMPTOM DIAGNOSIS

SRS AIR BAG WARNING LAMP DOES NOT TURN OFF

Diagnosis Procedure

INFOID:0000000009718604

1.

CHECK FRONT AIR BAG MODULE

Check the deployment of front air bag module.

Is air bag module deployed?

YES

>> Refer to

SR-39, "Removal and Installation"

or

SR-45, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK AIR BAG FUSE

Check the air bag fuse. Refer to

PG-92, "Fuse and Fusible Link Arrangement"

.

Is 10A fuse [No.2, located in fuse block (J/B)] normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

CHECK AIR BAG FUSE AGAIN

Replace air bag fuse and turn ignition switch ON.

Did the air bag fuse blow again?

YES

>> Repair or replace main harness.

NO

>> INSPECTION END

4.

CHECK AIR BAG DIAGNOSIS SENSOR UNIT

Check the screen of CONSULT.
Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace air bag diagnosis sensor unit. Refer to

SR-55, "Removal and Installation"

.

5.

CHECK HARNESS CONNECTION

Check harness connection between air bag warning lamp and air bag diagnosis sensor unit.

Is the inspection result normal?

YES

>> Check the intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

NO

>> Replace wiring harness connector.
