SIDE AIR BAG (SATELLITE) SENSOR

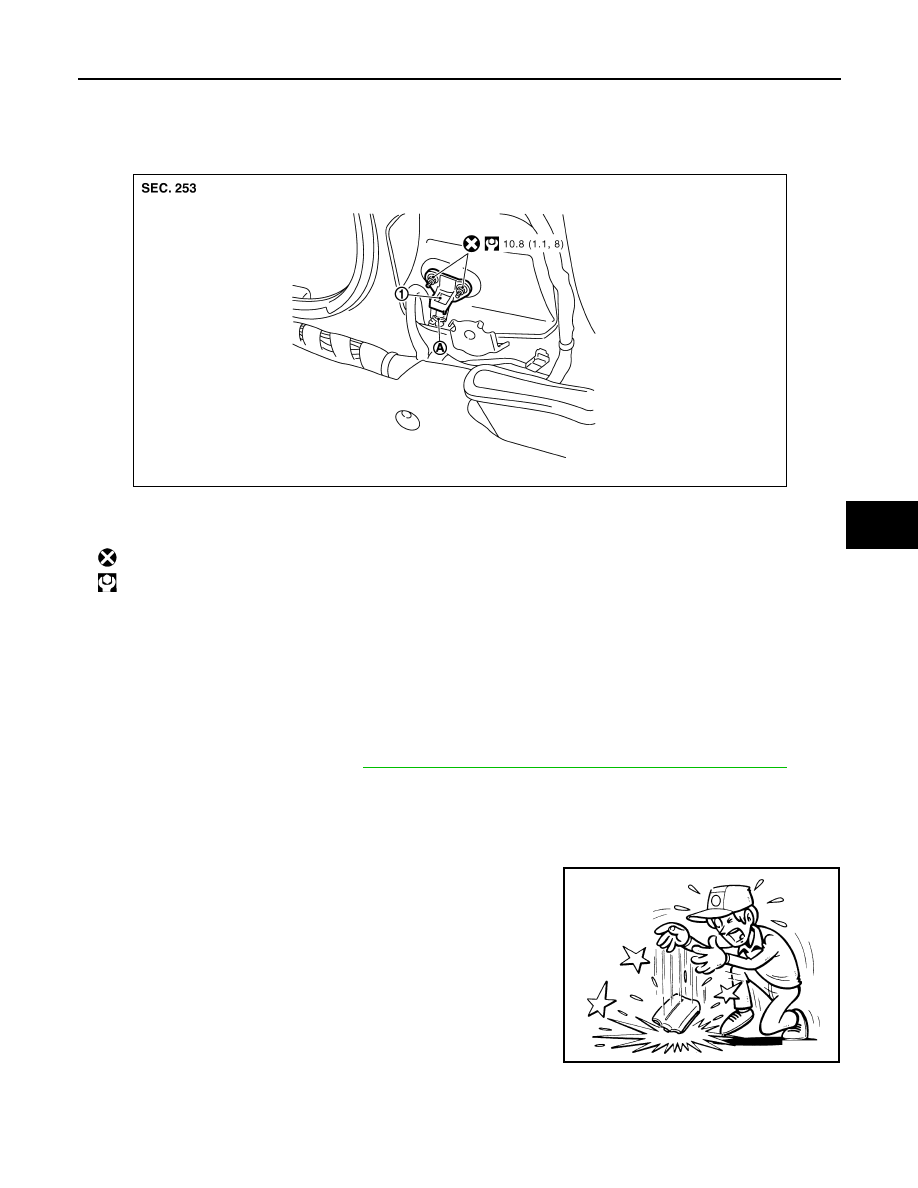

Exploded View

INFOID:0000000009720423

Removal and Installation

INFOID:0000000009720424

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Never use the air tools or electric tools for servicing.

REMOVAL

1.

Remove the front seat belt. Refer to

SB-7, "SEAT BELT RETRACTOR : Removal and Installation"

.

2.

Remove the side air bag (satellite) sensor fixing nuts.

3.

Disconnect the side air bag (satellite) sensor harness connector, and then remove the side air bag (satel-
lite) sensor.

CAUTION:

• Never impact the side air bag (satellite) sensor.
• Replace the side air bag (satellite) sensor if it has been

dropped or sustained an impact.

• Replace the side air bag (satellite) sensor of deployed SRS front side air bag module and deployed

SRS side curtain air bag module.

1.

Side air bag (satellite) sensor

A.

Side air bag (satellite) sensor harness connector

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JMHIA0516GB

JMHIA0009ZZ

SR-54

< REMOVAL AND INSTALLATION >

[FOR MEXICO]

SIDE AIR BAG (SATELLITE) SENSOR

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Never use the old fixing nuts after removal, replace with the new nuts.
• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-91, "Description"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

DIAGNOSIS SENSOR UNIT

SR-55

< REMOVAL AND INSTALLATION >

[FOR MEXICO]

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

DIAGNOSIS SENSOR UNIT

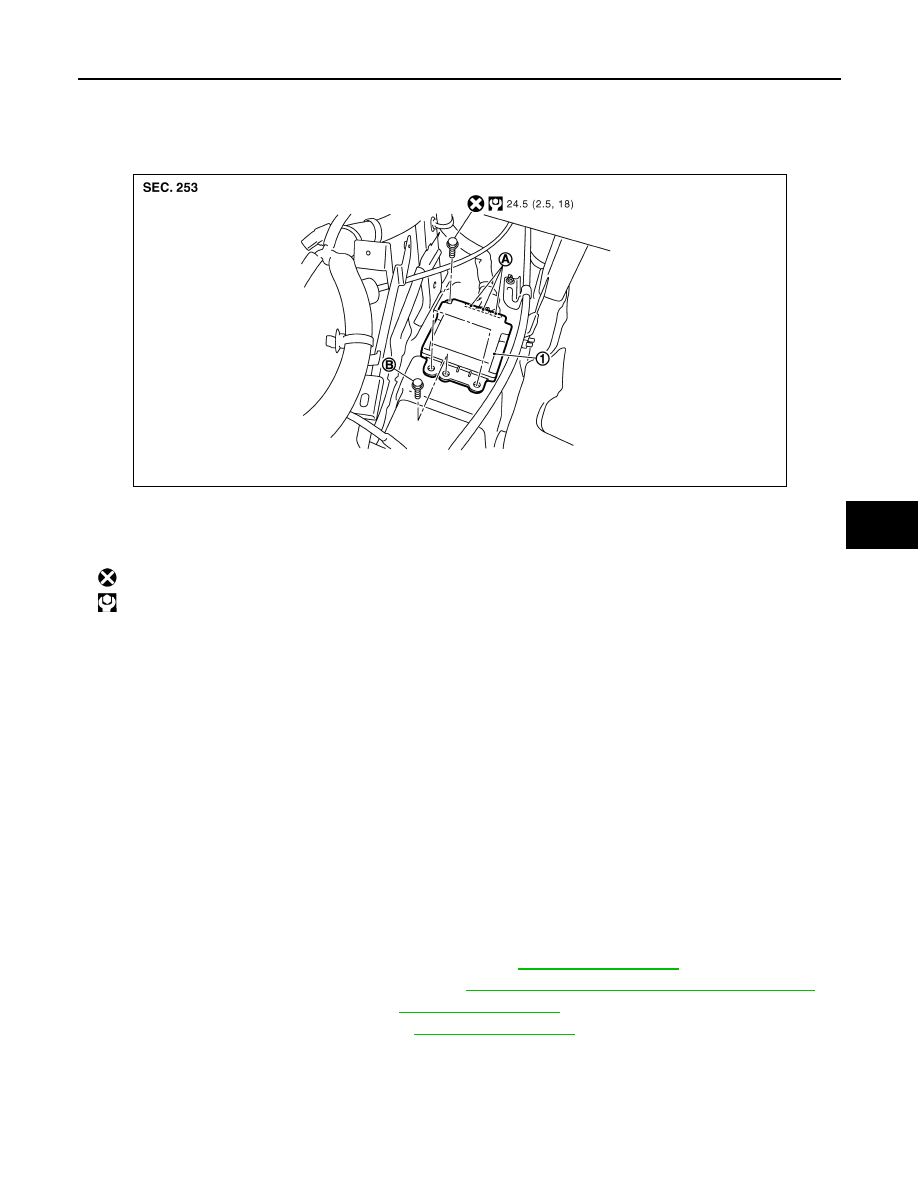

Exploded View

INFOID:0000000009720425

Removal and Installation

INFOID:0000000009720426

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Before disconnecting the air bag sensor unit harness connector, be sure to disconnect the each har-

ness connector of the air bag module and pre-tensioner seat belt to prevent air bag deployment by
static electricity and pre-tensioner seat belt operation.

• Never use the air tools or electric tools for servicing.
• When replacing the air bag diagnosis sensor unit, always check with the parts department for the lat-

est parts information. Installing an incorrect air bag diagnosis sensor unit may or may not cause the
air bag warning lamp to illuminate and may cause incorrect deployment of the supplemental air bags
and seat belt pre-tensioners in a collision resulting in serious personal injury or death.

REMOVAL

1.

Always check the air bag diagnosis sensor unit ECU discriminated number (identification number) using
CONSULT.

2.

Disconnect the each connector of all air bag modules and pre-tensioner seat belts.

3.

Remove the instrument lower cover (LH and RH). Refer to

IP-22, "Exploded View"

.

4.

Remove the rear foot duct 1 (LH and RH). Refer to

VTL-127, "REAR FOOT DUCT 1 : Exploded View"

.

5.

Remove the instrument stay LH. Refer to

IP-22, "Exploded View"

.

6.

Remove the front console bracket. Refer to

IP-22, "Exploded View"

.

7.

Disconnect the diagnosis sensor unit harness connectors.

8.

Remove the fixing bolts, ground bolt, and then remove the diagnosis sensor unit.

CAUTION:

1.

Diagnosis sensor unit

A.

Diagnosis sensor unit harness connector

B.

Ground bolt

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JMHIA0517GB

SR-56

< REMOVAL AND INSTALLATION >

[FOR MEXICO]

DIAGNOSIS SENSOR UNIT

• Replace the diagnosis sensor unit if it has been dropped or

sustained an impact.

• Replace the diagnosis sensor unit of deployed SRS air bag and deployed SRS front seat belt pre-ten-

sioner.

INSTALLATION

Install air bag diagnosis sensor unit in the reverse order of removal.

CAUTION:

• Never use the old fixing bolts after removal, replace with the new fixing bolts.
• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-91, "Description"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.
• After replacing the air bag diagnosis sensor unit, confirm using CONSULT that the ECU discrimi-

nated number (identification number) of the new replacement air bag sensor unit matches the ECU
discriminated number (identification number) of the replaced (old) air bag diagnosis sensor unit.

NOTE:
If the ECU discriminated number of the new replacement air bag diagnosis sensor unit differs from the ECU
discriminated number of the replaced air bag diagnosis sensor unit, reconfirm the parts information and verify
that the correct air bag diagnosis sensor unit was installed.

JMHIA0009ZZ
