• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

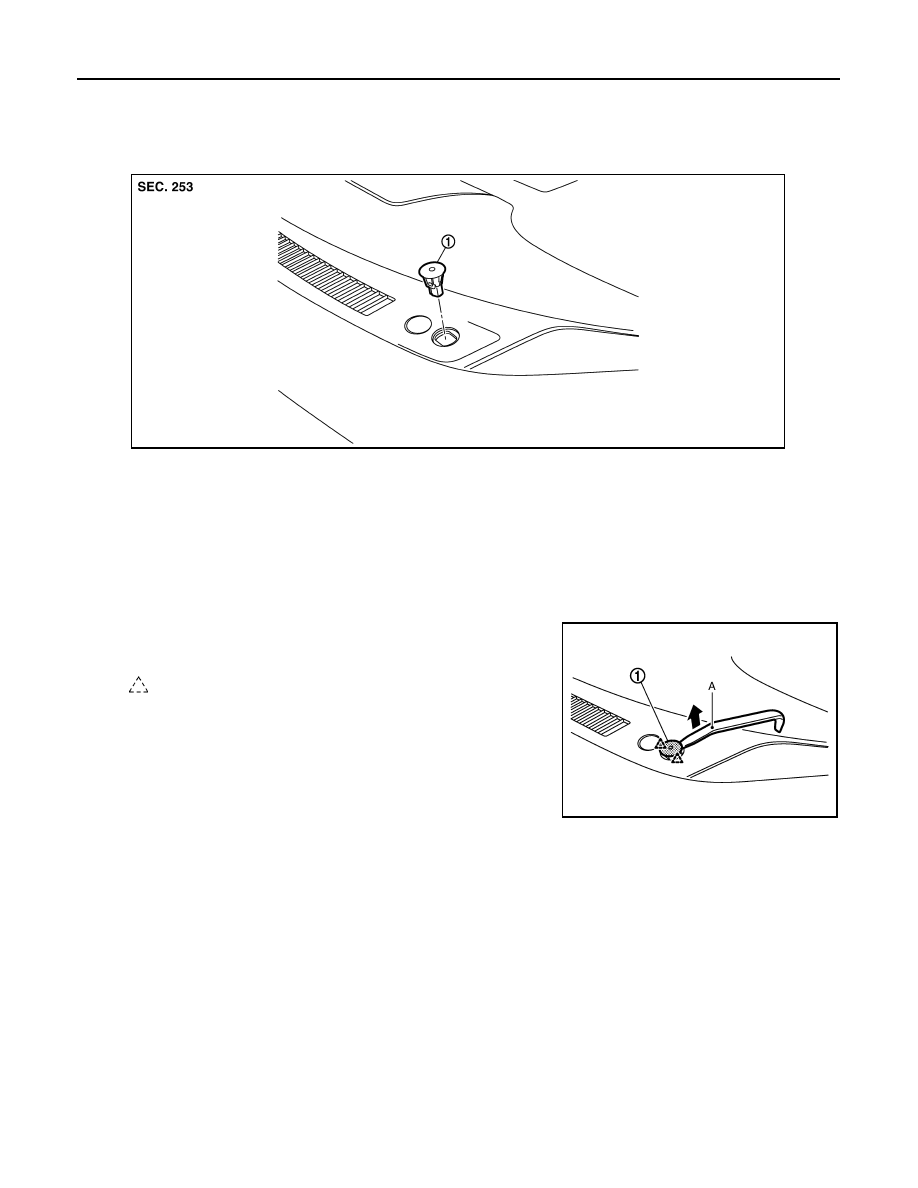

FOR MEXICO : Precaution for Procedure without Cowl Top Cover

INFOID:0000000009722856

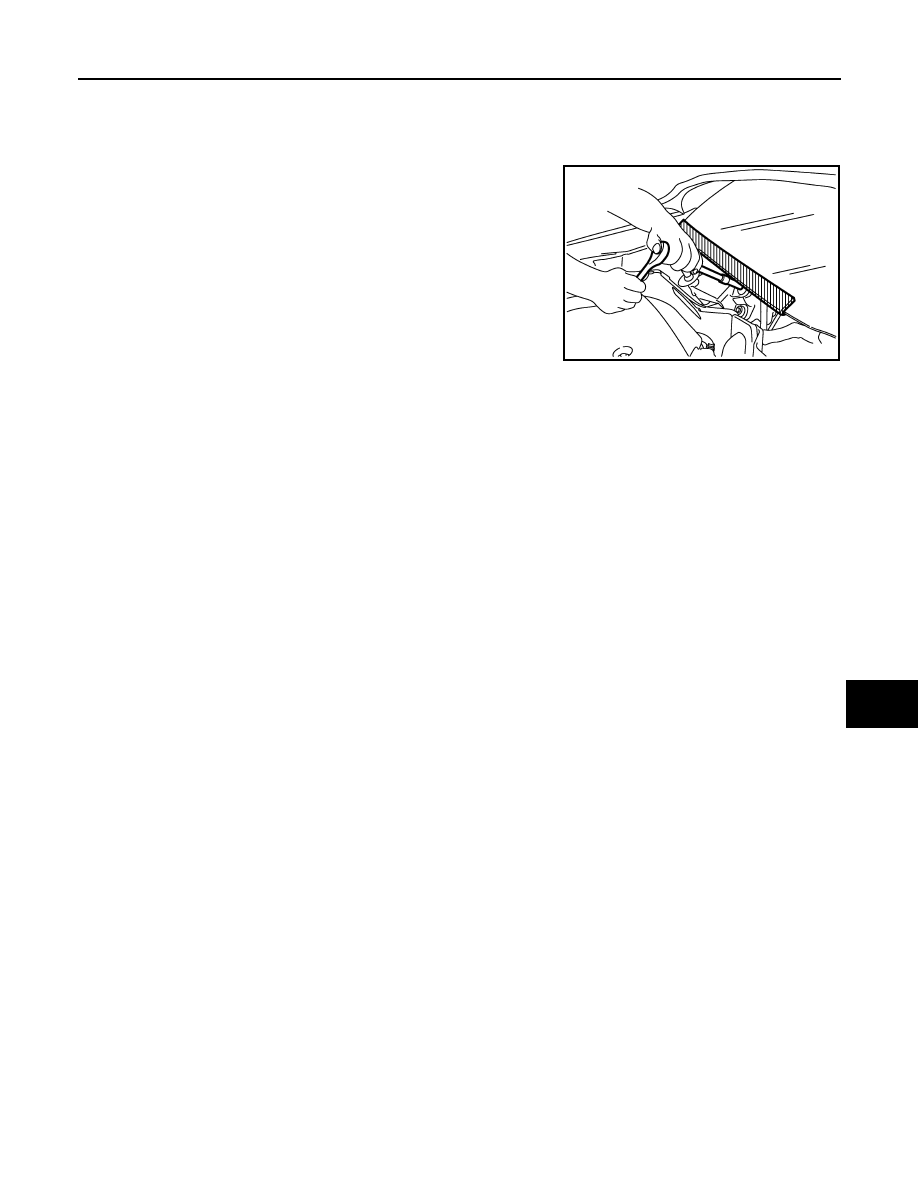

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.

PIIB3706J

SEC-190

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

KEY SLOT

REMOVAL AND INSTALLATION

KEY SLOT

Exploded View

INFOID:0000000009722857

Removal and Installation

INFOID:0000000009722858

REMOVAL

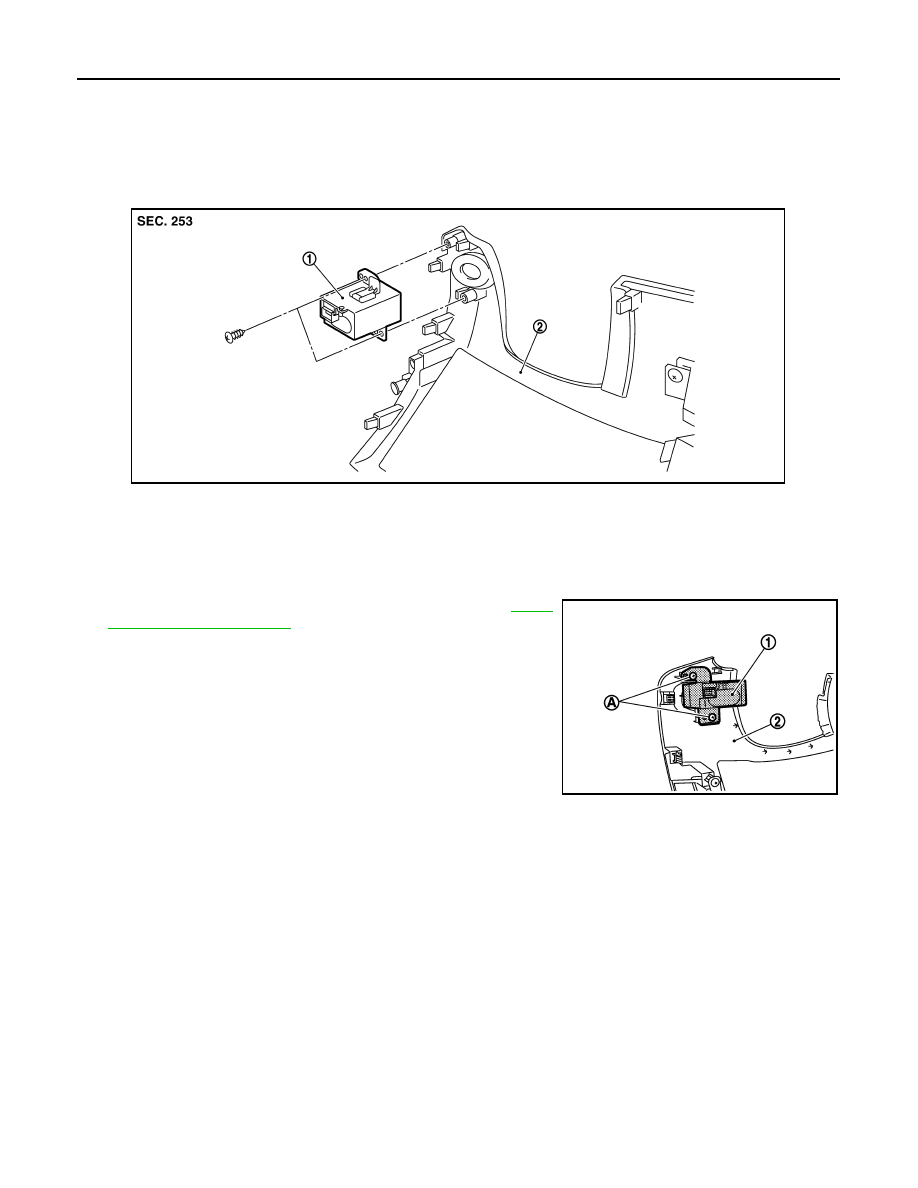

1.

Remove the instrument lower panel LH (2). Refer to

IP-15,

"Removal and Installation"

.

2.

Disconnect key slot connector.

3.

Remove the key slot mounting screw (A), and then remove key
slot (1) from instrument lower panel LH (2).

INSTALLATION

Install in the reverse order of removal.

1.

Key slot

2.

Instrument lower panel LH

JMKIA1820ZZ

JMKIA1821ZZ

PUSH-BUTTON IGNITION SWITCH

SEC-191

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

PUSH-BUTTON IGNITION SWITCH

Exploded View

INFOID:0000000009722859

Removal and Installation

INFOID:0000000009722860

REMOVAL

1.

Remove the instrument stay cover LH. Refer to

IP-15, "Removal and Installation"

.

2.

Remove the push-button ignition switch (1) from instrument stay
cover LH, after removing pawl (A). Press push-button ignition
switch (1) back to disengage from instrument stay cover LH (2).

INSTALLATION

Install in the reverse order of removal.

1.

Push-button ignition switch

JMKIA1812ZZ

JMKIA1813ZZ

SEC-192

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

SECURITY INDICATOR LAMP

SECURITY INDICATOR LAMP

Exploded View

INFOID:0000000009722861

Removal and Installation

INFOID:0000000009722862

REMOVAL

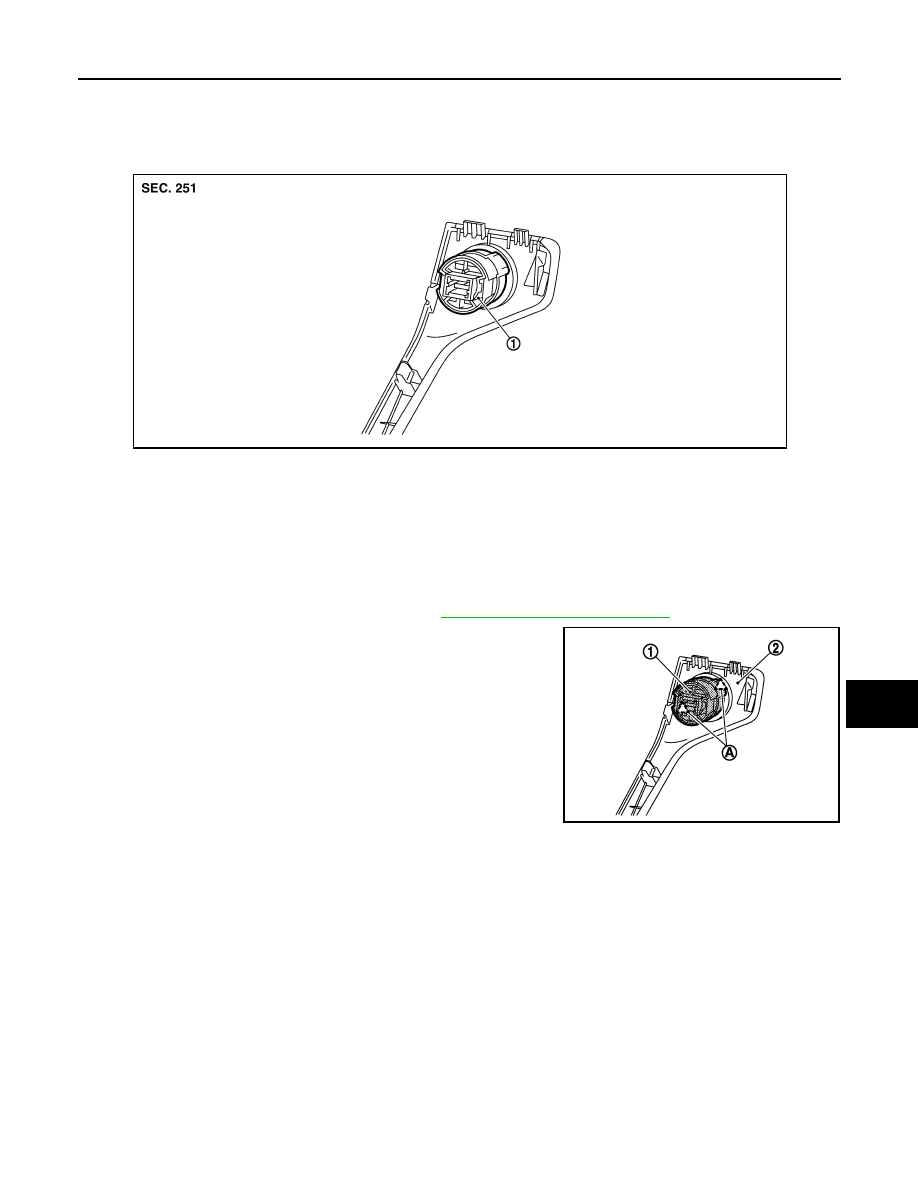

Remove the security indicator lamp (1).

•

Disengage pawls with tool (A) and pull up the security indica-
tor lamp.

INSTALLATION

Install in the reverse order of removal.

1.

Security indicator lamp

JMKIA1830ZZ

: Pawl

JMKIA1831ZZ
