Nissan Murano. Manual - part 122





AV-266

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

STEERING SWITCH SIGNAL B CIRCUIT

Component Inspection

INFOID:0000000009721787

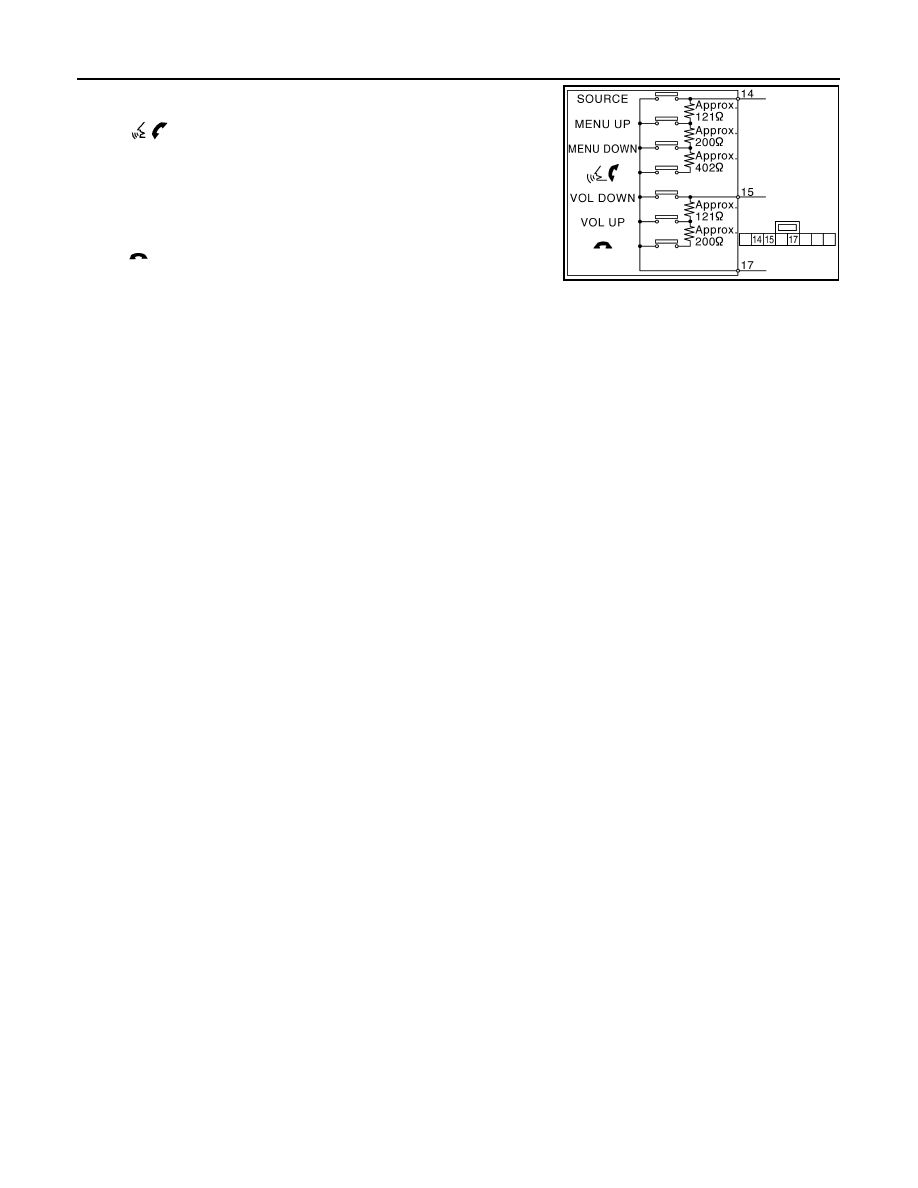

Measure the resistance between the steering switch connector terminals 14 to 17 and 15 to 17.

Standard

Between terminals 14 and 17



 switch ON

: Approx. 716 – 730

MENU DOWN switch ON

: Approx. 318 – 324

MENU UP switch ON

: Approx. 120 – 122

SOURCE switch ON

: Approx. 0

Between terminals 15 and 17

 switch ON

: Approx. 318 – 324

VOL UP switch ON

: Approx. 120 – 122

VOL DOWN switch ON

: Approx. 0

JSNIA0216GB

AV

STEERING SWITCH GROUND CIRCUIT

AV-267

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING SWITCH GROUND CIRCUIT

Description

INFOID:0000000009721788

Transmits the steering switch signal to AV control unit.

Diagnosis Procedure

INFOID:0000000009721789

1.

CHECK STEERING SWITCH SIGNAL GROUND CIRCUIT

1.

Trun ignition switch OFF.

2.

Disconnect AV control unit connector and spiral cable connector.

3.

Check continuity between AV control unit harness connector and spiral cable harness connector.

4.

Connect AV control unit connector.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK SPIRAL CABLE

Check spiral cable.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace spiral cable. Refer to

SR-15, "Exploded View"

 (except for Mexico) or

SR-42, "Exploded

View"

 (for Mexico).

3.

CHECK GROUND CIRCUIT

1.

Connect AV control unit connector.

2.

Check continuity between AV control unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace AV control unit. Refer to

AV-276, "Exploded View"

.

4.

CHECK STEERING SWITCH

Check steering switch. Refer to

AV-267, "Component Inspection"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace steering switch. Refer to

AV-287, "Exploded View"

.

Component Inspection

INFOID:0000000009721790

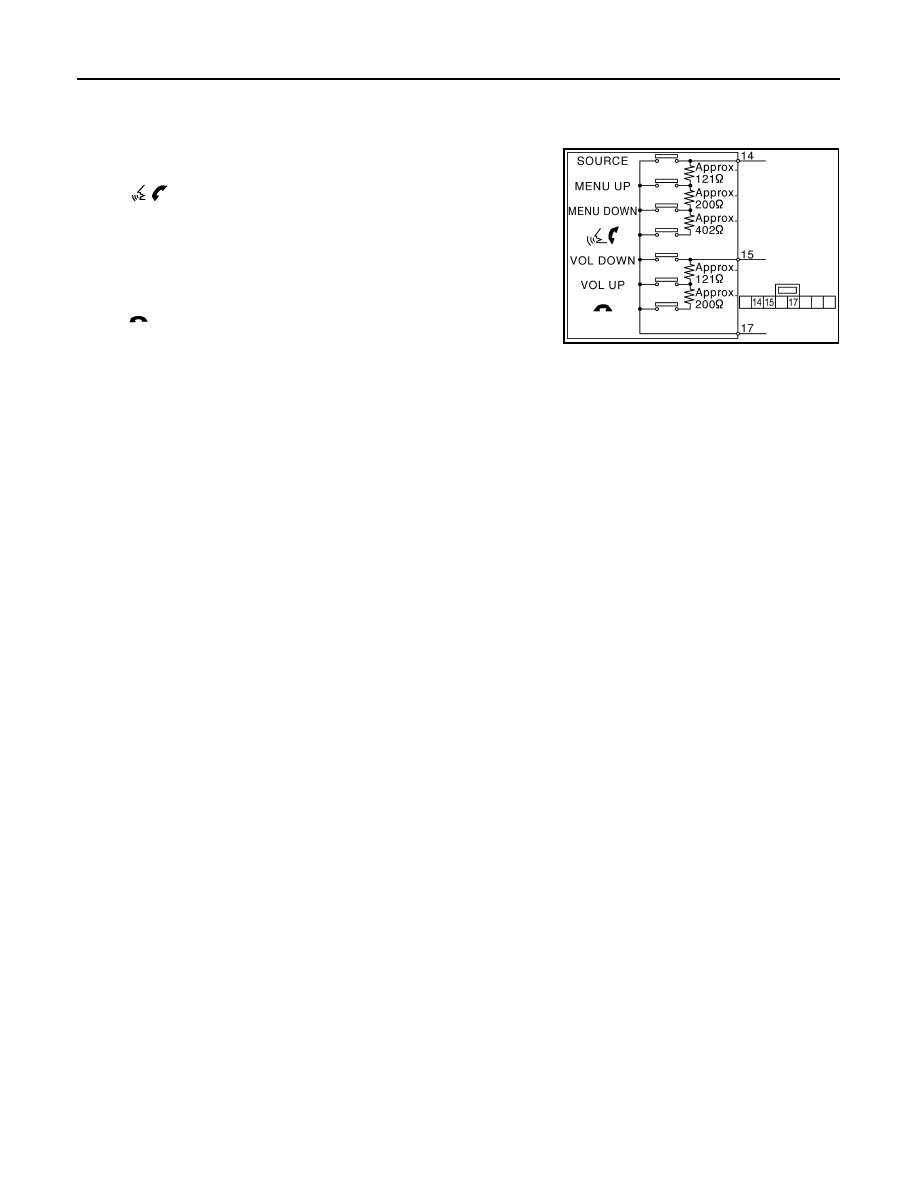

Measure the resistance between the steering switch connector terminals 14 to 17 and 15 to 17.

AV control unit

Spiral cable

Continuity

Connector

Terminal

Connector

Terminal

M171

15

M33

33

Existed

AV control unit

Ground

Continuity

Connector

Terminal

M171

15

Existed

AV-268

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

STEERING SWITCH GROUND CIRCUIT

Standard

Between terminals 14 and 17



 switch ON

: Approx. 716 – 730

MENU DOWN switch ON

: Approx. 318 – 324

MENU UP switch ON

: Approx. 120 – 122

SOURCE switch ON

: Approx. 0

Between terminals 15 and 17

 switch ON

: Approx. 318 – 324

VOL UP switch ON

: Approx. 120 – 122

VOL DOWN switch ON

: Approx. 0

JSNIA0216GB

AV

MULTI AV SYSTEM SYMPTOMS

AV-269

< SYMPTOM DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYMPTOM DIAGNOSIS

MULTI AV SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000009721791

OPERATION

RELATED TO HANDS-FREE PHONE

• Before performing diagnosis, confirm that the cellular phone being used by the customer is compatible with

the vehicle.

• It is possible that a malfunction is occurring due to a version change of the phone even though the phone is

a compatible type. This can be confirmed by changing the cellular phone to another compatible type, and
checking that it operates normally. It is important to determine whether the cause of the malfunction is the
vehicle or the cellular phone.

Check Compatibility

1.

Make sure the customer's Bluetooth

®

 related concern is understood.

2.

Verify the customer's concern.
NOTE:
The customer's phone may be required, depending upon their concern.

3.

Write down the customer's phone brand, model, and service provider.
NOTE:
It is necessary to know the service provider. On occasion, a given phone may be on the approved list with
one provider, but may not be on the approved list with other providers.

4.

Go to “www.nissanusa.com/bluetooth/”.

a.

Using the website's search engine, find out if the customer's phone is on the approved list.

b.

If the customer's phone is NOT on the approved list:
Stop diagnosis here. The customer needs to obtain a Bluetooth

®

 phone that is on the approved list before

any further action.

c.

If the feature related to the customer's concern shows as “N” (not compatible):
Stop diagnosis here. If the customer still wants the feature to function, they will need to get an approved
phone showing the feature as “Y” (compatible) in the “Basic Features” list.

d.

If the feature related to the customer's concern shows as “Y” (compatible):
Perform diagnosis as per the following table.

Symptoms

Check items

Probable malfunction location

Multifunction switch and preset
switch operation does not work.

• All switches cannot be operated.
• “MULTI AV” is displayed on system

selection screen when the CONSULT
is started.

• Multifunction switch power supply and ground circuit.
• AV communication circuit between AV control unit and

multifunction switch.
Perform “Self Diagnostic Result” of “MULTI AV” with
CONSULT. Refer to

AV-187, "CONSULT Function"

.

• All switches cannot be operated.
• “MULTI AV” is not displayed on sys-

tem selection screen when the CON-
SULT is initialized.

AV control unit power supply and ground circuit malfunc-
tion. Refer to

AV-244, "AV CONTROL UNIT : Diagnosis

Procedure"

.

Only specified switch cannot be operat-
ed.

Multifunction switch or preset switch malfunction.
Perform multifunction switch and preset switch self-di-
agnosis function. Refer to

AV-178, "On Board Diagnosis

Function"

.

Fuel economy display is abnor-
mal.

There is malfunction in the CONSULT
“self-diagnosis result” of “MULTI AV”.

Perform detected DTC diagnosis.
Refer to

AV-199, "DTC Index"

.

There is no malfunction in the CON-
SULT “self-diagnosis result” of “MULTI
AV”.

Ignition signal circuit malfunction. (AV control unit)
