REAR SUSPENSION MEMBER

RSU-19

< UNIT REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

19. Remove front lower link. Refer to

RSU-14, "Exploded View"

.

INSTALLATION

Note the following, and install in the reverse order of the removal.
• Perform the final tightening of each of parts under unladen conditions, which were removed when removing

rear suspension assembly.

• Check wheel sensor harness for proper connection. Refer to

BRC-124, "REAR WHEEL SENSOR :

Exploded View"

• Never reuse cotter pin.

Inspection

INFOID:0000000009721448

INSPECTION AFTER REMOVAL

Check rear suspension member for deformation, cracks, or any other damage. Replace if necessary.

INSPECTION AFTER INSTALLATION

1.

Check wheel sensor harness for proper connection. Refer to

BRC-124, "REAR WHEEL SENSOR :

Exploded View"

.

2.

Adjust parking brake operation (stroke). Refer to

PB-3, "Inspection and Adjustment"

.

3.

Check wheel alignment. Refer to

RSU-6, "Inspection"

.

4.

Adjust neutral position of steering angle sensor. Refer to

BRC-9, "ADJUSTMENT OF STEERING ANGLE

SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

RSU-20

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Alignment

INFOID:0000000009721449

FOR USA AND MEXICO MODELS

Measure value under unladen* conditions.

*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.

FOR CANADA MODELS

Measure value under unladen* conditions.

*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.

Ball Joint

INFOID:0000000009721450

Wheelarch Height

INFOID:0000000009721451

FOR USA MODELS

Item

Standard

Camber
Degree minute (Decimal degree)

Minimum

–1

°

 13

 (–1.21

°

)

Nominal

–0

°

 43

 (–0.72

°

)

Maximum

–0

°

 13

 (–0.21

°

)

Toe-in

Total toe-in
Distance

Minimum

In 0.9 mm (0.035 in)

Nominal

In 2.7 mm (0.106 in)

Maximum

In 4.5 mm (0.177 in)

Total toe-angle
Degree minute (Decimal degree)

Minimum

In 0

°

 04

 (In 0.07

°

)

Nominal

In 0

°

 12

 (In 0.20

°

)

Maximum

In 0

°

 20

 (In 0.33

°

)

Item

Standard

Camber
Degree minute (Decimal degree)

Minimum

–1

°

 11

 (–1.18

°

)

Nominal

–0

°

 41

 (–0.68

°

)

Maximum

–0

°

 11

 (–0.18

°

)

Toe-in

Total toe-in
Distance

Minimum

In 0.9 mm (0.035 in)

Nominal

In 2.7 mm (0.106 in)

Maximum

In 4.5 mm (0.177 in)

Total toe-angle
Degree minute (Decimal degree)

Minimum

In 0

°

 04

 (In 0.07

°

)

Nominal

In 0

°

 12

 (In 0.20

°

)

Maximum

In 0

°

 20

 (In 0.33

°

)

Item

Standard

Swing torque

0.5 – 3.4 N·m (0.06 – 0.34 kg-m, 5 – 30 in-lb)

Measurement on spring balance (cotter pinhole position)

8.1 – 54.8 N (0.83 – 5.6 kg, 1.82 – 12.32 lb)

Axial end play

0 mm (0 in)

SERVICE DATA AND SPECIFICATIONS (SDS)

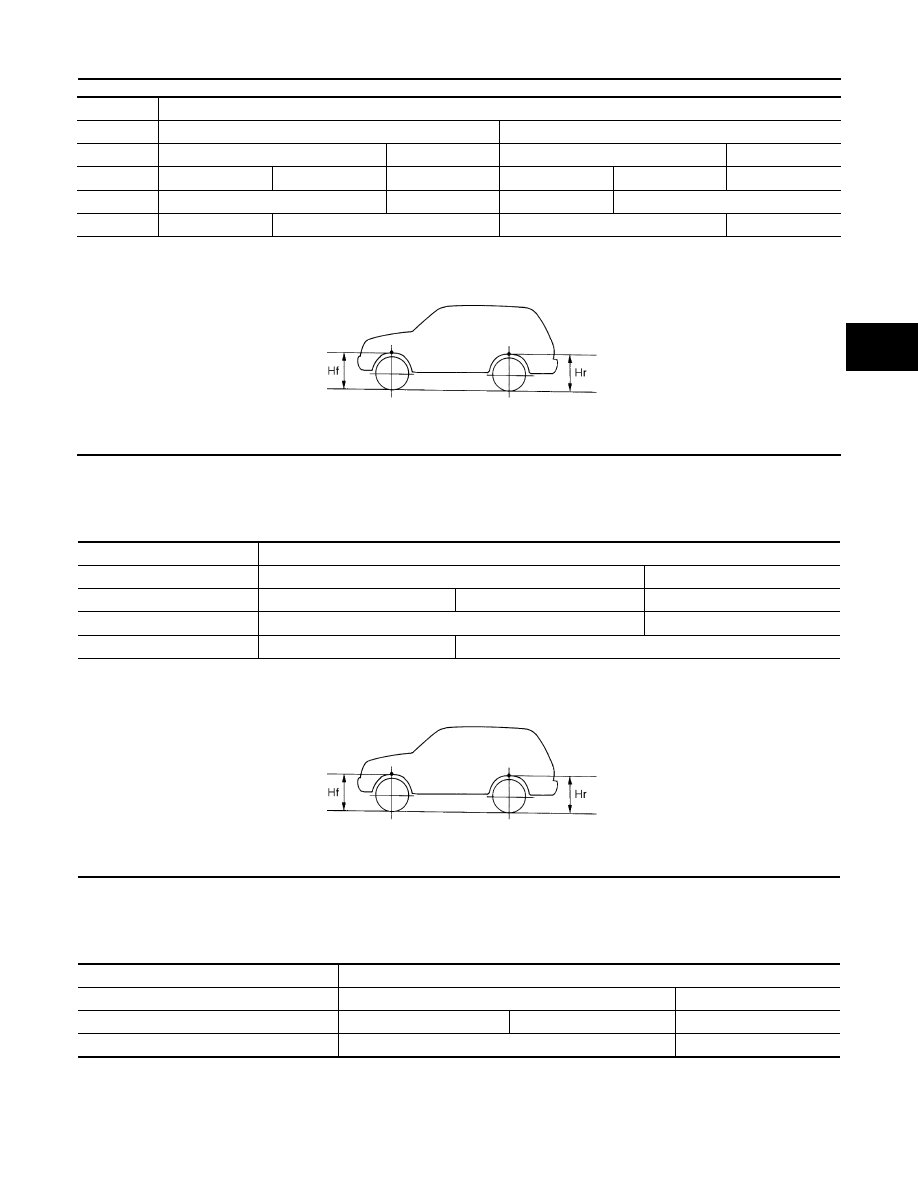

RSU-21

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

Measure value under unladen* conditions.

*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.

FOR CANADA MODELS

Measure value under unladen* conditions.

*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.

FOR MEXICO MODELS

Item

Standard

Axle type

2WD

AWD

Wheel size

18 inch

20 inch

18 inch

20 inch

Grade

S

SL

LE

S

SL

LE

Front (Hr)

846 mm (33.31 in)

845 mm (33.27 in)

846 mm (33.31 in)

845 mm (33.27 in)

Rear (Hr)

859 mm (33.82 in)

858 mm (33.78 in)

858 mm (33.78 in)

857 mm (33.74 in)

SFA746B

Item

Standard

Wheel size

18 inch

20 inch

Grade

S

SL

LE

Front (Hr)

845 mm (33.27 in)

846 mm (33.31 in)

Rear (Hr)

858 mm (33.78 in)

857 mm (33.74 in)

SFA746B

Item

Standard

Axle type

2WD

AWD

Grade

S

SL

LE

Front (Hr)

846 mm (33.31 in)

845 mm (33.27 in)

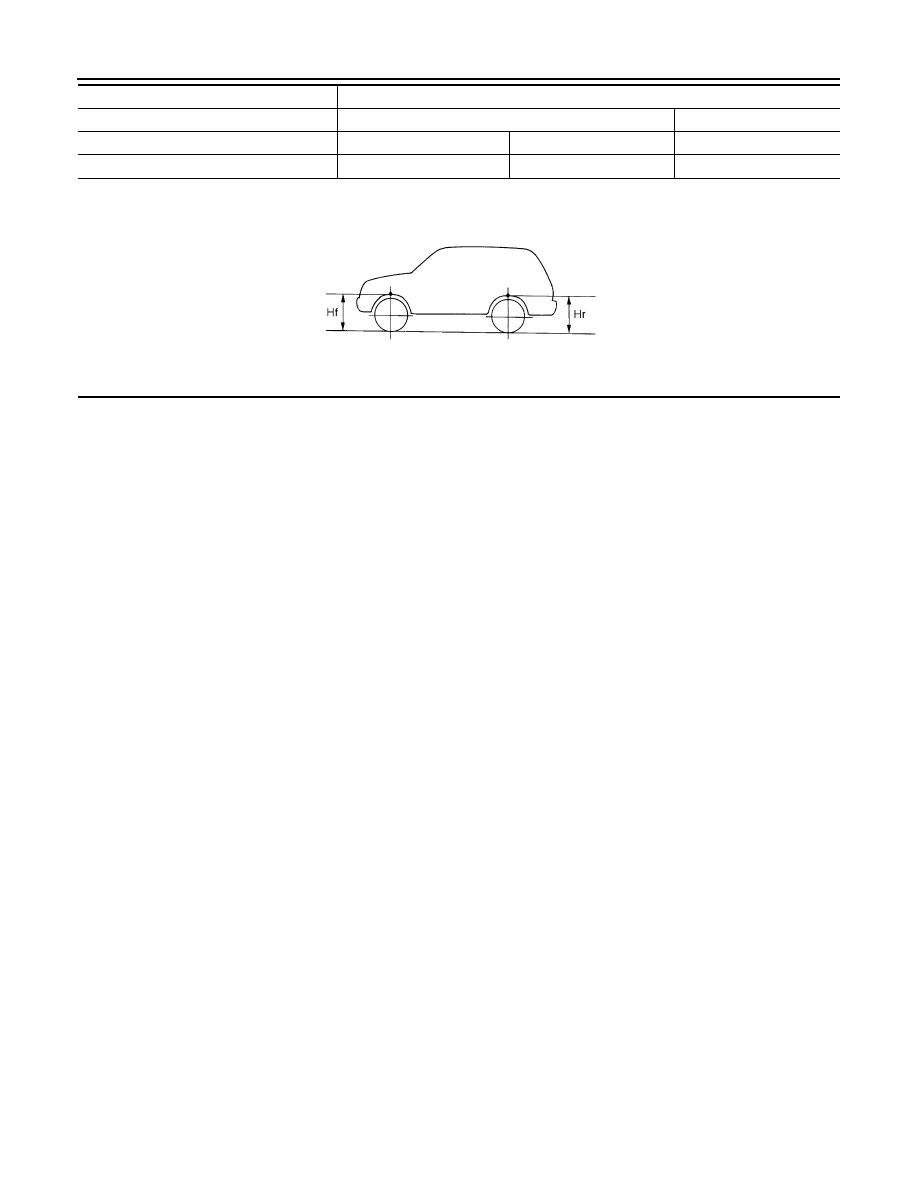

RSU-22

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Measure value under unladen* conditions.

*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.

Rear (Hr)

859 mm (33.82 in)

858 mm (33.78 in)

857 mm (33.74 in)

Item

Standard

Axle type

2WD

AWD

Grade

S

SL

LE

SFA746B
