REAR SUNROOF GLASS

7.

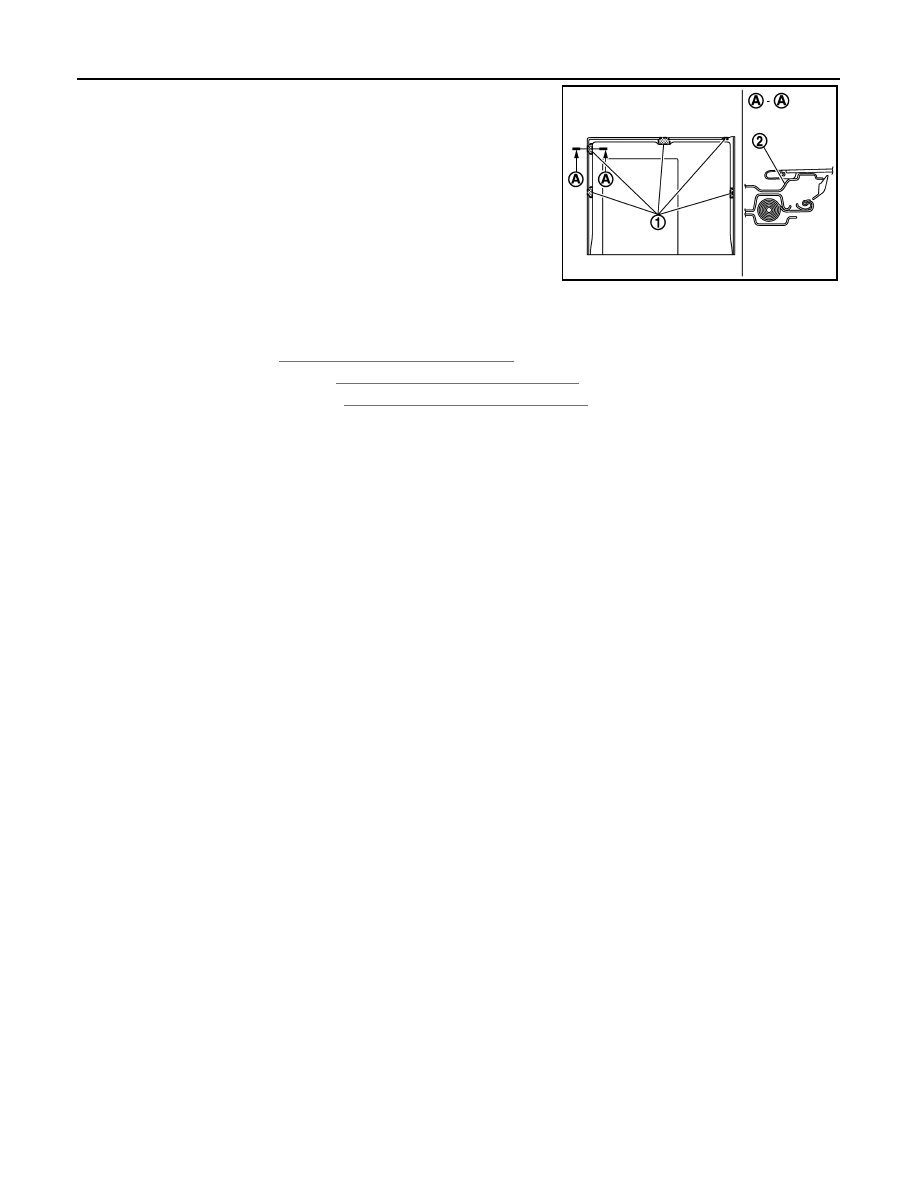

Press glass till positioning ribs (1) faces with a sunroof frame
(2).

8.

Using a spatula, repair any adhesive overflow or shortage to make the surface smooth.

9.

Remove protective tape.

10. Install glass lid. Refer to

RF-97, "Removal and Installation"

.

11. Install roof side finisher. Refer to

RF-113, "Removal and Installation"

.

12. Install roof rail assembly. Refer to

EXT-31, "Removal and Installation"

.

13. Check for water leaks.

NOTE:
• Perform the water leakage check more than 2 hours after rear sunroof glass installation.
• After glass lid fitting adjustment, carry out water leakage check by spreading water in the whole roof.

JMKIA1931ZZ

WIND DEFLECTOR

RF-121

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

WIND DEFLECTOR

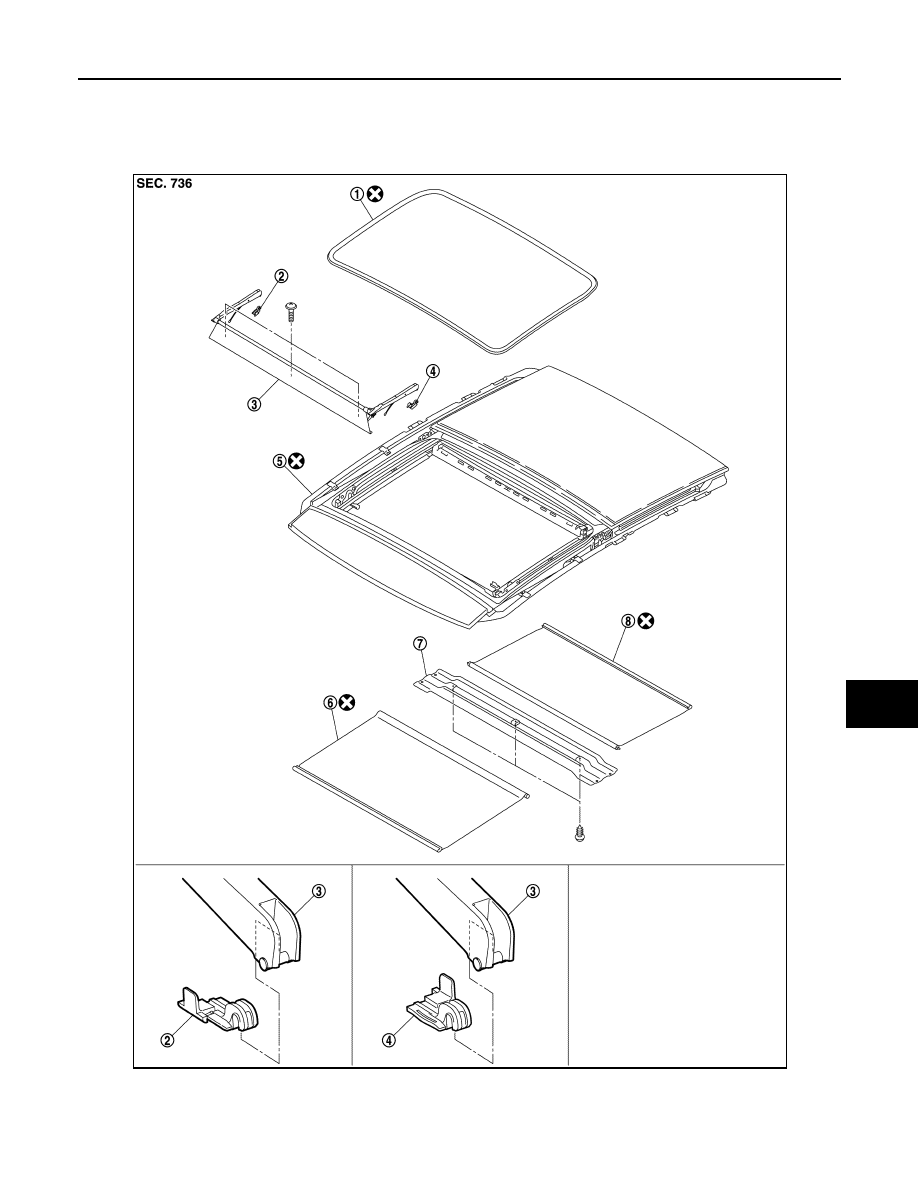

Exploded View

INFOID:0000000009719703

1.

Weather-strip

2.

Deflector arm fastener RH

3.

Wind deflector

4.

Deflector arm fastener LH

5.

Sunroof frame

6.

Front sunshade

JMKIA6376ZZ

RF-122

< REMOVAL AND INSTALLATION >

WIND DEFLECTOR

Removal and Installation

INFOID:0000000009719704

REMOVAL

1.

Fully open the glass lid.

2.

Remove the wind deflector.

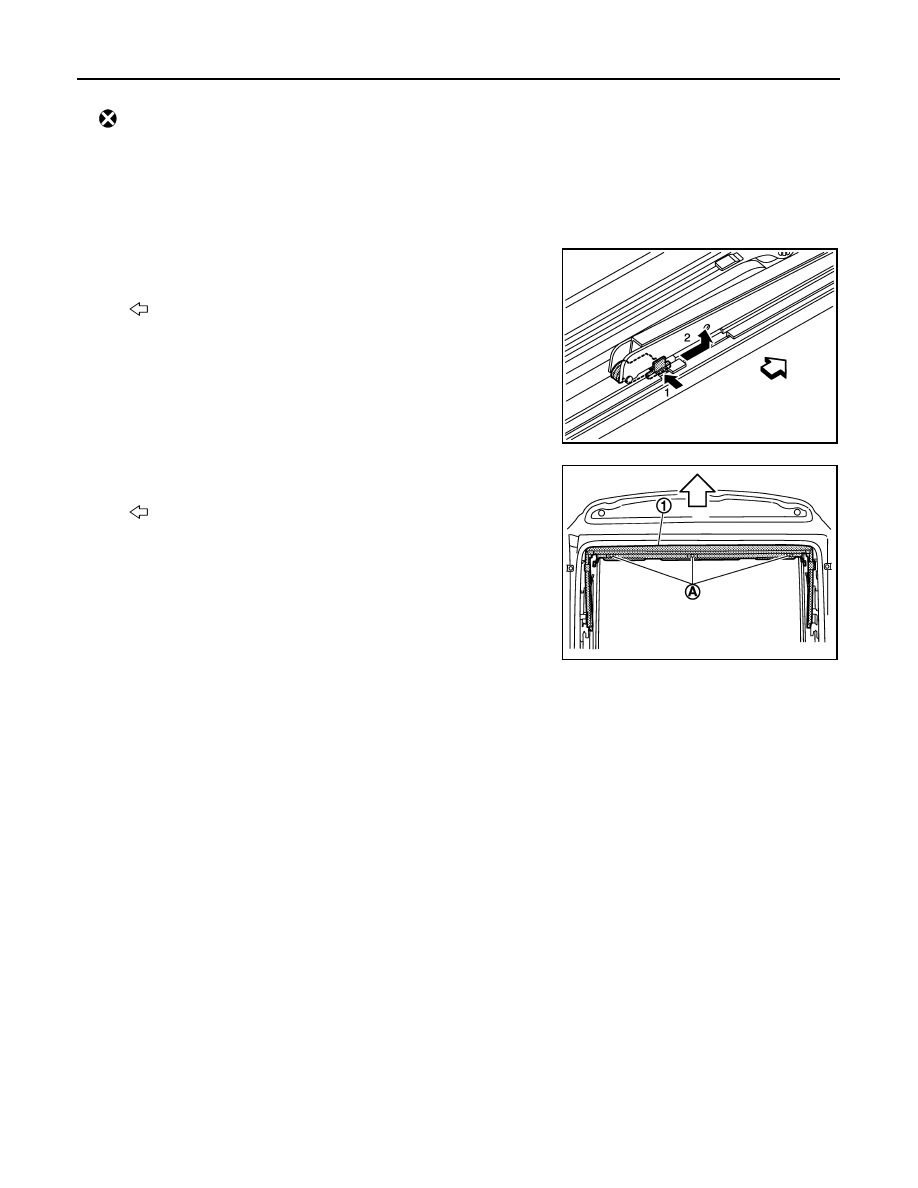

• Push and slide the fastener as shown by the arrows (1) and

(2) in the figure to remove.

• Remove the screw (A), and then remove wind deflector (1).

INSTALLATION

Install in the reverse order of removal.

7.

Sunshade cover

8.

Rear sunshade

: Always replace after every disassembly.

: Vehicle front

JMKIA2192ZZ

: Vehicle front

JMKIA1912ZZ

SUNSHADE

RF-123

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SUNSHADE

Exploded View

INFOID:0000000009719705

1.

Weather-strip

2.

Deflector arm fastener RH

3.

Wind deflector

4.

Deflector arm fastener LH

5.

Sunroof frame

6.

Front sunshade

JMKIA6376ZZ
