PG-98

< REMOVAL AND INSTALLATION >

[POWER SUPPLY&GROUND CIRCUIT]

BATTERY

Reset electronic systems as necessary. Refer to

GI-59, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Required Procedure After Battery Disconnection"

.

PG

BATTERY TERMINAL WITH FUSIBLE LINK

PG-99

< REMOVAL AND INSTALLATION >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

BATTERY TERMINAL WITH FUSIBLE LINK

Exploded View

INFOID:0000000009720319

Removal and Installation

INFOID:0000000009720320

REMOVAL

1.

Disconnect the battery cable from the negative terminal.

2.

Remove cover of battery positive terminal.

3.

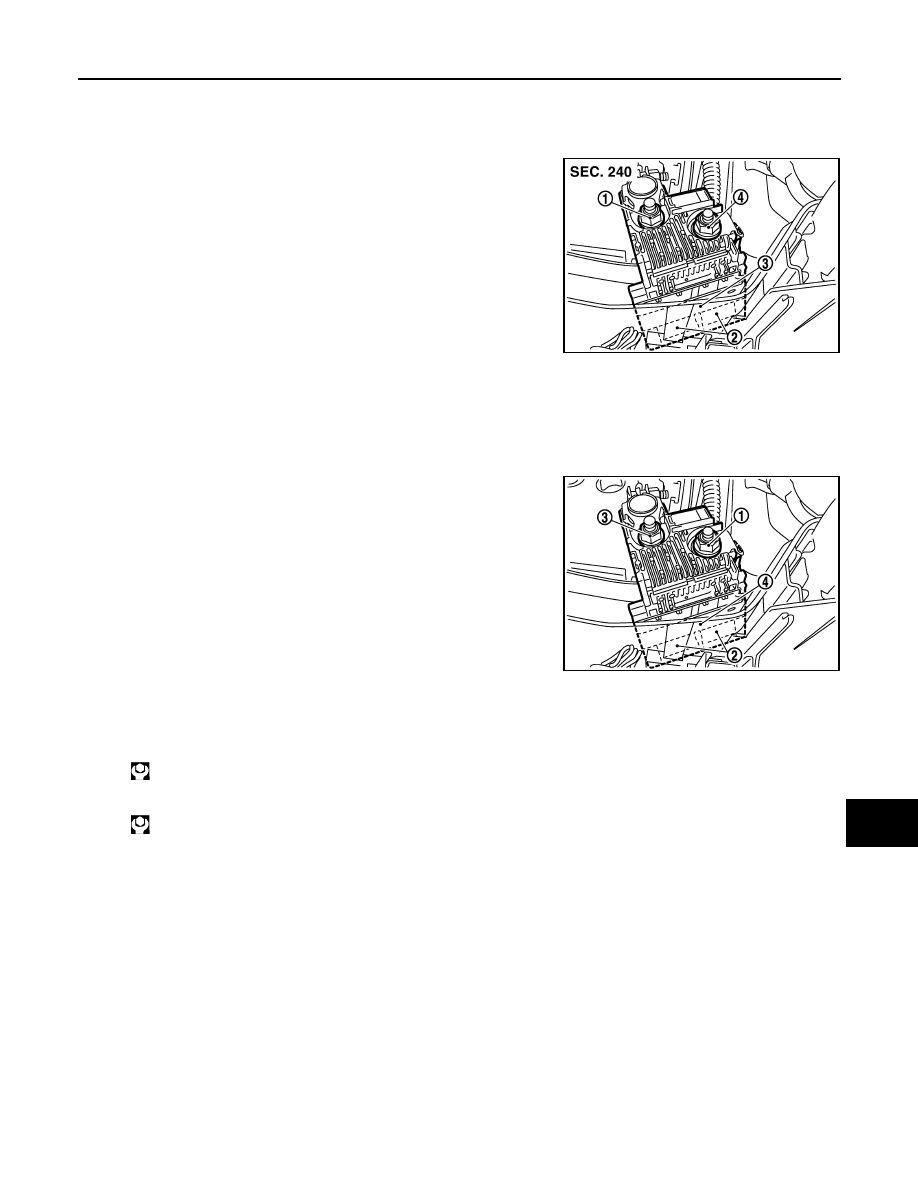

Remove harness mounting nut (1) to disconnect harness con-
nectors (2).

4.

Remove fusible link holder mounting nut (3) to remove battery
terminal with fusible link (4).

INSTALLATION

Install in the reverse order of removal.

1

: Fusible link holder mounting nut

2

: Harness connector

3

: Battery terminal with fusible link

4

: Harness mounting nut

JPMIA0795ZZ

JPMIA0796ZZ

Harness mounting nut

: 13.5 N·m (1.4 kg-m, 10 ft-lb)

Fusible link holder mounting nut

: 13.5 N·m (1.4 kg-m, 10 ft-lb)

PG-100

< SERVICE DATA AND SPECIFICATIONS (SDS)

[POWER SUPPLY&GROUND CIRCUIT]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Battery

INFOID:0000000009720321

Type

80D23L

20 hour rate capacity

[V – Ah]

12 – 62

Cold cranking current (For reference value)

[A]

582
