Nissan Murano. Manual - part 1078

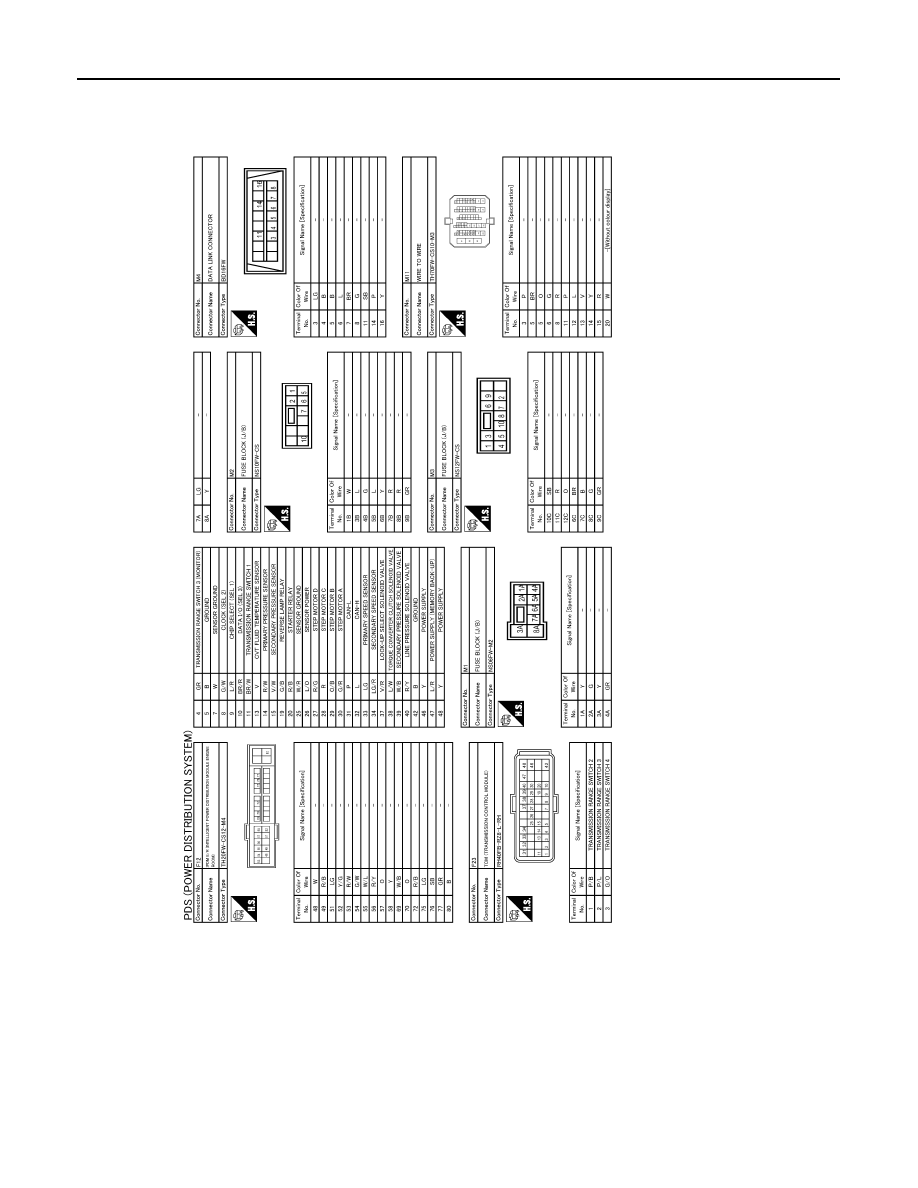

PCS-74

< DTC/CIRCUIT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

POWER DISTRIBUTION SYSTEM

JRMWE5849GB

PCS

POWER DISTRIBUTION SYSTEM

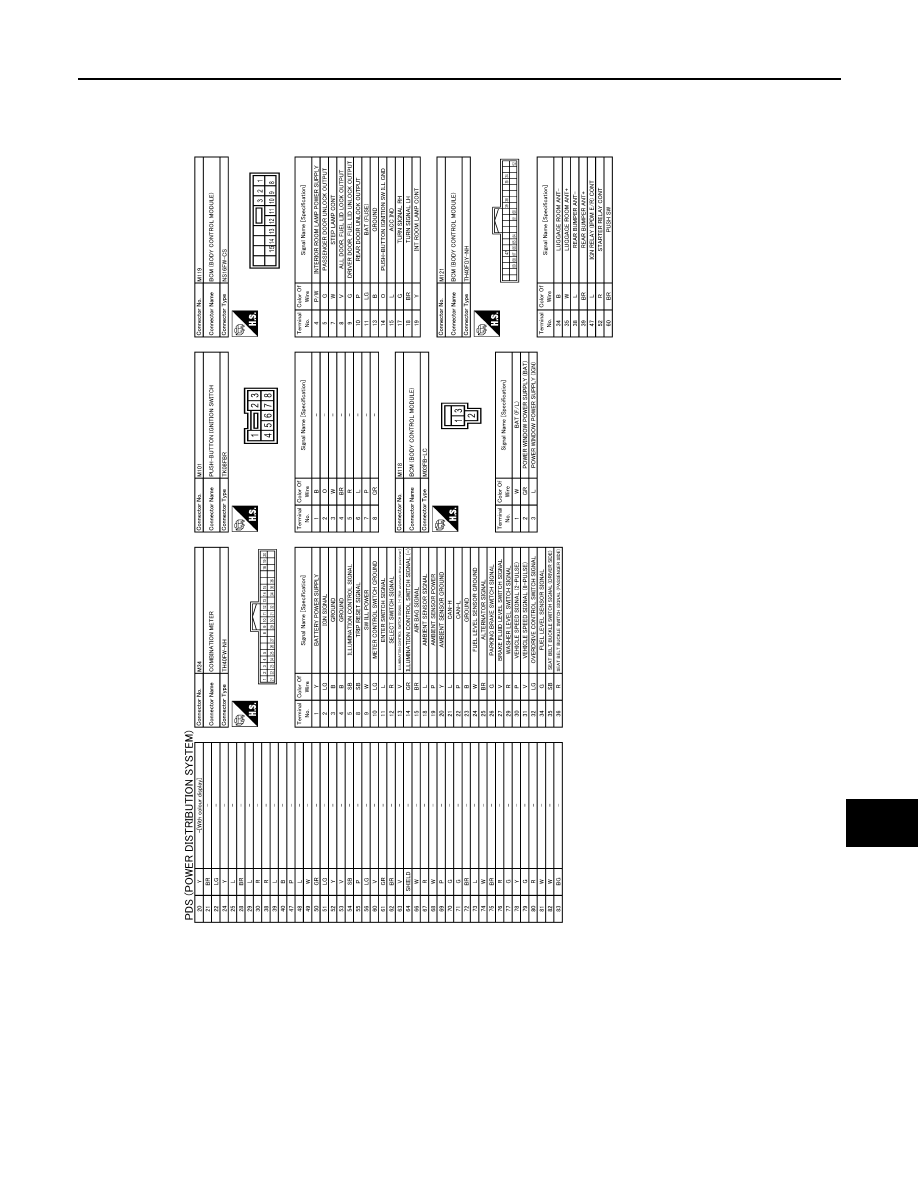

PCS-75

< DTC/CIRCUIT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JRMWE5850GB

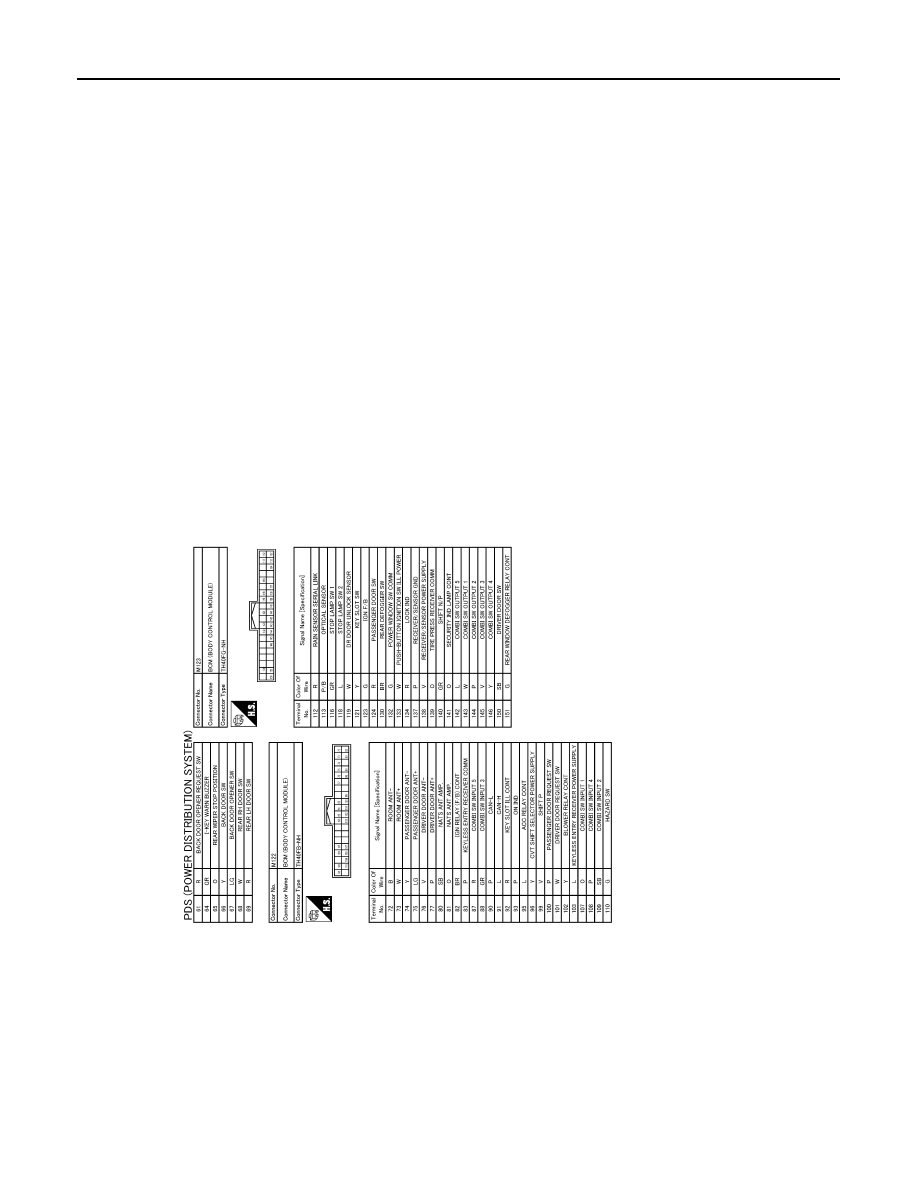

PCS-76

< DTC/CIRCUIT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

POWER DISTRIBUTION SYSTEM

JRMWE5851GB

PCS

BCM (BODY CONTROL MODULE)

PCS-77

< ECU DIAGNOSIS INFORMATION >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ECU DIAGNOSIS INFORMATION

BCM (BODY CONTROL MODULE)

Reference Value

INFOID:0000000010125413

VALUES ON THE DIAGNOSIS TOOL

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

CONSULT MONITOR ITEM

Monitor Item

Condition

Value/Status

FR WIPER HI

Other than front wiper switch HI

Off

Front wiper switch HI

On

FR WIPER LOW

Other than front wiper switch LO

Off

Front wiper switch LO

On

FR WASHER SW

Front washer switch OFF

Off

Front washer switch ON

On

FR WIPER INT

Other than front wiper switch INT/AUTO

Off

Front wiper switch INT/AUTO

On

FR WIPER STOP

Front wiper is not in STOP position

Off

Front wiper is in STOP position

On

INT VOLUME

Wiper intermittent dial is in a dial position 1 - 7

Wiper intermittent dial

position

RR WIPER ON

Other than rear wiper switch ON

Off

Rear wiper switch ON

On

RR WIPER INT

Other than rear wiper switch INT

Off

Rear wiper switch INT

On

RR WASHER SW

Rear washer switch OFF

Off

Rear washer switch ON

On

RR WIPER STOP

Rear wiper is in STOP position

Off

Rear wiper is not in STOP position

On

TURN SIGNAL R

Other than turn signal switch RH

Off

Turn signal switch RH

On

TURN SIGNAL L

Other than turn signal switch LH

Off

Turn signal switch LH

On

TAIL LAMP SW

Other than lighting switch 1ST and 2ND

Off

Lighting switch 1ST or 2ND

On

HI BEAM SW

Other than lighting switch HI

Off

Lighting switch HI

On

HEAD LAMP SW 1

Other than lighting switch 2ND

Off

Lighting switch 2ND

On

HEAD LAMP SW 2

Other than lighting switch 2ND

Off

Lighting switch 2ND

On

PASSING SW

Other than lighting switch PASS

Off

Lighting switch PASS

On

AUTO LIGHT SW

Other than lighting switch AUTO

Off

Lighting switch AUTO

On
