PCS-62

< DTC/CIRCUIT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

B2616 IGNITION RELAY CIRCUIT

Component Inspection

INFOID:0000000009722664

1.

CHECK IGNITION RELAY

1.

Turn ignition switch OFF.

2.

Remove ignition relay.

3.

Check the continuity between ignition relay terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace Ignition relay. Refer to

PG-91, "Fuse, Connec-

tor and Terminal Arrangement"

.

Terminals

Condition

Continuity

3 and 5

12 V direct current supply between terminals 1 and 2

Existed

No current supply

Not existed

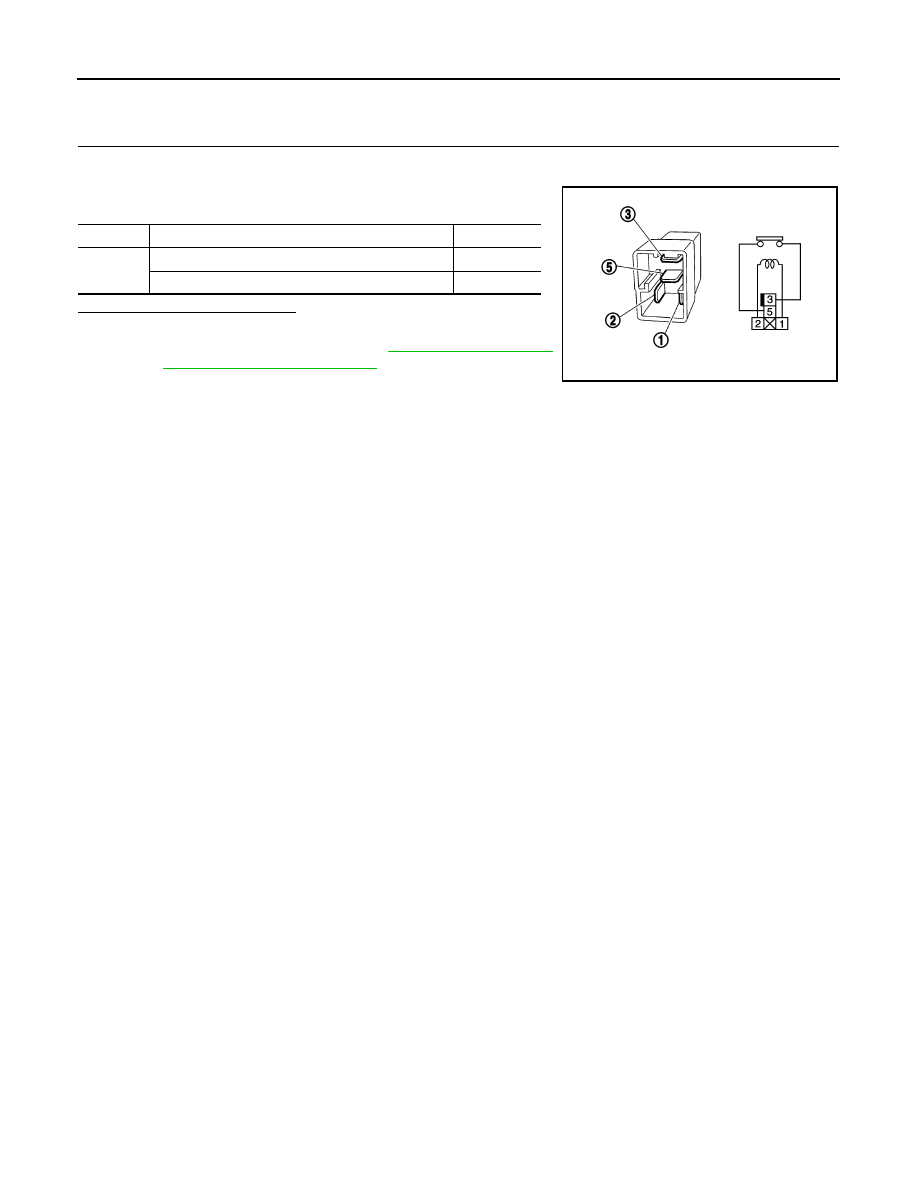

PBIB0098E

PCS

B2618 BCM

PCS-63

< DTC/CIRCUIT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

B2618 BCM

Description

INFOID:0000000009722665

BCM controls the various electrical components and simultaneously supplies power according to the power
supply position.
BCM checks the power supply position internally.

DTC Logic

INFOID:0000000009722666

DTC DETECTION LOGIC

NOTE:
• If DTC B2618 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to

BCS-42, "DTC Logic"

.

• If DTC B2618 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to

BCS-43, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON under the following conditions, and wait for at least 1 second.

-

Selector lever is in the P or N position.

-

Do not depress brake pedal.

2.

Check “Self diagnostic result” with CONSULT.

Is DTC detected?

YES

>> Go to

PCS-63, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009722667

1.

INSPECTION START

1.

Turn ignition switch ON.

2.

Select “Self diagnostic result” mode with CONSULT.

3.

Touch “ERASE”.

4.

Perform DTC Confirmation Procedure.
See

PCS-63, "DTC Logic"

.

Is the 1st trip DTC B2618 displayed again?

YES

>> Replace BCM. Refer to

BCS-98, "Removal and Installation"

NO

>> INSPECTION END

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2618

BCM

An immediate operation of ignition relay (IPDM E/
R) is requested by BCM, but there is no response
for more than 1 second

BCM

PCS-64

< DTC/CIRCUIT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

B261A PUSH-BUTTON IGNITION SWITCH

B261A PUSH-BUTTON IGNITION SWITCH

Description

INFOID:0000000009722668

BCM transmits the change in the power supply position with the push-button ignition switch to IPDM E/R via
the CAN communication line. IPDM E/R transmits the power supply position status via CAN communication
line to BCM.

DTC Logic

INFOID:0000000009722669

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Press the push-button ignition switch under the following conditions, and wait for at least 1 second.

-

Selector lever is in the P or N position.

-

Do not depress brake pedal.

2.

Check “Self diagnostic result” with CONSULT.

Is DTC detected?

YES

>> Go to

PCS-64, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009722670

1.

CHECK IGNITION SWITCH OUTPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Disconnect push-button ignition switch connector and IPDM E/R connector.

3.

Check voltage between IPDM E/R harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace IPDM E/R. Refer to

PCS-37, "Removal and Installation"

.

2.

CHECK PUSH-BUTTON IGNITION SWITCH CIRCUIT

1.

Disconnect BCM connector.

2.

Check continuity between IPDM E/R harness connector and BCM harness connector.

3.

Check continuity between IPDM E/R harness connector and ground.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B261A

PUSH-BUTTON IG-
NITION SWITCH

 BCM detects a difference of signal for 1 second or
more between the following information.
• Power supply position by push-button ignition

switch

• Power supply position from IPDM E/R (CAN)

Harness or connectors
(Push-button ignition switch circuit is
open or shorted.)

(+)

(–)

Voltage (V)

(Approx.)

IPDM E/R

Connector

Terminal

E10

28

Ground

Battery voltage

IPDM E/R

BCM

Continuity

Connector

Terminal

Connector

Terminal

E10

28

M121

60

Existed

PCS

B261A PUSH-BUTTON IGNITION SWITCH

PCS-65

< DTC/CIRCUIT DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-98, "Removal and Installation"

.

NO

>> Repair or replace harness.

IPDM E/R

Ground

Continuity

Connector

Terminal

E10

28

Not existed
