MWI-12

< SYSTEM DESCRIPTION >

METER SYSTEM

SPEEDOMETER : Component Description

INFOID:0000000009721227

TACHOMETER

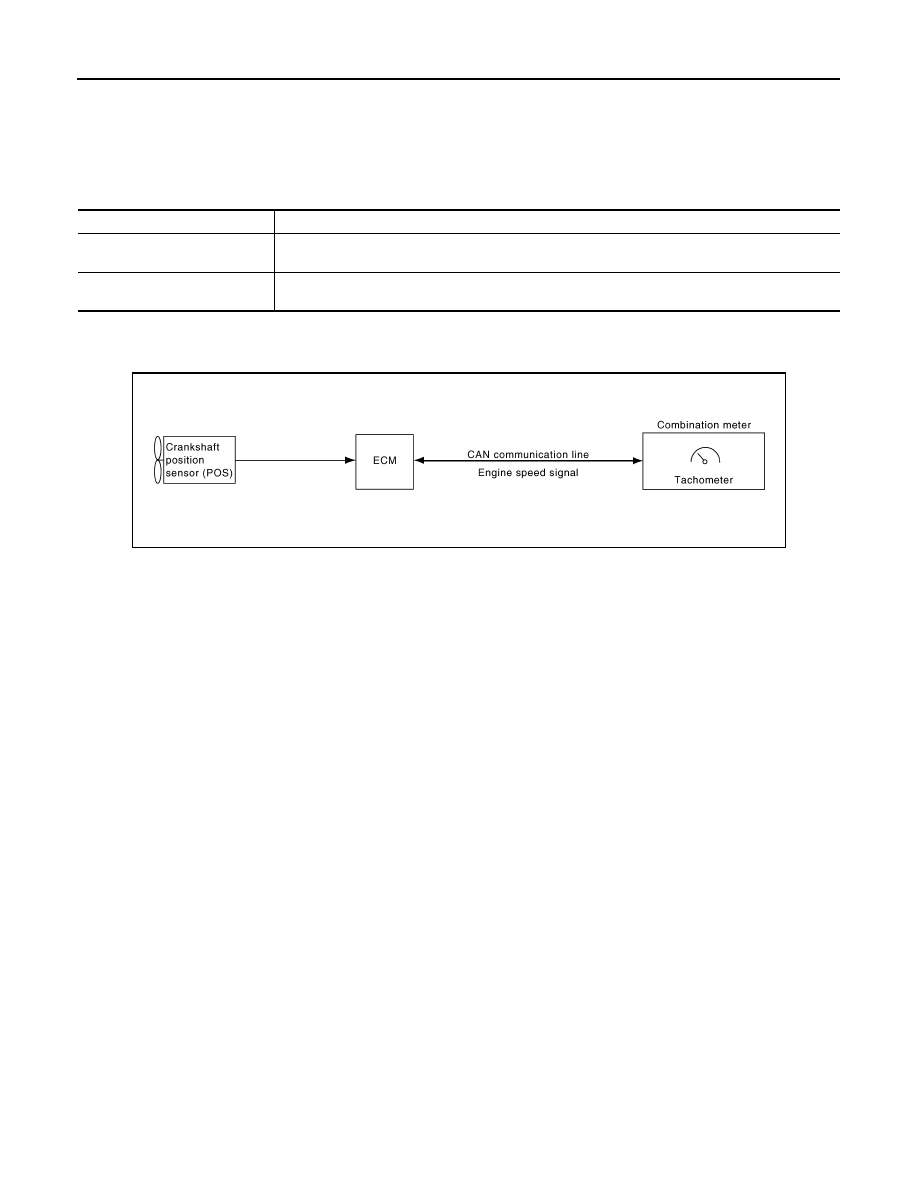

TACHOMETER : System Diagram

INFOID:0000000009721228

TACHOMETER : System Description

INFOID:0000000009721229

• ECM converts the pulse signal provided by the crankshaft position sensor to an engine speed signal and

transmits it to the combination meter with CAN communication line.

• The combination meter indicates the engine speed to the tachometer according to the engine speed signal

received via CAN communication.

A.

Lower right side of rear seat

B.

Engine room (RH)

C.

Engine front side

D.

Engine room (LH)

E.

Front bumper (left back)

F.

Engine room (LH)

G.

Engine room (LH)

H.

Behind the combination meter

I.

Lower left side of rear seat

Unit

Description

Combination meter

Indicates the vehicle speed to the speedometer according to the vehicle speed signal received from
ABS actuator and electric unit (control unit) via CAN communication.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter with CAN communication line.

JSNIA0290GB

MWI

METER SYSTEM

MWI-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

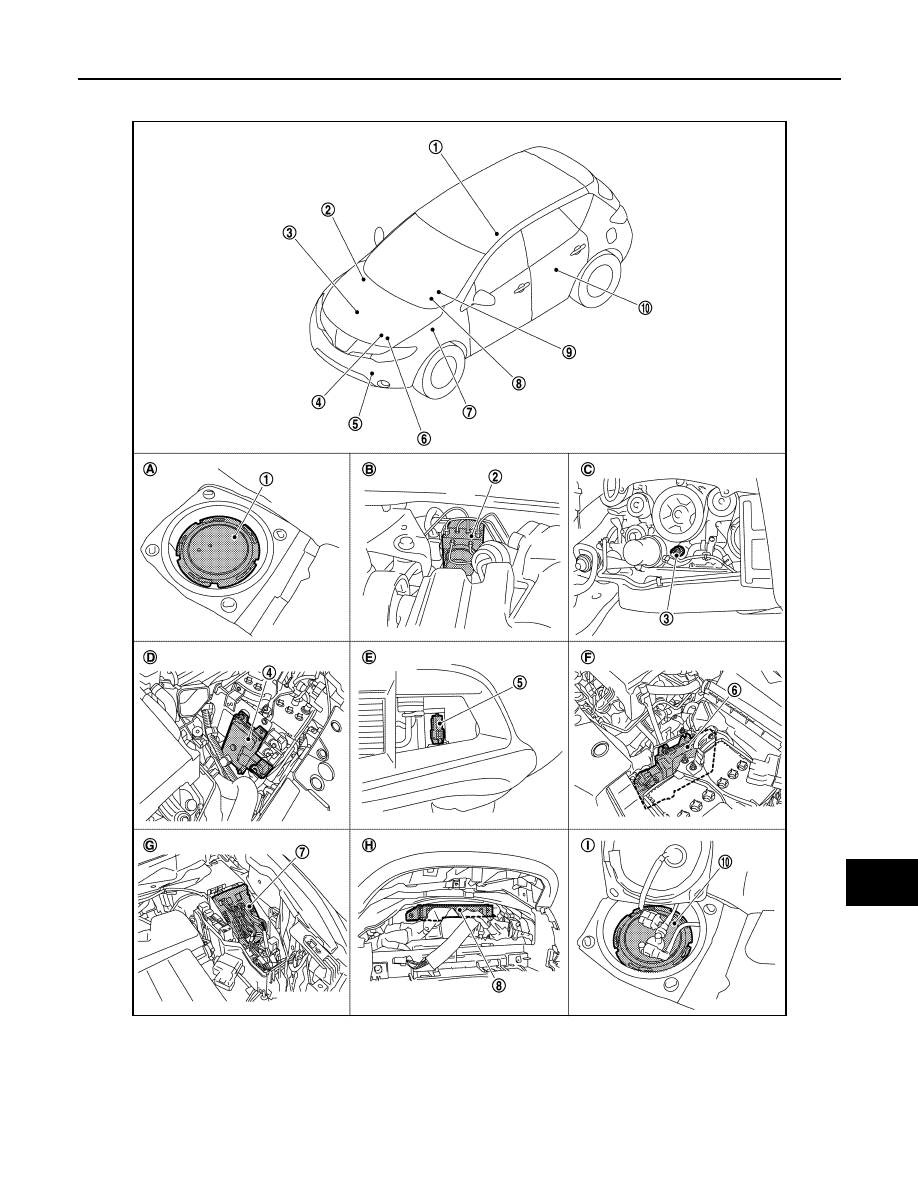

TACHOMETER : Component Parts Location

INFOID:0000000009721230

JPNIA0813ZZ

1.

Fuel level sensor unit (sub)

2.

ABS actuator and electric unit (con-
trol unit)

3.

Oil pressure switch

4.

TCM

5.

Ambient sensor

6.

ECM

7.

IPDM E/R

8.

BCM

9.

Combination meter

10.

Fuel level sensor unit and fuel pump
(main)

MWI-14

< SYSTEM DESCRIPTION >

METER SYSTEM

TACHOMETER : Component Description

INFOID:0000000009721231

ENGINE COOLANT TEMPERATURE GAUGE

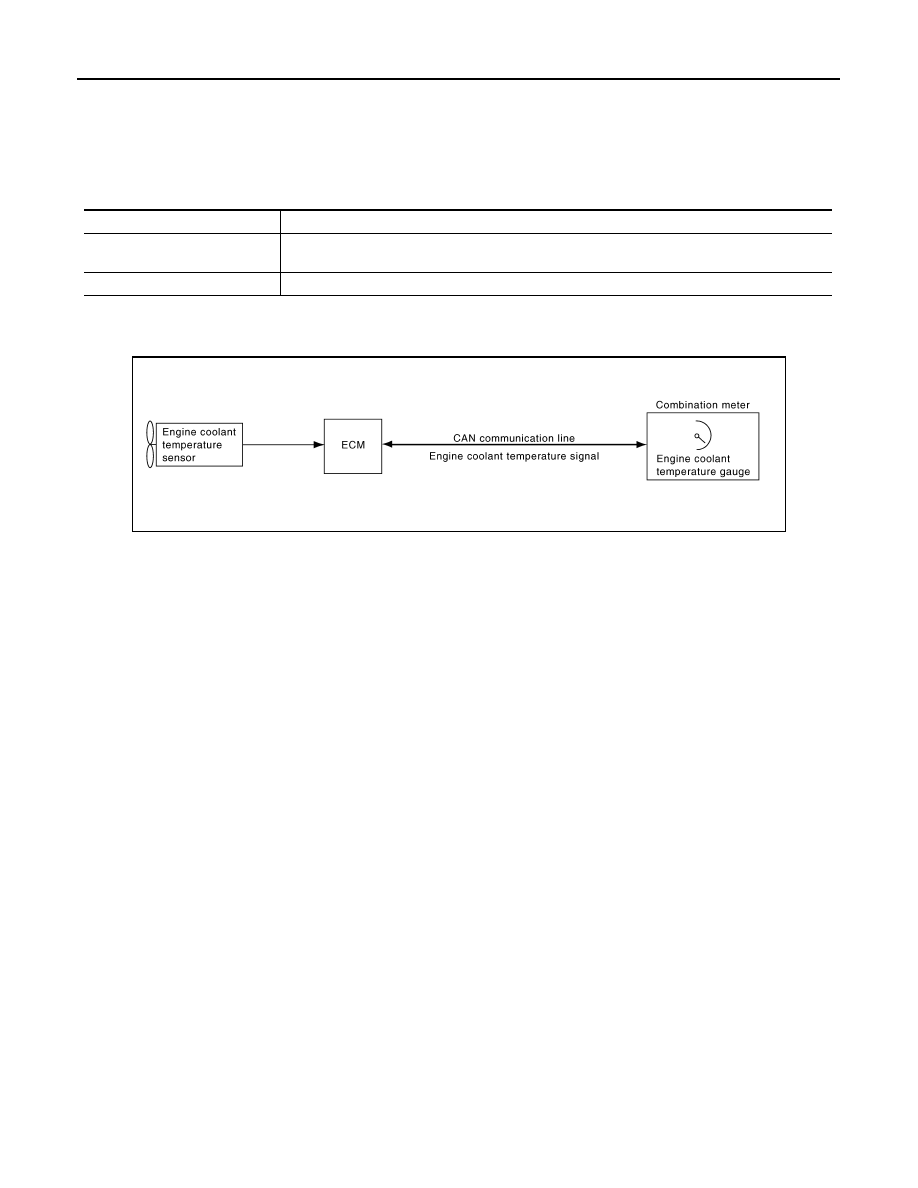

ENGINE COOLANT TEMPERATURE GAUGE : System Diagram

INFOID:0000000009721232

ENGINE COOLANT TEMPERATURE GAUGE : System Description

INFOID:0000000009721233

• ECM reads the engine coolant temperature signal from the engine coolant temperature sensor and transmits

the signal to the combination meter via CAN communication.

• The combination meter indicates the engine coolant temperature to the engine coolant temperature gauge

according to the engine coolant temperature signal received via CAN communication.

A.

Lower right side of rear seat

B.

Engine room (RH)

C.

Engine front side

D.

Engine room (LH)

E.

Front bumper (left back)

F.

Engine room (LH)

G.

Engine room (LH)

H.

Behind the combination meter

I.

Lower left side of rear seat

Unit

Description

Combination meter

Indicates the engine speed to the tachometer according to the engine speed signal received from
ECM via CAN communication.

ECM

Transmits the engine speed signal to the combination meter with CAN communication line.

JSNIA0291GB

MWI

METER SYSTEM

MWI-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ENGINE COOLANT TEMPERATURE GAUGE : Component Parts Location

INFOID:0000000009721234

JPNIA0813ZZ

1.

Fuel level sensor unit (sub)

2.

ABS actuator and electric unit (con-
trol unit)

3.

Oil pressure switch

4.

TCM

5.

Ambient sensor

6.

ECM

7.

IPDM E/R

8.

BCM

9.

Combination meter

10.

Fuel level sensor unit and fuel pump
(main)
