MWI-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work flow

INFOID:0000000009721219

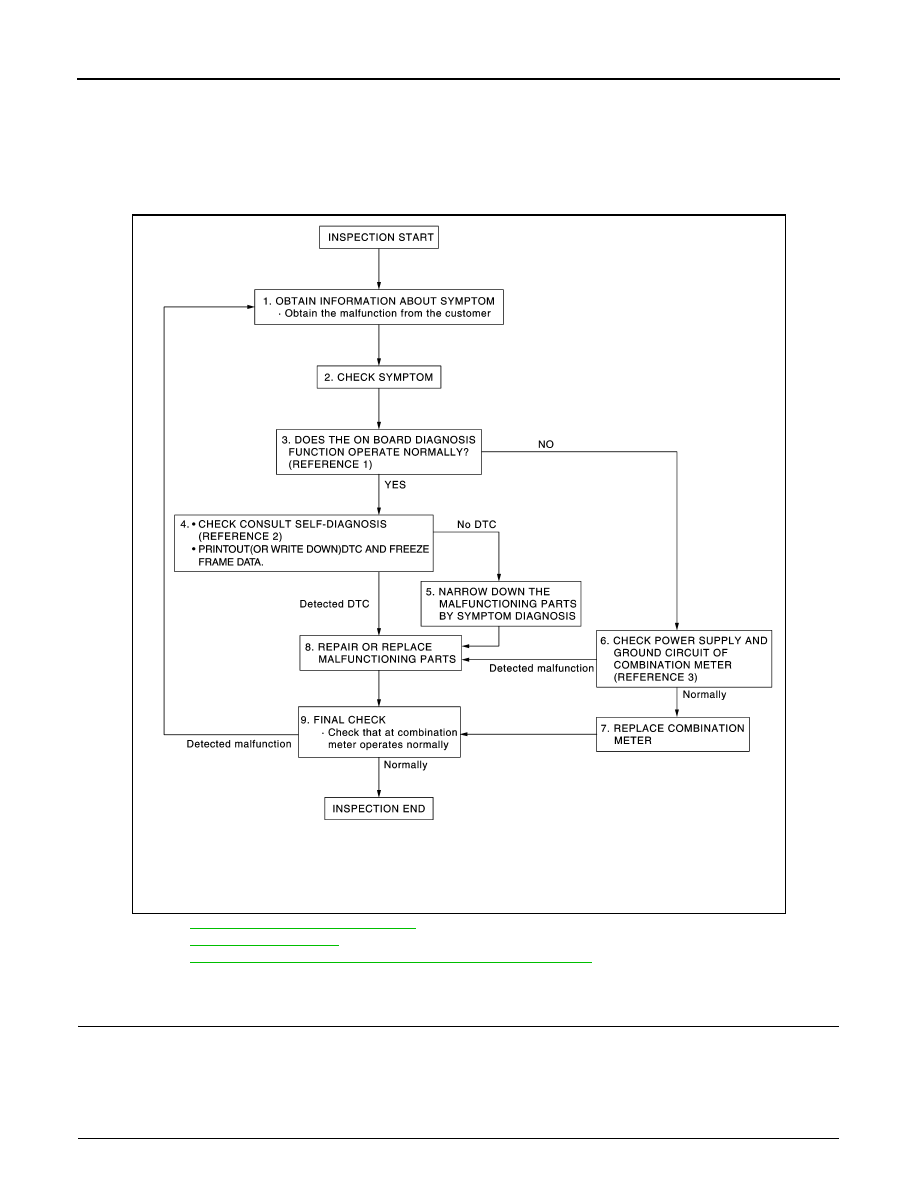

OVERALL SEQUENCE

• Reference 1···

MWI-34, "Diagnosis Description"

.

• Reference 2···

MWI-77, "DTC Index"

.

• Reference 3···

MWI-44, "COMBINATION METER : Diagnosis Procedure"

.

DETAILED FLOW

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain as much information as possible about the conditions and environment under
which the malfunction occurred.

>> GO TO 2.

2.

CHECK SYMPTOM

JSNIA4484GB

MWI

DIAGNOSIS AND REPAIR WORKFLOW

MWI-5

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• Check the symptom based on the information obtained from the customer.
• Check that any other malfunctions are present.

>> GO TO 3.

3.

CHECK ON BOARD DIAGNOSIS OPERATION

Check that the on board diagnosis function operates. Refer to

MWI-34, "Diagnosis Description"

.

Does the on board diagnosis function operate normally?

YES

>> GO TO 4.

NO

>> GO TO 6.

4.

CHECK CONSULT SELF-DIAGNOSIS RESULTS

1.

Connect CONSULT and perform self-diagnosis. Refer to

MWI-77, "DTC Index"

.

2.

When DTC is detected, follow the instructions below:

-

Record DTC and Freeze Frame Data.

Are self-diagnosis results normal?

YES

>> GO TO 5.

NO

>> GO TO 8.

5.

NARROW DOWN THE MALFUNCTIONING PARTS BY SYMPTOM DIAGNOSIS

Perform symptom diagnosis and narrow down the malfunctioning parts.

>> GO TO 8.

6.

CHECK COMBINATION METER POWER SUPPLY AND GROUND CIRCUITS

Inspect combination meter power supply and ground circuits. Refer to

MWI-44, "COMBINATION METER :

Diagnosis Procedure"

.

Is inspection result OK?

YES

>> GO TO 7.

NO

>> GO TO 8.

7.

REPLACE COMBINATION METER

Replace combination meter.

>> GO TO 9.

8.

REPAIR OR REPLACE MALFUNCTIONING PARTS

Repair or replace the malfunctioning parts.
NOTE:
If DTC is displayed, erase DTC after repair or replace malfunctioning parts.

>> GO TO 9.

9.

FINAL CHECK

Check that the combination meter operates normally.
Do they operate normally?

YES

>> INSPECTION END

NO

>> GO TO 1.

MWI-6

< SYSTEM DESCRIPTION >

METER SYSTEM

SYSTEM DESCRIPTION

METER SYSTEM

METER SYSTEM

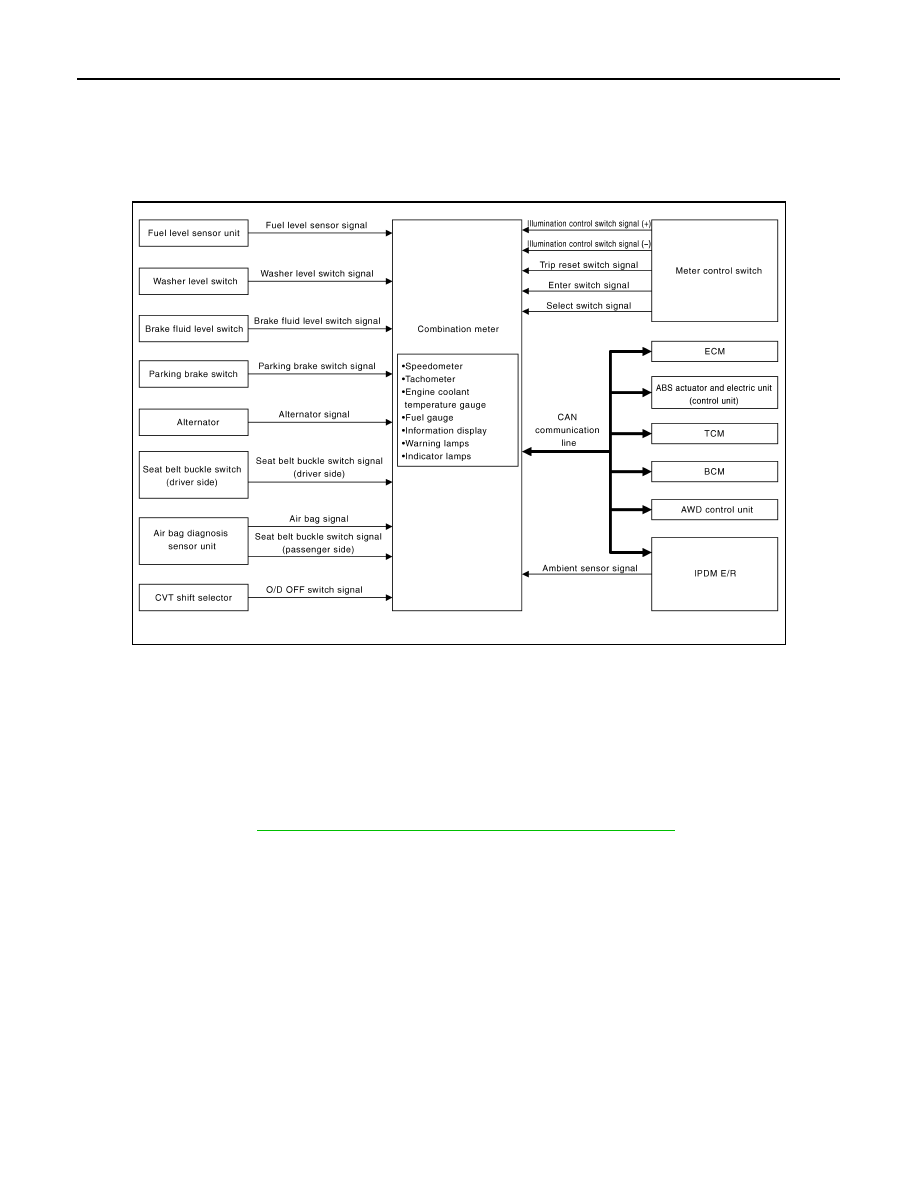

METER SYSTEM : System Diagram

INFOID:0000000009721220

METER SYSTEM : System Description

INFOID:0000000009721221

COMBINATION METER

• The combination meter receives the information required to control the operation of each gauge, indicator/

warning lamp, and information display via CAN communication from each unit, each switch, and sensor.

• The combination meter incorporates a trip computer that displays warnings and messages on the informa-

tion display according to the information received from various units.

• The combination meter incorporates a buzzer function that sounds an audible alarm with the integrated

buzzer device. Refer to

WCS-5, "WARNING CHIME SYSTEM : System Description"

 for further details.

• The combination meter integrates the meter circuit check function and the segment check function that

checks the information display operation.

IPDM E/R

• IPDM E/R reads the ON/OFF signals of the oil pressure switch and transmits the oil pressure switch signal to

the combination meter via BCM with the CAN communication line.

• IPDM E/R is equipped with the diagnosis function. It can perform the operation check of oil pressure warning

lamp with the auto active test and the diagnosis with CONSULT.

METER CONTROL FUNCTION LIST

JSNIA2249GB

MWI

METER SYSTEM

MWI-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

System

Description

Signal source

Meter/gauge

Speedometer

Receives vehicle speed signal and indicates vehicle speed.

ABS actuator and elec-
tric unit (control unit)

Tachometer

Receives engine speed signal and indicates engine speed.

ECM

Fuel gauge

Receives fuel level sensor signal and indicates fuel level.

Fuel level sensor unit

Engine coolant tem-
perature gauge

Receives engine coolant temperature signal and indicates coolant
temperature.

ECM

Warning lamp/
indicator lamp

Oil pressure warning
lamp

Receives oil pressure warning lamp signal and illuminates warning
lamp.

IPDM E/R

Master warning

Illuminates according to warning output on information display.

—

Information
display

Door open warning

Receives door switch signals and displays warning.

BCM

Parking brake re-
lease warning

Receives parking brake switch signal and vehicle speed signal and
displays warnings.

Parking brake switch

ABS actuator and elec-
tric unit (control unit)

Low fuel warning

Receives fuel gauge signal and displays warning if fuel level de-

creases to 11

 (2-7/8 US gal, 2-3/8 Imp gal) or less.

Fuel level sensor unit

Low washer fluid
warning

Receives washer level switch signal and displays warning.

Washer level switch

Low outside tempera-
ture warning

Monitors ambient sensor signal and displays warning if ambient
temperature decreases to 3

°

C (37

°

F) or less. (If enabled)

Ambient sensor

Low tire pressure
warning

Receives low tire pressure warning lamp signal and displays warn-
ing.

BCM

Fuel filler cap warning

Receives fuel filler cap warning display signals and displays warn-
ing.

ECM

Instantaneous fuel
consumption

Calculates instantaneous fuel consumption based on received ve-
hicle speed signals and fuel consumption monitor signal and dis-
plays it.

ECM

ABS actuator and elec-
tric unit (control unit)

Average fuel con-
sumption

Calculates average fuel consumption in a reset-to-reset interval
based on received vehicle speed signals and fuel consumption
monitor signal and displays it.

ECM

ABS actuator and elec-
tric unit (control unit)

Average vehicle
speed

Calculates average vehicle speed in a reset-to-reset interval based
on received vehicle speed signals and displays it.

ABS actuator and elec-
tric unit (control unit)

Travel time

Displays accumulated key switch ON time from reset to reset.

—

Travel distance

Calculates accumulated travel distance in a reset-to-reset interval
based on received vehicle speed signals and displays it.

ABS actuator and elec-
tric unit (control unit)

Possible driving dis-
tance

Calculates possible driving distance based on received fuel con-
sumption monitor signal, vehicle speed signals and fuel level sen-
sor signal and displays it.

ABS actuator and elec-
tric unit (control unit)

ECM

Fuel level sensor unit

Ambient air tempera-
ture

Corrects ambient air temperature value based on received ambient
sensor signals and displays it.

Ambient sensor
