OUTSIDE MIRROR

OUTSIDE MIRROR

DOOR MIRROR ASSEMBLY

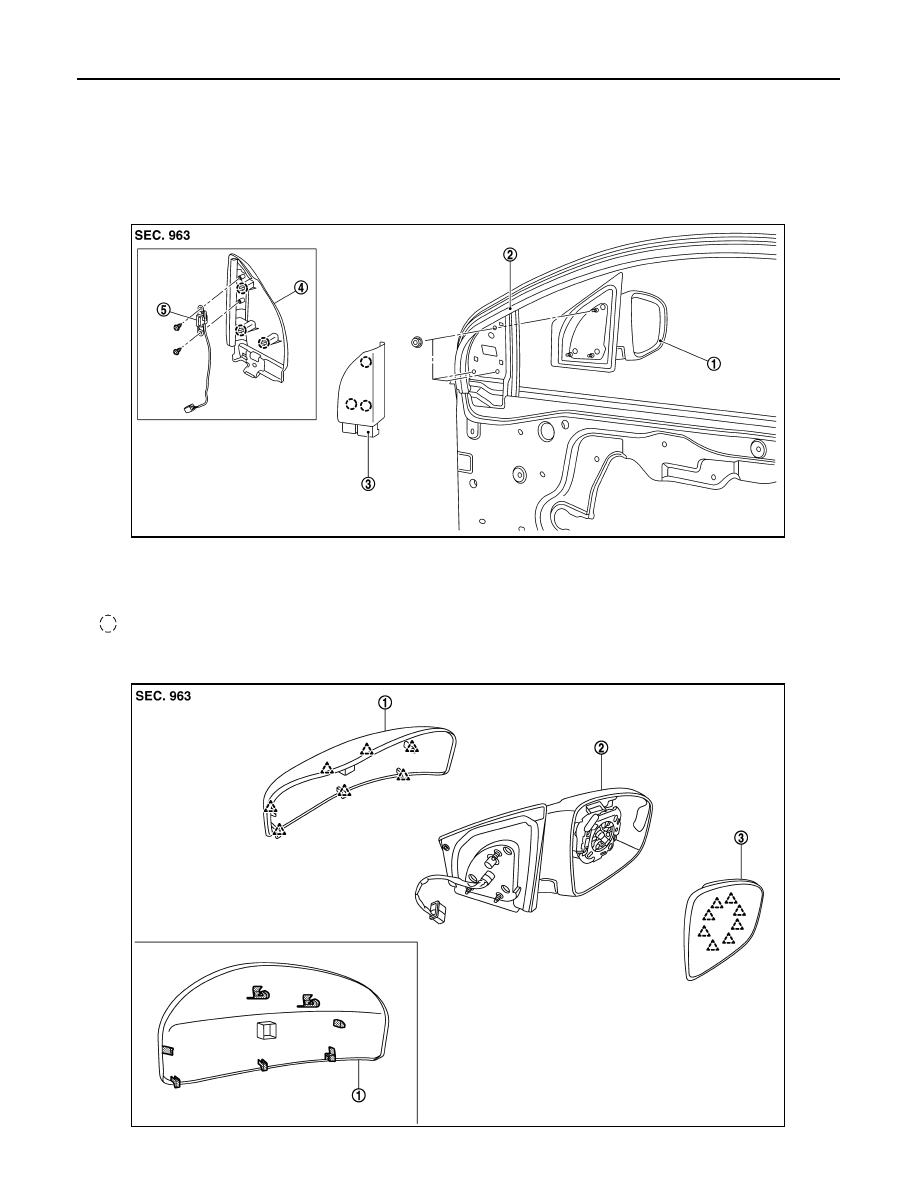

DOOR MIRROR ASSEMBLY : Exploded View

INFOID:0000000009719378

REMOVAL

DISASSEMBLY

1.

Door mirror assembly

2.

Front door assembly

3.

Door mirror corner cover

4.

Door mirror corner cover
(with BSW indicator)

5.

BSW indicator assembly

: Clip

JMLIA3464ZZ

JMLIA0123ZZ

OUTSIDE MIRROR

MIR-95

< REMOVAL AND INSTALLATION >

[WITHOUT ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DOOR MIRROR ASSEMBLY : Removal and Installation

INFOID:0000000009719379

CAUTION:

Never damage the mirror bodies.

REMOVAL

1.

Remove the front door finisher. Refer to

INT-13, "FRONT DOOR FINISHER : Removal and Installation"

.

2.

Disconnect BSW indicator harness connector (with BSW indicator models).

3.

Disengage the fixing clips and remove the door mirror corner cover.

4.

Disconnect the door mirror harness connector.

5.

Remove the door mirror mounting nuts, and remove the door mirror assembly.

INSTALLATION

Install in the reverse order of removal.

GLASS MIRROR

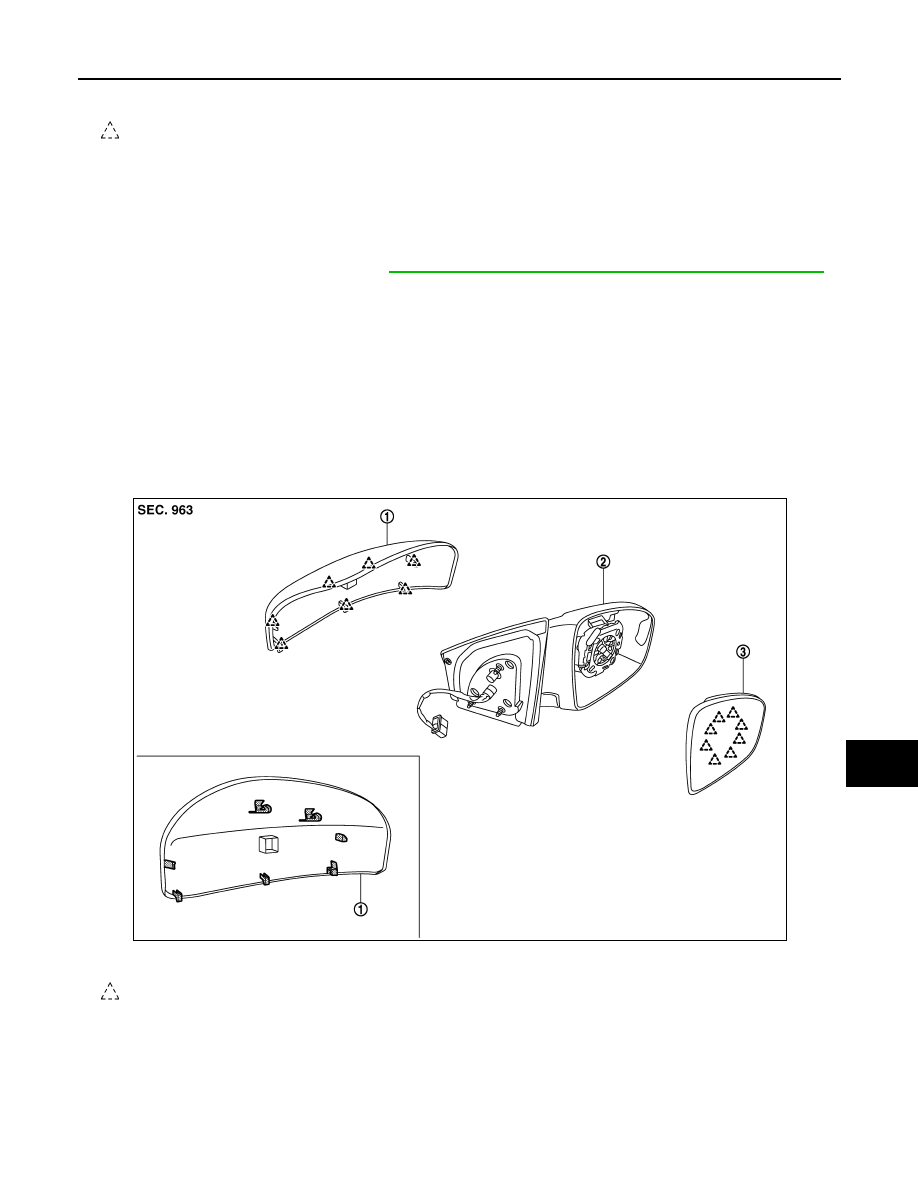

GLASS MIRROR : Exploded View

INFOID:0000000009719380

GLASS MIRROR : Disassembly and Assembly

INFOID:0000000009719381

CAUTION:

Never damage the mirror bodies.

DISASSEMBLY

1.

Door mirror cover

2.

Door mirror assembly

3.

Glass mirror

: Pawl

1.

Door mirror cover

2.

Door mirror assembly

3.

Glass mirror

: Pawl

JMLIA0123ZZ

MIR-96

< REMOVAL AND INSTALLATION >

[WITHOUT ADP]

OUTSIDE MIRROR

1.

Place the glass mirror upward.

2.

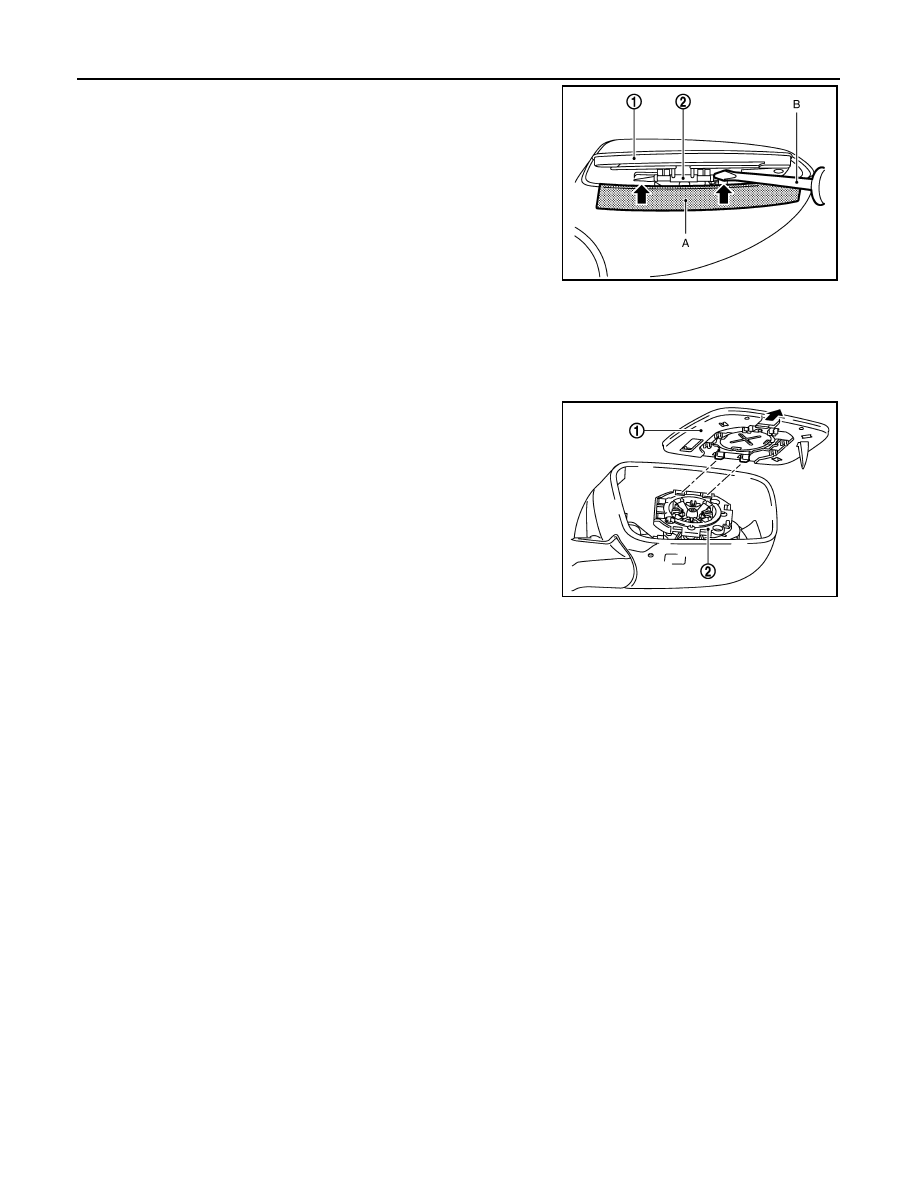

Put a strip of protective tape (A) on the housing.

3.

Insert flat-bladed screwdriver (B) into the recess at lower side
between glass mirror (1) and actuator (2), and push up pawls to
remove glass mirror lower side.
NOTE:
 Insert a small slotted screwdriver into recess, and push up while
rotating (twist) to make work easier.

4.

Insert flat-bladed screwdriver at RH/LH side between glass mirror and actuator, and push up pawls to
remove glass mirror RH/LH side.
NOTE:
 Insert flat-bladed screwdriver into recesses, and push up while rotating (twist) to make work easier.

5.

Remove two terminals of mirror heater attachment. (With heater mirror model)

6.

Pull glass mirror as shown in the figure in order to disengage
both upper pawls, and then remove glass mirror.

ASSEMBLY

Install in the reverse order of removal.

CAUTION:

After installation, visually check that pawls are securely engaged.

DOOR MIRROR COVER

JMLIA0124ZZ

1.

Glass mirror

2.

Actuator

JMLIA0092ZZ

OUTSIDE MIRROR

MIR-97

< REMOVAL AND INSTALLATION >

[WITHOUT ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

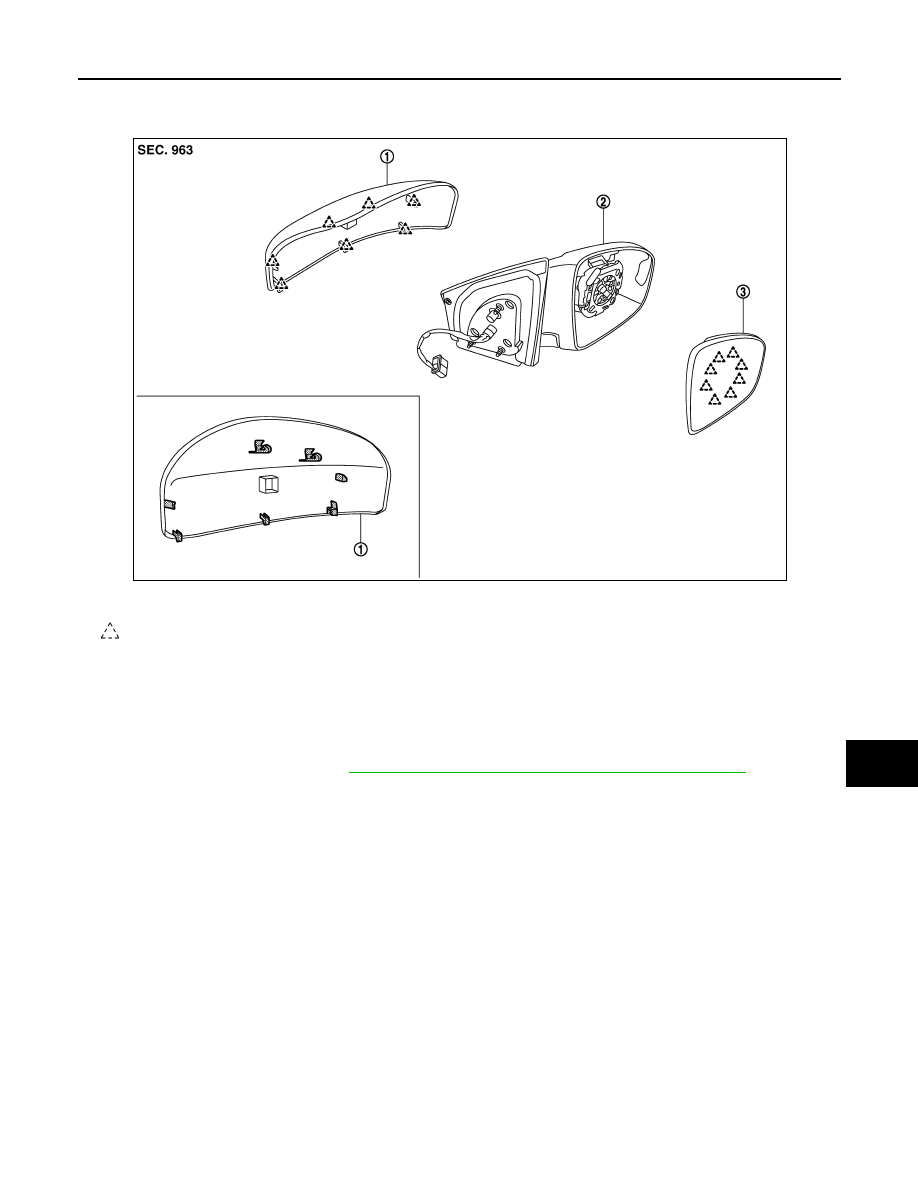

DOOR MIRROR COVER : Exploded View

INFOID:0000000009719382

DOOR MIRROR COVER : Disassembly and Assembly

INFOID:0000000009719383

CAUTION:

Never damage the mirror bodies.

DISASSEMBLY

1.

Remove the glass mirror. Refer to

MIR-95, "GLASS MIRROR : Disassembly and Assembly"

.

2.

Remove the pawls, and disassemble the door mirror cover from the mirror assembly.

ASSEMBLY

Install in the reverse order of removal.
NOTE:
After installation, visually check that pawls are securely engaged.

1.

Door mirror cover

2.

Door mirror assembly

3.

Glass mirror

: Pawl

JMLIA0123ZZ
