DOOR MIRROR SYSTEM

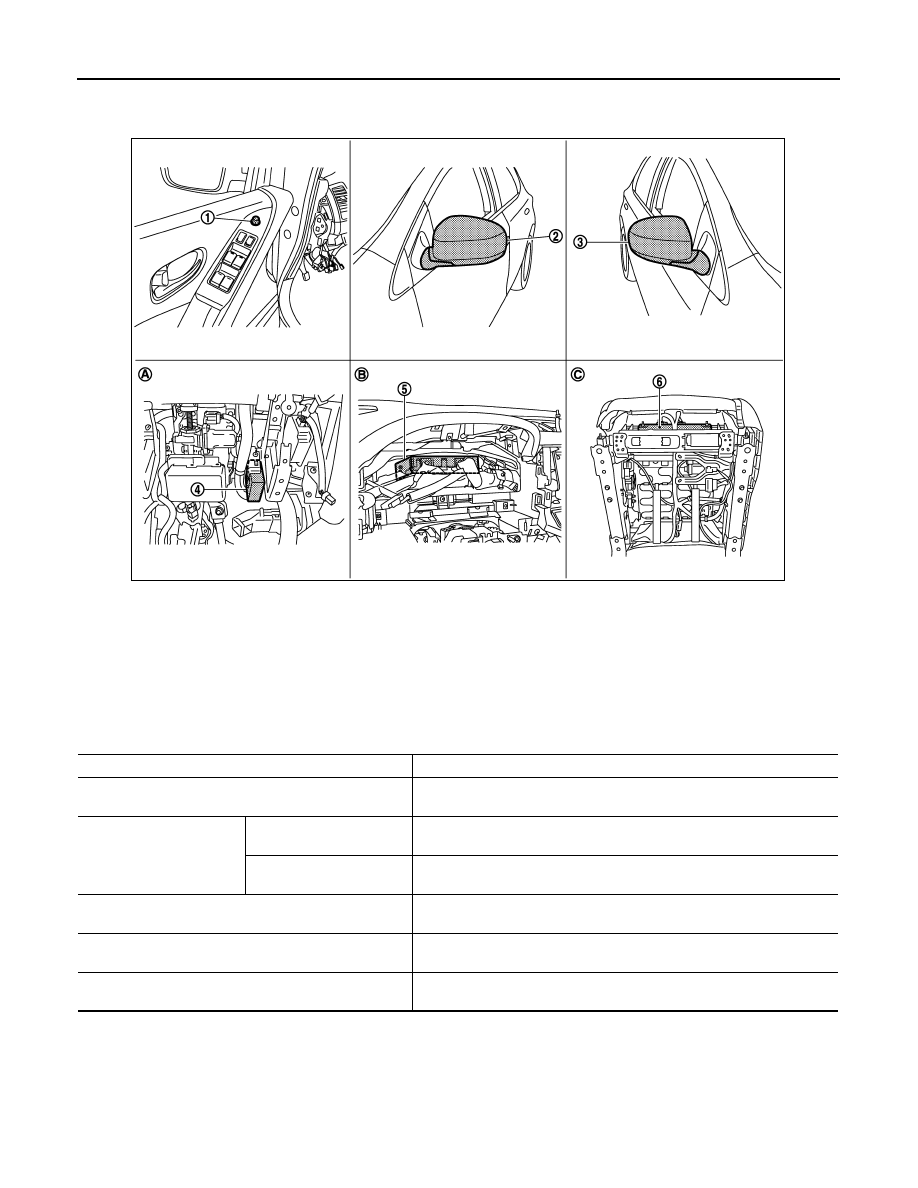

Component Parts Location

INFOID:0000000009719316

Component Description

INFOID:0000000009719317

1.

Door mirror remote control switch

2.

Door mirror (driver side)

3.

Door mirror (passenger side)

4.

Automatic drive positioner control
unit

5.

BCM

6.

Driver seat control unit

A.

View with instrument driver lower
pane removed

B.

Behind the combination meter

C.

Backside of the seat cushion

JMLIA0117ZZ

Component

Function

Automatic drive positioner control unit

Door mirror is supplied with power after receiving the input of the MIRROR
SWITCH and CHANGEOVER SWITCH.

Door mirror remote control
switch

Mirror switch

It transmits mirror face adjust operation to AUTOMATIC DRIVE POSI-
TIONER CONTROL UNIT.

Changeover switch

It transmits the LH/RH control of door mirror that supplies power to AUTO-
MATIC DRIVE POSITIONER CONTROL UNIT.

Door mirror

It makes mirror face operate from side to side and up and down via inte-
grated motor.

BCM

The ignition switch signal (ACC/ON) is transmitted to driver seat control
unit via CAN communication.

Driver seat control unit

The ignition switch signal (ACC/ON) is transmitted to automatic drive posi-
tioner control unit via UART communication.

INSIDE MIRROR SYSTEM

MIR-7

< SYSTEM DESCRIPTION >

[WITH ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

INSIDE MIRROR SYSTEM

System Description

INFOID:0000000009719318

The sensor built in inside mirror detects the headlight of the vehicle behind and automatically changes the light
transmission to decrease the brightness.

Component Description

INFOID:0000000009719319

Component

Function

Auto anti-dazzling inside mirror

It automatically changes the light transmittance according to the brightness of the
light from the headlight of the vehicle behind.

MIR-8

< SYSTEM DESCRIPTION >

[WITH ADP]

DIAGNOSIS SYSTEM (DRIVER SEAT CONTROL UNIT)

DIAGNOSIS SYSTEM (DRIVER SEAT CONTROL UNIT)

Diagnosis Description

INFOID:0000000010100489

The auto drive positioner system can be checked and diagnosed for component operation with CONSULT.

DIAGNOSTIC MODE

CONSULT Function

INFOID:0000000010100490

SELF-DIAGNOSIS RESULTS

Refer to

ADP-136, "DTC Index"

.

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Diagnostic mode

[AUTO DRIVE POS.]

Description

WORK SUPPORT

Changes the setting of each function.

SELF-DIAG RESULTS

Performs self-diagnosis for the auto drive positioner system and displays the results.

DATA MONITOR

Displays input signals transmitted from various switches and sensors to driver seat con-
trol unit in real time.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication can be read.

ACTIVE TEST

Drive each output device.

ECU IDENTIFICATION

Displays part numbers of driver seat control unit parts.

Monitor Item

Unit

Main

Signals

Selection

From

Menu

Contents

SET SW

“ON/OFF”

×

×

ON/OFF status judged from the setting switch signal.

MEMORY SW 1

“ON/OFF”

×

×

ON/OFF status judged from the seat memory switch 1 sig-
nal.

MEMORY SW 2

“ON/OFF”

×

×

ON/OFF status judged from the seat memory switch 2 sig-
nal.

SLIDE SW–FR

“ON/OFF”

×

×

ON/OFF status judged from the sliding switch (forward) sig-
nal.

SLIDE SW–RR

“ON/OFF”

×

×

ON/OFF status judged from the sliding switch (backward)
signal.

RECLN SW–FR

“ON/OFF”

×

×

ON/OFF status judged from the reclining switch (forward)
signal.

RECLN SW–RR

“ON/OFF”

×

×

ON/OFF status judged from the reclining switch (backward)
signal.

LIFT FR SW–UP

“ON/OFF”

×

×

ON/OFF status judged from the lifting switch front (up) sig-
nal.

LIFT FR SW–DN

“ON/OFF”

×

×

ON/OFF status judged from the lifting switch front (down)
signal.

LIFT RR SW–UP

“ON/OFF”

×

×

ON/OFF status judged from the lifting switch rear (up) sig-
nal.

LIFT RR SW–DN

“ON/OFF”

×

×

ON/OFF status judged from the lifting switch rear (down)
signal.

MIR CON SW–UP

“ON/OFF”

×

×

ON/OFF status judged from the mirror switch (up) signal.

MIR CON SW–DN

“ON/OFF”

×

×

ON/OFF status judged from the mirror switch (down) signal.

DIAGNOSIS SYSTEM (DRIVER SEAT CONTROL UNIT)

MIR-9

< SYSTEM DESCRIPTION >

[WITH ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

MIR CON SW–RH

“ON/OFF”

×

×

ON/OFF status judged from the door mirror remote control
switch (passenger side) signal.

MIR CON SW–LH

“ON/OFF”

×

×

ON/OFF status judged from the door mirror remote control
switch (driver side) signal.

MIR CHNG SW–R

“ON/OFF”

×

×

ON/OFF status judged from the door mirror remote control
switch (switching to right) signal.

MIR CHNG SW–L

“ON/OFF”

×

×

ON/OFF status judged from the door mirror remote control
switch (switching to left) signal.

TILT SW-UP

“ON/OFF”

×

×

ON/OFF status judged from the tilt switch (up) signal.

TILT SW-DOWN

“ON/OFF”

×

×

ON/OFF status judged from the tilt switch (down) signal.

TELESCO SW-FR

“ON/OFF”

×

×

ON/OFF status judged from the telescoping switch (for-
ward) signal.

TELESCO SW-RR

“ON/OFF”

×

×

ON/OFF status judged from the telescoping switch (back-
ward) signal.

DETENT SW

“ON/OFF”

×

×

The selector lever position “OFF (P position) / ON (other
than P position)” judged from the detention switch signal.

STARTER SW

“ON/OFF”

×

×

Ignition key switch ON (START, ON) /OFF (ACC, OFF) sta-
tus judged from the ignition switch signal.

SLIDE PULSE

—

–

×

Value (32768) when battery connections are standard. If it
moves backward, the value increases. If it moves forward,
the value decreases.

RECLN PULSE

—

–

×

Value (32768) when battery connections are standard. If it
moves backward, the value increases. If it moves forward,
the value decreases.

LIFT FR PULSE

—

–

×

Value (32768) when battery connections are standard. If it
moves DOWN, the value increases. If it moves UP, the val-
ue decreases.

LIFT RR PULSE

—

–

×

Value (32768) when battery connections are standard. If it
moves DOWN, the value increases. If it moves UP, the val-
ue decreases.

MIR/SEN RH U–D

“V”

–

×

Voltage input from door mirror sensor (passenger side) up/
down is displayed.

MIR/SEN RH R–L

“V”

–

×

Voltage input from door mirror sensor (passenger side) left/
right is displayed.

MIR/SEN LH U–D

“V”

–

×

Voltage input from door mirror sensor (driver side) up/down
is displayed.

MIR/SEN LH R–L

“V”

–

×

Voltage input from door mirror sensor (driver side) left/right
is displayed.

TILT PULSE

—

–

×

Value (32768) when battery connections are standard. If it
moves DOWN, the value increases. If it moves UP, the val-
ue decreases.

TELESCO PULSE

—

–

×

Value (32768) when battery connections are standard. If it
moves backward, the value increases. If it moves forward,
the value decreases.

VEHICLE SPEED

—

×

×

Display the vehicle speed signal received from combination
meter by numerical value [km/h].

P RANG SW CAN

“ON/OFF”

×

×

ON/OFF status judged from the P range switch signal.

R RANGE (CAN)

“ON/OFF”

×

×

ON/OFF status judged from the R range switch signal.

DOOR SW–FL

“ON/OFF”

×

×

ON/OFF status judged from the door switch (front driver
side) signal.

DOOR SW–FR

“ON/OFF”

×

×

ON/OFF status judged from the door switch (front passen-
ger side) signal.

Monitor Item

Unit

Main

Signals

Selection

From

Menu

Contents
