Nissan Murano. Manual - part 1006





MIR-2

FOR USA AND CANADA : Precaution for Proce-
dure without Cowl Top Cover  ................................
.

66

FOR USA AND CANADA : Precautions for Re-
moving of Battery Terminal ....................................
.

67

FOR USA AND CANADA : Precaution for Work  ....

67

FOR MEXICO  ............................................................

67

FOR MEXICO : Precaution for Supplemental Re-
straint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER" ................................................
.

67

FOR MEXICO : Precaution for Procedure without
Cowl Top Cover  .....................................................
.

68

FOR MEXICO : Precautions for Removing of Bat-
tery Terminal ..........................................................
.

68

FOR MEXICO : Precaution for Work  ......................

68

PREPARATION ...........................................

69

PREPARATION  .................................................

69

Special Service Tools  .............................................

69

Commercial Service Tools ......................................

69

REMOVAL AND INSTALLATION ...............

70

INSIDE MIRROR  ................................................

70

Exploded View  ........................................................

70

Removal and Installation  ........................................

70

OUTSIDE MIRROR  ............................................

71

DOOR MIRROR ASSEMBLY  ...................................

71

DOOR MIRROR ASSEMBLY : Exploded View  ......

71

DOOR MIRROR ASSEMBLY : Removal and In-
stallation ................................................................
.

72

GLASS MIRROR .......................................................

72

GLASS MIRROR : Exploded View .........................

72

GLASS MIRROR : Disassembly and Assembly  .....

72

DOOR MIRROR COVER ...........................................

73

DOOR MIRROR COVER : Exploded View .............

74

DOOR MIRROR COVER : Disassembly and As-
sembly ...................................................................
.

74

DOOR MIRROR REMOTE CONTROL
SWITCH .............................................................

75

Exploded View  ........................................................

75

Removal and Installation  ........................................

75

WITHOUT ADP

SYSTEM DESCRIPTION  ............................

76

DOOR MIRROR SYSTEM  .................................

76

Component Description  ..........................................

76

INSIDE MIRROR SYSTEM  ................................

77

System Description .................................................

77

Component Description  ..........................................

77

DTC/CIRCUIT DIAGNOSIS .........................

78

DOOR MIRROR  .................................................

78

Wiring Diagram - DOOR MIRROR SYSTEM
(WITHOUT AUTOMATIC DRIVE POSITIONER) - ...

78

AUTO ANTI-DAZZLING INSIDE MIRROR
SYSTEM ............................................................

81

Wiring Diagram - INSIDE MIRROR SYSTEM -  ......

81

SYMPTOM DIAGNOSIS  ............................

83

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ...............................................................

83

Work Flow  ...............................................................

83

Inspection Procedure  ..............................................

85

Diagnostic Worksheet  .............................................

87

PRECAUTION ............................................

89

PRECAUTIONS  .................................................

89

FOR USA AND CANADA  .........................................

89

FOR USA AND CANADA : Precaution for Supple-
mental Restraint System (SRS) "AIR BAG" and
"SEAT BELT PRE-TENSIONER"  ...........................

89

FOR USA AND CANADA : Precaution for Proce-
dure without Cowl Top Cover ..................................

89

FOR USA AND CANADA : Precautions for Re-
moving of Battery Terminal  .....................................

90

FOR USA AND CANADA : Precaution for Work .....

90

FOR MEXICO  ............................................................

90

FOR MEXICO : Precaution for Supplemental Re-
straint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER" .................................................

90

FOR MEXICO : Precaution for Procedure without
Cowl Top Cover  ......................................................

91

FOR MEXICO : Precautions for Removing of Bat-
tery Terminal  ...........................................................

91

FOR MEXICO : Precaution for Work  ......................

91

PREPARATION ..........................................

92

PREPARATION .................................................

92

Special Service Tools  .............................................

92

Commercial Service Tools ....................................

92

REMOVAL AND INSTALLATION ..............

93

INSIDE MIRROR ................................................

93

Exploded View  ........................................................

93

Removal and Installation .........................................

93

OUTSIDE MIRROR ............................................

94

DOOR MIRROR ASSEMBLY ....................................

94

DOOR MIRROR ASSEMBLY : Exploded View  ......

94

DOOR MIRROR ASSEMBLY : Removal and In-
stallation ..................................................................

95

GLASS MIRROR  .......................................................

95

GLASS MIRROR : Exploded View ..........................

95

GLASS MIRROR : Disassembly and Assembly  .....

95

MIR-4

< BASIC INSPECTION >

[WITH ADP]

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000009719313

DETAILED FLOW

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-
tion occurred) as much as possible when the customer brings the vehicle in.

>> GO TO 2.

2.

CHECK DTC

Perform self-diagnosis for automatic drive positioner (ADP) with CONSULT.
Is any DTC detected?

YES

>> Refer to

ADP-136, "DTC Index"

.

NO

>> GO TO 3.

3.

REPRODUCE THE MALFUNCTION INFORMATION

Check the malfunction on the vehicle that the customer describes.
Inspect the relation of the symptoms and the condition when the symptoms occur.

>> GO TO 4.

4.

IDENTIFY THE MALFUNCTIONING SYSTEM WITH “SYMPTOM DIAGNOSIS”

Use “Symptom diagnosis” from the symptom inspection result in step 3. Then identify where to start perform-
ing the diagnosis based on possible causes and symptoms.

>> GO TO 5.

5.

IDENTIFY MALFUNCTIONING PARTS WITH “DTC/CIRCUIT DIAGNOSIS”

Perform the diagnosis with “DTC/CIRCUIT DIAGNOSIS” of the applicable system.

>> GO TO 6.

6.

REPAIR OR REPLACE THE MALFUNCTIONING PARTS

Repair or replace the specified malfunctioning parts.

>> GO TO 7.

7.

FINAL CHECK

Check that malfunctions are not reproduced when obtaining the malfunction information from the customer,
referring to the symptom inspection result in step 3.
Are all malfunctions corrected?

YES

>> INSPECTION END

NO

>> GO TO 4.

DOOR MIRROR SYSTEM

MIR-5

< SYSTEM DESCRIPTION >

[WITH ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

SYSTEM DESCRIPTION

DOOR MIRROR SYSTEM

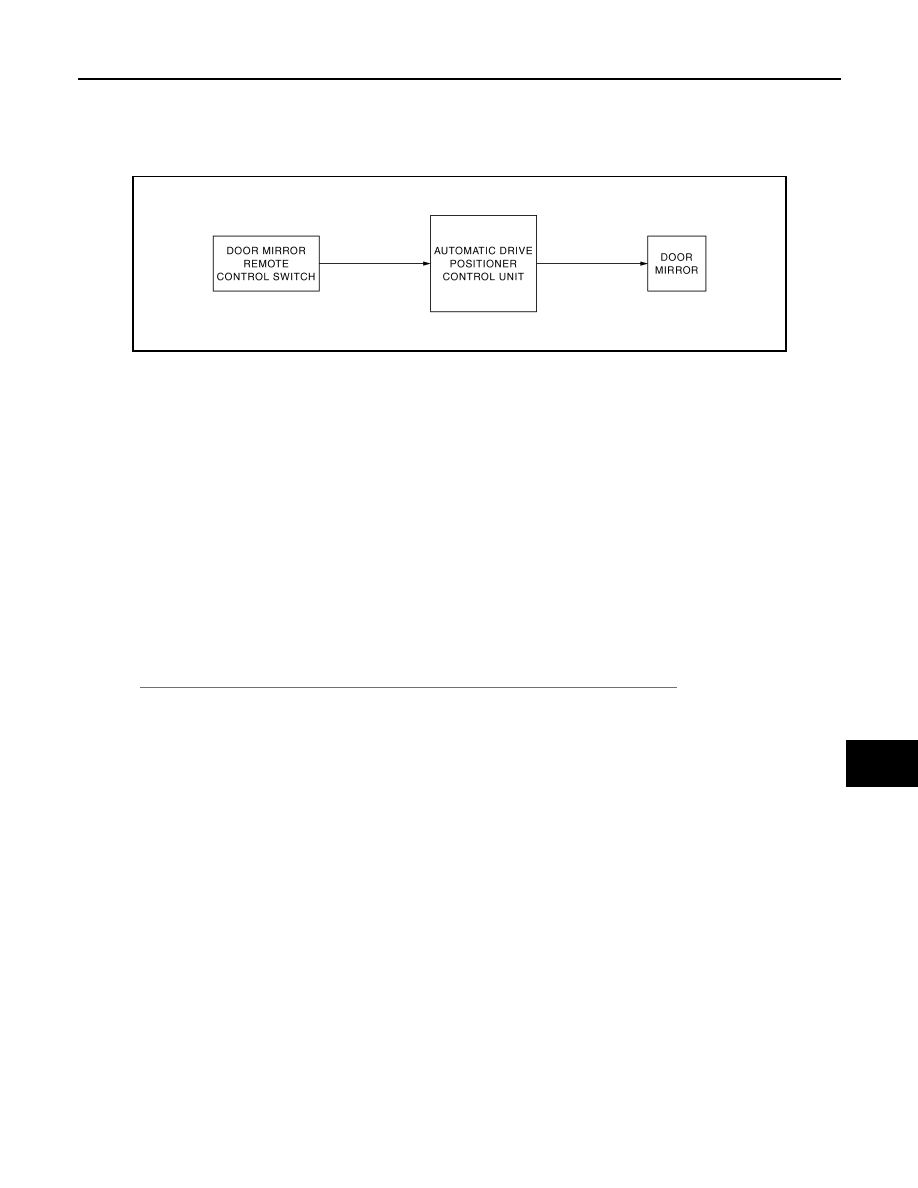

System Diagram

INFOID:0000000009719314

System Description

INFOID:0000000009719315

 MANUAL FUNCTION

• Door mirror system is composed of automatic drive positioner, door mirror remote control switch and door

mirror.

• Automatic drive positioner control unit controls door mirror.
• Automatic drive positioner control unit receives changeover switch signal and perform the LH/RH control of

door mirror motor that supplies electric power when changeover switch is operated.

• Automatic drive positioner control unit receives mirror switch signal and supplies electric power to door mir-

ror motor when mirror switch is operated.

• The door mirrors can be operated manually when ignition switch is in either ACC or ON position. The ignition

switch signal (ACC/ON) is transmitted from BCM to the driver seat control unit via CAN communication and
from the driver seat control unit to the automatic drive positioner control unit via UART communication.

AUTOMATIC DRIVE POSITIONER SYSTEM LINKED OPERATION

Door mirror control is included in automatic drive positioner system. Refer to automatic drive positioner system
for more details.
Refer to

ADP-13, "AUTOMATIC DRIVE POSITIONER SYSTEM : System Description"

.

JMLIA0006GB
