AV-174

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

COMPONENT PARTS

Microphone

• Used for hands-free phone operation.
• Microphone signal is transmitted to TEL adapter unit.
• Power (Microphone VCC) is supplied from TEL adapter unit.

Auxiliary input jacks

Image signal and sound signal of auxiliary input are transmitted to AV control unit.

Antenna base

A radio antenna base integrated with radio antenna amp. and satellite radio anten-
na is adopted.

ANTENNA AMP.

• Radio signal received by rod antenna is amplified and transmitted to AV control

unit.

• Power (antenna amp. ON signal) is supplied from AV control unit.

SATELLITE RADIO ANTENNA

• Receives satellite radio waves and outputs it to Satellite radio tuner.

Satellite radio tuner

• Inputs the satellite radio signal from satellite radio antenna and outputs the

sound signal to the AV control unit.

• It is controlled with the AV control unit and serial communication (communication

signal and request signal).

TEL adapter unit

• Inputs the TEL voice signal from TEL antenna and outputs it to the AV control

unit.

• It is connected with the AV control unit via AV communication and controlled with

the AV control unit.

TEL antenna

Receives the TEL voice signal and outputs it to the TEL adapter unit.

USB connector

Sound signal of USB input is transmitted to AV control unit.

Part name

Description

AV

SYSTEM

AV-175

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM

MULTI AV SYSTEM

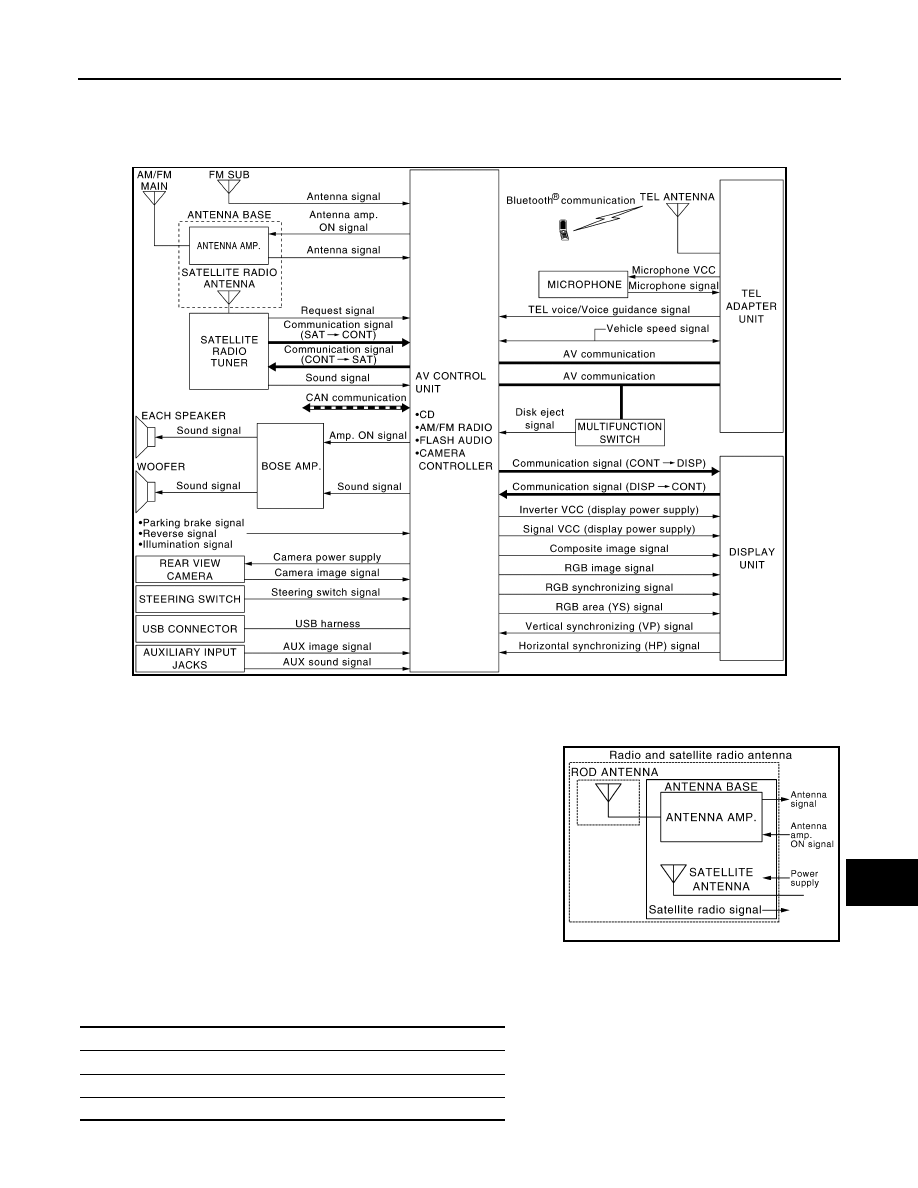

MULTI AV SYSTEM : System Diagram

INFOID:0000000009721717

NOTE:
• FLASH AUDIO is not used.
• The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION

SWITCH virtually.

• An antenna base integrated with radio antenna amp. and satellite

radio antenna is adopted.

MULTI AV SYSTEM : System Description

INFOID:0000000009721718

Multi AV system means that the following systems are integrated.

JSNIA5368GB

JSNIA1062GB

FUNCTION NAME

Audio function

Hands-free phone function

Auxiliary input function

AV-176

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

SYSTEM

COMMUNICATION SIGNAL

• AV control unit function by transmitting/receiving data one by one with each unit (slave unit) that configures

them completely as a master unit by connecting between units that configure MULTI AV system with two AV
communication lines (H, L).

• Two AV communication lines (H, L) adopt a twisted pair line that is resistant to noise.
• AV control unit is connected by CAN communication, and it receives data signal from ECM and combination

meter, and computes and displays fuel economy information value with the obtained information. Transmit-
ting/receiving of data signal is performed by BCM. Also, it transmits the required signal of vehicle setting and
receives the response signal.

• AV control unit is connected with display unit and serial communication, and it transmits the required signal

of display and display control and receives the response signal from display unit.

AUDIO FUNCTION

The audio system is equipped with the following functions. Each function is operated with multifunction switch,
preset switch, steering switch. Operation status of audio is indicated at display.

Operating Signal

Audio system operation can be performed with multifunction switch, preset switch or steering switch.
• Operating signal is transmitted to AV control unit with AV communication when it is operated by multifunction

switch or preset switch. The disk ejection operating signal is performed by hardwire.

• Operating signal is transmitted to AV control unit with steering switch signal when it is operated by steering

switch.

Screen Display

• Switching of display is performed with serial communication between display unit and AV control unit.
• The image signal to display operating condition is performed with RGB image signal, RGB area signal and

RGB image synchronizing signal.

AM/FM Radio Mode

• AM/FM radio tuner is built into AV control unit.
• AM/FM radio wave is received by rod antenna, next it is amplified by antenna amp., and finally it is input to

AV control unit.

• FM radio wave is received by FM sub antenna, and it is transmitted to the AV control unit directly. The FM

sub antenna is installed on the back door window glass.

• AV control unit outputs audio signal to BOSE amp. The signal is also outputted from BOSE amp. to woofer

and each speaker.

Satellite Radio Mode

• Satellite radio tuner is controlled by communication signal and request signal with AV control unit.
• Sound signal (satellite radio) is received by satellite radio antenna (antenna base) and transmitted to AV

control unit via satellite radio tuner.

• AV control unit outputs audio signal (satellite radio) to BOSE amp. The signal is also outputted from BOSE

amp. to woofer and each speaker.

CD Mode

• CD function is built into AV control unit.
• AV control unit outputs audio signal to BOSE amp. The signal is also outputted from BOSE amp. to woofer

and each speaker when CD is inserted to AV control unit.

USB Connection Function

Rear view monitor function

Vehicle information function

FUNCTION NAME

FUNCTION

AM/FM radio

Satellite radio

CD

USB connection

AV

SYSTEM

AV-177

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• Connecting iPod

®

 or USB memory allows the driver to play iPod

®

 music files or USB memory-stored music

files.

• Sound signals of music files stored in iPod

®

 or USB memory is transmitted from the USB connector to the

AV control unit.

• AV control unit outputs sound signal to BOSE amp. The signal is also outputted from BOSE amp. to woofer

and each speaker.

• iPod

®

 is recharged when connected to USB connector.

• Only files that meet the following conditions will be played.

NOTE:
• iPod

®

 is a trademark of Apple inc., registered in the U.S. and other countries.

• Image signals cannot be received from iPod

®

 or USB memory.

• Use the enclosed USB harness when connecting iPod

®

 to USB connector.

HANDS-FREE PHONE SYSTEM

• TEL adapter unit is controlled with AV communication from AV control unit.
• The connection between cellular phone and TEL adapter unit is performed with Bluetooth

®

 communication.

• The voice guidance signal is input from the TEL adapter unit to the AV control unit, and output to the front

speaker via BOSE amp. when operating the cellular phone.

• TEL adapter unit has the on board self-diagnosis function. Refer to

AV-190, "On Board Diagnosis Function"

.

When A Call Is Originated

• Spoken voice sound output from the microphone (microphone signal) is input to TEL adapter unit.
• TEL adapter unit outputs to cellular phone with Bluetooth

®

 communication as a TEL voice signal.

• Voice sound is then heard at the other party.

When Receiving A Call

• Voice sound is input to own cellular phone from the other party.
• TEL voice signal is input to TEL adapter unit by establishing Bluetooth

®

 communication from cellular phone,

and the signal is output to front speaker via BOSE amp.

AUXILIARY INPUT FUNCTION

• Image and sound can be output from an external device by connecting a device with auxiliary input jacks.
• AUX image signals are transmitted to the display unit via the AV control unit.
• AUX sound signals are transmitted to BOSE amp. via AV control unit. The signal is also outputted from

BOSE amp. to woofer and each speaker.

REAR VIEW MONITOR FUNCTION

Camera Image Operation Principle

• The AV control unit supplies power to the rear view camera when receiving a reverse signal.
• The rear view camera transmits camera images to the AV control unit when power is supplied from the AV

control unit.

• The AV control unit transmits a warning message, fixed guide lines, and predictive course lines to the display

unit by RGB image signals. Rear view monitor images are displayed by combining the RGB image signals
and the camera image signals from the rear view camera.

• Predictive course lines are controlled by a steering angle sensor signal received the AV control unit via CAN

communication.

VEHICLE INFORMATION FUNCTION

• Status of audio, climate control system, fuel economy and maintenance are displayed.
• AV control unit displays the fuel consumption status while receiving data signal through CAN communication

from ECM and combination meter.

• AV control unit is connected to BCM via CAN communication transmitting/receiving for the vehicle settings

function.

Music file

File format

“MP3”, “WMA”

File extension

“.mp3”, “.wma”

Maximum file size

800 MB
