AV-82

< ECU DIAGNOSIS INFORMATION >

[BASE AUDIO WITH COLOR DISPLAY]

SATELLITE RADIO TUNER

10

(B)

Ground

Communication signal
(CONT

→

SAT)

Input

Ignition

switch

ON

When satellite radio mode
is selected

12

(V)

Ground

Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

15

(B)

Ground

Ground

—

Ignition

switch

ON

—

0  V

16

(GR)

Ground

ACC power supply

Input

Ignition

switch

ACC

—

Battery voltage

33

—

Satellite radio antenna sig-
nal

Input

—

—

—

Terminal

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIA9301J

AV

TEL ADAPTER UNIT

AV-83

< ECU DIAGNOSIS INFORMATION >

[BASE AUDIO WITH COLOR DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

TEL ADAPTER UNIT

Reference Value

INFOID:0000000009721610

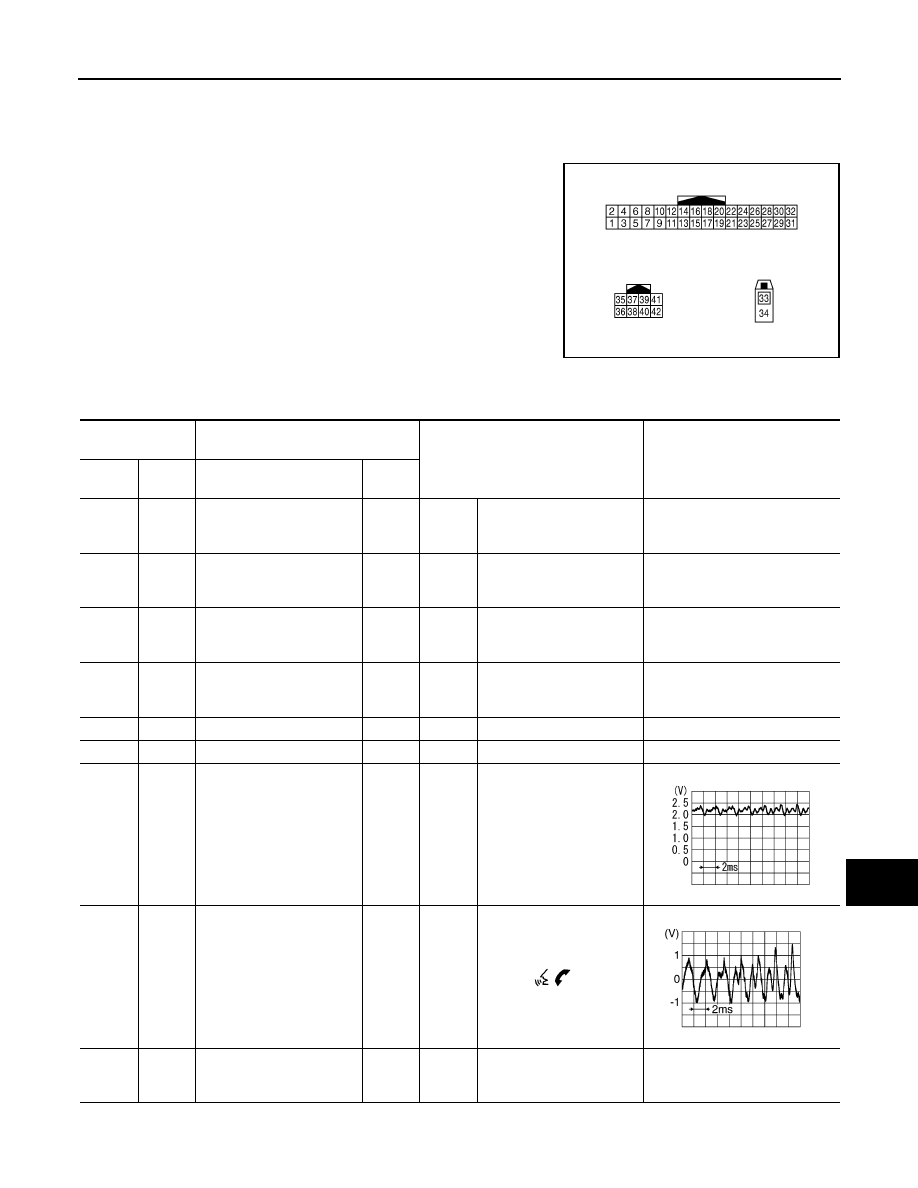

TERMINAL LAYOUT

PHYSICAL VALUES

JPNIA0011ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

1

(V)

Ground

Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

2

(GR)

Ground

ACC power supply

Input

Ignition

switch

ACC

—

Battery voltage

3

(R)

Ground

Ignition signal

Input

Ignition

switch

ON

—

Battery voltage

4

(B/W)

Ground

Ground

—

Ignition

switch

ON

—

0  V

5

—

Shield

—

—

—

—

6

—

Shield

—

—

—

—

7

(R/W)

8

(R/L)

Microphone signal

Input

Ignition

switch

ON

Give a voice

9

(B/R)

10

(W/R)

TEL voice signal

Output

Ignition

switch

ON

During voice guide output

with the



 switch

pressed.

20

(B)

Ground

Control signal

Input

Ignition

switch

ON

—

0  V

PKIB5037J

SKIB3609E

AV-84

< ECU DIAGNOSIS INFORMATION >

[BASE AUDIO WITH COLOR DISPLAY]

TEL ADAPTER UNIT

24

(B/W)

Ground

Control signal

Input

Ignition

switch

ON

—

0  V

28

(BR)

Ground

Vehicle speed signal
(8-pulse)

Input

Ignition

switch

ON

When vehicle speed is ap-
prox. 40 km/h (25 MPH)

NOTE:
The maximum voltage varies de-
pending on the specification
(destination unit).

29

(B)

8

(R/L)

Microphone VCC

Output

Ignition

switch

ON

—

5.0 V

33

—

TEL antenna signal

Input/

Output

—

—

—

34

—

Shield

—

—

—

—

35

(SB)

—

AV communication signal
(H)

Input/

Output

—

—

—

36

(LG)

—

AV communication signal
(L)

Input/

Output

—

—

—

40

(G)

—

AV communication signal
(H)

Input/

Output

—

—

—

42

(GR)

—

AV communication signal
(L)

Input/

Output

—

—

—

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

JSNIA0012GB

AV

BASE AUDIO WITH COLOR DISPLAY

AV-85

< WIRING DIAGRAM >

[BASE AUDIO WITH COLOR DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

WIRING DIAGRAM

BASE AUDIO WITH COLOR DISPLAY

Wiring Diagram

INFOID:0000000009721611

NOTE:
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.

JRNWC2803GB
