AV-10

Removal and Installation (Models without BSW
and LDW)  ..............................................................

466

Adjustment (Models without BSW and LDW)  ........

466

STEERING ANGLE SENSOR  .........................

467

Exploded View  .......................................................

467

Removal and Installation  .......................................

467

ROOF ANTENNA  .............................................

468

Exploded View  ......................................................

468

Removal and Installation .......................................

468

ANTENNA FEEDER .........................................

469

Feeder Layout .......................................................

469

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-11

< BASIC INSPECTION >

[BASE AUDIO WITHOUT COLOR DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000009721555

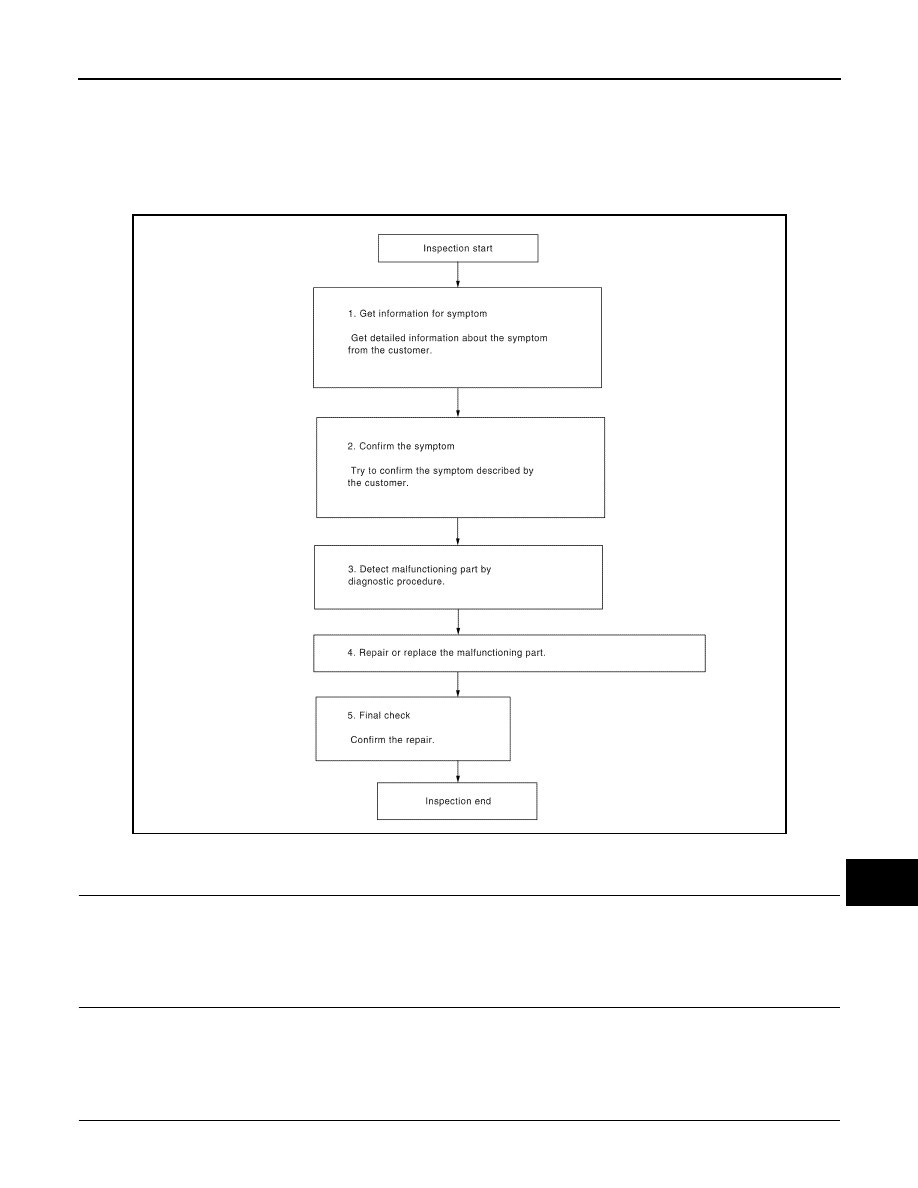

OVERALL SEQUENCE

DETAILED FLOW

1.

GET INFORMATION FOR SYMPTOM

Get detailed information from the customer about the symptom (the condition and the environment when the
incident/malfunction occurred).

>> GO TO 2

2.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer. Verify the relation between the symptom and the con-
dition when the symptom is detected.

>> GO TO 3

3.

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the system.

ALNIA0182GB

AV-12

< BASIC INSPECTION >

[BASE AUDIO WITHOUT COLOR DISPLAY]

DIAGNOSIS AND REPAIR WORKFLOW

Is a malfunctioning part detected?

YES

>> GO TO 4

NO

>> GO TO 2

4.

REPAIR OR REPLACE THE MALFUNCTIONING PART

1.

Repair or replace the malfunctioning part.

2.

Reconnect parts or connectors disconnected during Diagnostic Procedure.

>> GO TO 5

5.

FINAL CHECK

Refer to confirmed symptom in step 2, and check that the symptom is not detected.

Has the symptom been repaired?

YES

>> INSPECTION END.

NO

>> GO TO 2

AV

AUDIO SYSTEM

AV-13

< SYSTEM DESCRIPTION >

[BASE AUDIO WITHOUT COLOR DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM DESCRIPTION

AUDIO SYSTEM

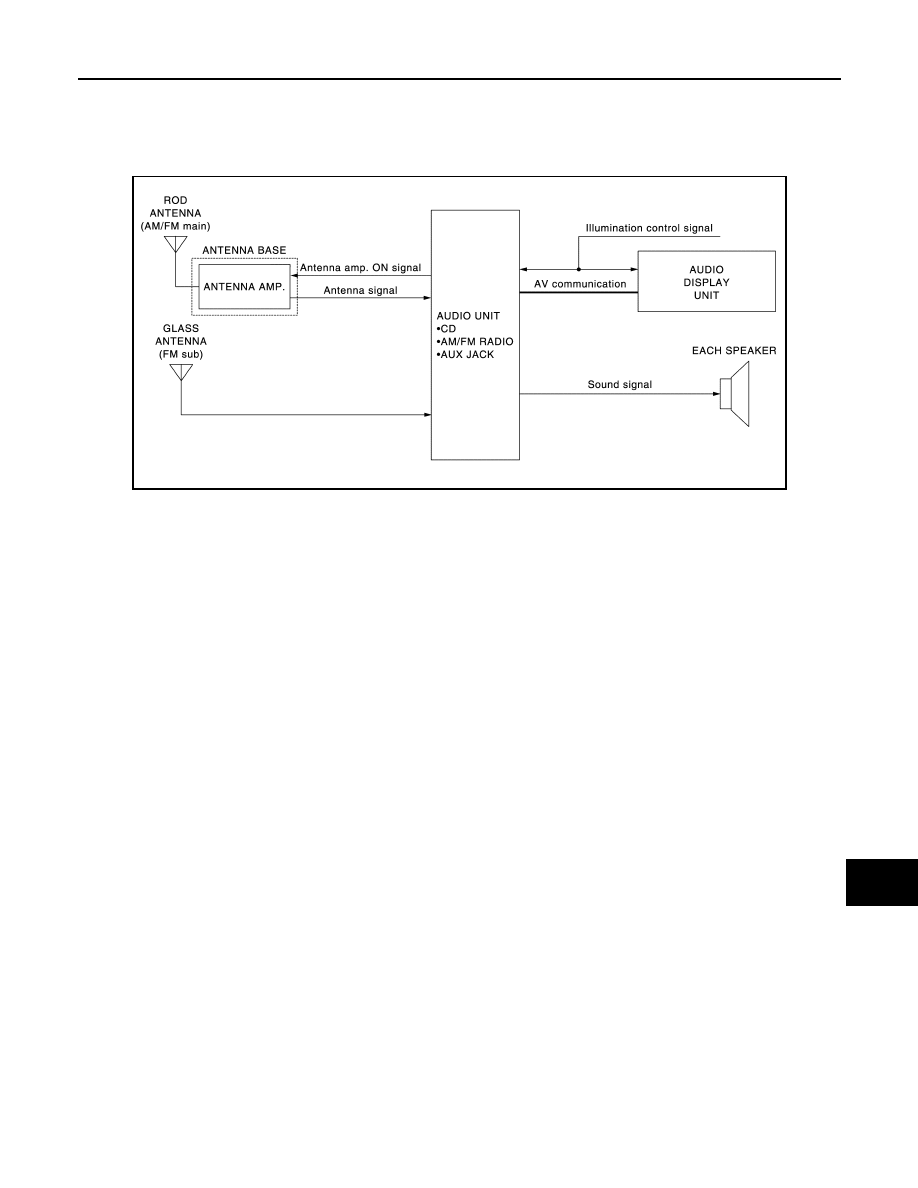

System Diagram

INFOID:0000000009721556

NOTE:
An antenna base integrated with radio antenna amp. is adopted.

System Description

INFOID:0000000009721557

AUDIO SYSTEM

The audio system consists of the following components.
• Audio unit
• Rod antenna (AM/FM main)
• Glass antenna (FM sub)
• Front door speakers
• Rear door speakers
• Front squawker
• Audio display unit

AM/FM Radio Mode

• AM/FM radio tuner is integrated into audio unit.
• When AM/FM radio waves are received by rod antenna, the radio waves are amplified by an antenna amp.

to input them to audio unit. Sound signals are output to each speaker for the audio unit. The FM sub antenna
is installed on the back door window glass and the audio unit is received.

CD Mode

• The audio unit has CD function.
• The audio unit outputs sound signals to each speaker when CD is inserted into the audio unit.

JSNIA3828GB
