DRIVER SEAT CONTROL UNIT
*
: The value at the position attained when the battery is connected is regarded as 32768.

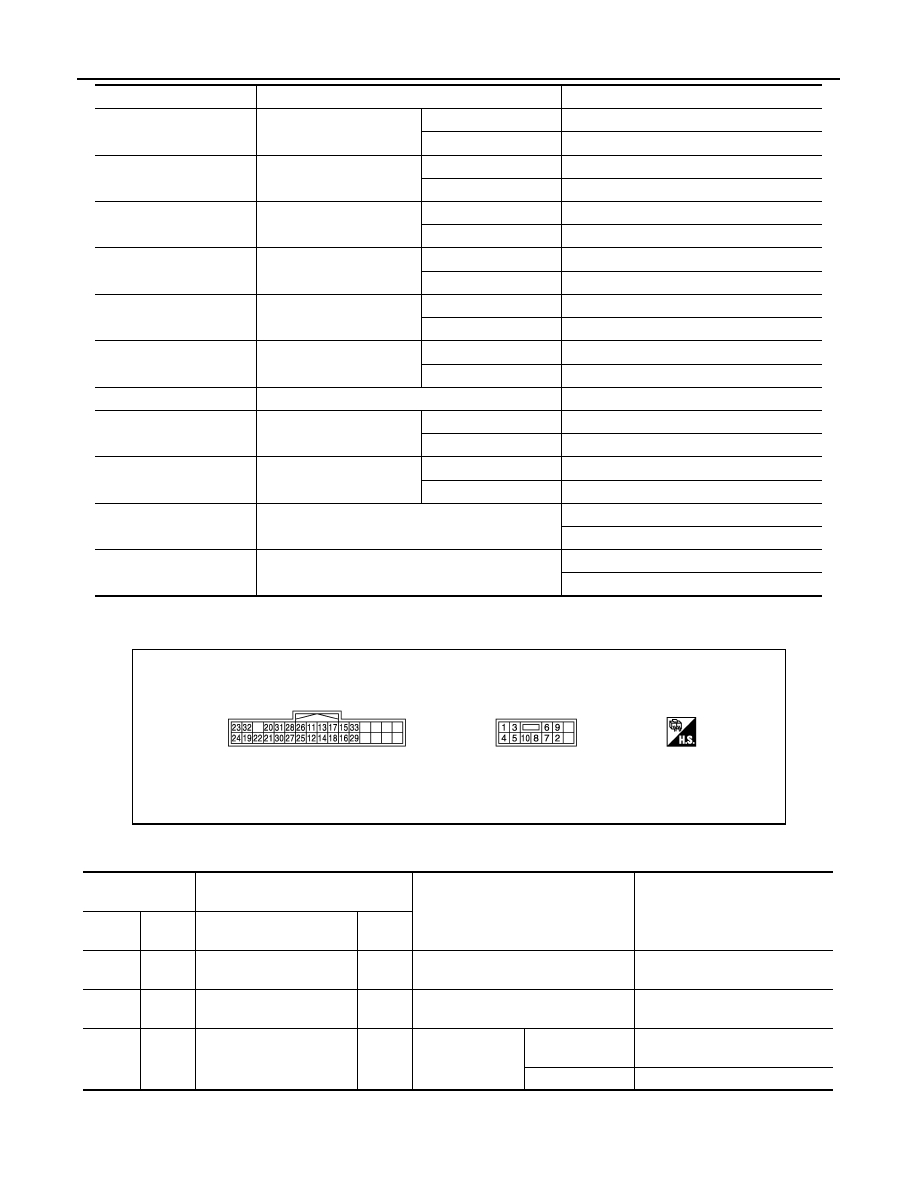

TERMINAL LAYOUT
PHYSICAL VALUES
R RANGE (CAN)
Selector lever
R position
ON
Other than above
OFF
DOOR SW-FL
Driver door
Open
ON
Close
OFF
DOOR SW-FR
Passenger door
Open
ON
Close
OFF
IGN ON SW
Ignition switch
ON position
ON
Other than above
OFF
ACC ON SW
Ignition switch
ACC or ON position
ON
Other than above
OFF
KEY ON SW
Intelligent Key
Inserted is key slot
ON
Inserted is not key slot
OFF
KEYLESS ID
UNLOCK button of Intelligent Key is pressed
1,2,3,4or5
KYLS DR UNLK
Intelligent Key or driver
side door request switch
ON
ON
OFF
OFF
VHCL SPEED (ABS)
Can signal from ABS
Received
ON
Not received
OFF
HANDLE
The BCM for handle position is displayed
LHD
RHD
TRANSMISSION
Transmission type is displayed
AT or CVT
MT
Monitor Item
Condition
Value/Status
JMJIA1689ZZ

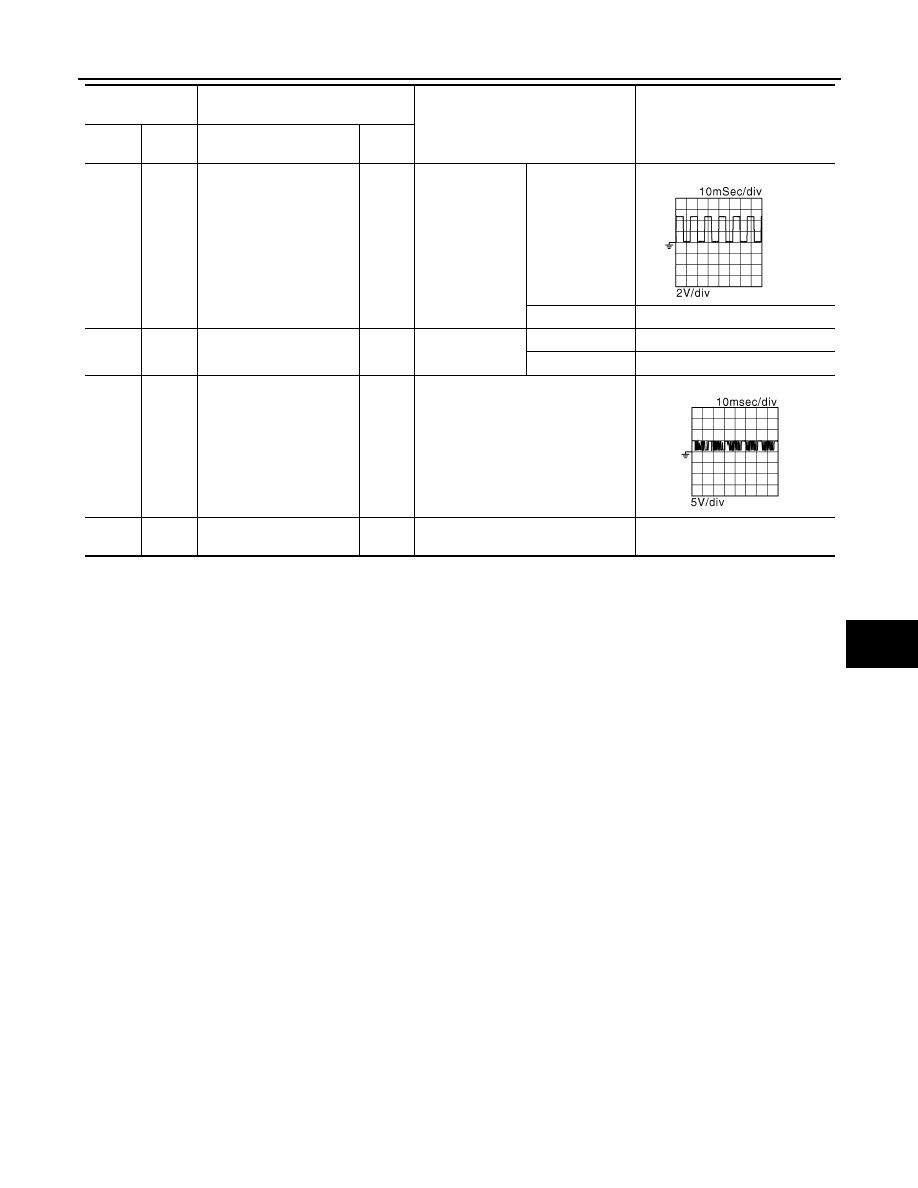

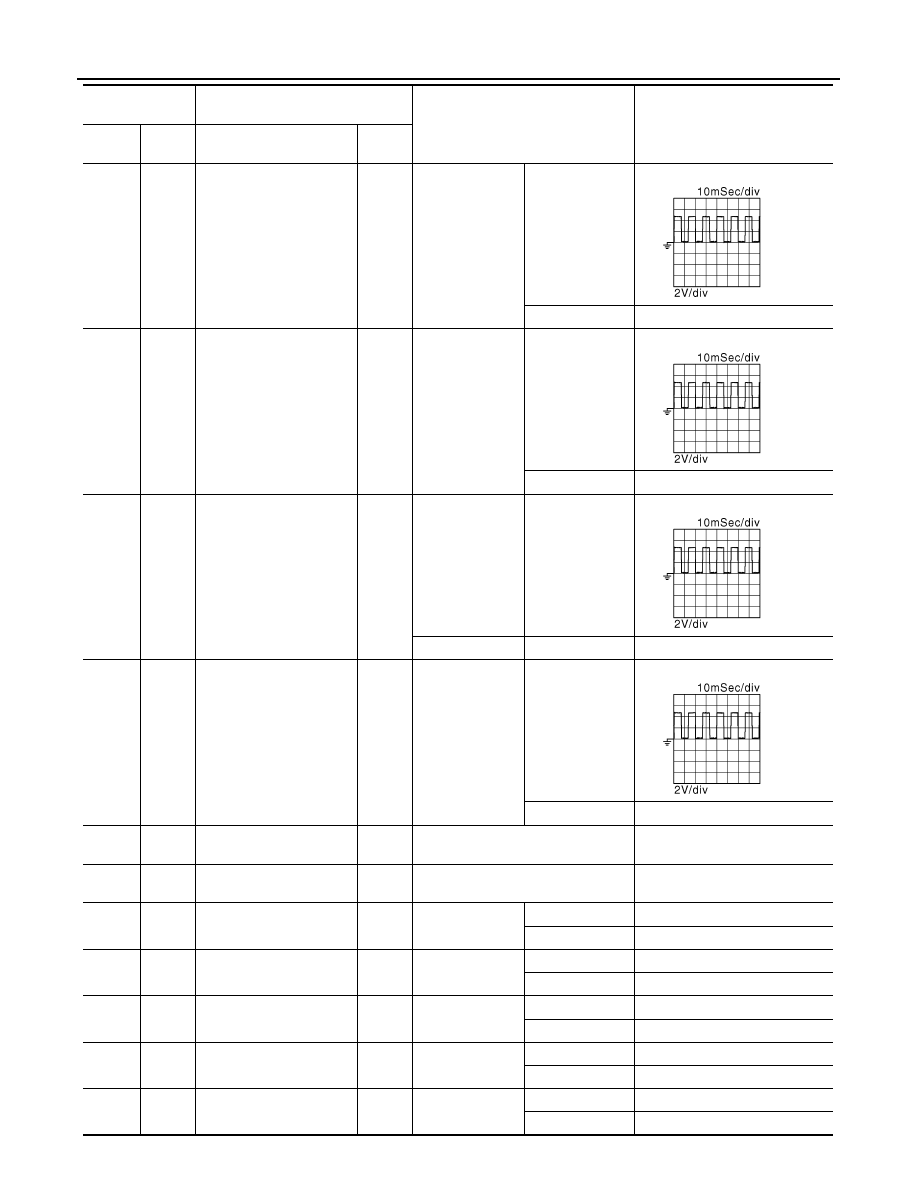

Terminal No.
(wire color)
Description
Condition
Voltage (V)
(Approx)
+
-
Signal name
Input/
Output
1
(R)
Ground
Power source
Input
—
Battery voltage
2
(B)
Ground
Ground (power)
—
—
0
3
(G)
Ground
Sliding motor backward
output signal
Output
Seat sliding
Operate
(backward)
Battery voltage
Stop
0
