< SYSTEM DESCRIPTION >

AUTOMATIC DRIVE POSITIONER SYSTEM

Sensors

OUTPUT PARTS

INTELLIGENT KEY INTERLOCK FUNCTION

Tilt & telescopic switch

The following switch is installed.
• Tilt switch
• Telescopic switch
The specific parts can be operated with the operation of each switch.

Door mirror remote control switch

The following switch is installed.
• Mirror switch
• Changeover switch
The specific parts can be operated with the operation of each switch.

Item

Function

Item

Function

Door mirror sensor
(driver side/passenger side)

Detect the up/down and left/right position of outside mirror face.

Tilt and telescopic sensor

Detect the up/down and left/right position of steering column.

Lifting sensor (front)

Detect the up/down position of seat lifting (front).

Lifting sensor (rear)

Detect the up/down position of seat lifting (rear).

Reclining sensor

Detect the tilt of seatback.

Sliding sensor

Detect the front/rear position of seat.

Item

Function

Door mirror motor
(driver side/passenger side)

Move the outside mirror face upward/downward and leftward/rightward.

Tilt and telescopic motor

Move the steering column upward/downward and frontward/rearward.

Lifting motor (front)

Move the seat lifting (front) upward/downward.

Lifting motor (rear)

Move the seat lifting (rear) upward/downward.

Reclining motor

Tilt and raise up the seatback.

Sliding motor

Slide the seat frontward/rearward.

Memory indicator

Illuminates or flashes according to the registration/operation status.

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-37

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

INTELLIGENT KEY INTERLOCK FUNCTION : System Diagram

INFOID:0000000009720650

INTELLIGENT KEY INTERLOCK FUNCTION : System Description

INFOID:0000000009720651

OUTLINE

When unlocking doors by using Intelligent Key or door request switch (driver side), seat slide and steering tilt
move directly to the exit assist function.
Other loads move to the exit assist function after performing memory function.
After performs the entry assist function.

OPERATION PROCEDURE

1.

Unlock doors by using Intelligent Key or door request switch (driver side) .

2.

The system performs exit assist operation and memory operation.

NOTE:
Further information for Intelligent Key interlock function. Refer to

ADP-9, "MEMORY STORING : Description"

.

OPERATION CONDITION

Satisfy all of the following items. The Intelligent Key interlock function is not performed if these items are not
satisfied.

DETAIL FLOW

JMJIA2855GB

Item

Request status

Ignition position

OFF

Switch inputs
• Power seat switch
• Tilt & telescopic switch
• Door mirror control switch
• Set switch
• Memory switch

OFF

(Not operated)

Selector lever

P position

ADP-38

< SYSTEM DESCRIPTION >

AUTOMATIC DRIVE POSITIONER SYSTEM

Order

Input

Output

Control unit condition

1

• Door unlock signal

(CAN)

• Key ID signal (CAN)

—

Driver seat control unit receives the door unlock signal and the key
ID signal from BCM when unlocking the door with Intelligent Key or
driver side door request switch.

2

—

—

Driver seat control unit performs the seat slide and steering tilt move
directly to the exit assist function. Other loads move to the exit assist
function after performing memory function.

3

—

—

Driver seat control unit performs the entry assist function.

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-39

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

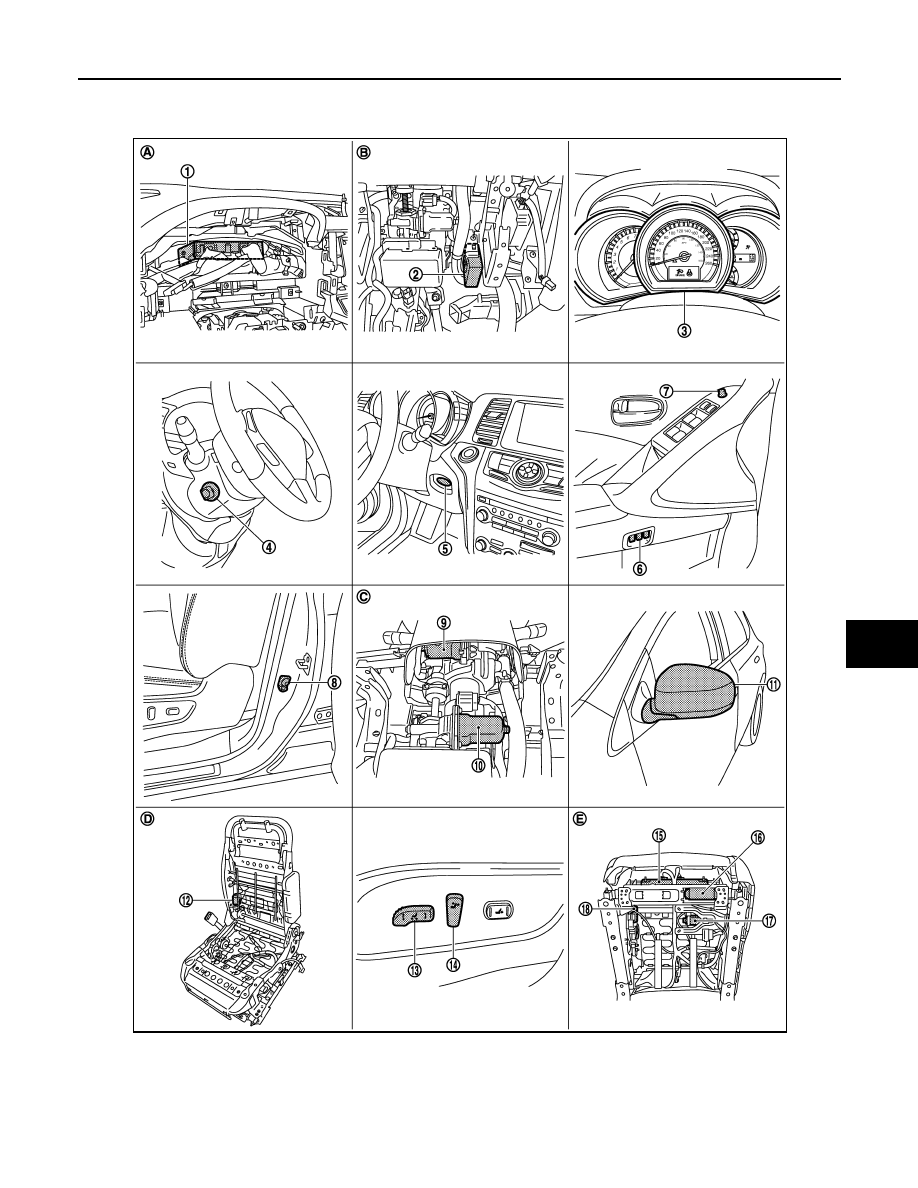

INTELLIGENT KEY INTERLOCK FUNCTION : Component Parts Location

INFOID:0000000009720652

1.

BCM  M118,  M119,  M122,  M123

2.

Automatic drive positioner control unit
M75, M104

3.

Combination meter

4.

Tilt & telescopic switch M102

5.

Key slot M99

6.

Seat memory switch D13

7.

Door mirror remote control switch
D14

8.

Front door switch (driver side) B34

9.

Tilt motor  M116

JMJIA1409ZZ
