Nissan Murano. Manual - part 9





ADP-28

< SYSTEM DESCRIPTION >

AUTOMATIC DRIVE POSITIONER SYSTEM

DETAIL FLOW

Order

Input

Output

Control unit condition

1

Door switch
(Driver side)

Driver seat control unit receives door switch signal (driver side/
open) from BCM via CAN communication.

2

Motors
(Seat sliding, tilt)

Driver seat control unit operates the seat sliding motor, which recog-
nizes that the driver side door is opened with ignition switch OFF.
Driver seat control unit then requests the operations of tilt motor to
auto drive positioner control unit via UART communication. The au-
tomatic drive positioner control unit operates each motor for a con-
stant amount.

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-29

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

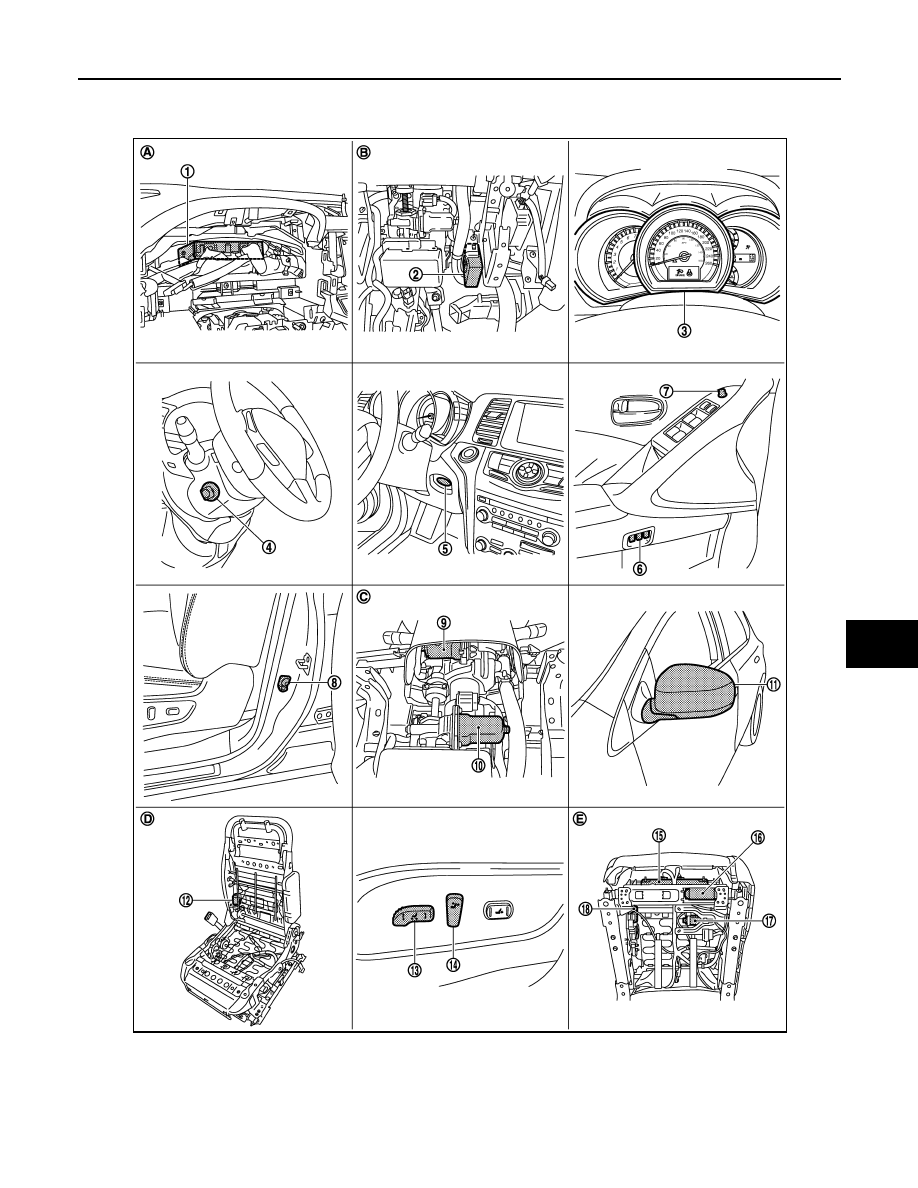

EXIT ASSIST FUNCTION : Component Parts Location

INFOID:0000000009720644

1.

BCM  M118,  M119,  M122,  M123

2.

Automatic drive positioner control unit
M75, M104

3.

Combination meter

4.

Tilt & telescopic switch M102

5.

Key slot M99

6.

Seat memory switch D13

7.

Door mirror remote control switch
D14

8.

Front door switch (driver side) B34

9.

Tilt motor  M116

JMJIA1409ZZ

ADP-30

< SYSTEM DESCRIPTION >

AUTOMATIC DRIVE POSITIONER SYSTEM

EXIT ASSIST FUNCTION : Component Description

INFOID:0000000009720645

CONTROL UNITS

INPUT PARTS

Switches

10. Telescopic motor M117

11.

Door mirror (driver side) D3

12. Reclining motor B461

13. Sliding, Lifting switch

(Power seat switch B459)

14. Reclining switch

(Power seat switch B459)

15. Driver seat control unit B451,B452

16. Sliding motor B461

17. Lifting motor (front) B455

18. Lifting motor (rear) B456

A.

Behind the combination meter

B.

View with instrument driver lower
panel removed

C.

View with instrument driver lower
panel removed

D.

View with seat cushion and seatback
pad removed

E.

Backside of the seat cushion

Item

Function

Driver seat control unit

• Main units of automatic drive positioner system
• It is connected to the CAN.
• It communicates with the automatic drive positioner control via UART communi-

cation.

Automatic drive positioner control unit

• It communicates with the driver seat control unit via UART communication.
• Perform various controls with the instructions of driver seat control unit.
• Perform the controls of the tilt & telescopic, door mirror switch.

BCM

Transmit the following status to the driver seat control unit via CAN communication.
• Driver door: OPEN/CLOSE
• Ignition switch position: ACC/ON
• Door lock: UNLOCK (with Intelligent Key or driver side door request switch oper-

ation)

• Key  ID
• Key switch: Insert/Pull out Intelligent Key
• Starter: CRANKING/OTHER
• Handle position : LHD

Combination meter / ABS

Transmit the vehicle speed signal to the driver seat control unit via CAN communi-
cation.

TCM

Transmit the shift position signal (P range) to the driver seat control unit via CAN
communication.

Item

Function

Key slot

The key switch is installed to detect the key inserted/removed status.

Front door switch (driver side)

Detect front door (driver side) open/close status.

CVT shift selector (detention switch)

Detect the P range position of selector lever.

Set switch

The registration and system setting can be performed with its operation.

Memory switch 1/2

The registration and operation can be performed with its operation.

Power seat switch

The following switch is installed.
• Reclining switch
• Lifting switch (front)
• Lifting switch (rear)
• Sliding switch
The specific parts can be operated with the operation of each switch.

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-31

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

Sensors

OUTPUT PARTS

ENTRY ASSIST FUNCTION

Tilt & telescopic switch

The following switch is installed.
• Tilt switch
• Telescopic switch
The specific parts can be operated with the operation of each switch.

Door mirror remote control switch

The following switch is installed.
• Mirror switch
• Changeover switch
The specific parts can be operated with the operation of each switch.

Item

Function

Item

Function

Door mirror sensor
(driver side/passenger side)

Detect the up/down and left/right position of outside mirror face.

Tilt and telescopic sensor

Detect the up/down and left/right position of steering column.

Lifting sensor (front)

Detect the up/down position of seat lifting (front).

Lifting sensor (rear)

Detect the up/down position of seat lifting (rear).

Reclining sensor

Detect the tilt of seatback.

Sliding sensor

Detect the front/rear position of seat.

Item

Function

Door mirror motor
(driver side/passenger side)

Move the outside mirror face upward/downward and leftward/rightward.

Tilt and telescopic motor

Move the steering column upward/downward and frontward/rearward.

Lifting motor (front)

Move the seat lifting (front) upward/downward.

Lifting motor (rear)

Move the seat lifting (rear) upward/downward.

Reclining motor

Tilt and raise up the seatback.

Sliding motor

Slide the seat frontward/rearward.

Memory indicator

Illuminates or flashes according to the registration/operation status.
