Nissan X-Trail 32. Manual - part 887





P0335 CKP SENSOR (POS)

EC-677

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

2.

CHECK CRANKSHAFT POSITION (CKP) SENSOR (POS) POWER SUPPLY

1.

Disconnect crankshaft position (CKP) sensor (POS) harness connector.

2.

Turn ignition switch ON.

3.

Check the voltage between CKP sensor (POS) harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

CHECK CKP SENSOR (POS) GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between CKP sensor (POS) harness connector and ECM harness connector.

4.

Also check harness for short to power.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace error-detected parts.

4.

CHECK CKP SENSOR (POS) INPUT SIGNAL CIRCUIT

1.

Check the continuity between CKP sensor (POS) harness connector and ECM harness connector.

2.

Also check harness for short to ground and to power.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace error-detected parts.

5.

CHECK CRANKSHAFT POSITION SENSOR (POS)

Check the crankshaft position sensor (POS). Refer to

EC-678, "Component Inspection (Crankshaft Position

sensor)"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace crankshaft position sensor (POS). Refer to

EM-247, "Exploded View"

.

6.

CHECK GEAR TOOTH

1.

Remove crankshaft position sensor (POS). Refer to

EM-247, "Exploded View"

.

+

Voltage

(Approx.)

CKP sensor (POS)

Connector

Terminal

F20

1

Ground

5 V

+

Continuity

CKP sensor (POS)

ECM

Connector

Terminal

Connector

Terminal

F20

2

F68

70

Existed

+

Continuity

CKP sensor (POS)

ECM

Connector

Terminal

Connector

Terminal

F20

3

F68

71

Existed

EC-678

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

P0335 CKP SENSOR (POS)

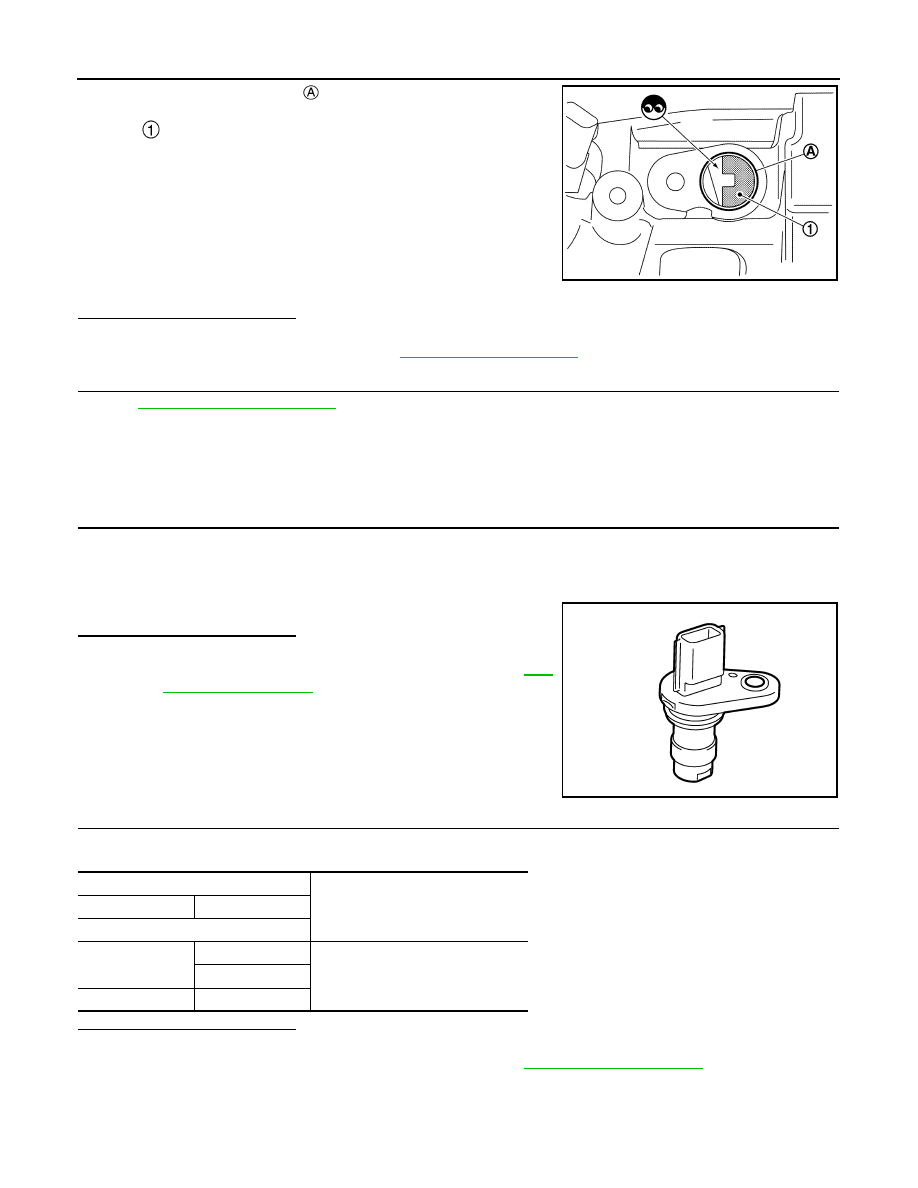

2.

Look into the mounting hole

 of the crankshaft position sensor

(POS) to check that there is no missing gear tooth in the signal

plate

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Replace the signal plate. Refer to

EM-247, "Exploded View"

.

7.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection (Crankshaft Position sensor)

INFOID:0000000010986368

1.

CHECK CRANKSHAFT POSITION SENSOR (POS)-1

1.

Turn ignition switch OFF.

2.

Loosen the fixing bolt of the sensor.

3.

Disconnect crankshaft position sensor (POS) harness connector.

4.

Remove the sensor.

5.

Visually check the sensor for chipping.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace crankshaft position sensor (POS). Refer to

EM-

247, "Exploded View"

.

2.

CHECK CRANKSHAFT POSITION SENSOR (POS)-2

Check the resistance between crankshaft position sensor (POS) terminals as per the following.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace crankshaft position sensor (POS). Refer to

EM-247, "Exploded View"

.

JPBIA4623ZZ

PBIA9209J

Crankshaft position sensor (POS)

Resistance [at 25

°

C (77

°

F)]

+

Terminal (Polarity)

1

2

Except 0 or



3

2

3

P0340 CMP SENSOR (PHASE)

EC-679

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0340 CMP SENSOR (PHASE)

DTC Description

INFOID:0000000010986369

DTC DETECTION LOGIC

POSSIBLE CAUSE

• Harness or connectors (Camshaft position sensor circuit is open or shorted.)
• Camshaft position sensor
• Camshaft (Intake)
• Starter motor
• Starting system circuit
• Dead (Weak) battery
• Sensor power supply 2 circuit

FAIL-SAFE

Not applicable

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure
before conducting the next test.
1.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5 V with igni-
tion switch ON.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE-1

1.

Start engine and let it idle for at least 5 seconds.
If engine does not start, crank engine for at least 2 seconds.

2.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Proceed to

EC-679, "Diagnosis Procedure"

.

NO

>> GO TO 3.

3.

PERFORM DTC CONFIRMATION PROCEDURE-2

1.

Maintaining engine speed at more than 800 rpm for at least 5 seconds.

2.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Proceed to

EC-679, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000010986370

1.

CHECK STARTING SYSTEM

Turn ignition switch to START position.

Does the engine turn over? Does the starter motor operate?

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

P0340

CMP SEN/CIRC-B1
(Camshaft position sensor

A

 circuit bank

1 or single sensor)

• The cylinder No. signal is not sent to ECM for the first few seconds during

engine cranking.

• The cylinder No. signal is not sent to ECM during engine running.
• The cylinder No. signal is not in the normal pattern during engine running.

EC-680

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

P0340 CMP SENSOR (PHASE)

YES

>> GO TO 2.

NO

>> Check starting system. Refer to

STR-19, "Work Flow"

.

2.

CHECK CAMSHAFT POSITION (CMP) SENSOR (PHASE) POWER SUPPLY

1.

Turn ignition switch OFF.

2.

Disconnect camshaft position (CMP) sensor (PHASE) harness connector.

3.

Turn ignition switch ON.

4.

Check the voltage between CMP sensor (PHASE) harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

CHECK SENSOR POWER SUPPLY 2 CIRCUIT

Perform

EC-794, "Diagnosis Procedure"

.

Is inspection result normal?

YES

>> Perform the trouble diagnosis for power supply circuit.

NO

>> Repair or replace error-detected parts.

4.

CHECK CMP SENSOR (PHASE) GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between CMP sensor (PHASE) harness connector and ECM harness connector.

4.

Also check harness for short to power.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace error-detected parts.

5.

CHECK CMP SENSOR (PHASE) INPUT SIGNAL CIRCUIT

1.

Disconnect ECM harness connector.

2.

Check the continuity between CMP sensor (PHASE) harness connector and ECM harness connector.

3.

Also check harness for short to ground and to power.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace error-detected parts.

6.

CHECK CAMSHAFT POSITION SENSOR (PHASE)

Check the camshaft position sensor (PHASE). Refer to

EC-681, "Component Inspection (Camshaft position

sensor)"

.

+

Voltage

(Approx.)

CMP sensor (PHASE)

Connector

Terminal

F105

1

Ground

5 V

+

Continuity

CMP sensor (PHASE)

ECM

Connector

Terminal

Connector

Terminal

F105

2

F85

30

Existed

+

Continuity

CMP sensor (PHASE)

ECM

Connector

Terminal

Connector

Terminal

F105

3

F85

31

Existed
