P0011 IVT CONTROL

EC-585

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Follow the procedure “With CONSULT” above.

Is 1st trip DTC detected?

YES

>> Proceed to

EC-585, "Diagnosis Procedure"

.

NO

>> GO TO 4.

4.

PERFORM DTC CONFIRMATION PROCEDURE-2

With CONSULT

1.

Maintain the following conditions for at least 20 consecutive seconds.

CAUTION:

Always drive at a safe speed.

2.

Check 1st trip DTC.

With GST

Follow the procedure “With CONSULT” above.
Is 1st trip DTC detected?

YES

>> Proceed to

EC-585, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000010986304

1.

CHECK DTC PRIORITY

If DTC P0011 is displayed with DTC P0075, first perform the trouble diagnosis for DTC P0075.
Is applicable DTC detected?

YES

>> Perform diagnosis of applicable. Refer to

EC-598, "DTC Description"

.

NO

>> GO TO 2.

2.

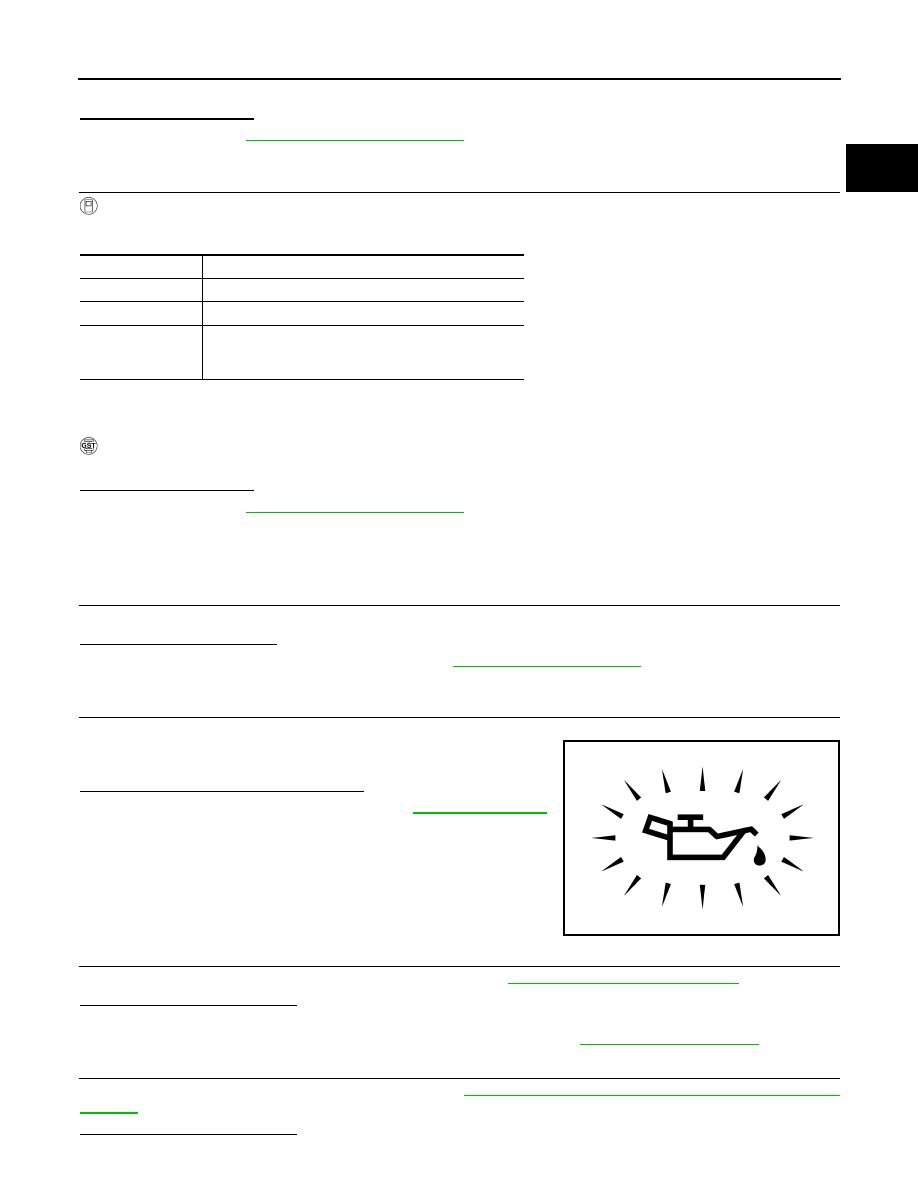

CHECK OIL PRESSURE WARNING LAMP

1.

Start engine.

2.

Check oil pressure warning lamp and confirm it is not illumi-
nated.

Is oil pressure warning lamp illuminated?

YES

>> Check the engine oil level. Refer to

LU-25, "Inspection"

.

NO

>> GO TO 3.

3.

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE

Check the intake valve timing control solenoid valve. Refer to

EC-586, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace intake valve timing control solenoid valve. Refer to

EM-210, "Exploded View"

.

4.

CHECK CRANKSHAFT POSITION SENSOR (POS)

Check the crankshaft position sensor (POS). Refer to

EC-678, "Component Inspection (Crankshaft Position

sensor)"

.

Is the inspection result normal?

ENG SPEED

1,200 - 3,175 rpm (A constant rotation is maintained.)

COOLAN TEMP/S

More than 70

°

C (158

°

F)

Selector lever

D position

Driving location

Driving vehicle uphill
(Increased engine load will help maintain the driving
conditions required for this test.)

PBIA8559J

EC-586

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

P0011 IVT CONTROL

YES

>> GO TO 5.

NO

>> Replace crankshaft position sensor (POS). Refer to

EM-247, "Exploded View"

.

5.

CHECK CAMSHAFT POSITION SENSOR (PHASE)

Check the camshaft position sensor (PHASE). Refer to

EC-681, "Component Inspection (Camshaft position

sensor)"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace camshaft position sensor (PHASE). Refer to

EM-221, "Exploded View"

.

6.

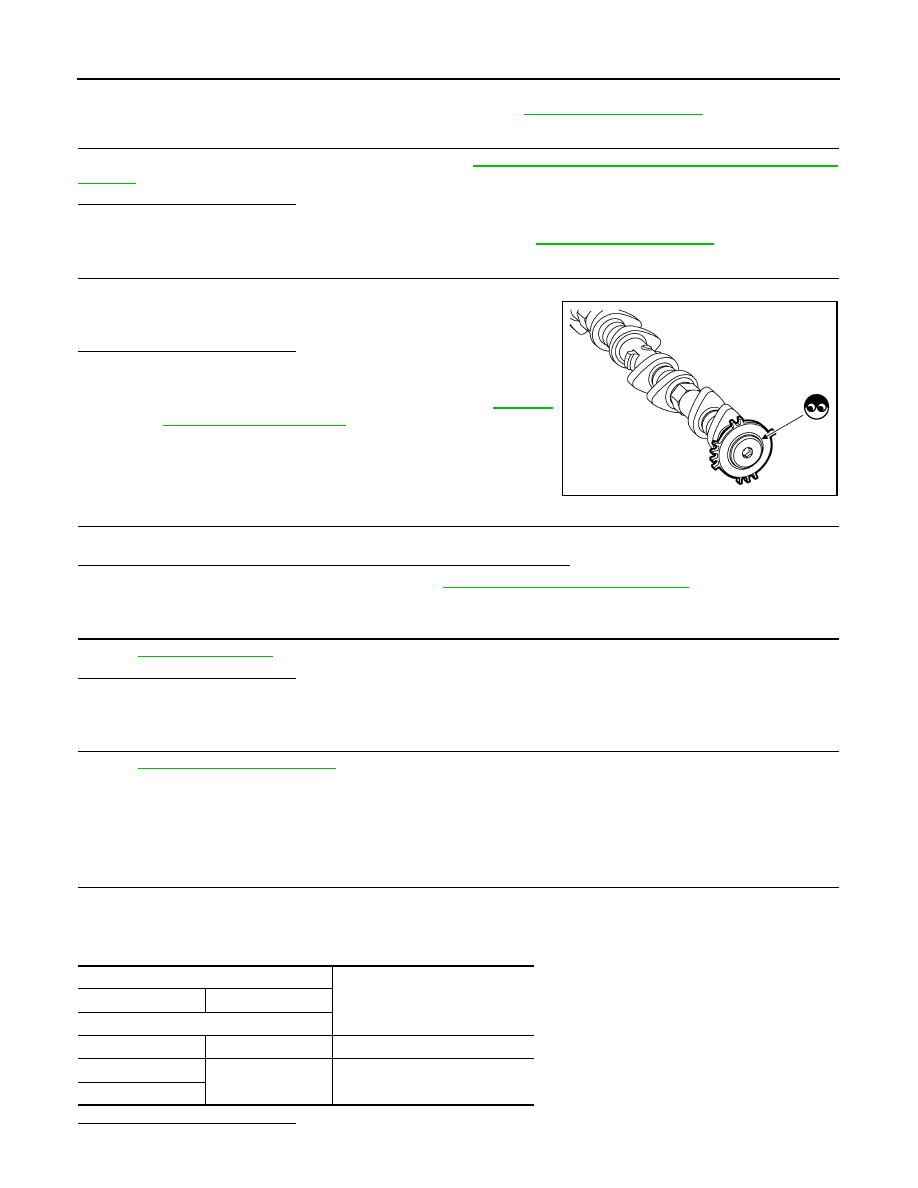

CHECK CAMSHAFT (INT)

Check the following.
• Accumulation of debris to the signal plate of camshaft rear end
• Chipping signal plate of camshaft rear end

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Remove debris and clean the signal plate of camshaft

rear end or replace camshaft. Refer to

EM-222,

"Removal and Installation"

.

7.

CHECK TIMING CHAIN INSTALLATION

Check service records for any recent repairs that may cause timing chain misaligned.
Are there any service records that may cause timing chain misaligned?

YES

>> Check timing chain installation. Refer to

EM-211, "Removal and Installation"

.

NO

>> GO TO 8.

8.

CHECK LUBRICATION CIRCUIT

Refer to

LU-25, "Inspection"

, “INSPECTION AFTER INSTALLATION”.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Clean lubrication line.

9.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000010986305

1.

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE-1

1.

Turn ignition switch OFF.

2.

Disconnect intake valve timing control solenoid valve harness connector.

3.

Check resistance between intake valve timing control solenoid valve terminals as per the following.

Is the inspection result normal?

JPBIA5855ZZ

Intake valve timing control solenoid valve

Resistance

+

−

Terminal

1

 2

6.7 - 7.7

Ω

 [at 20

°

C (68

°

F)]

1

Ground

∞



Ω

(Continuity should not exist)

2

P0011 IVT CONTROL

EC-587

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

YES

>> GO TO 2.

NO

>> Replace intake valve timing control solenoid valve. Refer to

EM-210, "Exploded View"

.

2.

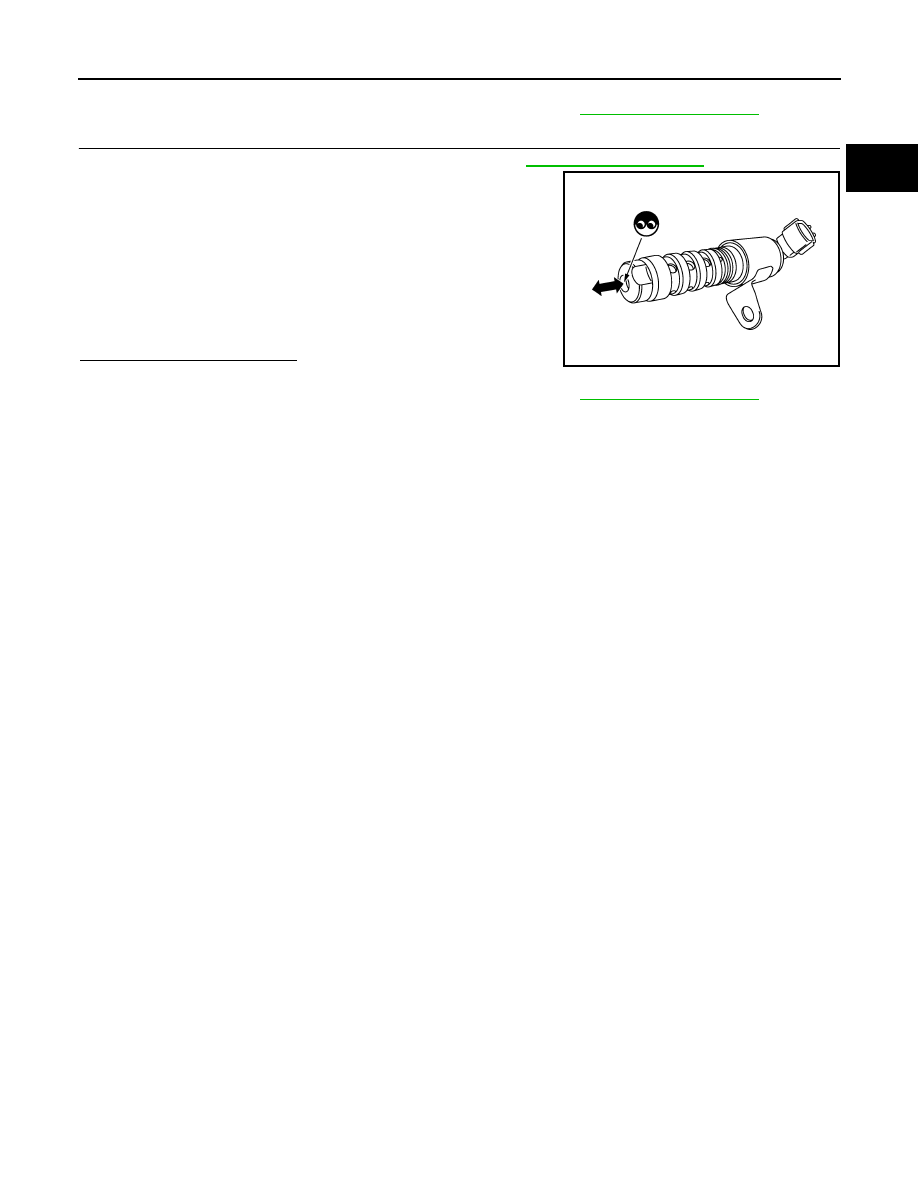

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE-2

1.

Remove intake valve timing control solenoid valve. Refer to

EM-210, "Exploded View"

.

2.

Provide 12 V DC between intake valve timing control solenoid
valve terminals 1 and 2, and then interrupt it. Make sure that the
plunger moves as shown in the figure.

CAUTION:

Do not apply 12 V DC continuously for 5 seconds or more.
Doing so may result in damage to the coil in intake valve
timing control solenoid valve.
NOTE:
Always replace O-ring when intake valve timing control
solenoid valve is removed.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace intake valve timing control solenoid valve. Refer to

EM-210, "Exploded View"

.

JMBIA2107ZZ

EC-588

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

P0014 EVT CONTROL

P0014 EVT CONTROL

DTC Description

INFOID:0000000010986306

DTC DETECTION LOGIC

POSSIBLE CAUSE

• Crankshaft position sensor (POS)
• Camshaft position sensor (PHASE)
• Exhaust valve timing control position sensor
• Exhaust valve control solenoid valve
• Accumulation of debris to the signal pick-up portion of the camshaft
• Timing chain installation
• Foreign matter caught in the oil groove for exhaust valve timing control

FAIL-SAFE

Device fix mode

DTC CONFIRMATION PROCEDURE

1.

CHECK DTC PRIORITY

If DTC P0014 is displayed with DTC P0078 or P1078, first perform the trouble diagnosis for DTC P0078 or
P1078.

Is applicable DTC detected?

YES

>> Perform diagnosis of applicable. Refer to

EC-517, "DTC Index"

.

NO

>> GO TO 2.

2.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure
before conducting the next test.
1.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10 V and 16 V at
idle.

>> GO TO 3.

3.

PERFORM DTC CONFIRMATION PROCEDURE-1

With CONSULT

1.

Turn ignition switch ON and select “DATA MONITOR” mode of “ENGINE” using CONSULT.

2.

Start engine and warm it up to the normal operating temperature.

3.

Maintain the following conditions for at least 6 consecutive seconds. Hold the accelerator pedal as steady
as possible.

4.

Let engine idle for 10 seconds.

5.

Check 1st trip DTC.

With GST

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

P0014

EXH/V TIM CONT-B1
(

″

B

″

 Camshaft position - timing over-ad-

vanced or system performance bank 1)

There is a gap between angle of target and phase-control angle degree.

ENG SPEED

1,200 - 2,000 rpm (A constant rotation is maintained.)

COOLAN TEMP/S

More than 60

°

C (140

°

F)

Selector lever

P or N position
