Nissan X-Trail 32. Manual - part 769





P0107, P0108 ATMOSPHERIC PRESSURE SENSOR

EC-205

< DTC/CIRCUIT DIAGNOSIS >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

4.

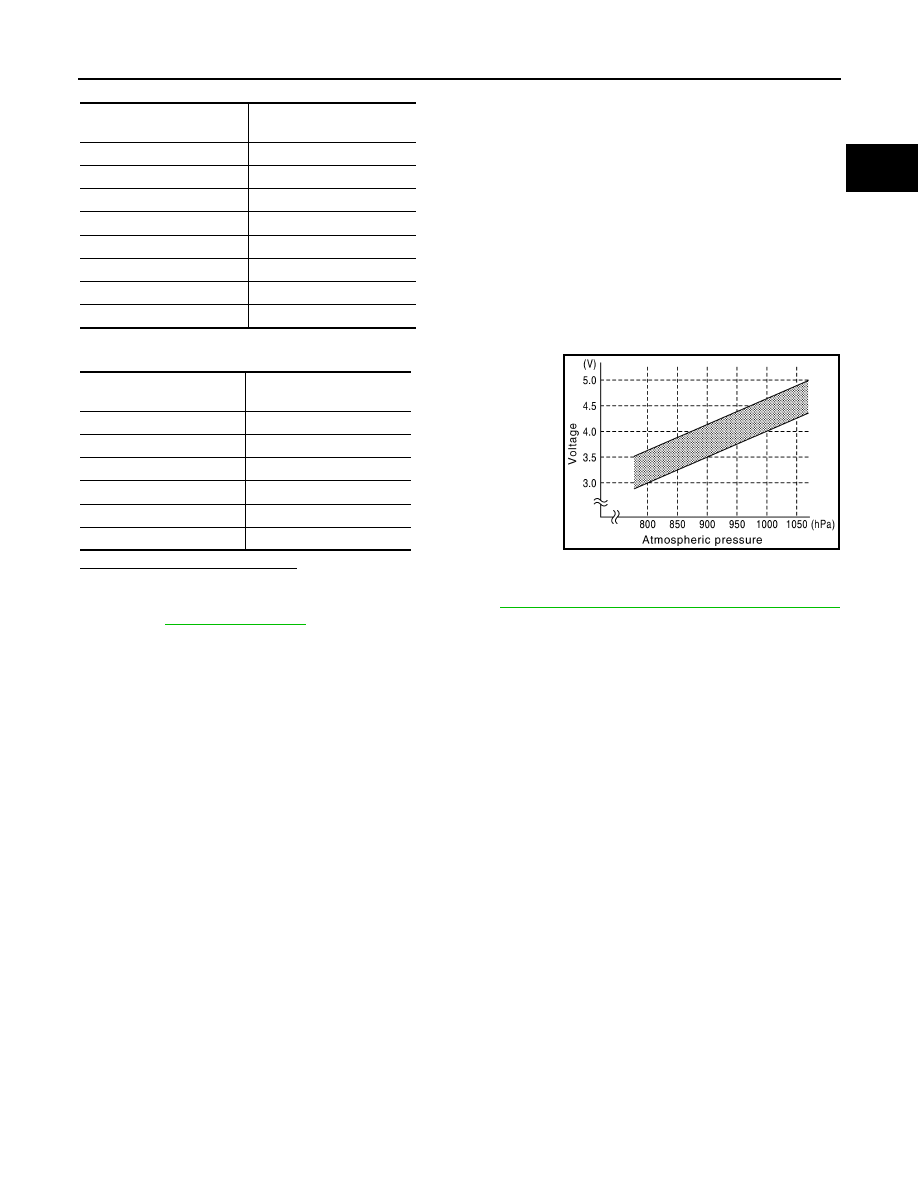

Check that the voltage is within a specified range as in the following chart.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace atmospheric pressure sensor. Refer to

EC-28, "ENGINE CONTROL SYSTEM : Compo-

nent Parts Location"

.

Altitude (m)

Compensated pressure

(hPa)

0

0

200

24

400

47

600

70

800

92

1,000

114

1,500

168

2,000

218

Atmospheric pressure

(hPa)

Voltage (V)

800

3.1 – 3.7

850

3.3 – 3.9

900

3.5 – 4.1

950

3.8 – 4.3

1,000

4.0 – 4.6

1,050

4.2 – 4.8

JMBIA0870GB

EC-206

< DTC/CIRCUIT DIAGNOSIS >

[MR20DD]

P0112, P0113 IAT SENSOR

P0112, P0113 IAT SENSOR

DTC Description

INFOID:0000000010775131

DTC DETECTION LOGIC

POSSIBLE CAUSE

• Harness or connectors (The intake air temperature sensor circuit is open or shorted.)
• Intake air temperature sensor

FAIL-SAFE

Not applicable

PERFORM DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON and wait at least 5 seconds.

2.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Proceed to

EC-206, "Diagnosis Procedure"

.

NO-1

>> To check malfunction symptom before repair: Refer to

GI-44, "Intermittent Incident"

.

NO-2

>> Confirmation after repair: INSPECTION END

Diagnosis Procedure

INFOID:0000000010775132

1.

CHECK INTAKE AIR TEMPERATURE SENSOR POWER SUPPLY

1.

Turn ignition switch OFF.

2.

Disconnect mass air flow (MAF) sensor (intake air temperature sensor is built-in) harness connector.

3.

Turn ignition switch ON.

4.

Check the voltage between MAF sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK INTAKE AIR TEMPERATURE SENSOR POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

P0112

IAT SEN/CIRCUIT-B1
(Intake air temperature sensor 1 circuit low
bank 1)

An excessively low voltage from the sensor is sent to ECM.

P0113

IAT SEN/CIRCUIT-B1
(Intake air temperature sensor 1 circuit high
bank 1)

An excessively high voltage from the sensor is sent to ECM.

+

Ground

Voltage

MAF sensor

Connector

Terminal

F30

2

Ground

Approx. 5 V

P0112, P0113 IAT SENSOR

EC-207

< DTC/CIRCUIT DIAGNOSIS >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

3.

Check the continuity between MAF sensor harness connector and ECM harness connector.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> Perform trouble diagnosis for power supply circuit.

NO

>> Repair or replace malfunctioning part.

3.

CHECK INTAKE AIR TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between MAF sensor harness connector and ECM harness connector.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace malfunctioning part.

4.

CHECK INTAKE AIR TEMPERATURE SENSOR

Refer to

EC-207, "Component Inspection"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace mass air flow (MAF) sensor (intake air temperature sensor is built-in). Refer to

EM-30,

"Exploded View"

.

Component Inspection

INFOID:0000000010775133

1.

CHECK INTAKE AIR TEMPERATURE SENSOR

1.

Turn ignition switch OFF.

2.

Disconnect mass air flow sensor harness connector.

3.

Check resistance between mass air flow sensor terminals as per the following.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace mass air flow sensor (intake air temperature sensor is built-in). Refer to

EM-30,

"Exploded View"

.

+

Continuity

MAF sensor

ECM

Connector

Terminal

Connector

Terminal

F30

2

F7

35

Existed

+

Continuity

MAF sensor

ECM

Connector

Terminal

Connector

Terminal

F30

1

F7

20

Existed

MAF sensor

Condition

Resistance

+

Terminal

1

2

Tempera-
ture [

°

C (

°

)]

25 (77)

1.80 - 2.20 k

EC-208

< DTC/CIRCUIT DIAGNOSIS >

[MR20DD]

P0117, P0118 ECT SENSOR

P0117, P0118 ECT SENSOR

DTC Description

INFOID:0000000010775134

DTC DETECTION LOGIC

POSSIBLE CAUSE

• Harness or connectors (The engine coolant temperature sensor circuit is open or shorted.)
• Engine coolant temperature sensor

FAIL-SAFE

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

>> GO TO 2.

2.

DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON and wait at least 5 seconds.

2.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Proceed to

EC-208, "Diagnosis Procedure"

.

NO-1

>> To check malfunction symptom before repair: Refer to

GI-44, "Intermittent Incident"

.

NO-2

>> Confirmation after repair: INSPECTION END

Diagnosis Procedure

INFOID:0000000010775135

1.

CHECK ENGINE COOLANT TEMPERATURE SENSOR POWER SUPPLY-1

1.

Turn ignition switch OFF.

2.

Disconnect engine coolant temperature (ECT) sensor harness connector.

3.

Turn ignition switch ON.

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

P0117

ECT SEN/CIRC
(Engine coolant temperature sensor 1 cir-
cuit low)

An excessively low voltage from the sensor is sent to ECM.

P0118

ECT SEN/CIRC
(Engine coolant temperature sensor 1 cir-
cuit high)

An excessively high voltage from the sensor is sent to ECM.

Engine operating condition in fail-safe mode

Fail safe mode

Vehicle behavior

Combustion
control mode

Stratified charge
combustion
control at start-
ing

No stratified charge combustion at starting (cold start).

Idle speed con-
trol

Stops feedback control of idle speed and controls with specified speed.

Recovery speed
control at decel-
erating

Stops recovery speed control by the fuel cut at decelerating and controls with specified speed.

Idle neutral con-
trol

Stops idle neutral control.

Others

Engine speed will not rise more than 1,800rpm due to the fuel cut.
