DIAGNOSIS SYSTEM (ECM)

EC-73

< SYSTEM DESCRIPTION >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Only one set of freeze frame data (either 1st trip freeze frame data or freeze frame data) can be stored in the
ECM. 1st trip freeze frame data is stored in the ECM memory along with the 1st trip DTC. There is no priority
for 1st trip freeze frame data and it is updated each time a different 1st trip DTC is detected. However, once
freeze frame data (2nd trip detection/MIL on) is stored in the ECM memory, 1st trip freeze frame data is no
longer stored. Remember, only one set of freeze frame data can be stored in the ECM. The ECM has the fol-
lowing priorities to update the data.

For example, the EGR malfunction (Priority: 2) was detected and the freeze frame data was saved in the 2nd
trip. After that when the misfire (Priority: 1) is detected in another trip, the freeze frame data will be updated
from the EGR malfunction to the misfire. The 1st trip freeze frame data is updated each time a different mal-
function is detected. There is no priority for 1st trip freeze frame data. However, once freeze frame data is
stored in the ECM memory, 1st trip freeze data is no longer stored (because only one freeze frame data or 1st
trip freeze frame data can be stored in the ECM). If freeze frame data is stored in the ECM memory and freeze
frame data with the same priority occurs later, the first (original) freeze frame data remains unchanged in the
ECM memory.
Both 1st trip freeze frame data and freeze frame data (along with the DTCs) are cleared when the ECM mem-
ory is erased.

DIAGNOSIS DESCRIPTION : Counter System

INFOID:0000000010775062

RELATIONSHIP BETWEEN MIL, 1ST TRIP DTC, DTC, AND DETECTABLE ITEMS

• When a malfunction is detected for the first time, the 1st trip DTC and the 1st trip freeze frame data are

stored in the ECM memory.

• When the same malfunction is detected in two consecutive trips, the DTC and the freeze frame data are

stored in the ECM memory, and the MIL will come on.

• The MIL will turn OFF after the vehicle is driven 3 times (driving pattern B) with no malfunction. The drive is

counted only when the recorded driving pattern is met (as stored in the ECM). If another malfunction occurs
while counting, the counter will reset.

• The DTC and the freeze frame data will be stored until the vehicle is driven 40 times (driving pattern A) with-

out the same malfunction recurring (except for Misfire and Fuel Injection System). For Misfire and Fuel Injec-
tion System, the DTC and freeze frame data will be stored until the vehicle is driven 80 times (driving pattern
C) without the same malfunction recurring. The “TIME” in “SELF-DIAGNOSTIC RESULTS” mode of CON-
SULT will count the number of times the vehicle is driven.

• The 1st trip DTC is not displayed when the self-diagnosis results in OK for the 2nd trip.

COUNTER SYSTEM CHART

For details about patterns B and C under “Fuel Injection System” and “Misfire”, see “EXPLANATION FOR
DRIVING PATTERNS FOR “MISFIRE <EXHAUST QUALITY DETERIORATION>”, “FUEL INJECTION SYS-
TEM”.
For details about patterns A and B under Other, see “EXPLANATION FOR DRIVING PATTERNS FOR “MIS-
FIRE <EXHAUST QUALITY DETERIORATION>”, “FUEL INJECTION SYSTEM”.
• *1: Clear timing is at the moment OK is detected.
• *2: Clear timing is when the same malfunction is detected in the 2nd trip.

Relationship Between MIL, DTC, 1st Trip DTC and Driving Patterns for “Misfire <Exhaust Quality De-
terioration>”, “Fuel Injection System”

Priority

Items

1

Freeze frame data

Misfire — DTC: P0300 – P0304
Fuel Injection System Function — DTC: P0171, P0172

2

Except the above items

3

1st trip freeze frame data

Items

Fuel Injection System

Misfire

Other

MIL (turns OFF)

3 (pattern B)

3 (pattern B)

3 (pattern B)

DTC, Freeze Frame Data (no display)

80 (pattern C)

80 (pattern C)

40 (pattern A)

1st Trip DTC (clear)

1 (pattern C), *1

1 (pattern C), *1

1 (pattern B)

1st Trip Freeze Frame Data (clear)

*1, *2

*1, *2

1 (pattern B)

EC-74

< SYSTEM DESCRIPTION >

[MR20DD]

DIAGNOSIS SYSTEM (ECM)

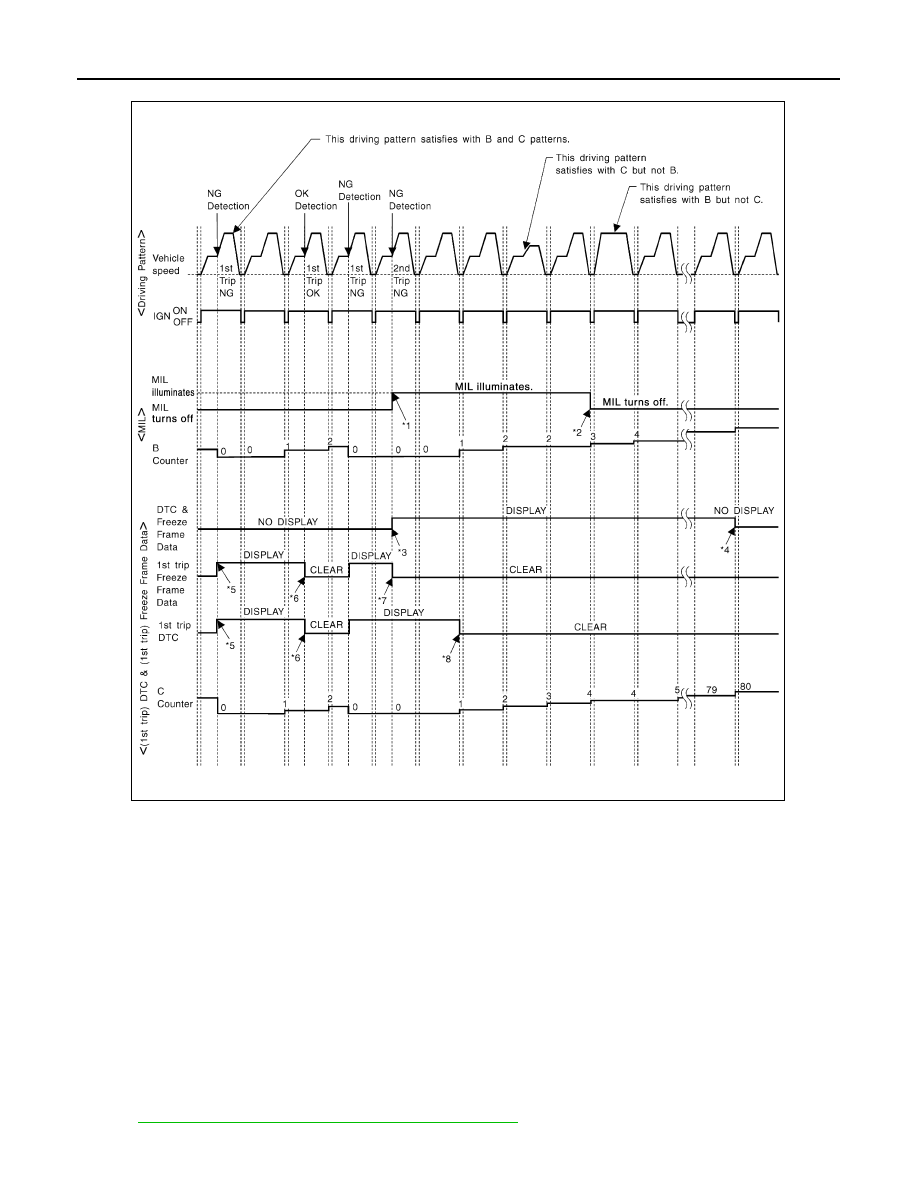

Explanation for Driving Patterns for “Misfire <Exhaust Quality Deterioration>”, “Fuel Injection System”

Driving Pattern B

Refer to

EC-76, "DIAGNOSIS DESCRIPTION : Driving Pattern"

.

*1: When the same malfunction is de-

tected in two consecutive trips, MIL
will light up.

*2: MIL will turn OFF after vehicle is driv-

en 3 times (pattern B) without any
malfunctions.

*3: When the same malfunction is de-

tected in two consecutive trips, the
DTC and the freeze frame data will be
stored in ECM.

*4: The DTC and the freeze frame data

will not be displayed any longer after
vehicle is driven 80 times (pattern C)
without the same malfunction. (The
DTC and the freeze frame data still
remain in ECM.)

*5: When a malfunction is detected for

the first time, the 1st trip DTC and the
1st trip freeze frame data will be
stored in ECM.

*6: The 1st trip DTC and the 1st trip

freeze frame data will be cleared at
the moment OK is detected.

*7: When the same malfunction is de-

tected in the 2nd trip, the 1st trip
freeze frame data will be cleared.

*8: 1st trip DTC will be cleared when ve-

hicle is driven once (pattern C) with-
out the same malfunction after DTC
is stored in ECM.

JMBIA1417GB

DIAGNOSIS SYSTEM (ECM)

EC-75

< SYSTEM DESCRIPTION >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Driving Pattern C

Refer to

EC-76, "DIAGNOSIS DESCRIPTION : Driving Pattern"

.

Example:
If the stored freeze frame data is as per the following:
Engine speed: 850 rpm, Calculated load value: 30%, Engine coolant temperature: 80

°

C (176

°

F)

To be satisfied with driving pattern C, the vehicle should run under the following conditions:
Engine speed: 475 – 1,225 rpm, Calculated load value: 27 – 33%, Engine coolant temperature: more than
70

°

C (158

°

F)

Relationship Between MIL, DTC, 1st Trip DTC and Driving Patterns Except For “Misfire <Exhaust
Quality Deterioration>”, “Fuel Injection System”

JMBIA1418GB

EC-76

< SYSTEM DESCRIPTION >

[MR20DD]

DIAGNOSIS SYSTEM (ECM)

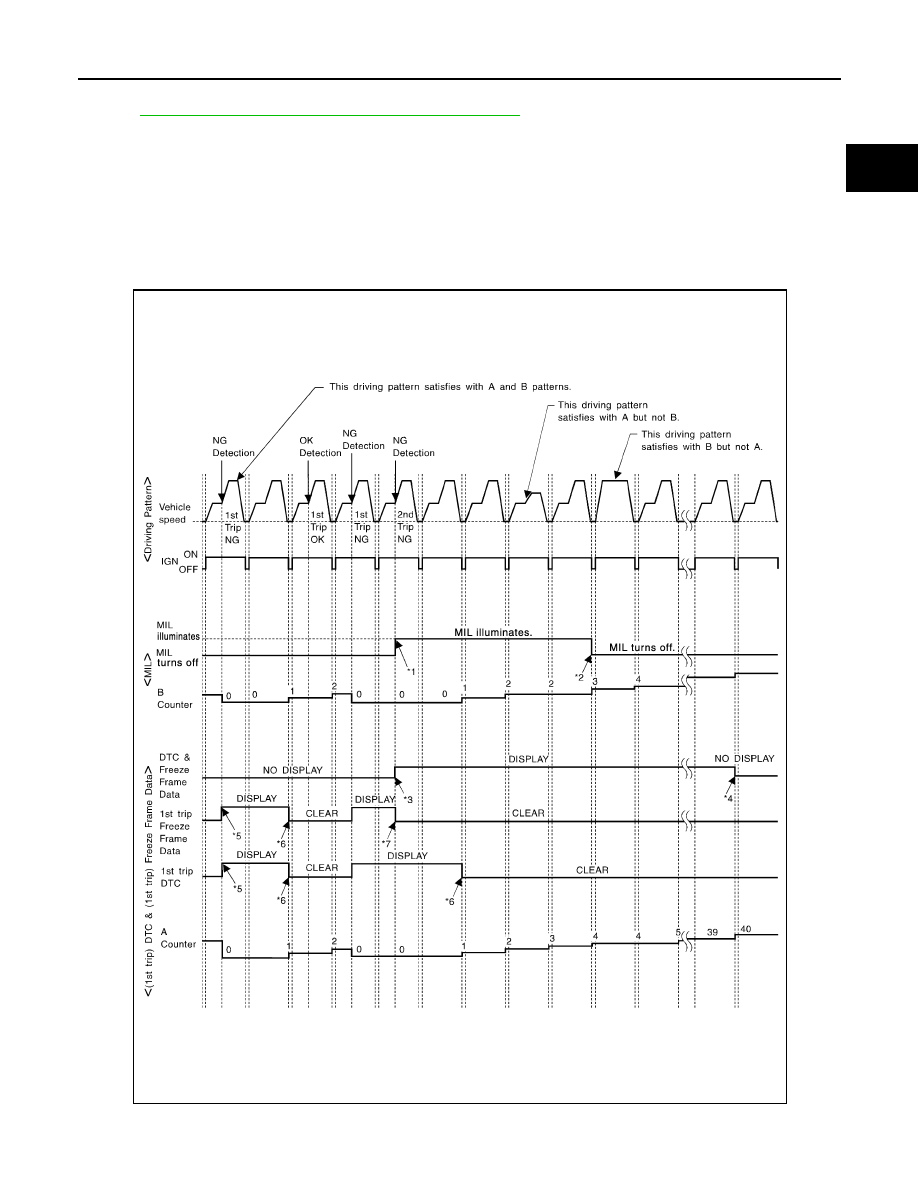

Explanation for Driving Patterns Except for “Misfire <Exhaust Quality Deterioration>”, “Fuel Injection
System”

Driving Pattern A

Refer to

EC-76, "DIAGNOSIS DESCRIPTION : Driving Pattern"

.

Driving Pattern B

Refer to

EC-76, "DIAGNOSIS DESCRIPTION : Driving Pattern"

.

DIAGNOSIS DESCRIPTION : Driving Pattern

INFOID:0000000010775063

CAUTION:

Always drive at a safe speed.

DRIVING PATTERN A

Driving pattern A means a trip satisfying the following conditions.
• Engine speed reaches 400 rpm or more.
• Engine coolant temperature rises by 20

°

C (36

°

F) or more after starting the engine.

• Engine coolant temperature reaches 70

°

C (158

°

F) or more.

• The ignition switch is turned from ON to OFF.
NOTE:
• When the same malfunction is detected regardless of driving conditions, reset the counter of driving pattern

A.

• When the above conditions are satisfied without detecting the same malfunction, reset the counter of driving

pattern A.

DRIVING PATTERN B

Driving pattern B means a trip satisfying the following conditions.
• Engine speed reaches 400 rpm or more.
• Engine coolant temperature reaches 70

°

C (158

°

F) or more.

• Vehicle speed of 70 – 120 km/h (44 – 75 MPH) is maintained for 60 seconds or more under the control of

closed loop.

• Vehicle speed of 30 – 60 km/h (19 – 37 MPH) is maintained for 10 seconds or more under the control of

closed loop.

• Under the closed loop control condition, the following state reaches 12 seconds or more in total: Vehicle

speed of 4 km/h (2 MPH) or less with idling condition.

• The state of driving at 10 km/h (7 MPH) or more reaches 10 minutes or more in total.
• A lapse of 22 minutes or more after engine start.
NOTE:
• Drive the vehicle at a constant velocity.
• When the same malfunction is detected regardless of driving conditions, reset the counter of driving pattern

B.

• When the above conditions are satisfied without detecting the same malfunction, reset the counter of driving

pattern B.

DRIVING PATTERN C

Driving pattern C means operating vehicle as per the following:
The following conditions should be satisfied at the same time:
Engine speed: (Engine speed in the freeze frame data)

±

375 rpm

*1: When the same malfunction is de-

tected in two consecutive trips, MIL
will light up.

*2: MIL will turn OFF after vehicle is driv-

en 3 times (pattern B) without any
malfunctions.

*3: When the same malfunction is de-

tected in two consecutive trips, the
DTC and the freeze frame data will be
stored in ECM.

*4: The DTC and the freeze frame data

will not be displayed any longer after
vehicle is driven 40 times (pattern A)
without the same malfunction.
(The DTC and the freeze frame data
still remain in ECM.)

*5: When a malfunction is detected for

the first time, the 1st trip DTC and the
1st trip freeze frame data will be
stored in ECM.

*6: 1st trip DTC will be cleared after vehi-

cle is driven once (pattern B) without
the same malfunction.

*7: When the same malfunction is de-

tected in the 2nd trip, the 1st trip
freeze frame data will be cleared.
