DMS-16

< DTC/CIRCUIT DIAGNOSIS >

[ECO MODE]

ECO MODE SWITCH

5.

CHECK CIRCUIT BETWEEN COMBINATION METER AND ECO MODE SWITCH

1.

Disconnect combination meter connector M43.

2.

Check the continuity between combination meter harness connector terminal and ECO mode switch har-
ness connector terminal.

3.

Also check harness for short to ground.

Is the inspection result normal?

YES

>> GO TO 11.

NO

>> Repair or replace malfunctioning parts.

6.

CHECK GROUND CIRCUIT

1.

Turn OFF the headlamp.

2.

Turn ignition switch OFF.

3.

Check continuity between ECO mode switch harness connector terminal and ground.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

NO

>> Repair or replace malfunctioning parts.

7.

CHECK ECO MODE SWITCH CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect ECO mode switch connector.

3.

Turn ignition switch ON.

4.

Check voltage between ECO mode switch harness connector terminals.

Is the inspection result normal?

YES

>> GO TO 12.

NO

>> GO TO 8.

8.

CHECK GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Check the continuity between ECO mode switch harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Repair or replace malfunctioning parts.

9.

CHECK CIRCUIT BETWEEN COMBINATION METER AND ECO MODE SWITCH (PART 1)

1.

Disconnect combination meter harness connector M34.

Combination meter

ECO mode switch

Continuity

Connector

Terminal

Connector

Terminal

M42

43

M9

3

Existed

ECO mode switch

—

Continuity

Connector

Terminal

M9

4

Ground

Existed

ECO mode switch

Voltage

(Approx.)

Connector

+

−

Terminal

M9

1

2

10 V

ECO mode switch

—

Continuity

Connector

Terminal

M9

2

Ground

Existed

DMS

ECO MODE SWITCH

DMS-17

< DTC/CIRCUIT DIAGNOSIS >

[ECO MODE]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

2.

Check continuity between combination meter harness connector terminal and ECO mode switch harness
connector terminal.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> Repair or replace malfunctioning parts.

10.

CHECK CIRCUIT BETWEEN COMBINATION METER AND ECO MODE SWITCH (PART 2)

Check continuity between combination meter harness connector terminal and ground.

Is the inspection result normal?

YES

>> GO TO 11.

NO

>> Repair or replace malfunctioning parts.

11.

CHECK COMBINATION METER INPUT/OUTPUT SIGNAL

1.

Connect all of disconnected connectors.

2.

Check input/output signal of combination meter. Refer to

MWI-93, "Reference Value"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

NO

>> Replace combination meter. Refer to

MWI-151, "Removal and Installation"

.

12.

CHECK ECO MODE SWITCH

Check ECO mode switch. Refer to

DMS-17, "Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

NO

>> Replace ECO mode switch. Refer to

MWI-151, "Removal and Installation"

.

Component Inspection

INFOID:0000000010623754

1.

CHECK ECO MODE SWITCH

Check continuity between ECO mode switch connector terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace ECO mode switch. Refer to

DMS-19, "Removal and Installation"

.

Combination meter

ECO mode switch

Continuity

Connector

Terminal

Connector

Terminal

M34

9

M9

1

Existed

Combination meter

—

Continuity

Connector

Terminal

M34

9

Ground

Not existed

ECO mode switch

Condition

Continuity

Terminal

1 – 2

ECO mode switch is depressed.

Existed

ECO mode switch is released.

Not existed

DMS-18

< SYMPTOM DIAGNOSIS >

[ECO MODE]

THE ECO MODE INDICATOR DOES NOT TURN ON

SYMPTOM DIAGNOSIS

THE ECO MODE INDICATOR DOES NOT TURN ON

Description

INFOID:0000000010623755

The ECO mode indicator does not turn ON when the ECO mode switch is operated.

Diagnosis Procedure

INFOID:0000000010623756

1.

PERFORM COMBINATION METER ON BOARD DIAGNOSIS

Perform combination meter on board diagnosis and check ECO mode indicator is turns ON. Refer to

MWI-84,

"On Board Diagnosis Function"

.

Is the check result normal?

YES

>> GO TO 2.

NO

>> Replace combination meter. Refer to

MWI-151, "Removal and Installation"

.

2.

CHECK DTC (TCM)

With CONSULT

1.

Start the engine.

2.

Check “Self Diagnostic Results” in “TRANSMISSION”.

Is any DTC detected?

YES

>> Check DTC detected item. Refer to

TM-288, "DTC Index"

 (except for R9M),

TM-529, "DTC Index"

(R9M).

NO

>> GO TO 3.

3.

CHECK DTC (ECM)

With CONSULT

Check “Self Diagnostic Results” in “ENGINE”.

Is any DTC detected?

YES

>> Check DTC detected item. Refer to

EC-109, "DTC Index"

 (MR20DD),

EC-517, "DTC Index"

(QR25DE),

EC-908, "DTC Index"

 (R9M).

NO

>> GO TO 4.

4.

CHECK DTC (COMBINATION METER)

With CONSULT

Check “Self Diagnostic Results” in “METER/M&A”.

Is any DTC detected?

YES

>> Check DTC detected item. Refer to

MWI-105, "DTC Index"

.

NO

>> GO TO 5.

5.

CHECK COMBINATION METER INPUT/OUTPUT SIGNAL

With CONSULT

1.

Select “Data Monitor” in “METER/M&A”.

2.

Select “ECO MODE IND”.

3.

Check that “ECO MODE IND” turns ON/OFF when ECO mode switch is operated. Refer to

MWI-93, "Ref-

erence Value"

.

Is any DTC detected?

YES

>> Replace combination meter. Refer to

MWI-151, "Removal and Installation"

.

NO

>> GO TO 6.

6.

CHECK ECO MODE SWITCH CIRCUIT

Check ECO mode switch circuit. Refer to

DMS-15, "Diagnosis Procedure"

.

Is the check result normal?

YES

>> INSPECTION END

NO

>> Repair or replace malfunctioning parts.

DMS

ECO MODE SWITCH

DMS-19

< REMOVAL AND INSTALLATION >

[ECO MODE]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

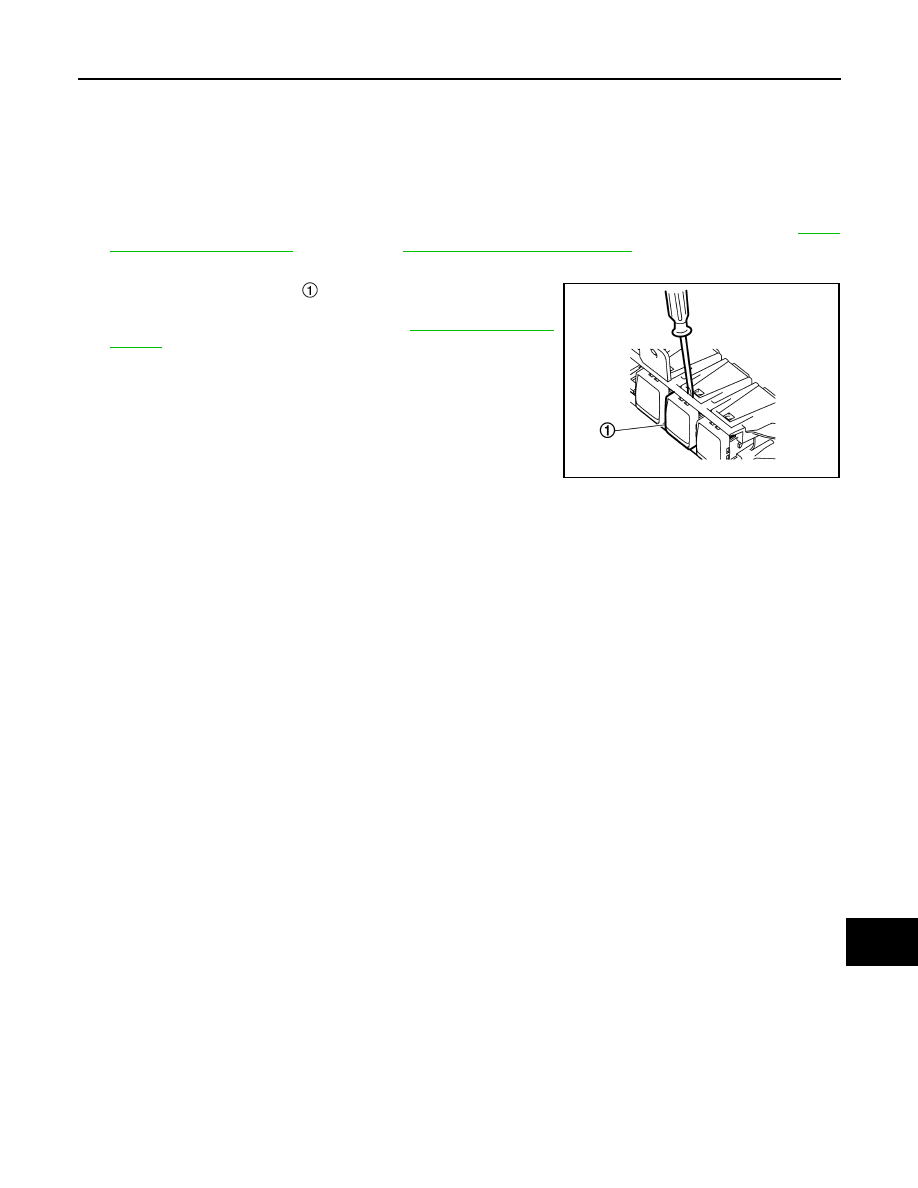

REMOVAL AND INSTALLATION

ECO MODE SWITCH

Removal and Installation

INFOID:0000000010623757

REMOVAL

1.

Remove instrument lower panel (driver side) or instrument lower panel RH (for Australia). Refer to

IP-14,

"Removal and Installation"

 (LHD models),

IP-41, "Removal and Installation"

 (RHD models).

2.

Remove switch bracket from instrument lower panel.

3.

Remove ECO mode switch

 from switch bracket.

NOTE:
For design of ECO mode switch, refer to

DMS-6, "ECO Mode

Switch"

.

INSTALLATION

Install in the reverse order of removal.

JSOIA1375ZZ
