Nissan X-Trail 32. Manual - part 715

DMS-8

< SYSTEM DESCRIPTION >

[ECO MODE]

SYSTEM

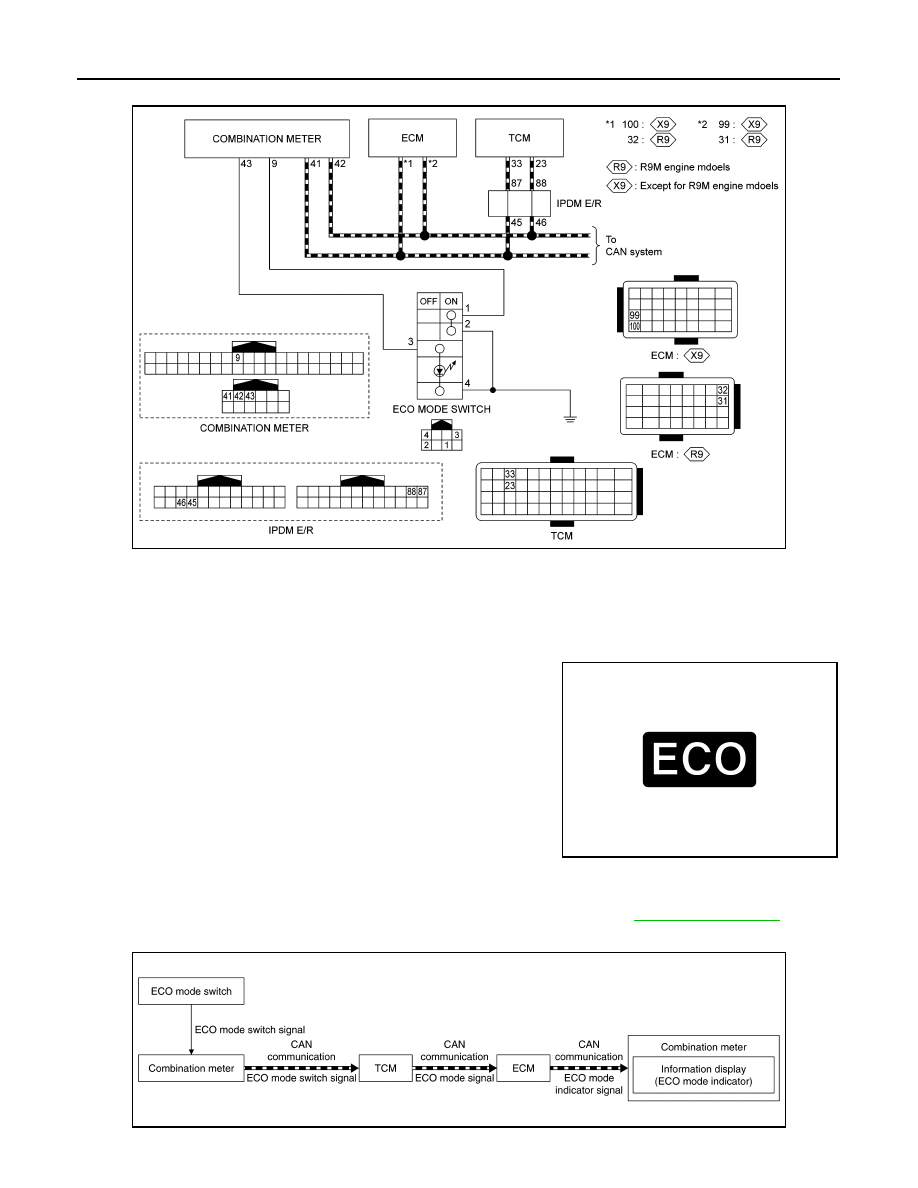

ECO MODE CONTROL : Circuit Diagram

INFOID:0000000010623745

INFORMATION DISPLAY (COMBINATION METER)

INFORMATION DISPLAY (COMBINATION METER) : ECO Mode Indicator

INFOID:0000000010623746

DESIGN/PURPOSE

The ECO mode indicator informs the driver that the vehicle is in ECO
mode.

OPERATION AT COMBINATION METER CAN COMMUNICATION CUT-OFF OR UNUSUAL SIG-
NAL

For actions on CAN communications blackout in the combination meter, refer to

MWI-103, "Fail-Safe"

SYSTEM DIAGRAM

JSOIA1673GB

JPNIA1941ZZ

JSDIA5610GB

DMS

SYSTEM

DMS-9

< SYSTEM DESCRIPTION >

[ECO MODE]

SIGNAL PATH

• TCM receives ECO mode switch signal (ON/OFF) from combination meter via CAN communication. Based

on the signal, TCM transmits ECO mode signal to ECM via CAN communication.

• ECM transmits ECO mode indicator signal to combination meter via CAN communication. Based on the sig-

nal, combination meter illuminates ECO mode indicator.

LIGHTING CONDITION

When all of the following conditions are satisfied.
• Ignition switch: ON
• The ECO mode switch is pressed when the ECO mode indicator is OFF
NOTE:
When the ignition switch is turned ON while the ECO mode indicator stays ON, the ECO mode indicator auto-
matically turns ON at the next ignition switch ON.

SHUTOFF CONDITION

When any of the condition listed below is satisfied.
• Ignition switch: Other than ON
• The ECO mode switch is pressed when the ECO mode indicator is ON.

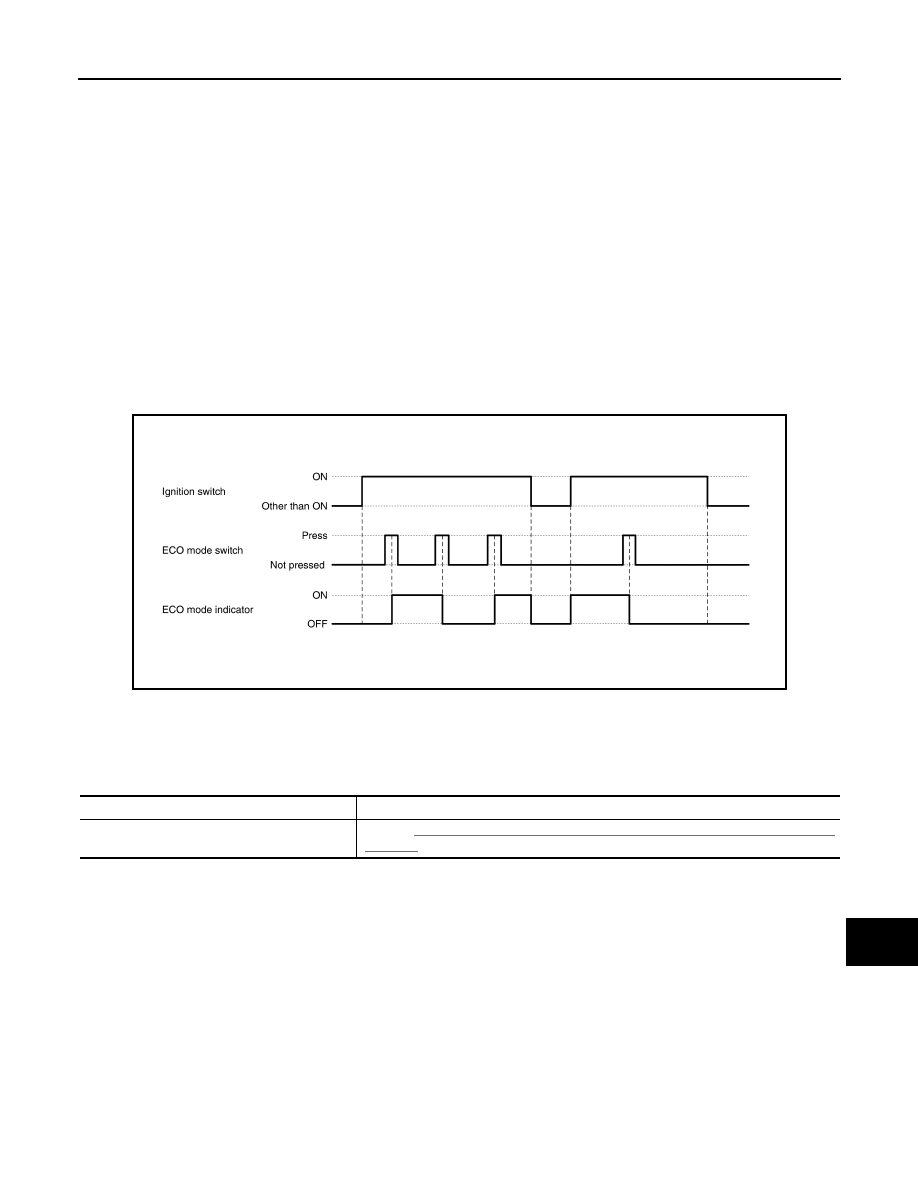

TIMING CHART

WARNING/INDICATOR/CHIME LIST

WARNING/INDICATOR/CHIME LIST : Warning/Indicator (On Information Display)

INFOID:0000000010623748

JSDIA5609GB

Item

Reference

ECO mode indicator

Refer to

DMS-8, "INFORMATION DISPLAY (COMBINATION METER) : ECO Mode

Indicator"
